Fuse Block: Locations




Engine Room R/B, Engine Room J/B - Engine Compartment Left:




Engine Room R/B, Engine Room J/B - Engine Compartment Left:




Engine Room R/B No.2 - Right Side Of Reserve Tank:




Fusible Link Block - Luggage Room Right:




Driver Side J/B - Lower Finish Panel:




Driver Side J/B - Lower Finish Panel:




Details

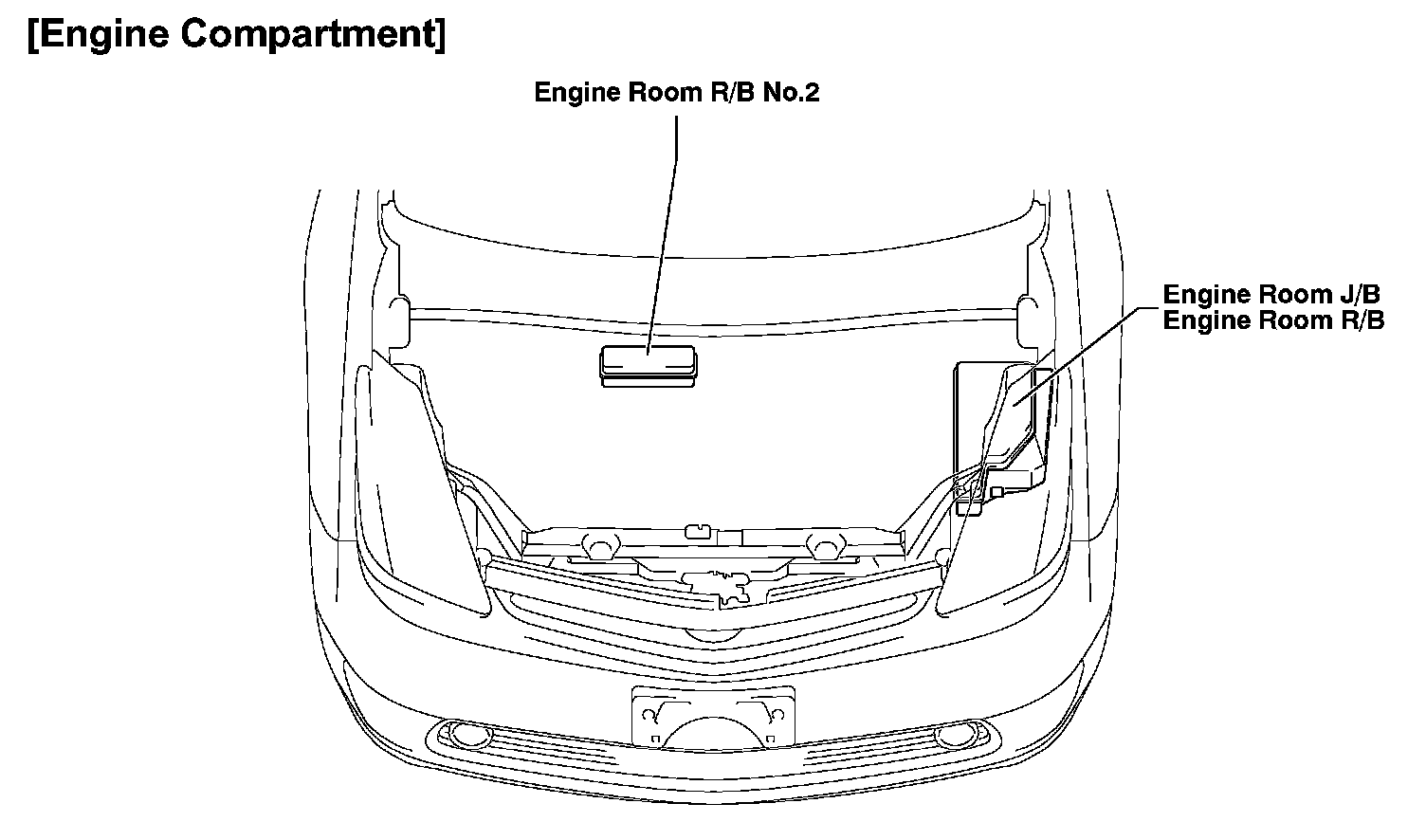

Engine Compartment:




Instrument Panel:

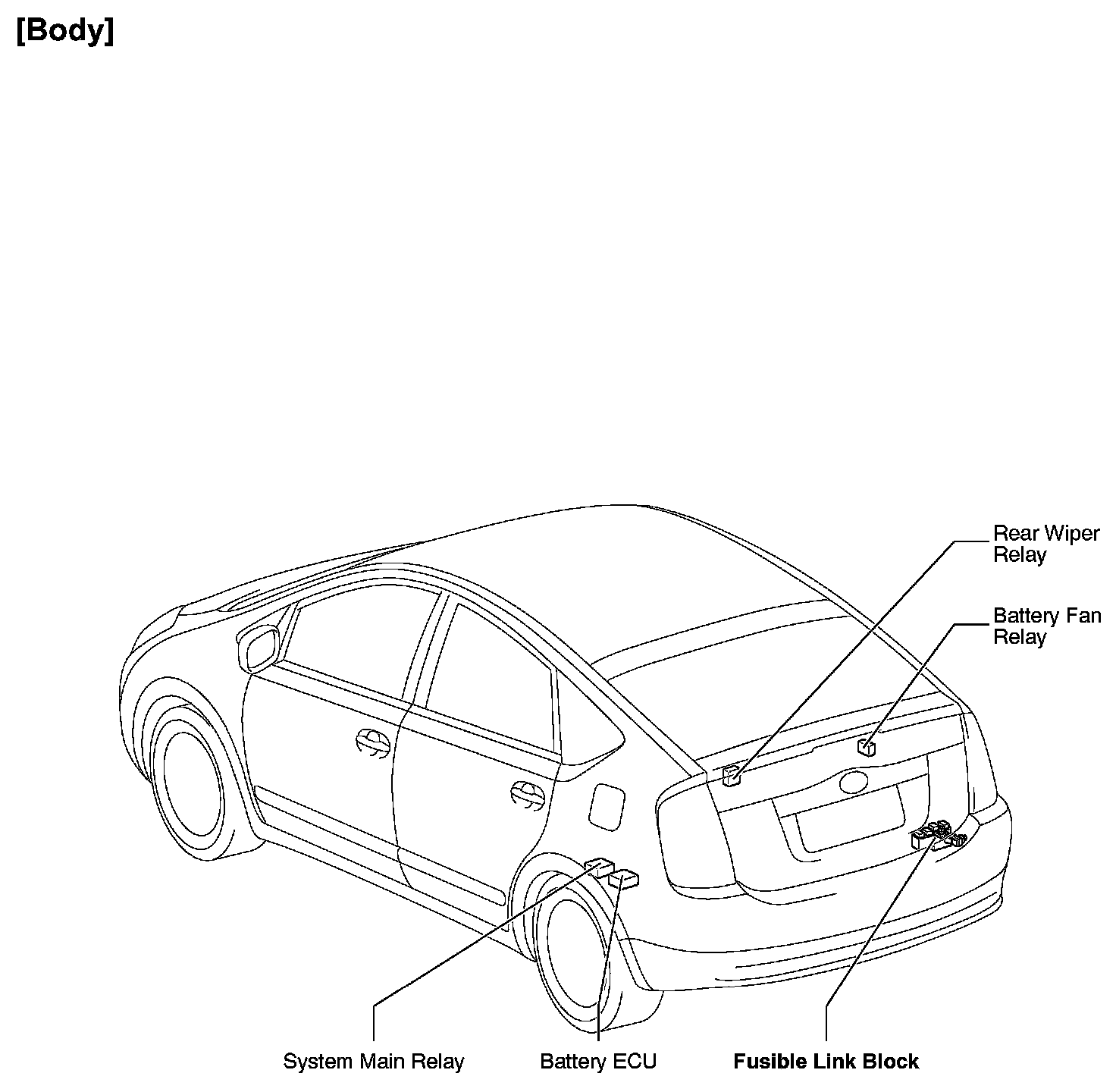

Body:




Locations
