Check CAN Bus Line For Short Circuit
CHECK CAN BUS LINES FOR SHORT CIRCUIT CIRCUIT DESCRIPTION There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is below
54 Ohms.

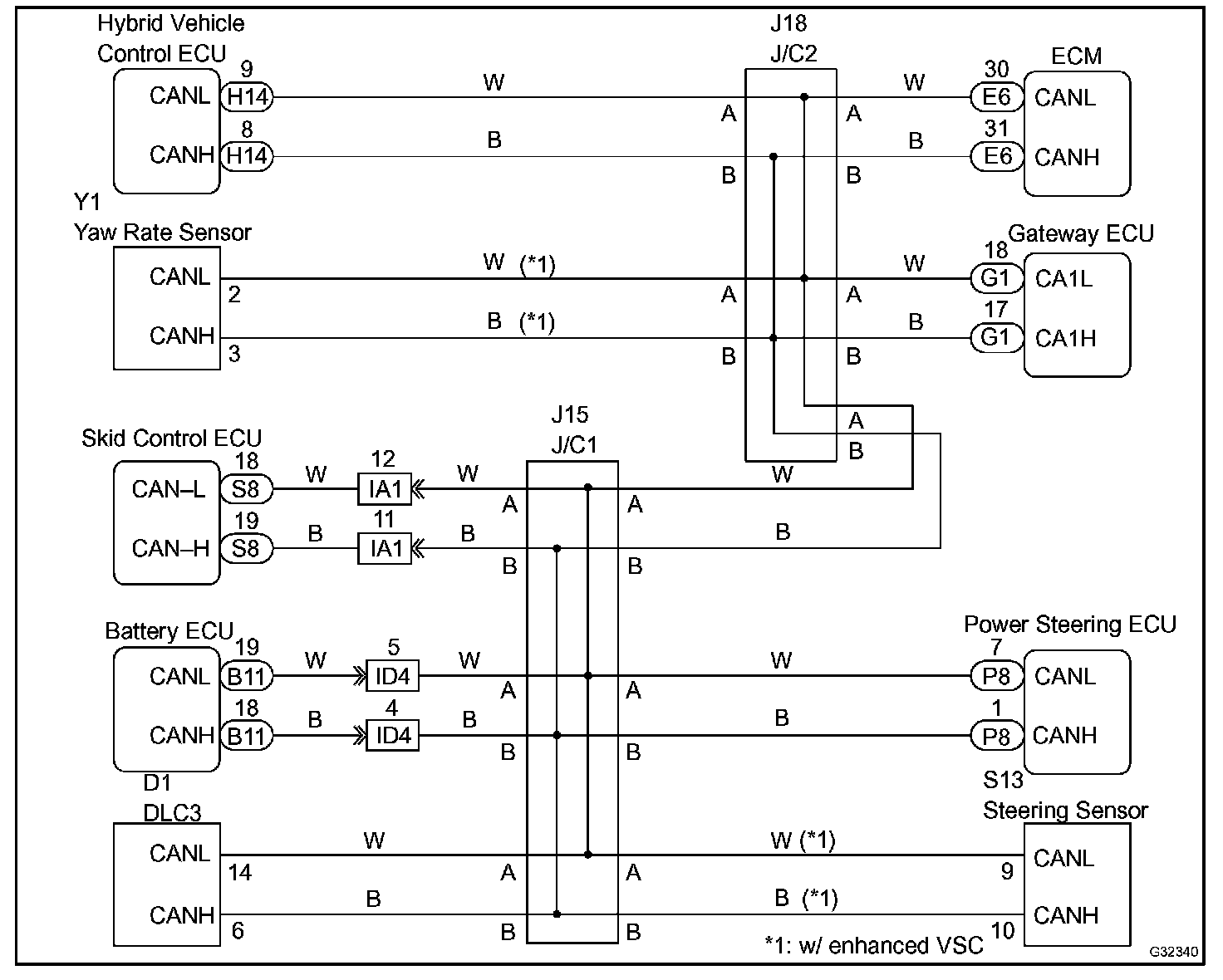

Wiring Diagram:

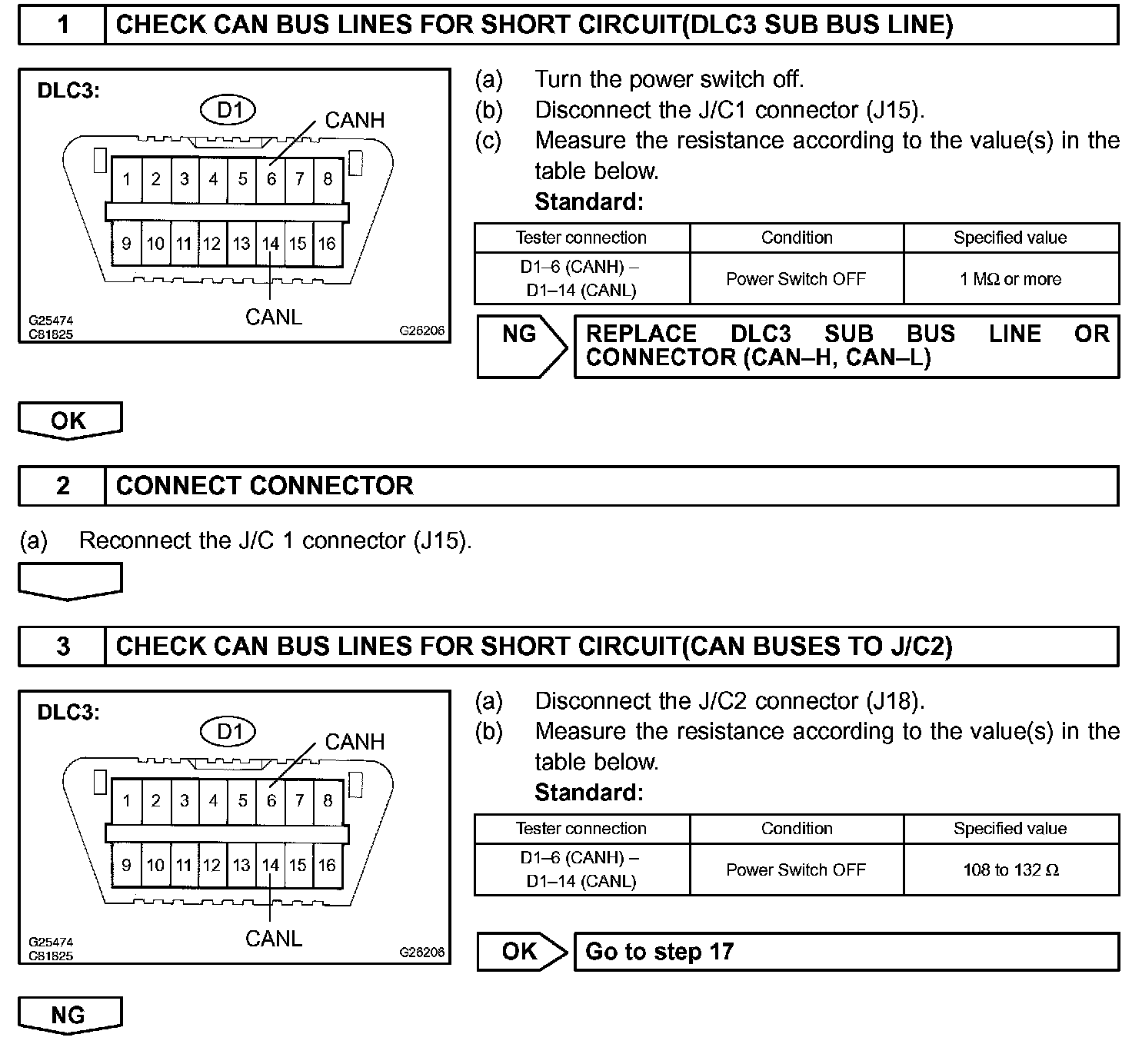

Step 1 - 3:

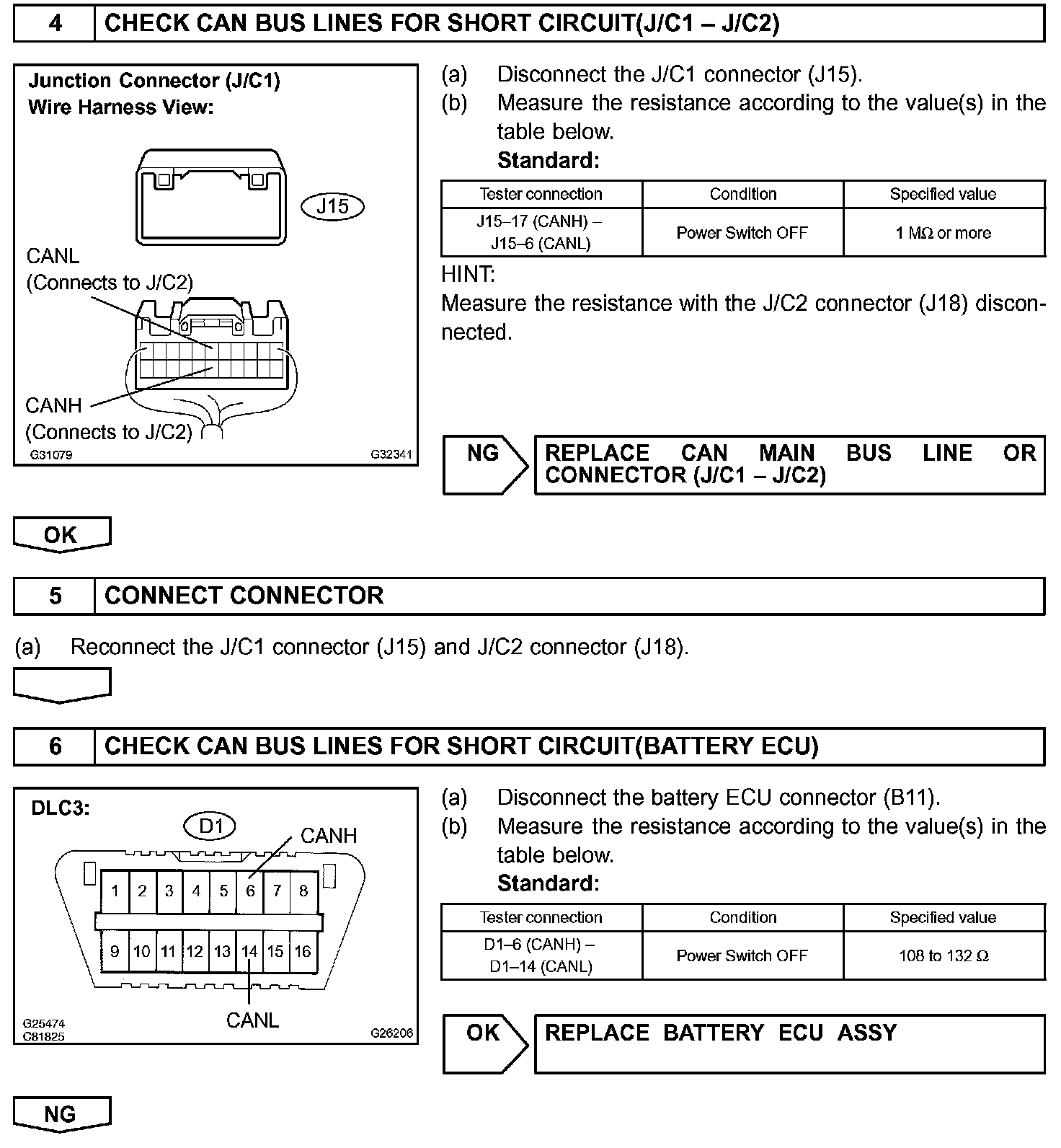

Step 4 - 6:

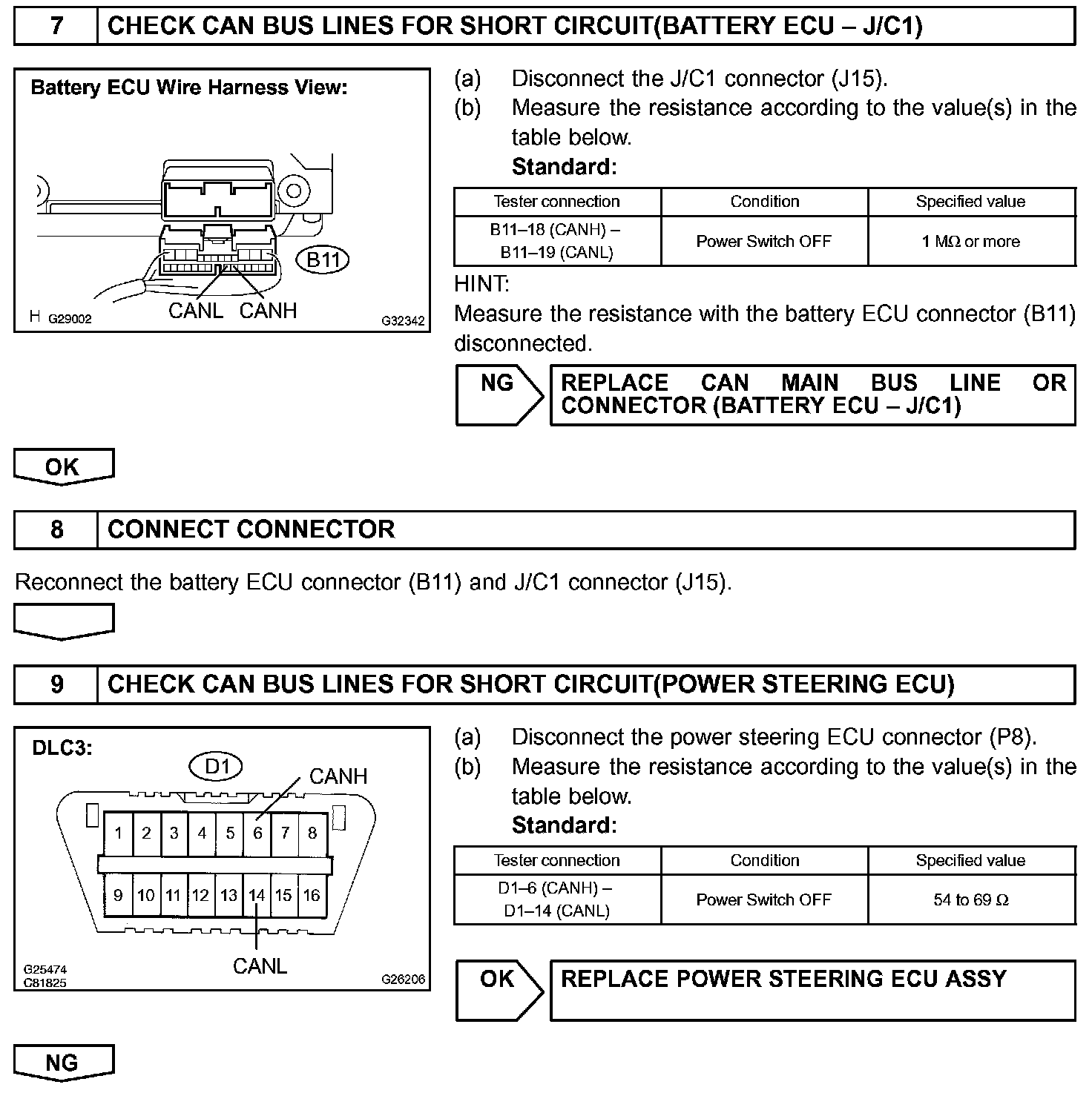

Step 7 - 9:

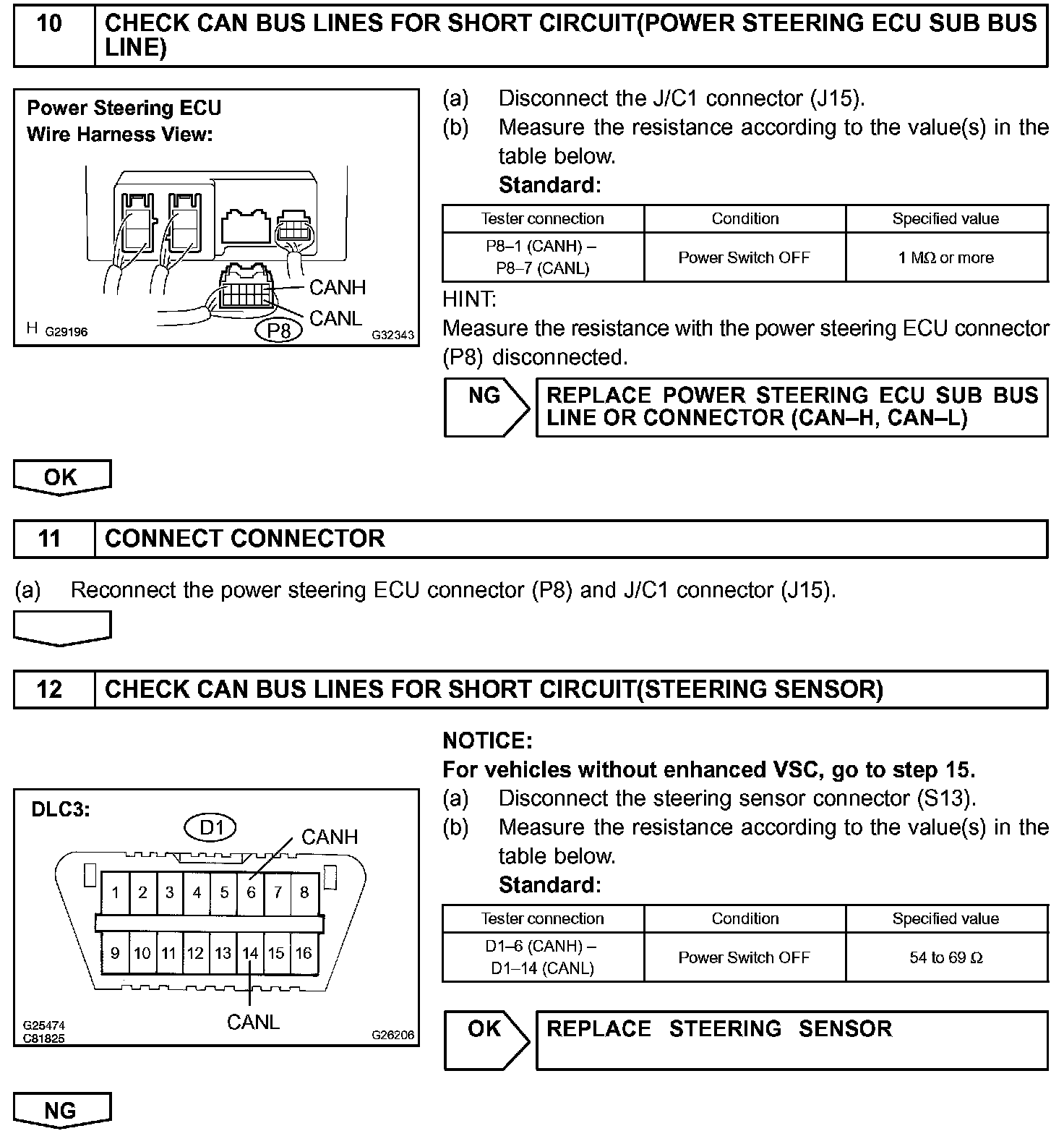

Step 10 - 12:

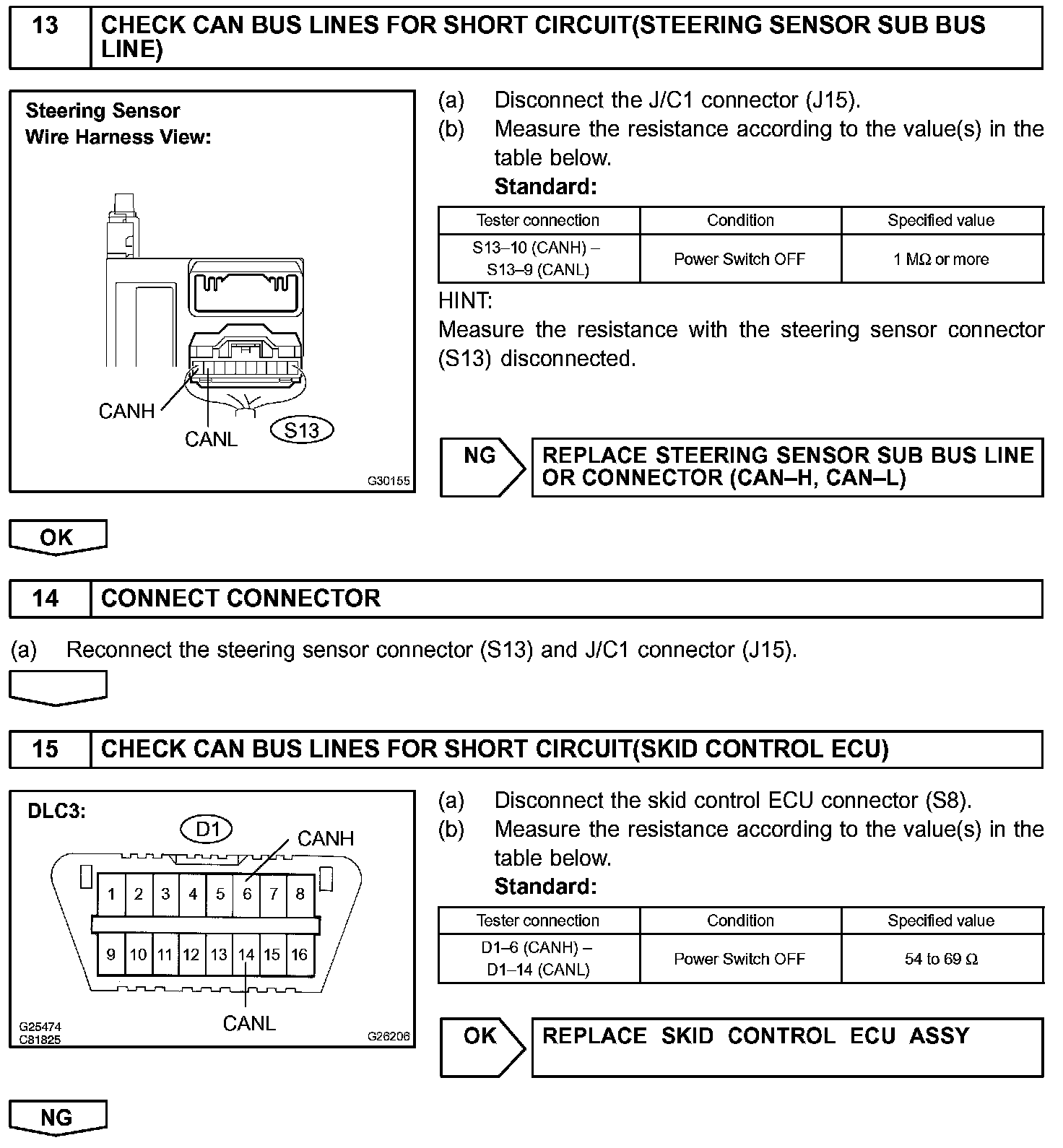

Step 13 - 15:

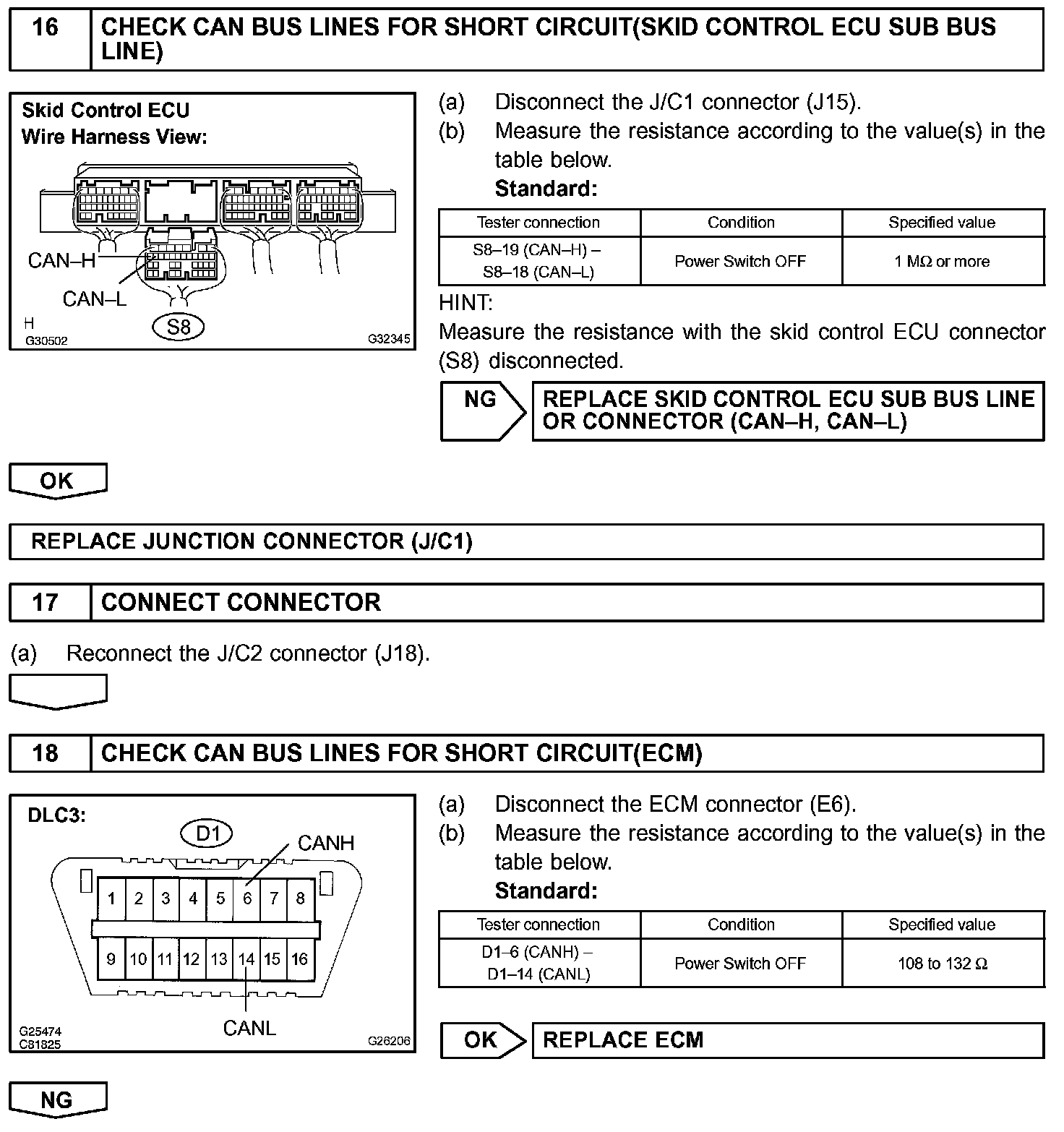

Step 16 - 18:

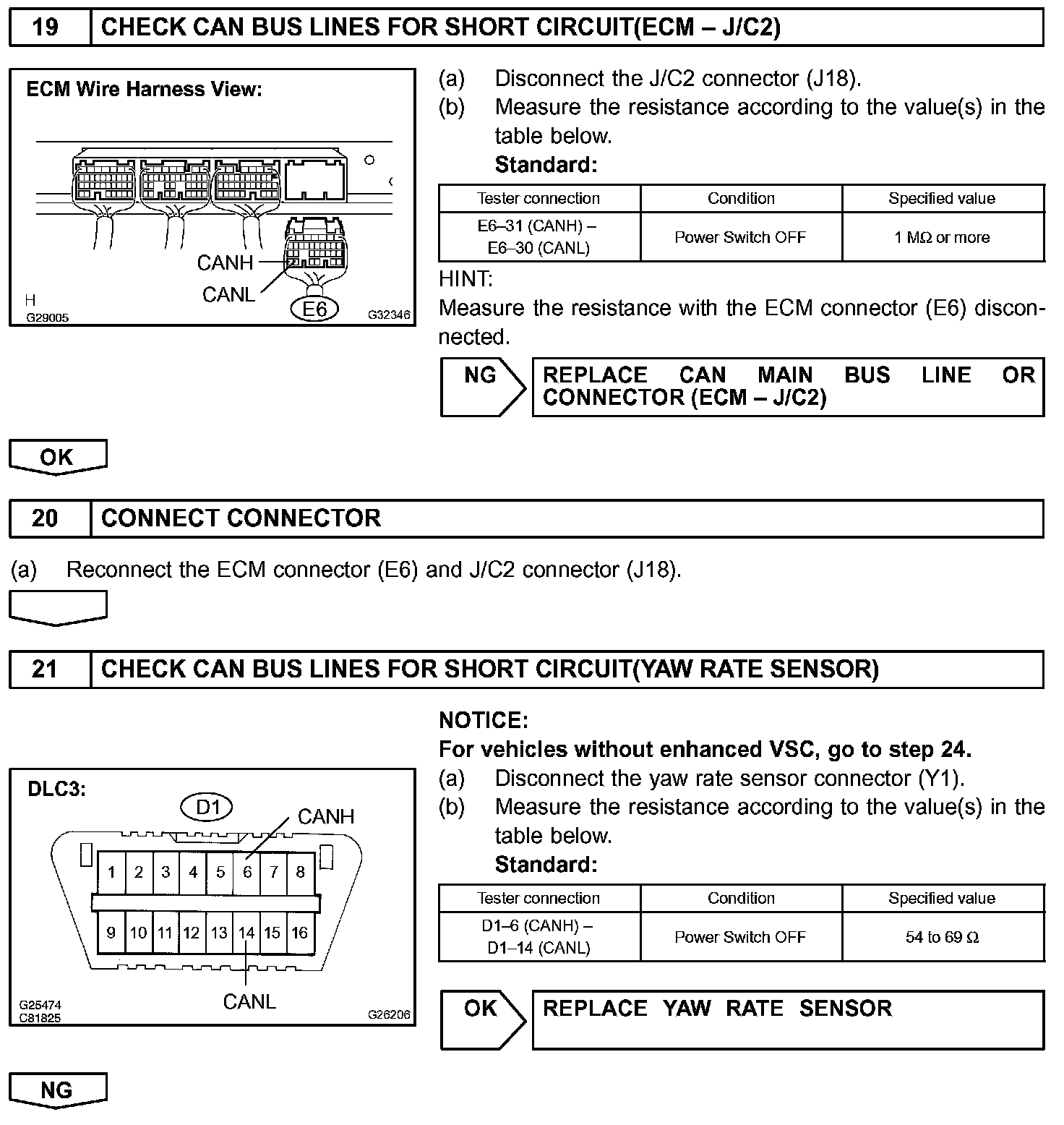

Step 19 - 21:

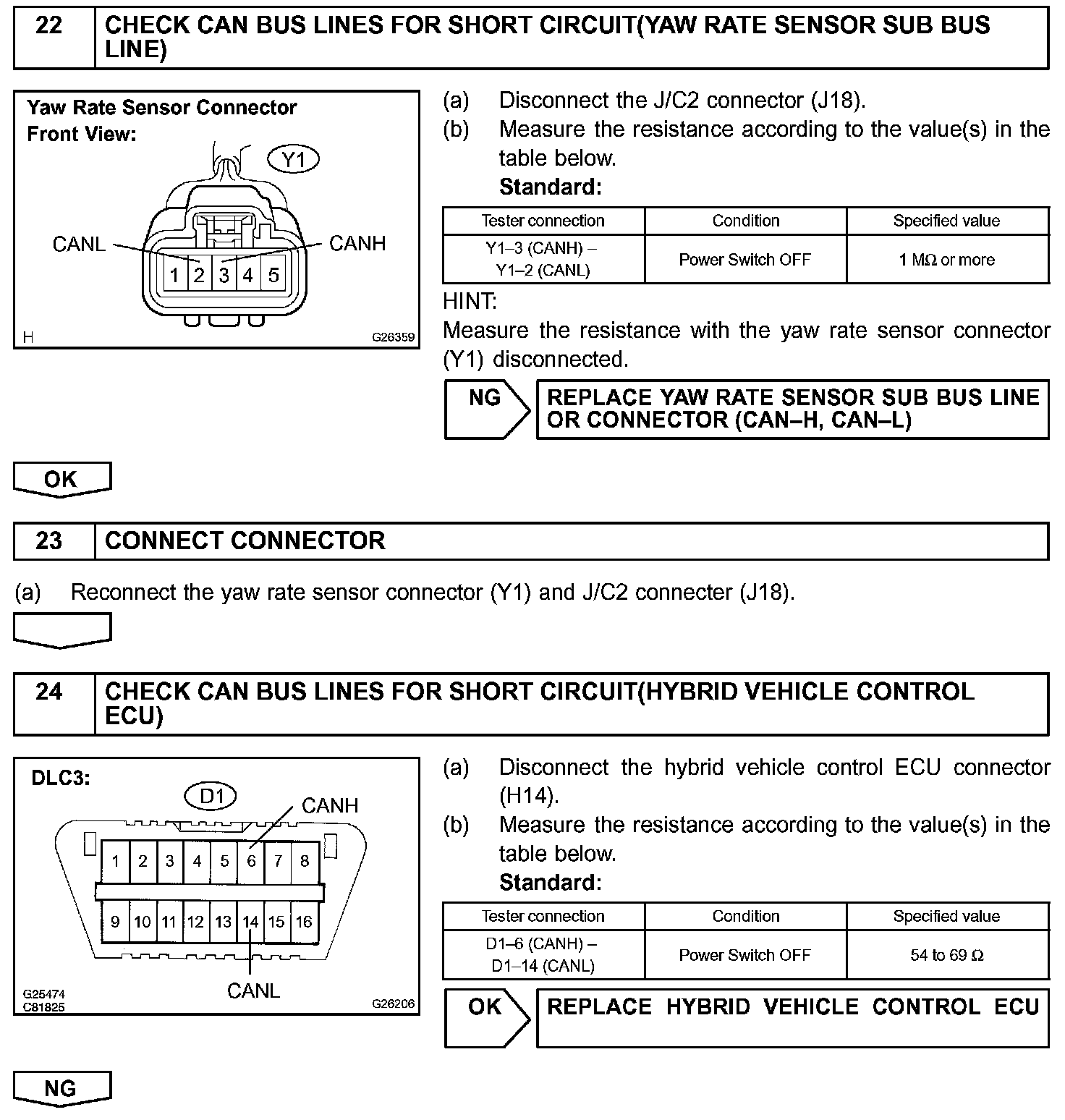

Step 22 - 24:

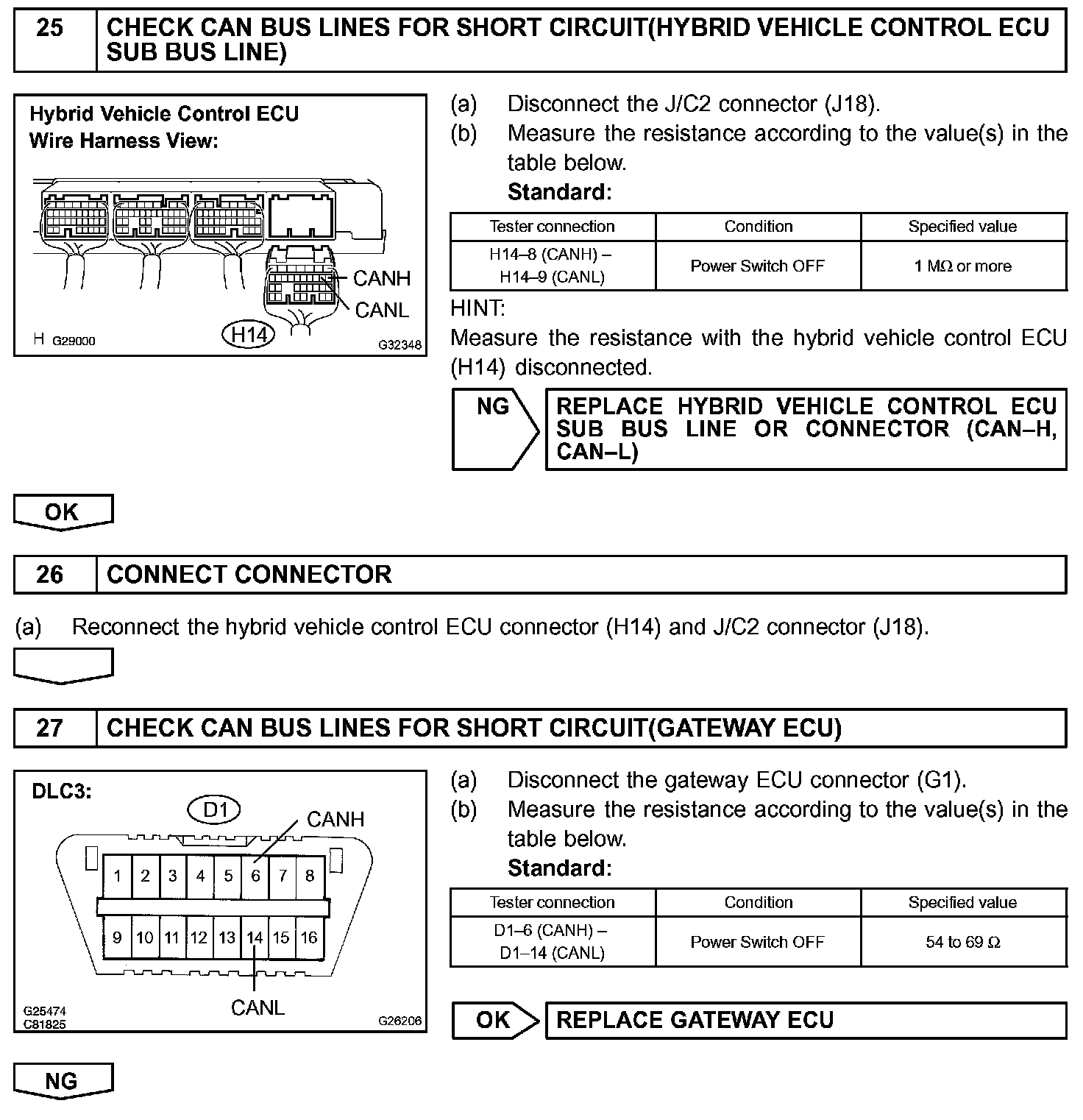

Step 25 - 27:

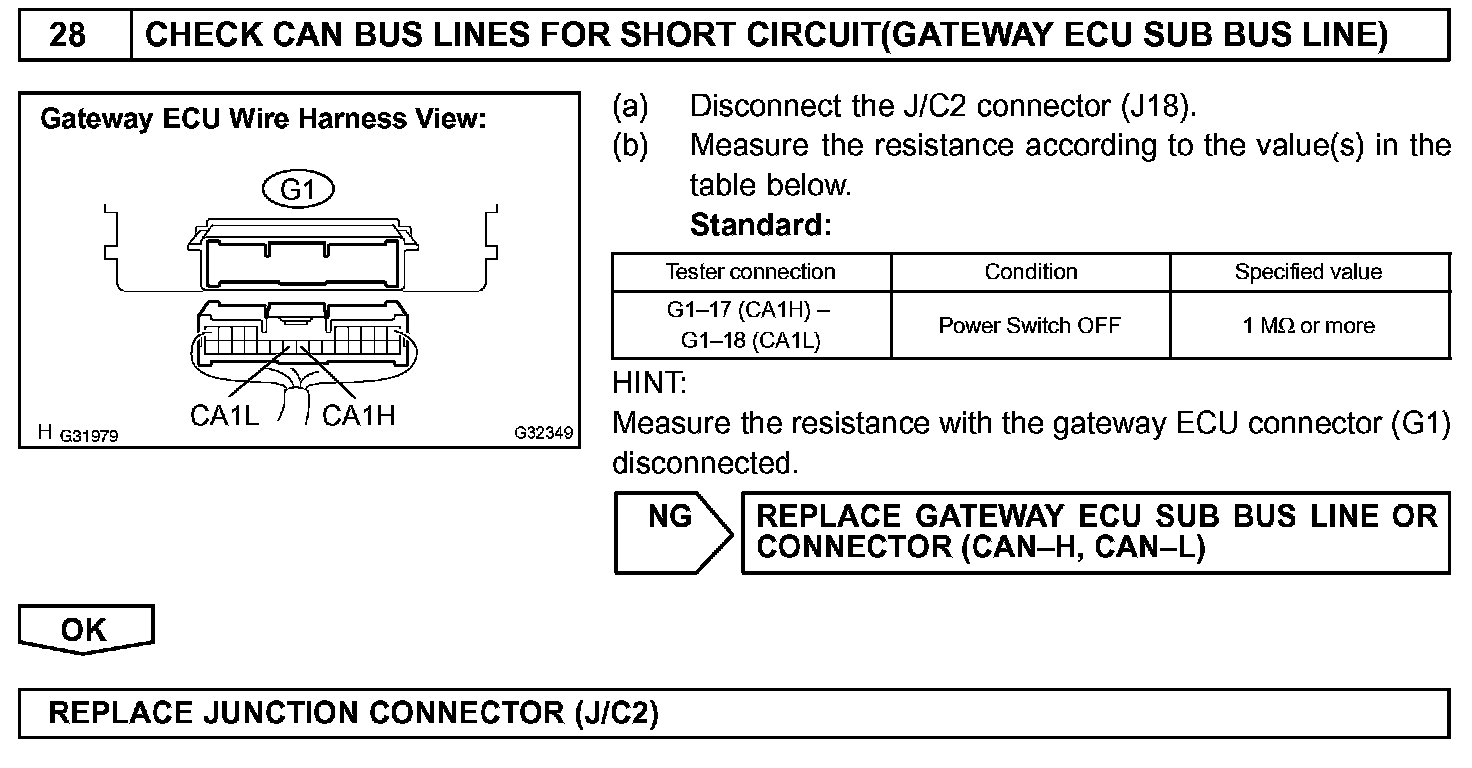

Step 28:
INSPECTION PROCEDURE
