Malfunction Indicator Lamp: Service and Repair

Instrument Panel/Meter:

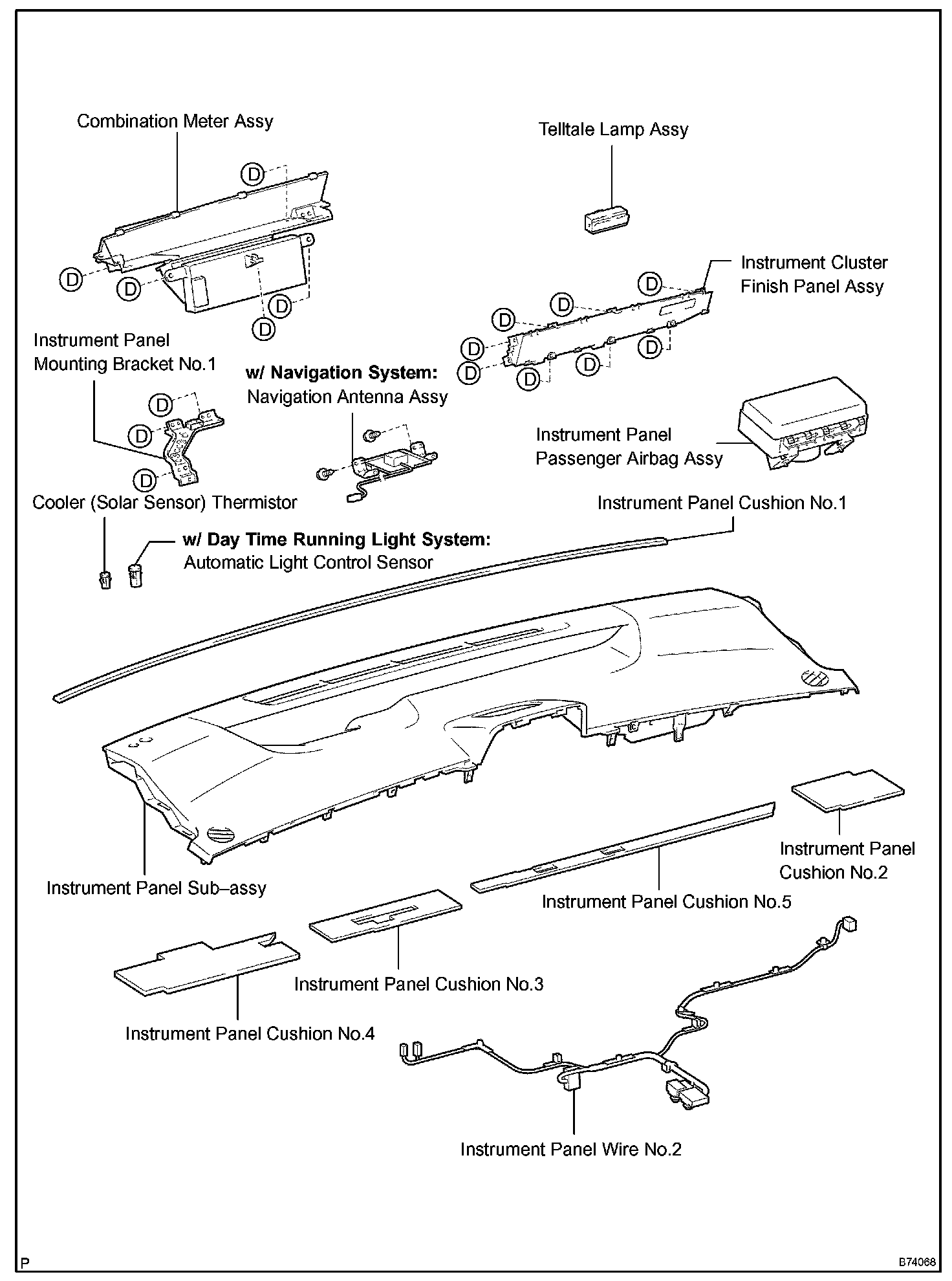

TELLTALE LAMP ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY

2. REMOVE TELLTALE LAMP ASSEMBLY
a. Disconnect the connector.
b. Disengage the 2 claws and then remove the telltale lamp assembly.

3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY
