Back Door Power Window Switch Circuit
BACK DOOR POWER WINDOW SWITCH CIRCUITCIRCUIT DESCRIPTIONThe body ECU detects the condition of the back door power window switch and sends the related information to the back door ECU via BEAN.

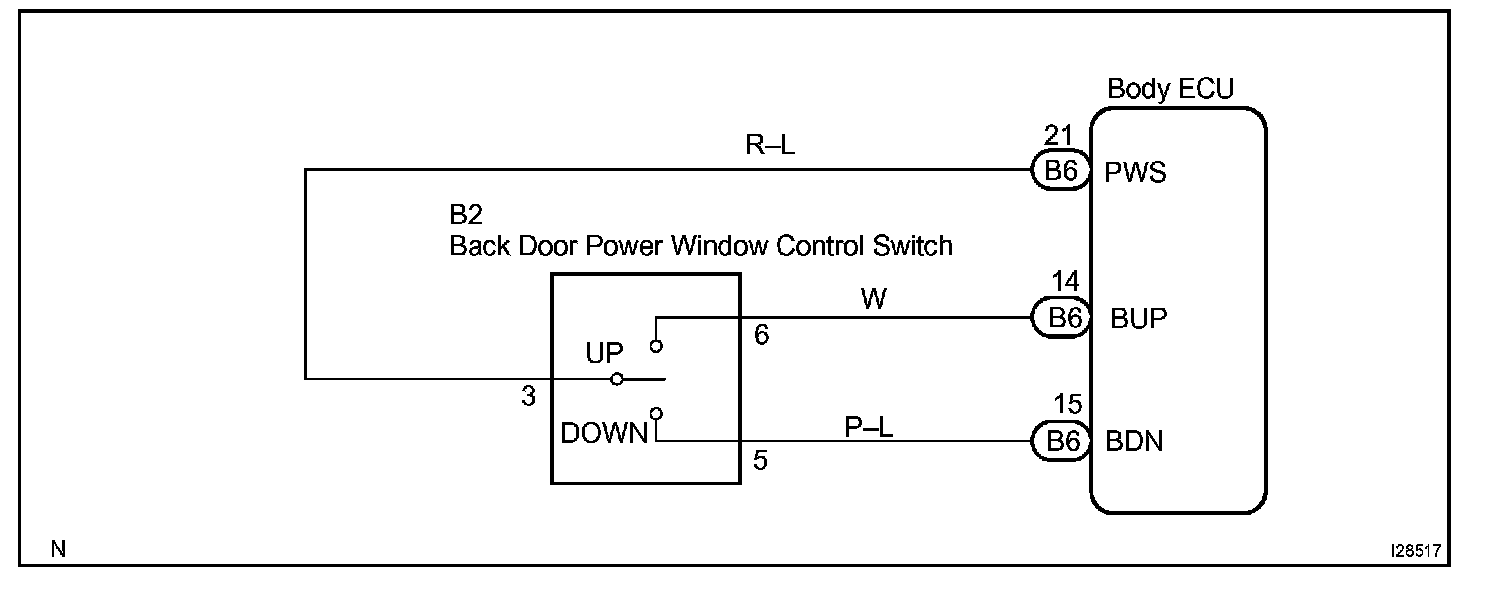

Wiring Diagram:
Step 1 - 2:

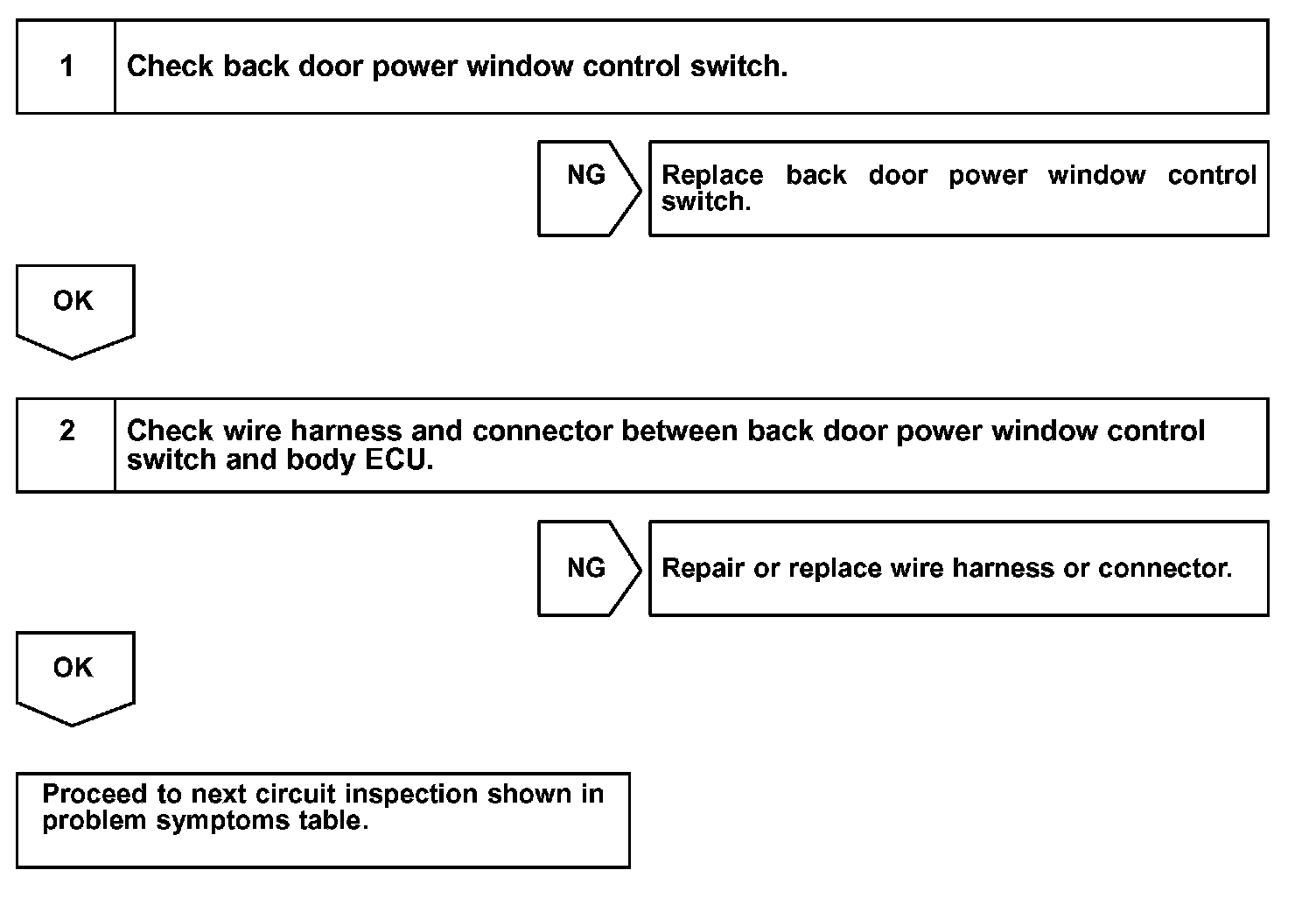

INSPECTION PROCEDURE
