Front Fog Light Relay and Switch Circuit
FRONT FOG LIGHT RELAY AND SWITCH CIRCUITCIRCUIT DESCRIPTIONThe fog light switch is built into the combination switch.
Turning the fog light switch ON supplies power to terminal FFOG of the body ECU.
The fog lights come on when the FOG light relay is turned on.

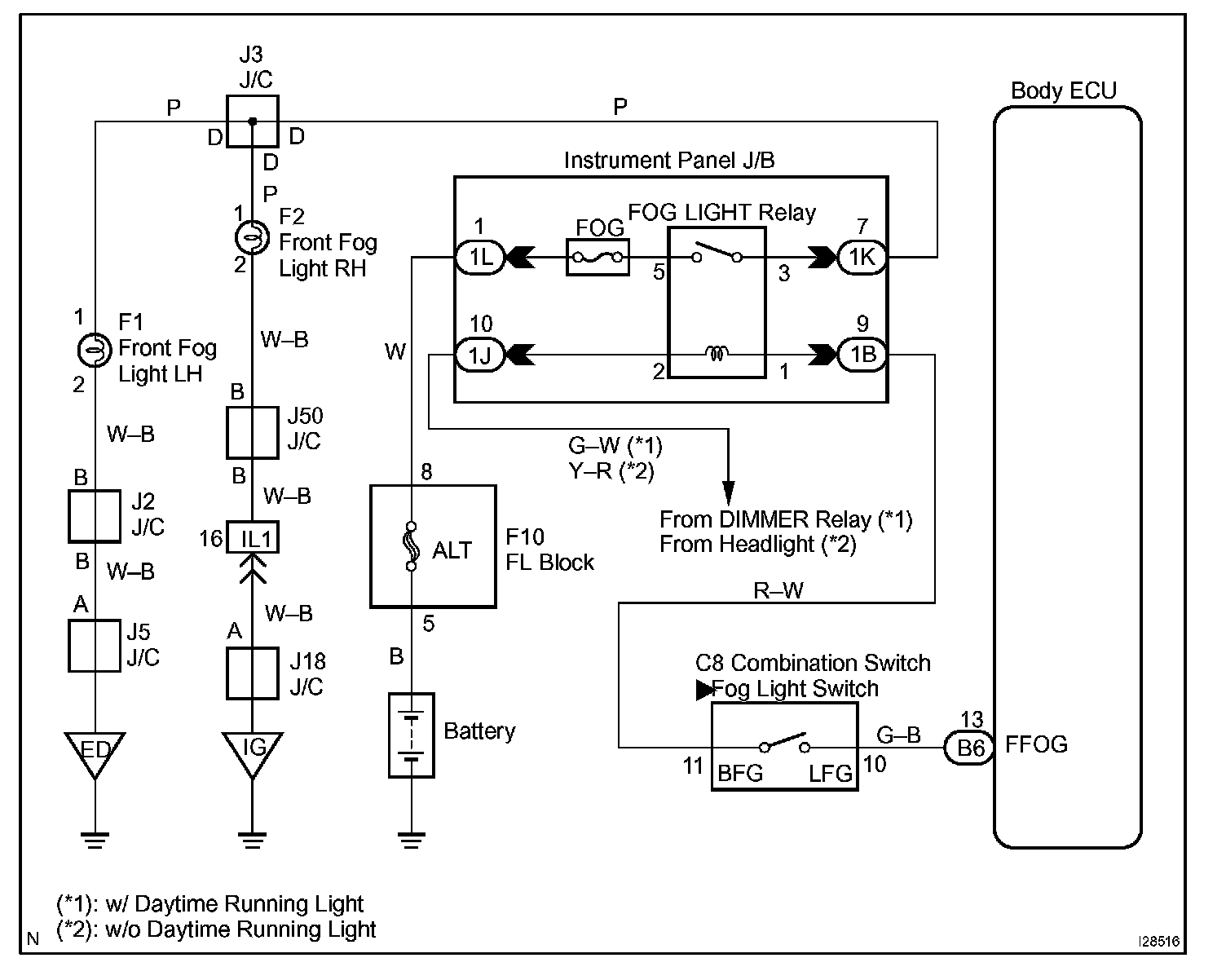

Wiring Diagram:

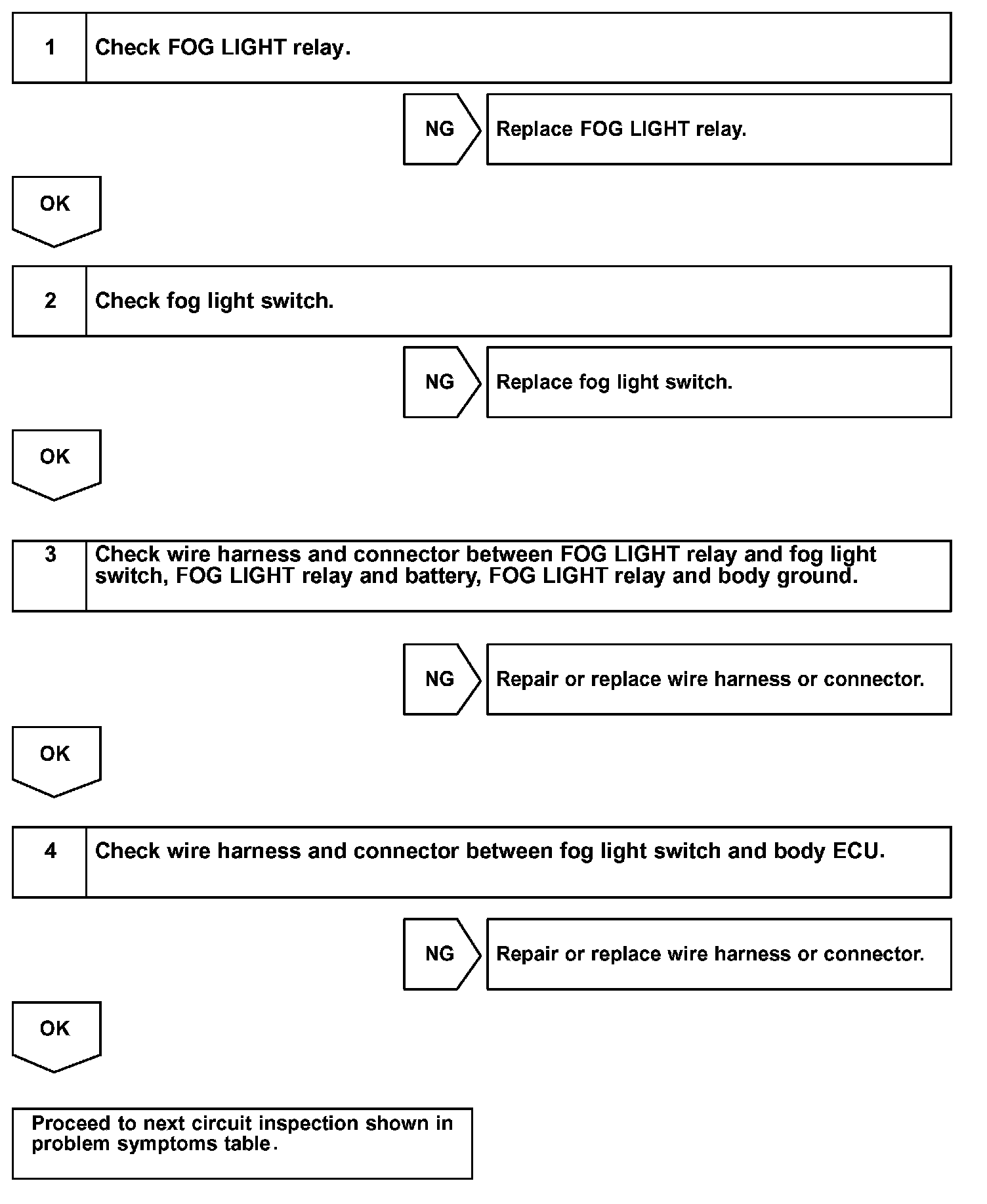

Step 1 - 4:
INSPECTION PROCEDURE
