Power Window Motor Circuit
POWER WINDOW MOTOR CIRCUITCIRCUIT DESCRIPTIONThe power window goes down when voltage is applied to terminal 2 of the power window motor, and the window goes up when voltage is applied to terminal 1.
Wiring Diagram:
Step 1 - 3:

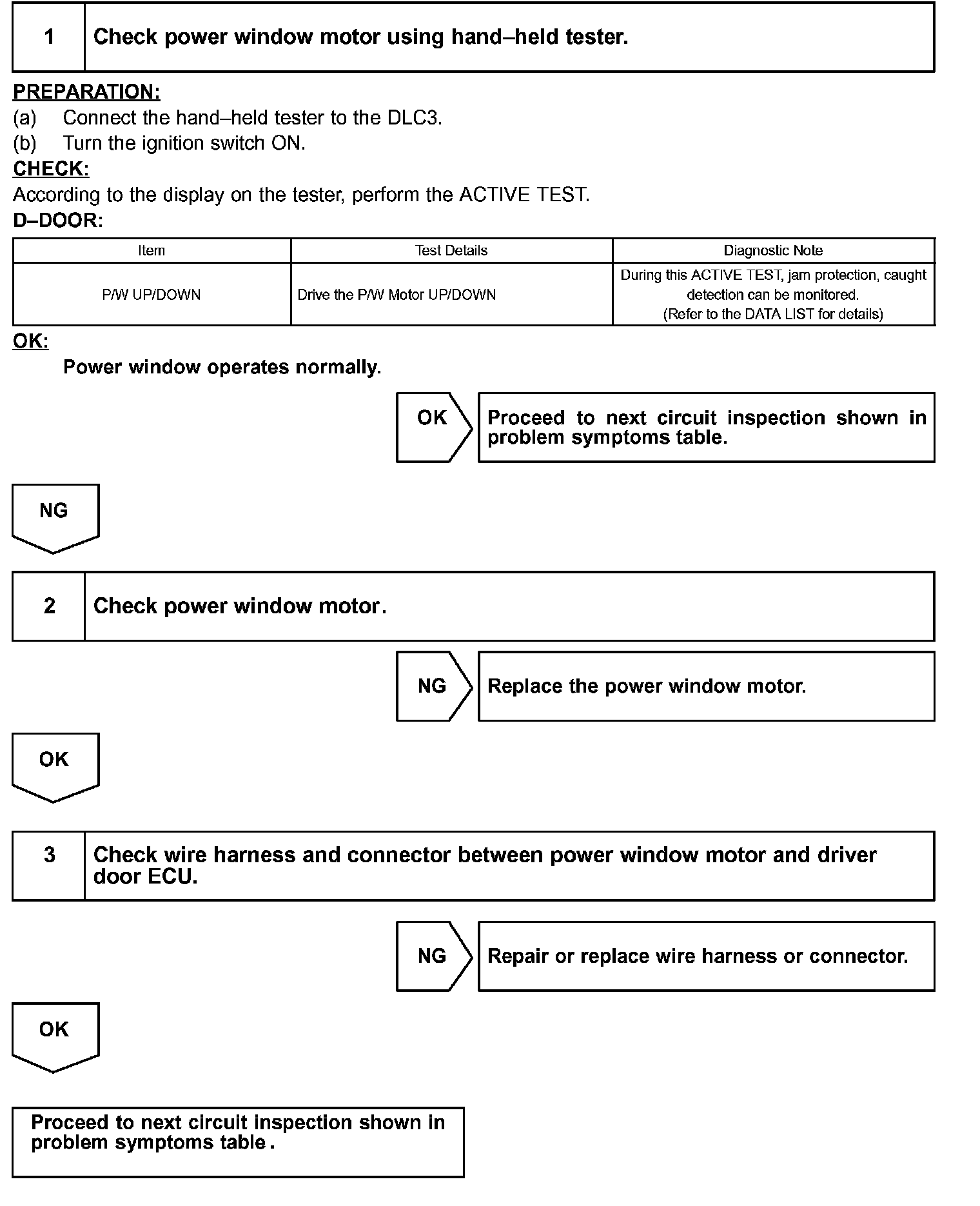

INSPECTION PROCEDUREHINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
