Lumbar Support Control Switch Circuit
LUMBAR SUPPORT CONTROL SWITCH CIRCUITCIRCUIT DESCRIPTIONThe lumbar support control switch that controls lumbar support is connected to the lumbar support control motor via a wire harness. This circuit can freely operate regardless of the condition of the ECU.
Wiring Diagram:

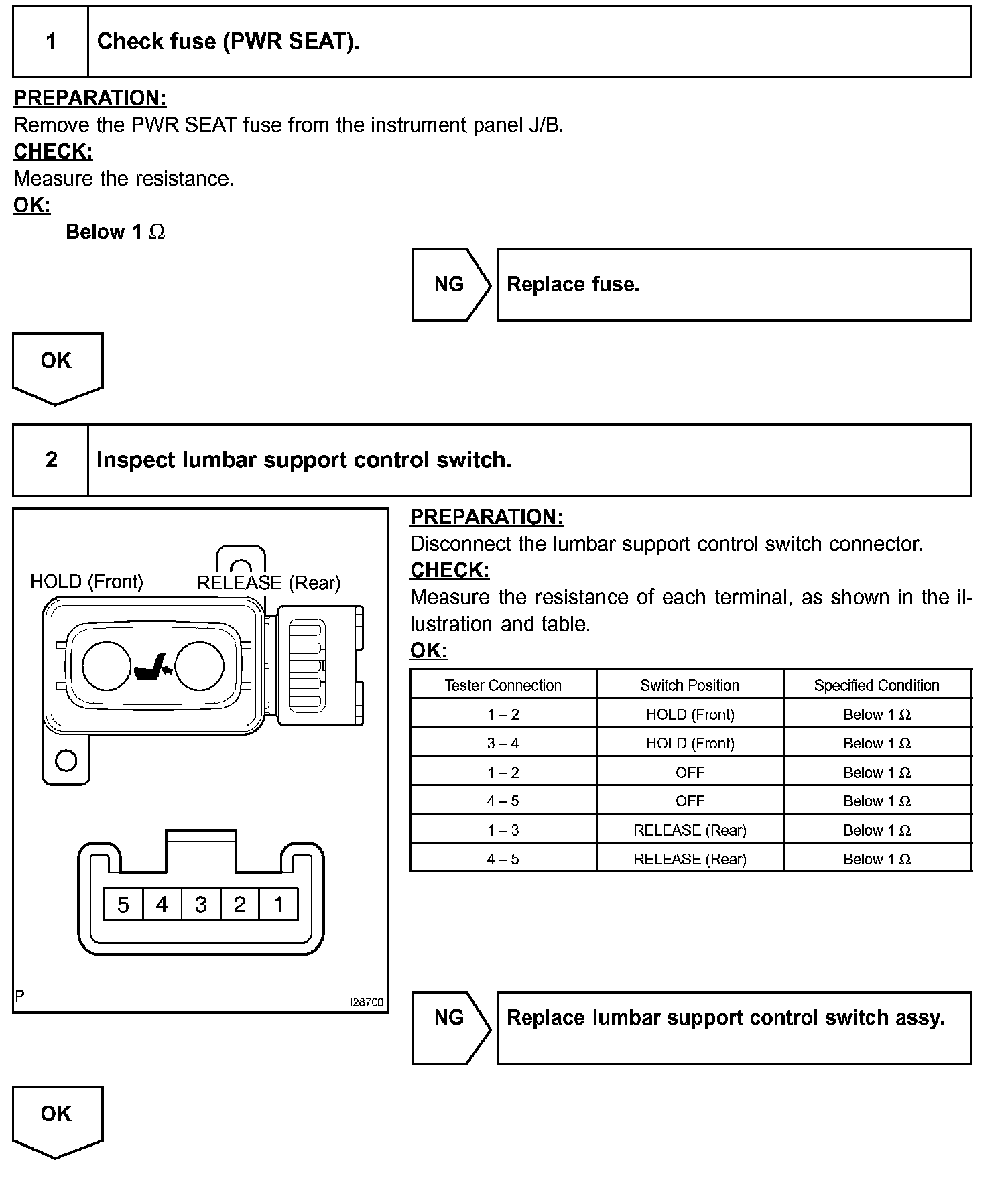

Step 1 - 2:

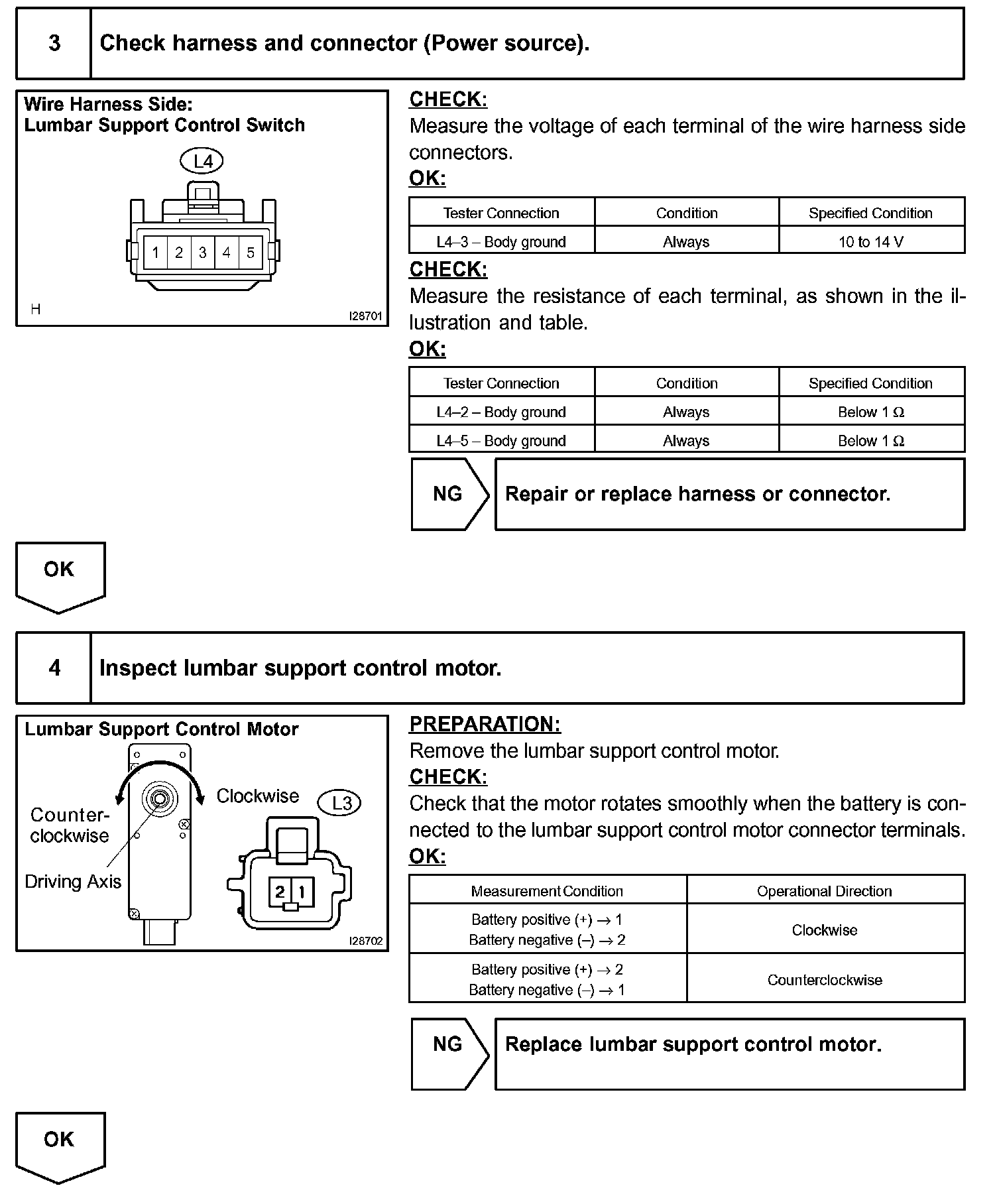

Step 3 - 4:

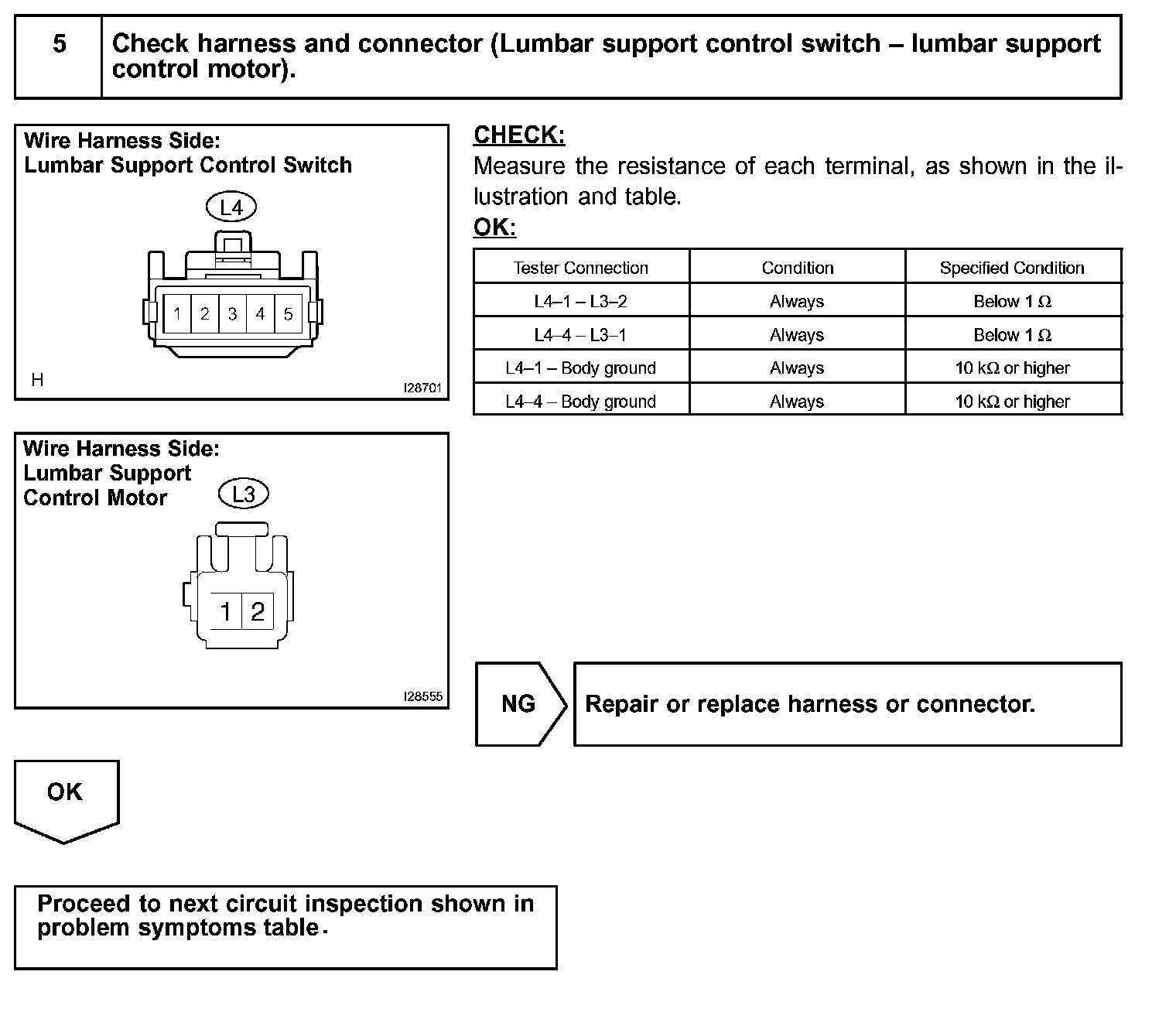

Step 5:
INSPECTION PROCEDURE
