Compressor HVAC: Testing and Inspection

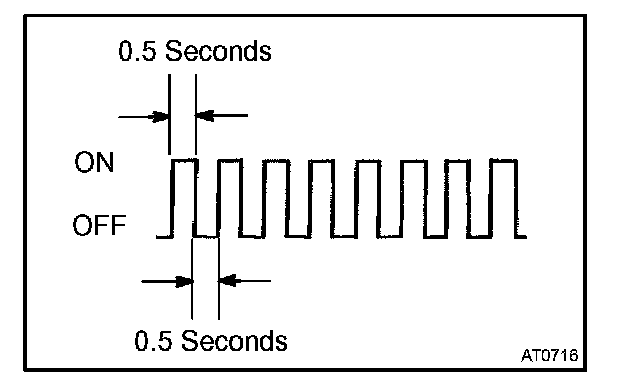

WARNING FOR A/C COMPRESSOR LOCKIf compressor lock occurs during A/C operation, the A/C switch indicator on the A/C control assembly starts blinking.
When this occurs, check for compressor lock (DTC 22) using diagnosis trouble code check then proceed to inspect the circuit or the component.
