Check CAN Bus Lines For Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION




There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

Wiring Diagram:

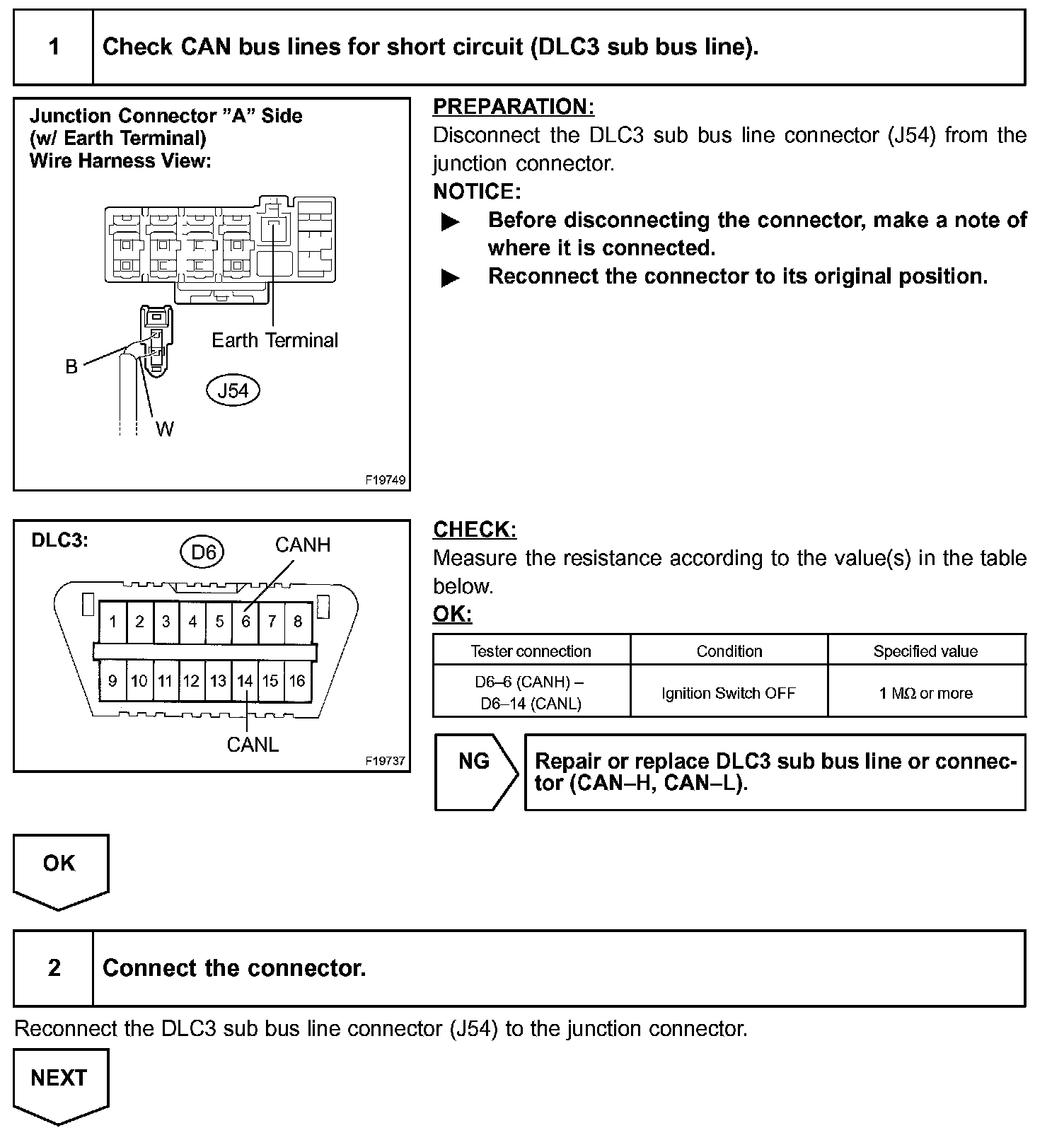

Step 1 - 2:

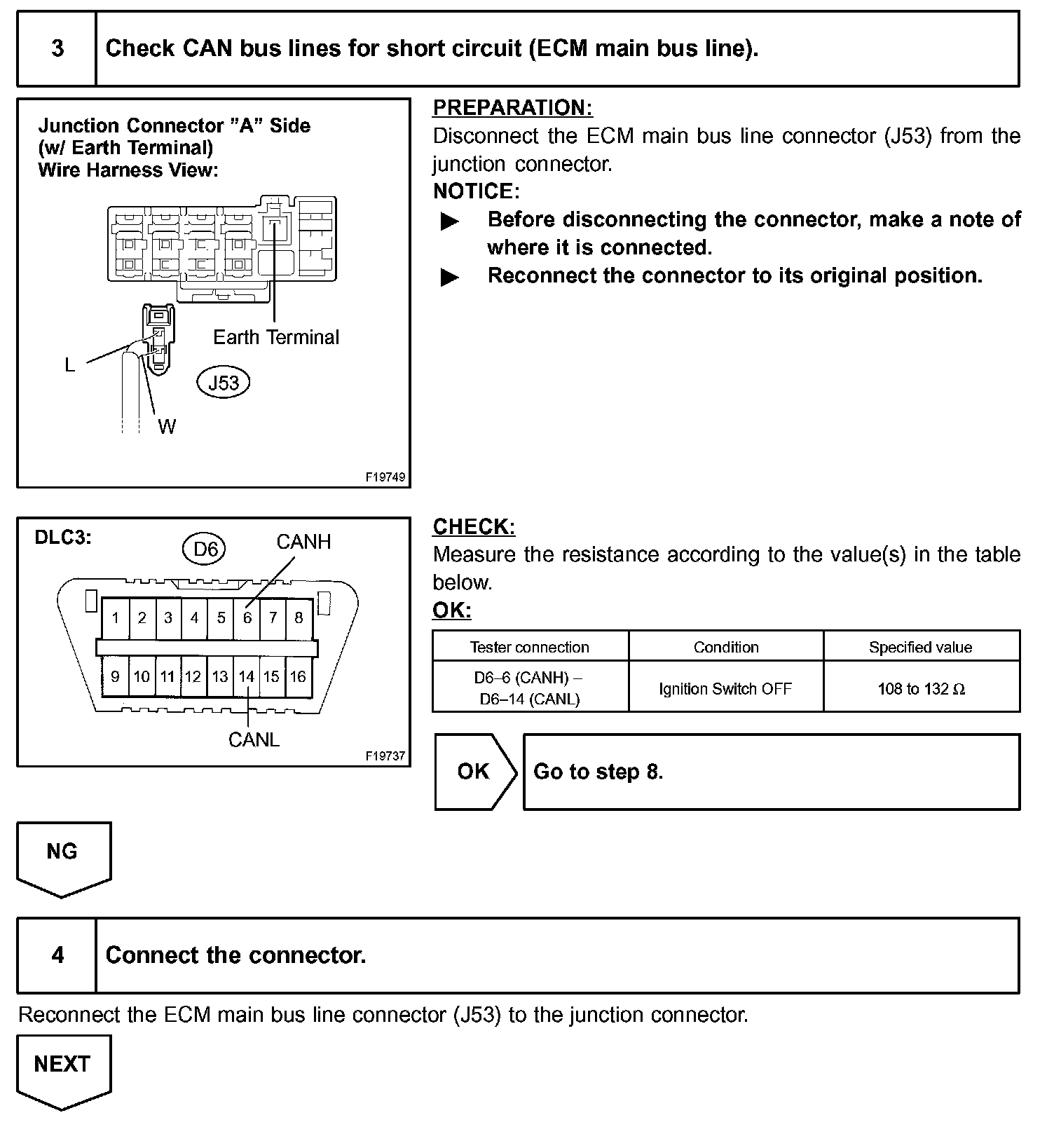

Step 3 - 4:

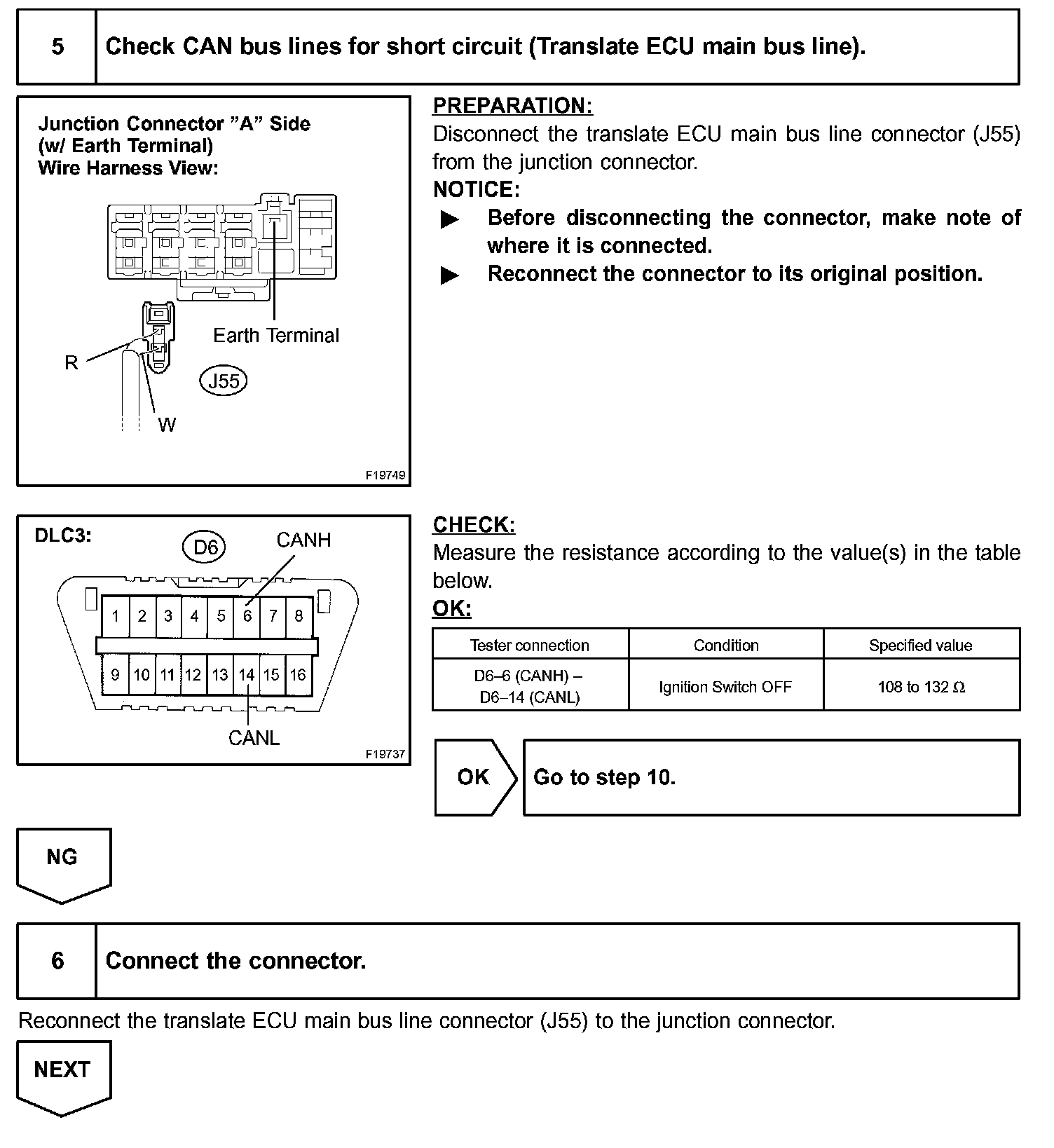

Step 5 - 6:

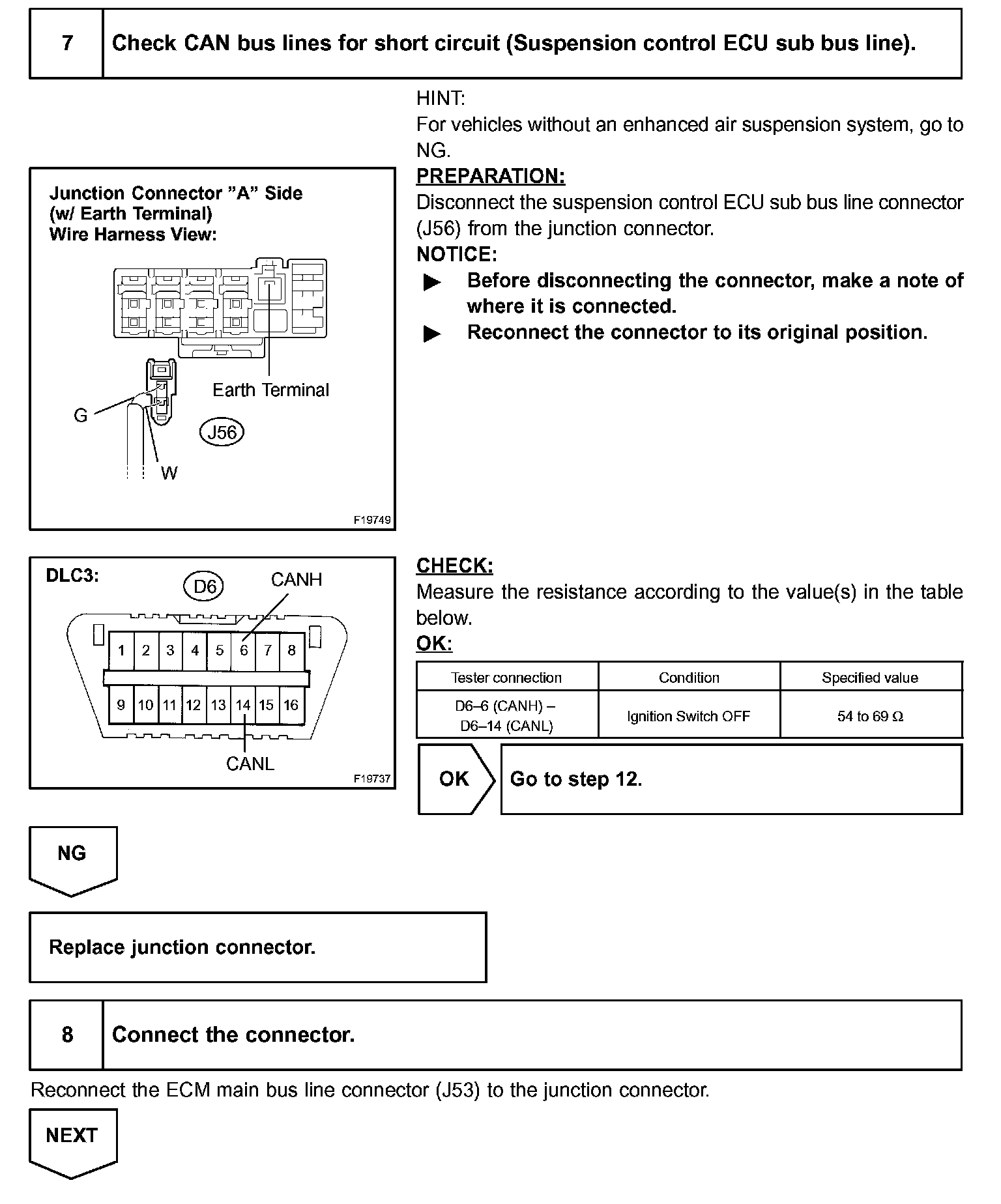

Step 7 - 8:

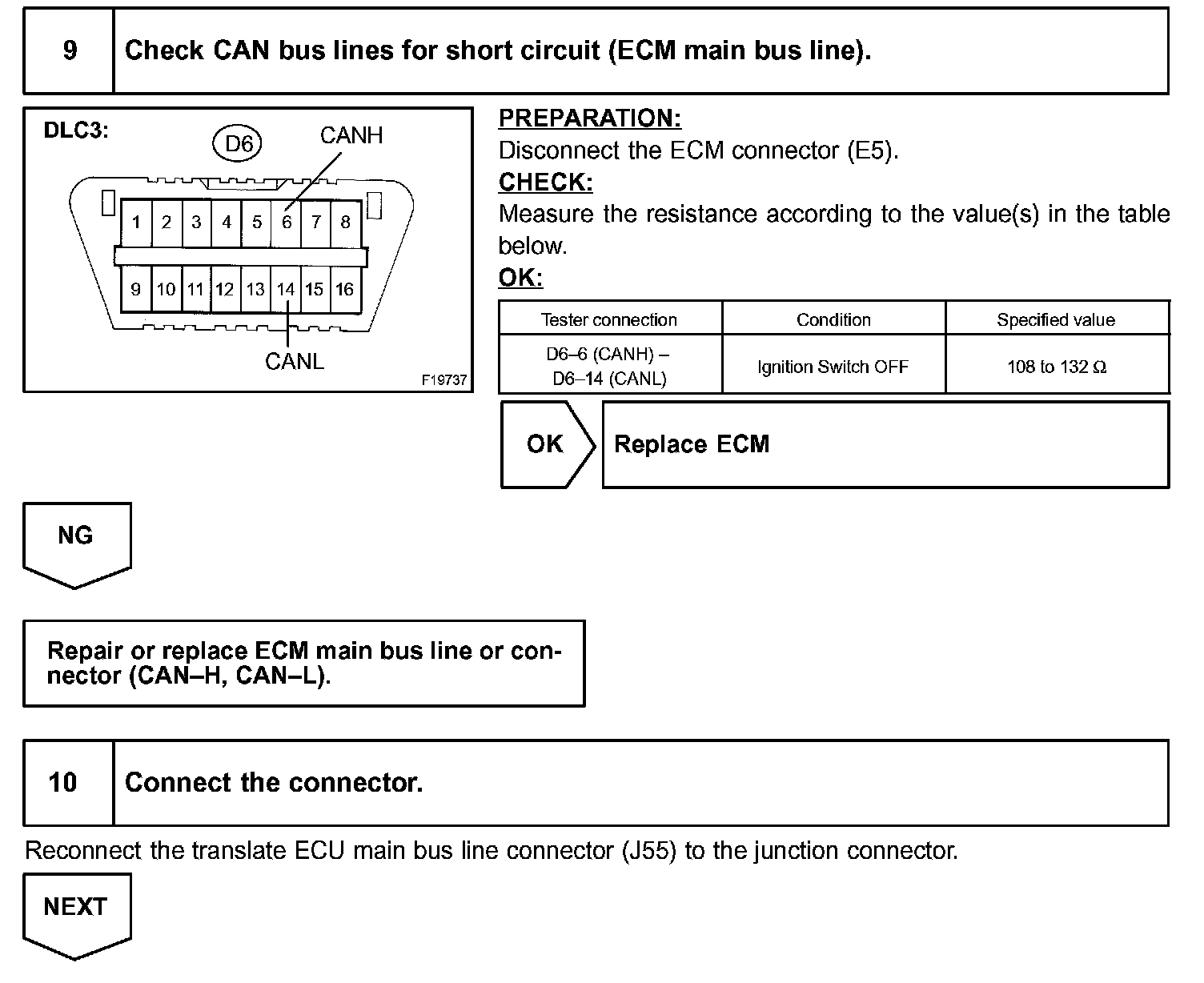

Step 9 - 10:

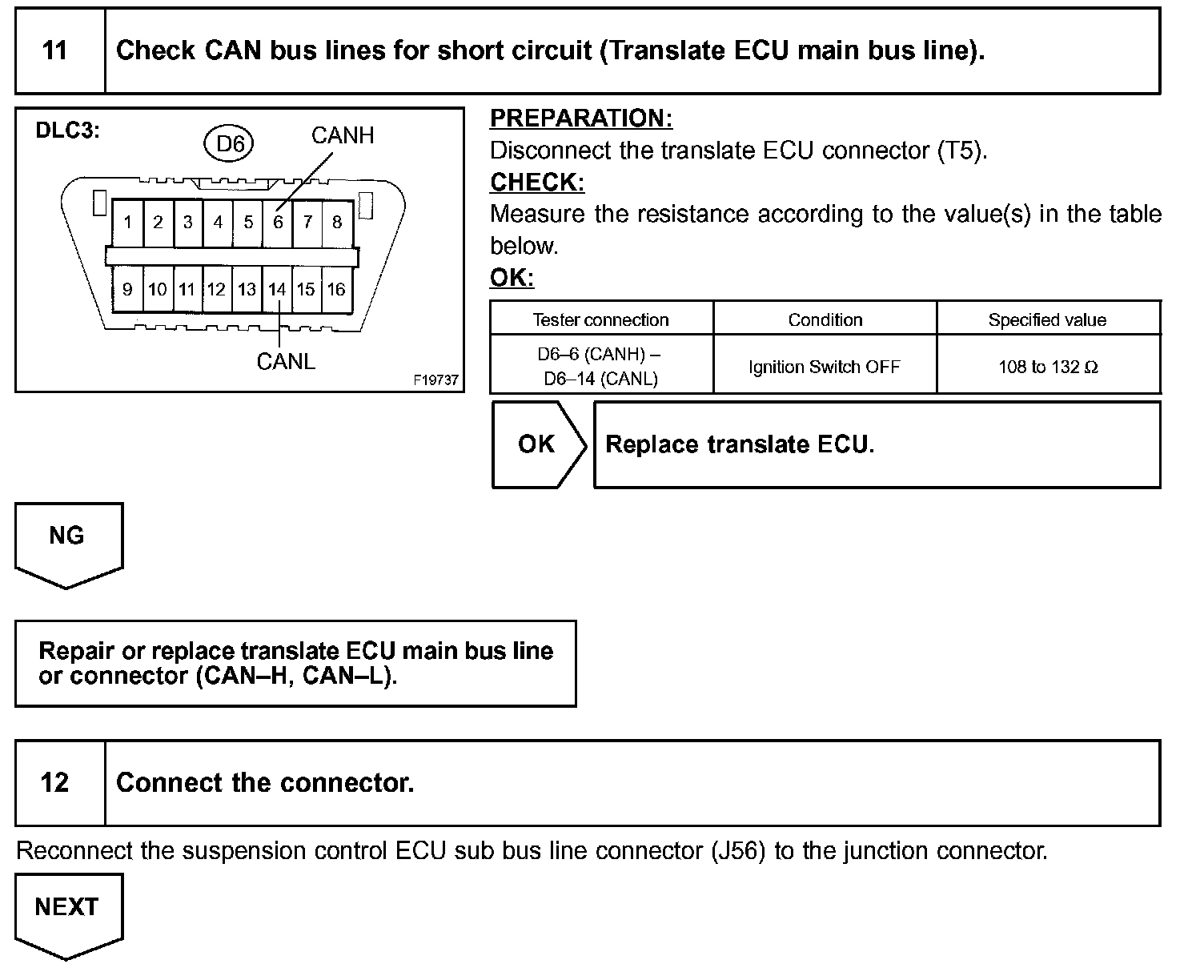

Step 11 - 12:

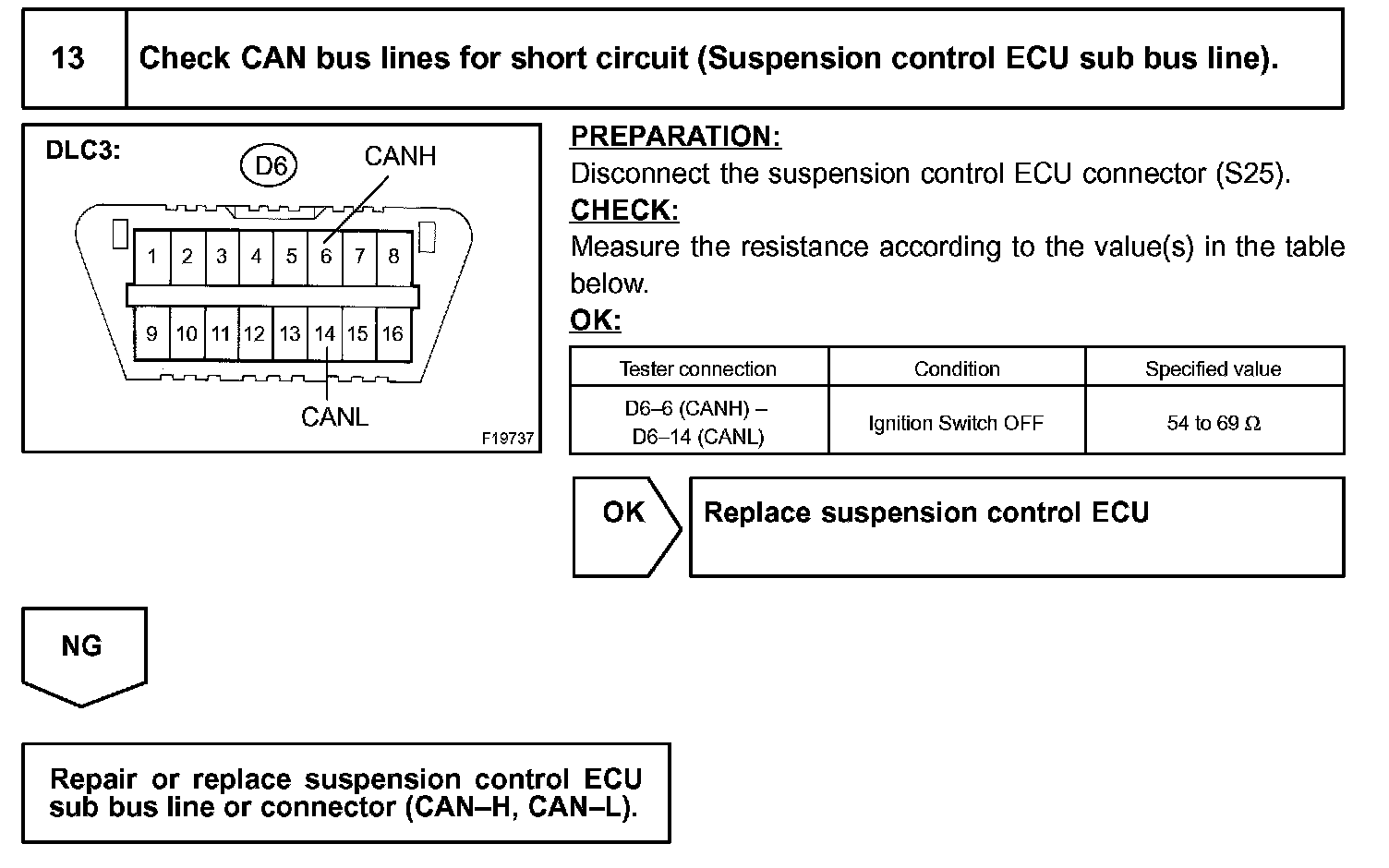

Step 13:




INSPECTION PROCEDURE
