Symptom Related Diagnostic Procedures

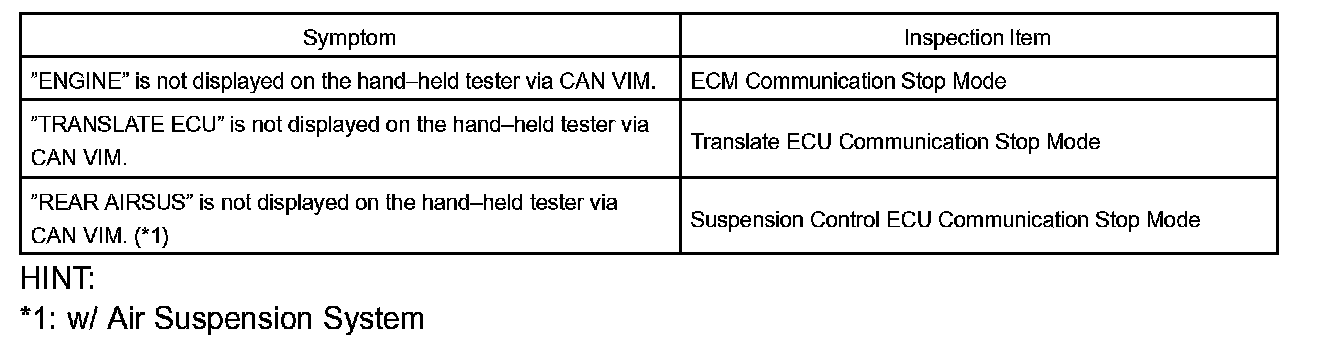

PROBLEM SYMPTOMS TABLE

1. COMMUNICATION STOP MODE TABLE

a. Complete "Check CAN Bus Line" to confirm that there is no malfunction in the CAN bus line. Select "BUS CHECK" on the hand-held tester via the CAN VIM.

b. Check the communication stop mode of the ECUs not displayed among the: "ENGINE", "TRANSLATE ECU", or "REAR AIRSUS".

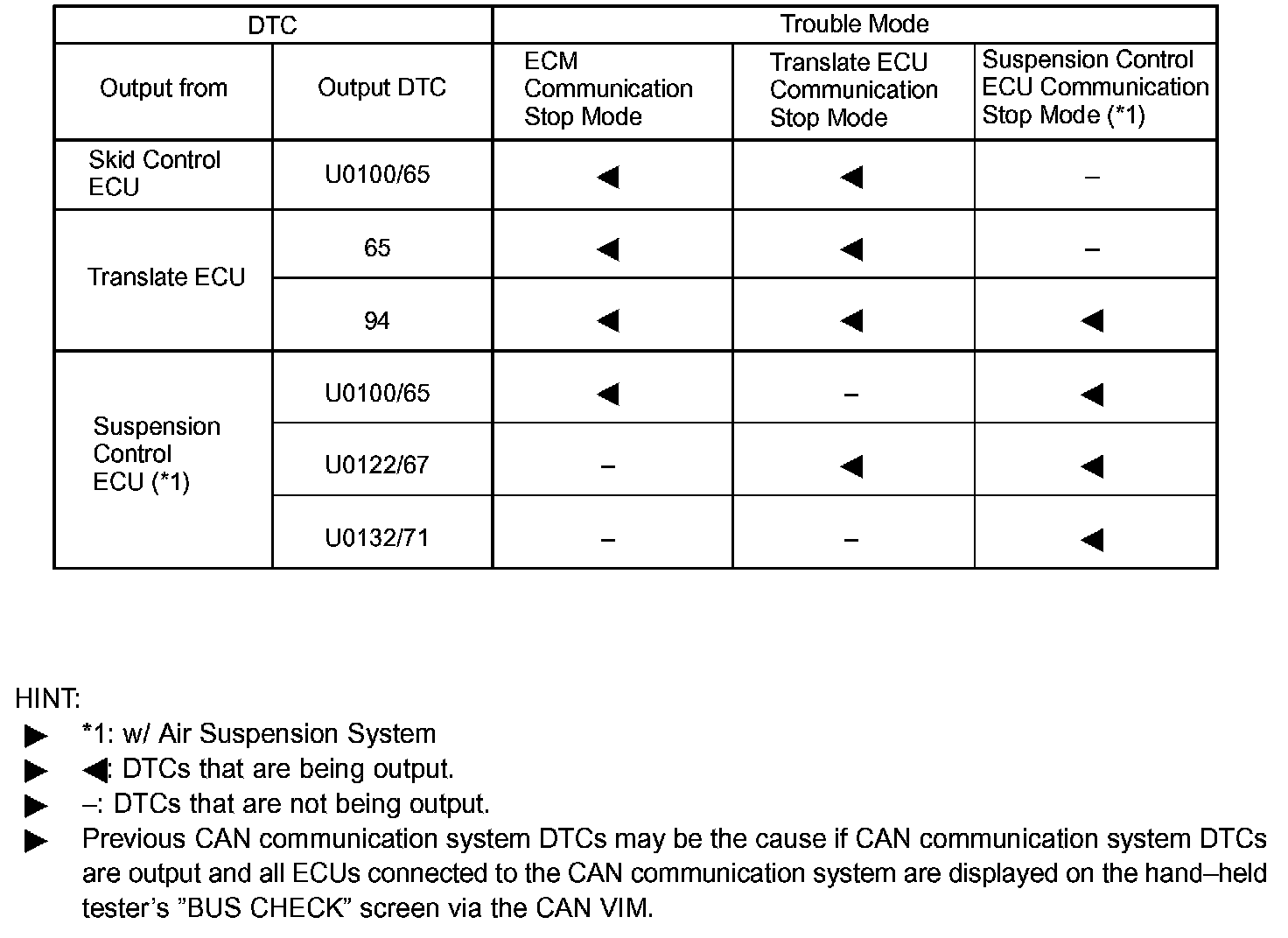

2. DTC COMBINATION TABLE

a. Perform troubleshooting according to the combination of DTCs output.
