Oil Pan, Engine

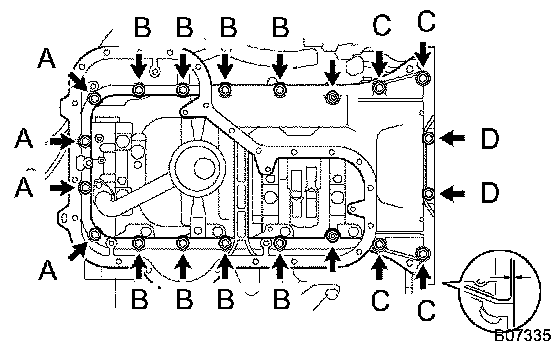

Oil Pan Temporarily install the No.1
oil pan with the 18 bolts, stud bolt and 2 nuts.
Uniformly tighten the bolts, and nuts in several passes.
Torque:
7.5 Nm (76 kgf-cm, 66 inch lbs.) for 10 mm head
28 Nm (290 kgf-cm, 21 ft. lbs.) for 12 mm head
