Overhaul

Air Conditioning Control Assy:






OVERHAUL

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
6. REMOVE COMBINATION METER ASSEMBLY
7. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
10. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (W/O NAVIGATION SYSTEM)
11. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (W/ NAVIGATION SYSTEM)




12. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

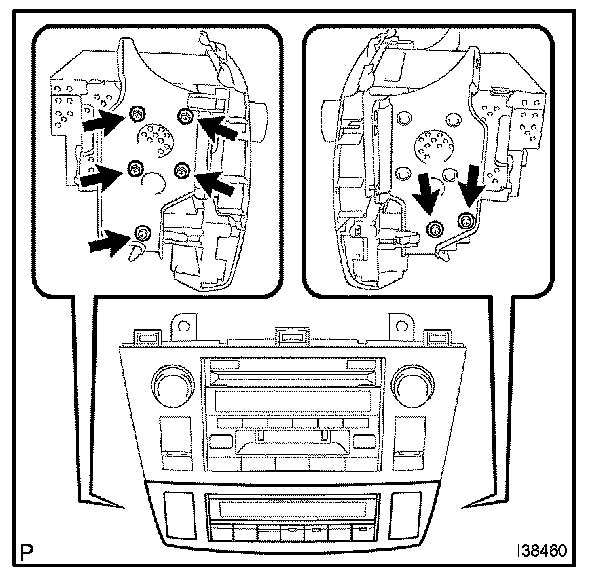

a. Remove the 4 bolts, 3 screws and air conditioning control assembly.




13. REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY

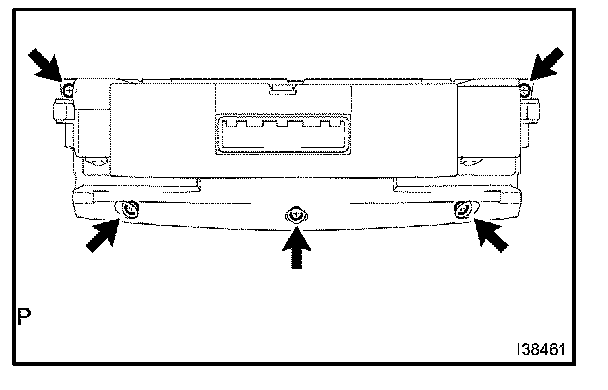

a. Remove the 5 screws.

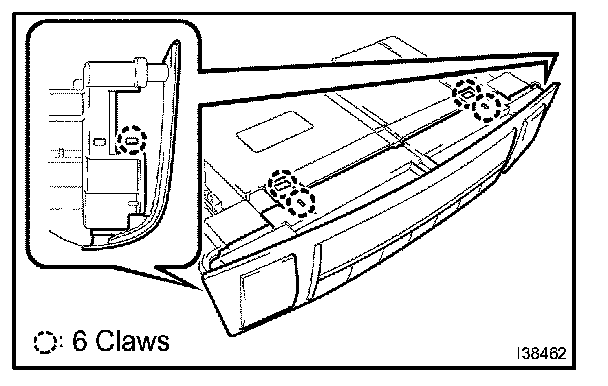

b. Release the 6 fitting claws and remove the air conditioner control panel.




c. Release the 4 fitting claws.

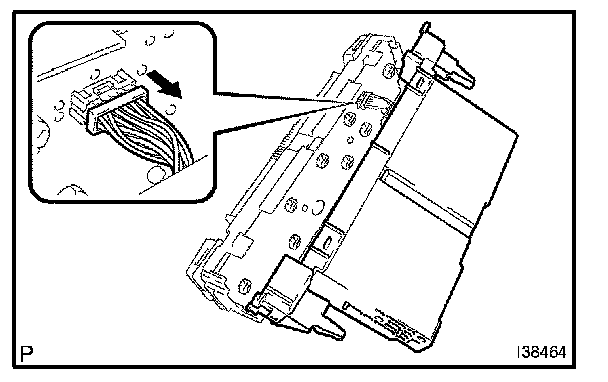

d. Disconnect the connector and remove the air conditioner control housing sub-assembly.

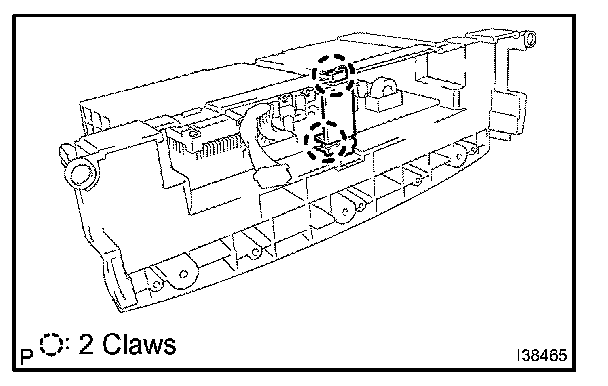

e. Release the 2 fitting claws and remove the cover plate.

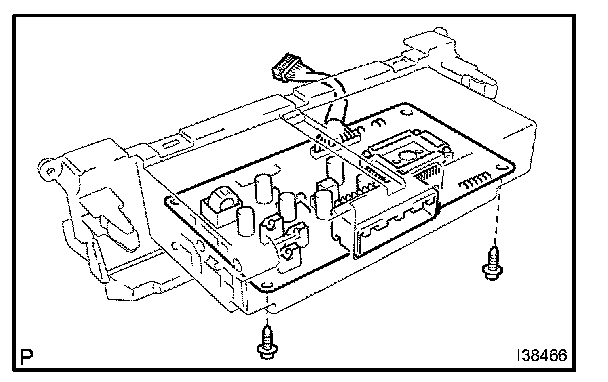

f. Remove the 2 screws and air conditioner amplifier.
