Seat Belt

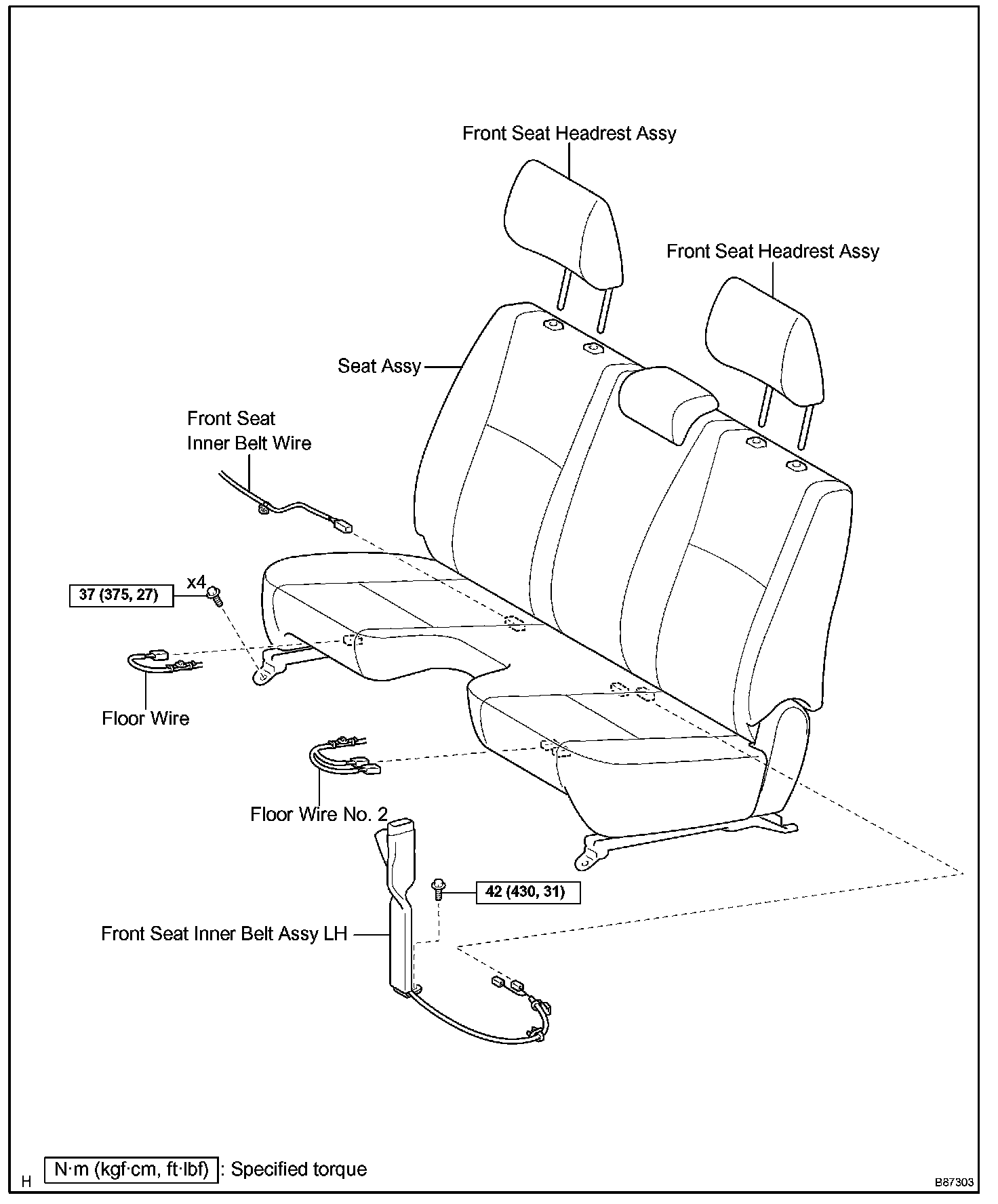

Front Seat Inner Belt Assy LH (Bench Seat Type):

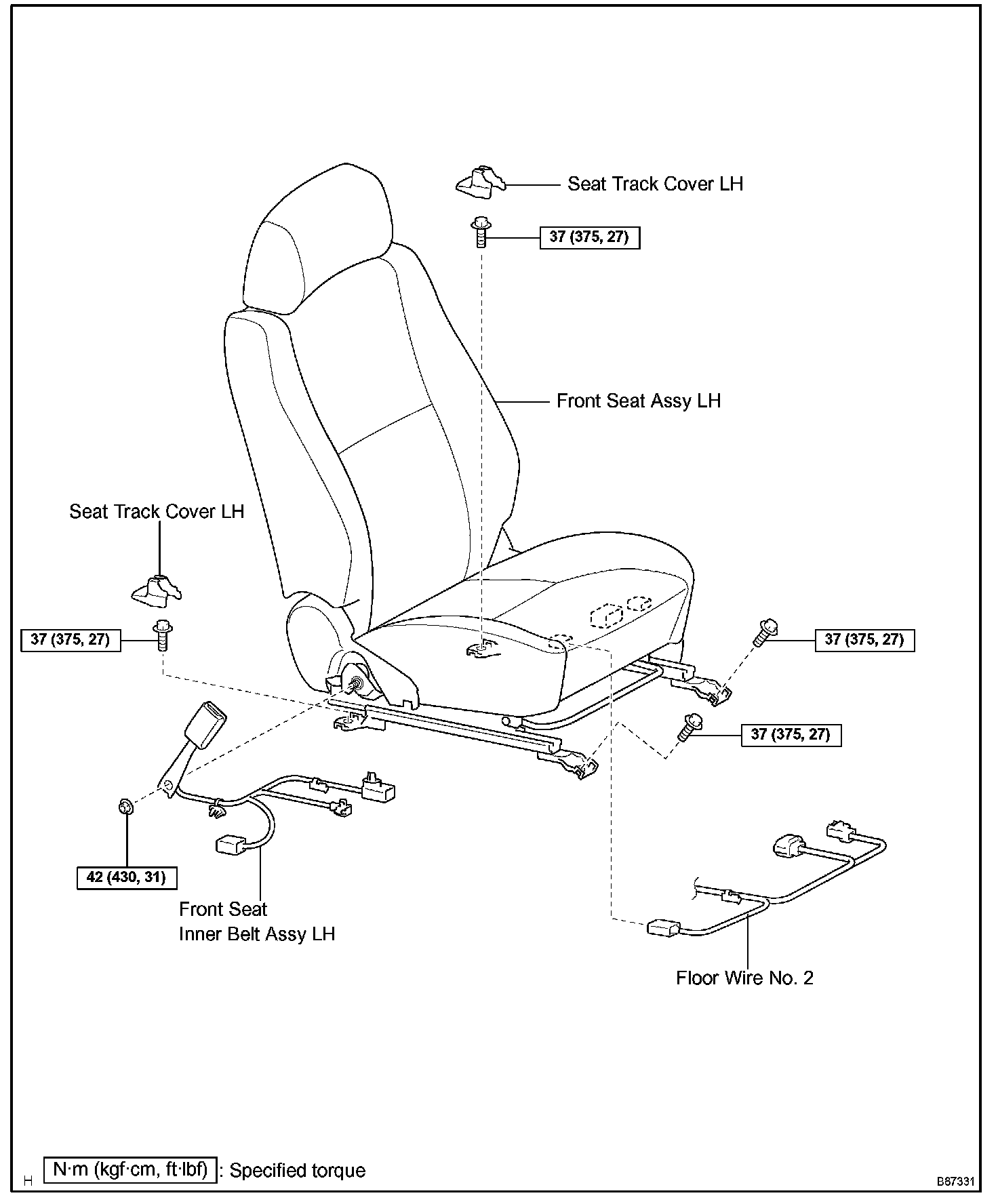

Front Seat Inner Belt Assy LH (Separate Seat Type):

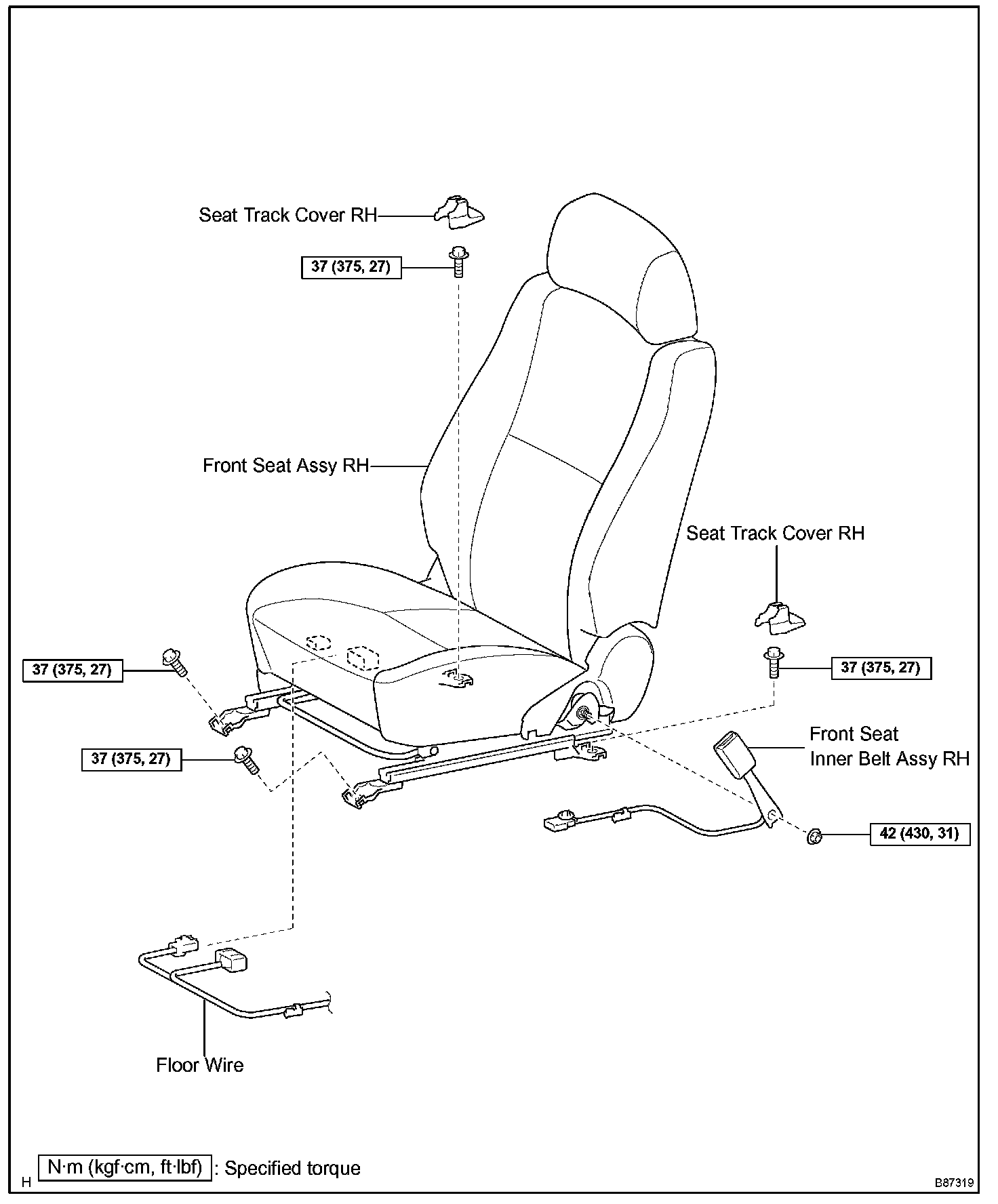

Front Seat Inner Belt Assy RH (Separate Seat Type):

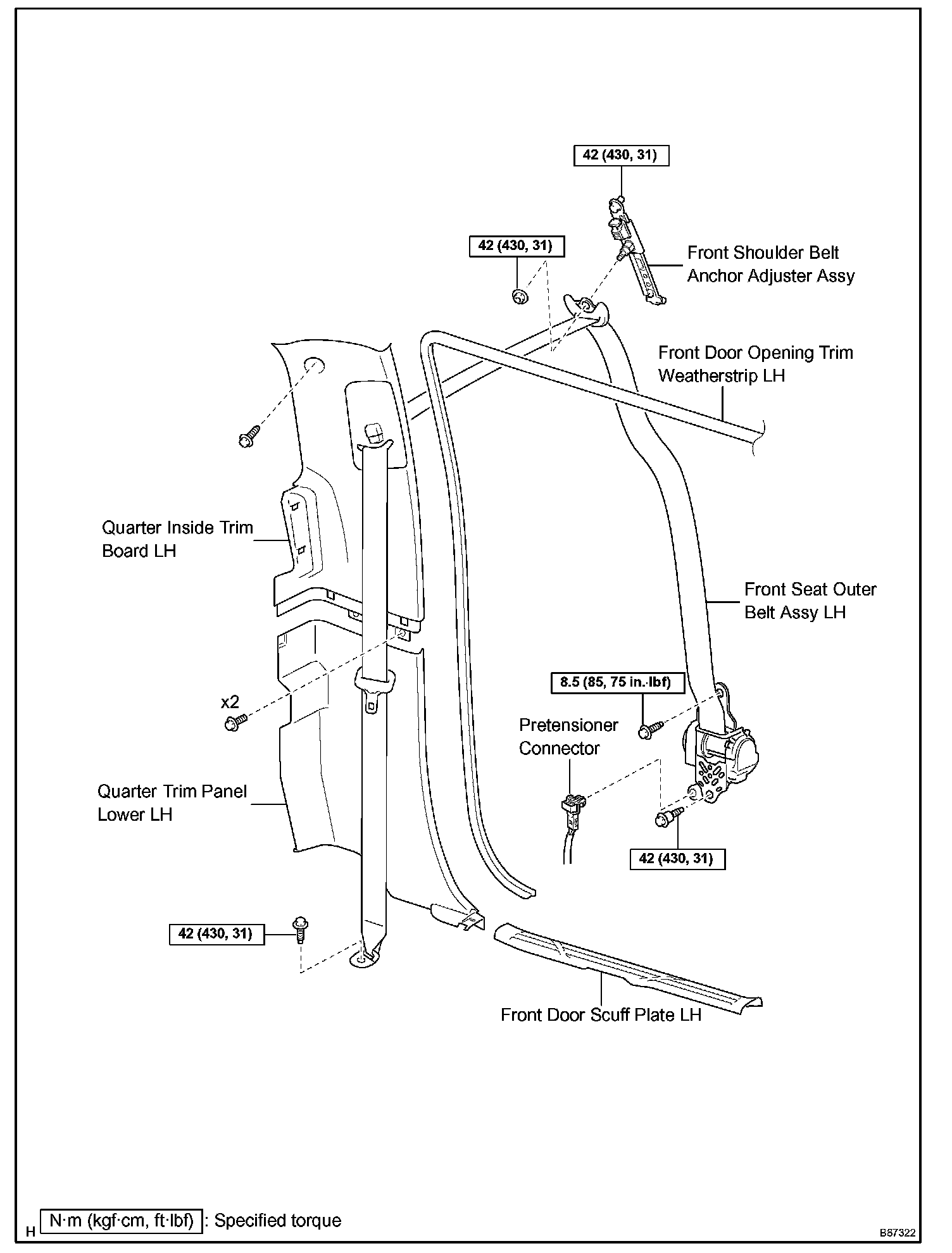

Front Seat Outer Belt Assy LH (Regular Cab):

Front Seat Outer Belt Assy LH (Regular Cab):

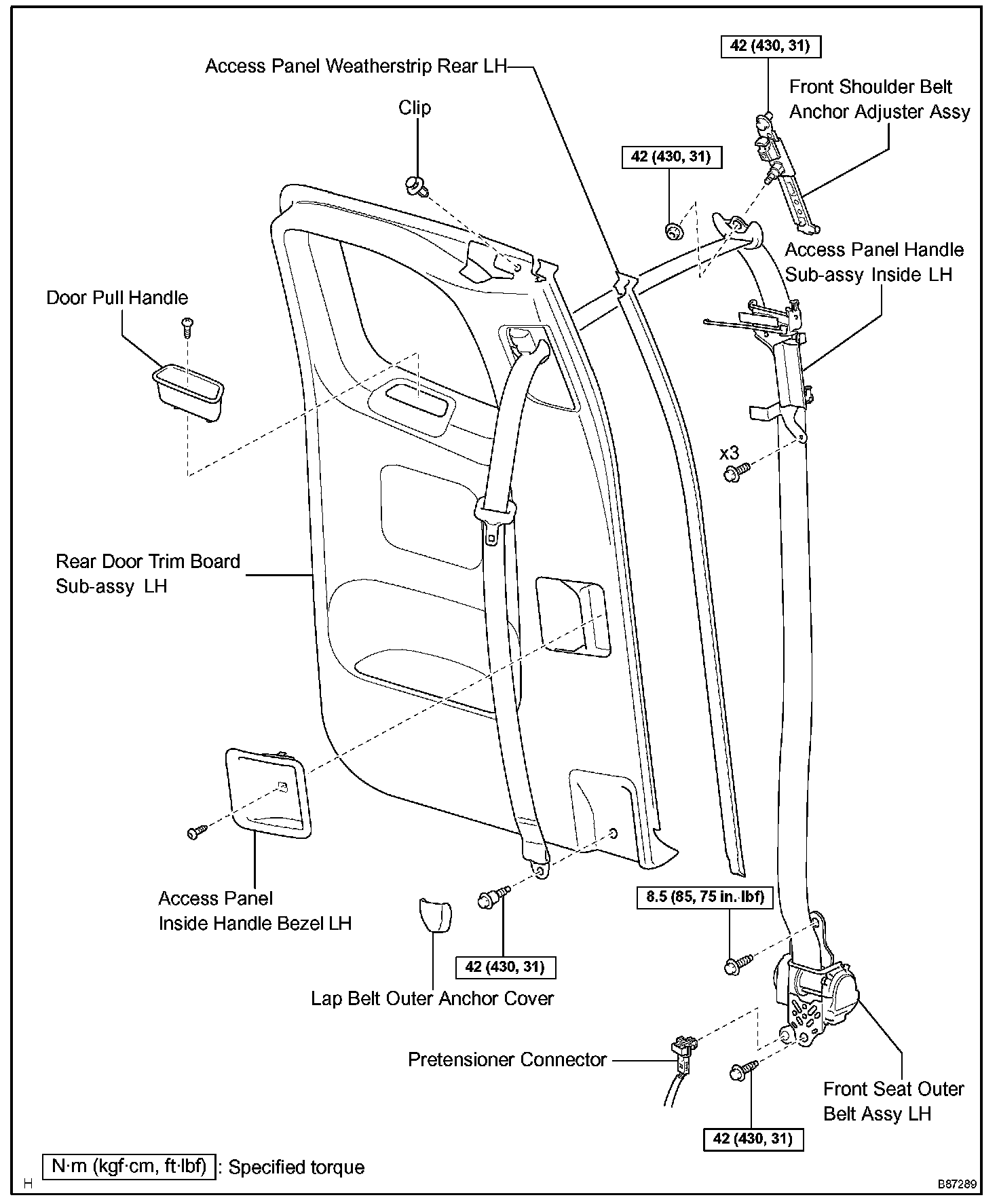

Front Seat Outer Belt Assy LH (Access Cab):

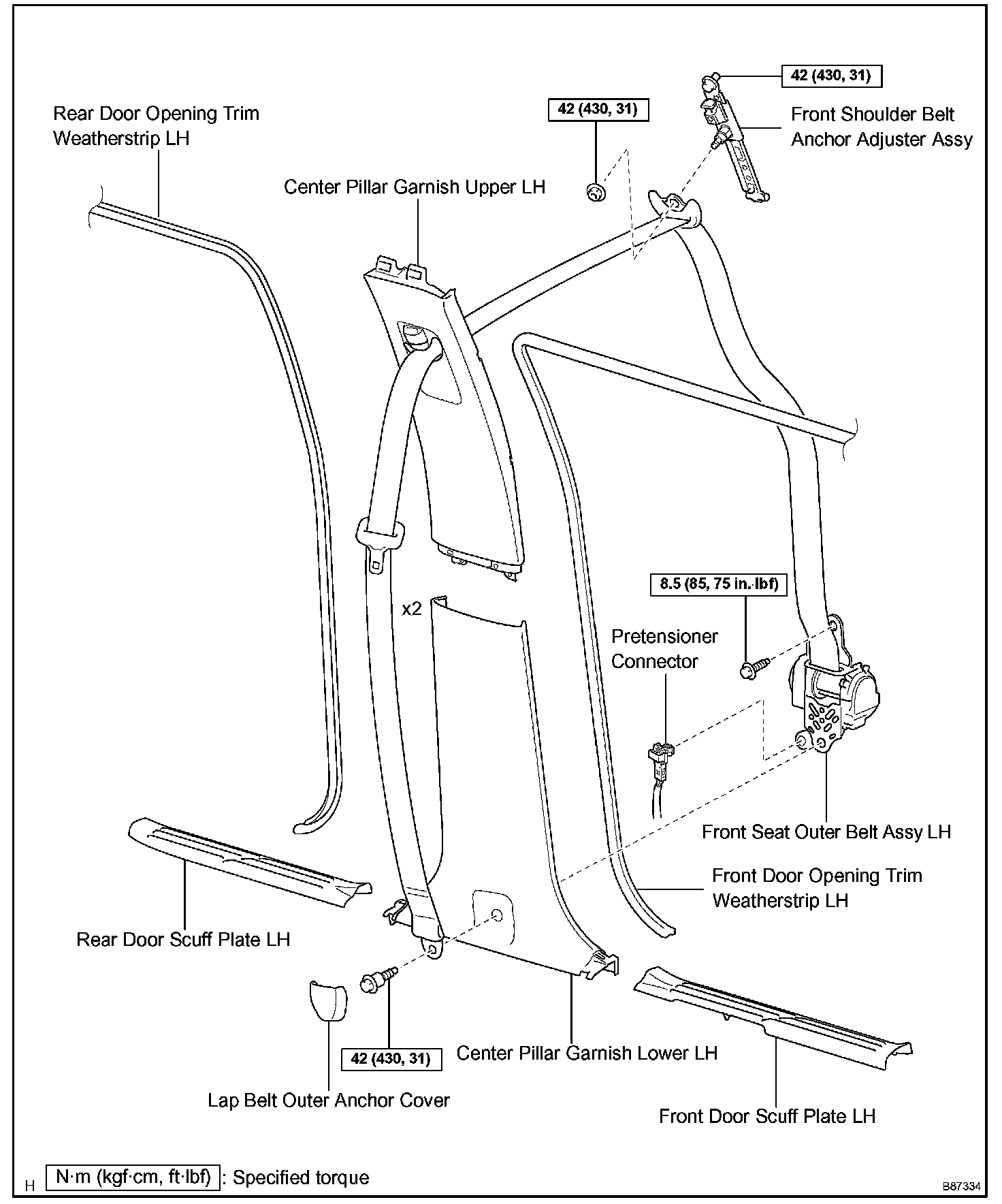

Front Seat Outer Belt Assy LH (Double Cab):

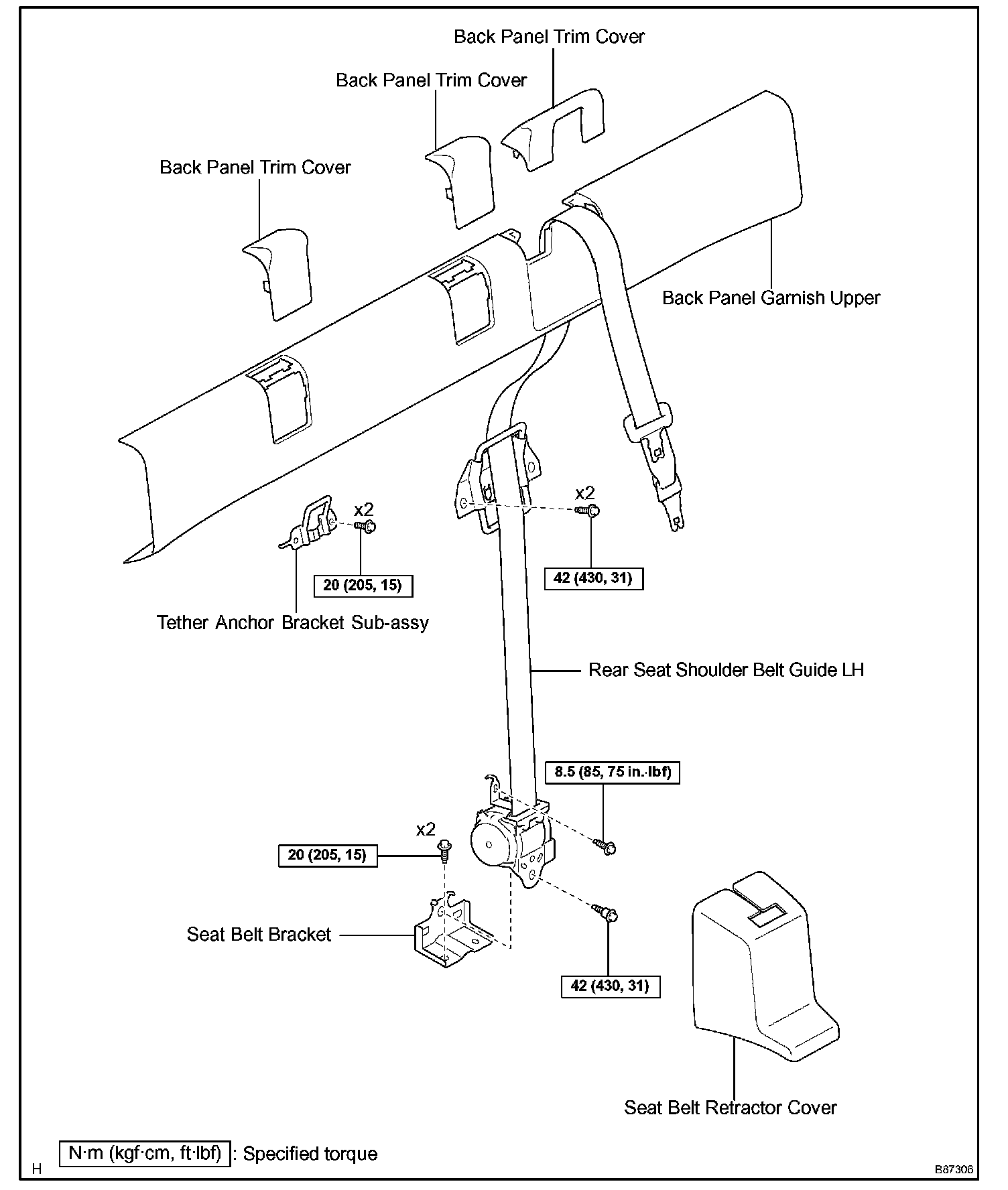

Rear Seat Shoulder Belt Guide LH (Bench Seat Type):

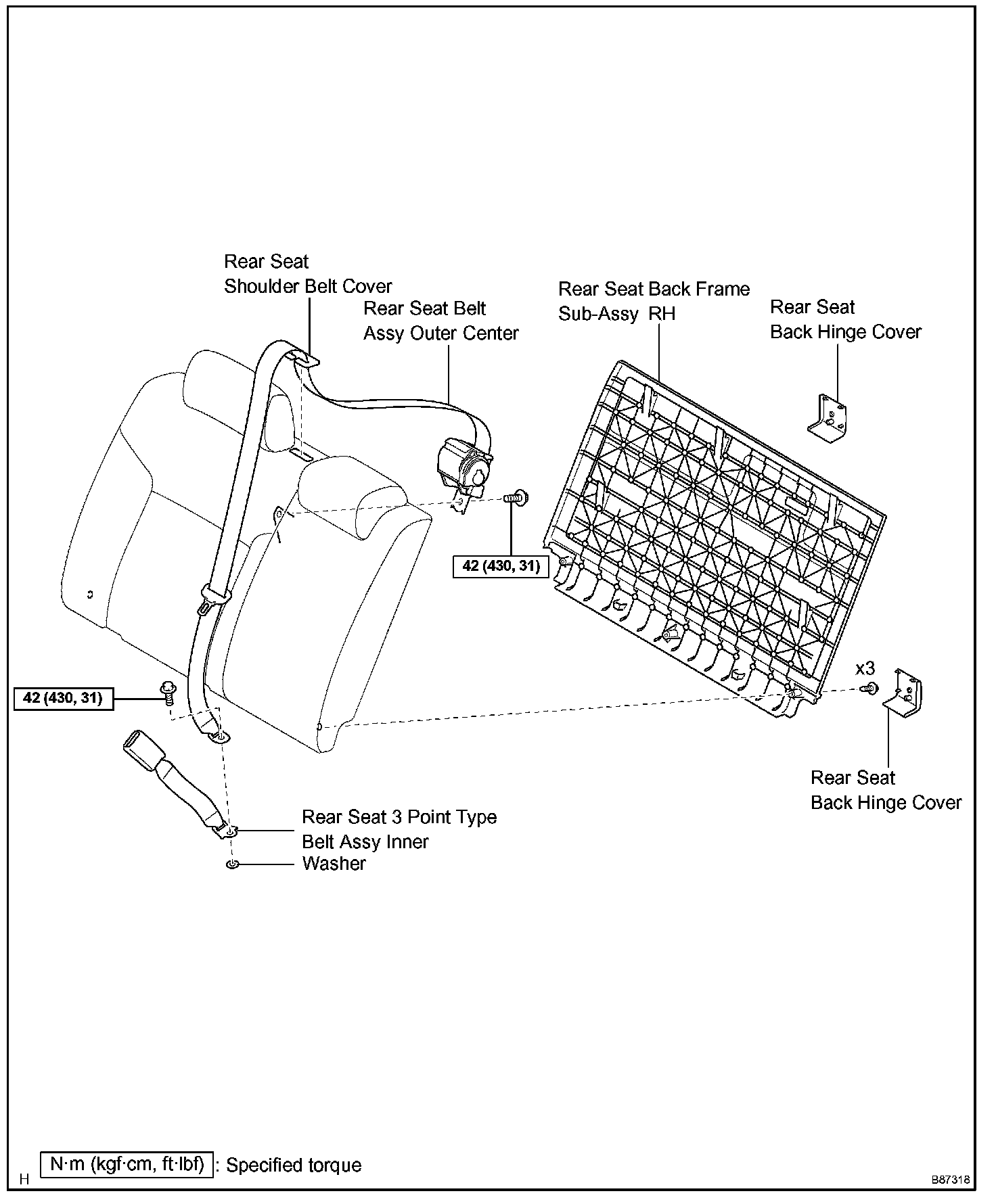

Rear Seat Belt Assy Outer Center (Double Cab):

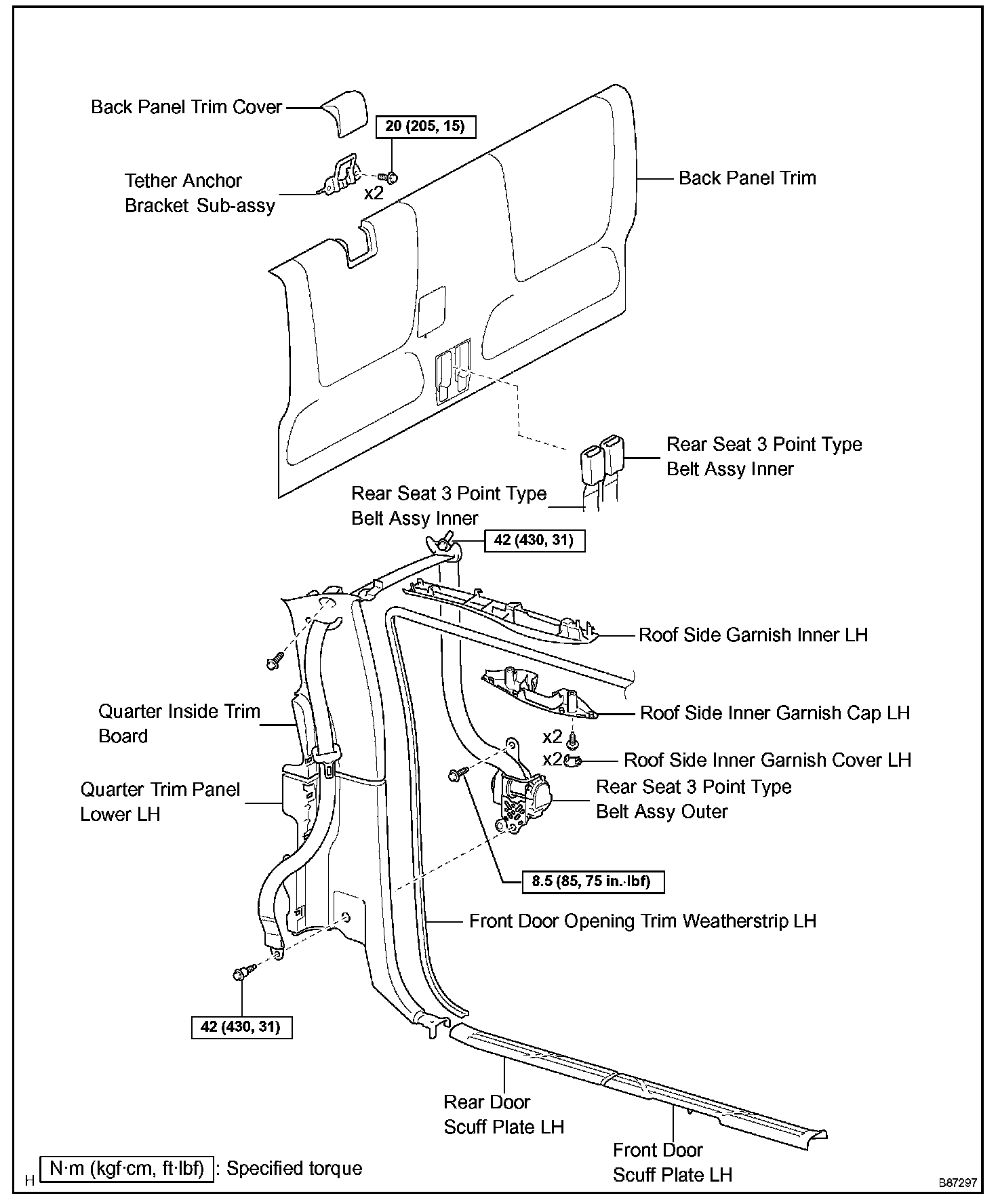

Rear Seat 3 Point Type Belt Assy Outer (Access Cab):

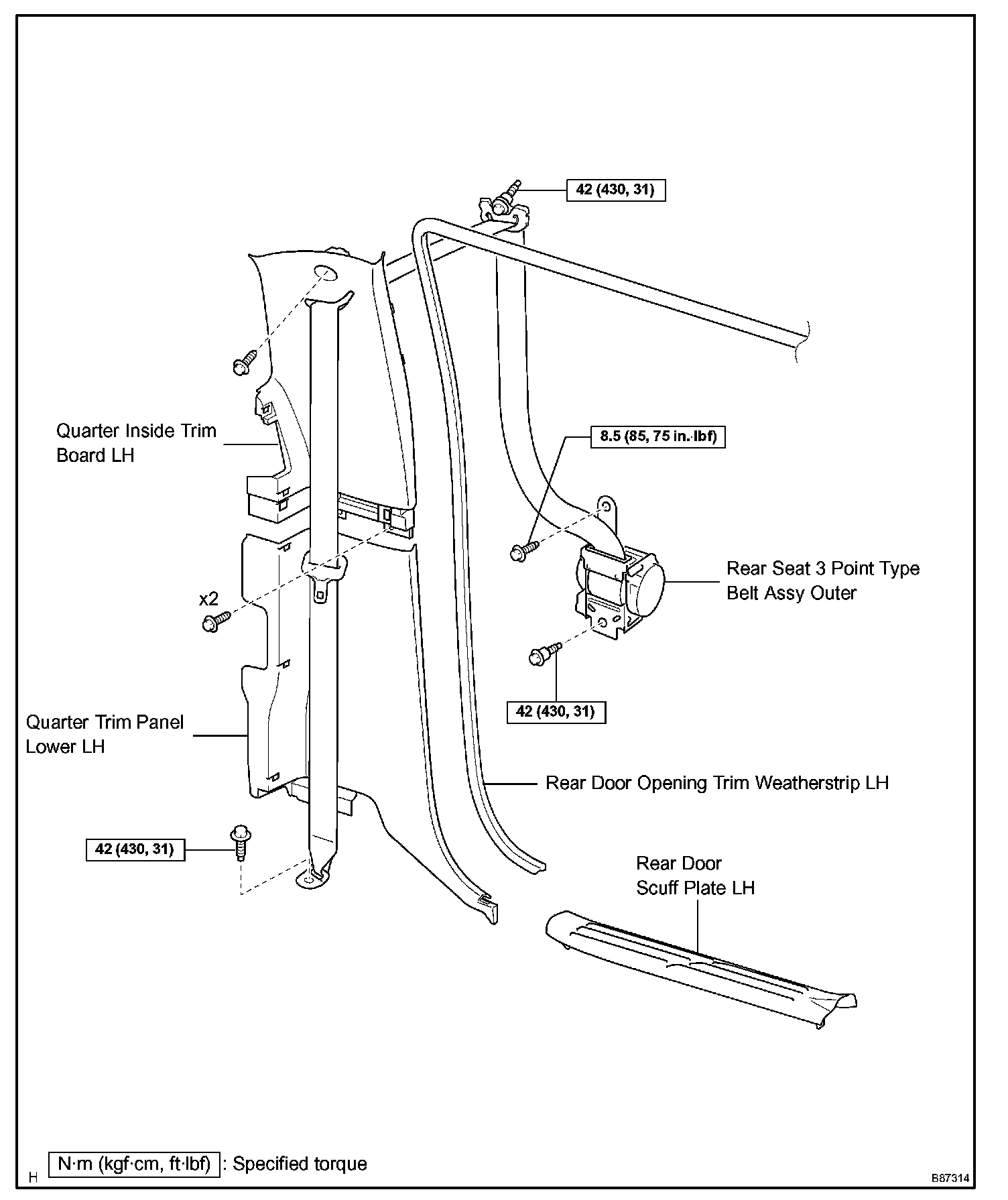

Rear Seat 3 Point Type Belt Assy Outer (Double Cab):

Rear Seat 3 Point Type Belt Assy Outer (Double Cab):
