Compressor Clutch: Testing and Inspection
INSPECT MAGNET CLUTCH ASSEMBLY
a.
Inspect the magnet clutch assembly.
b.

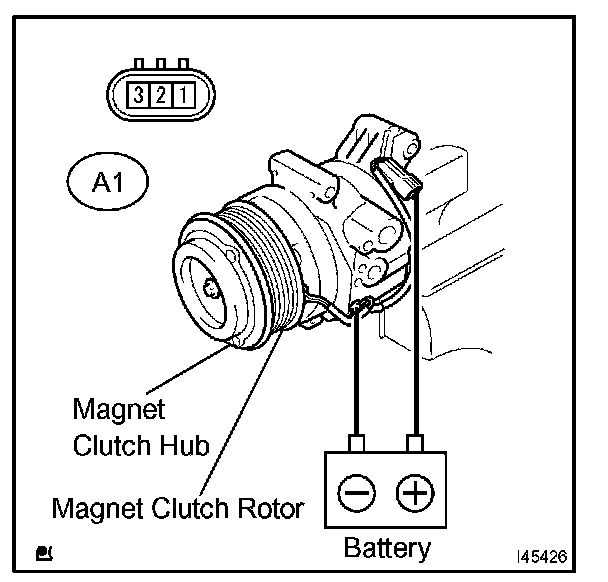

Confirm that the magnet clutch hub and magnet clutch rotor lock when the battery positive lead is connected to terminal 1 (MG+) of the magnet clutch, and the negative lead is connected to the earth wire.
If the operation is not as specified, replace the magnet clutch assembly
