CAN Communication System

TERMINALS OF ECU

HINT: This section describes the standard CAN values for all CAN related components.

1. CAN J/C

Terminals Of Control Module / Pinouts:

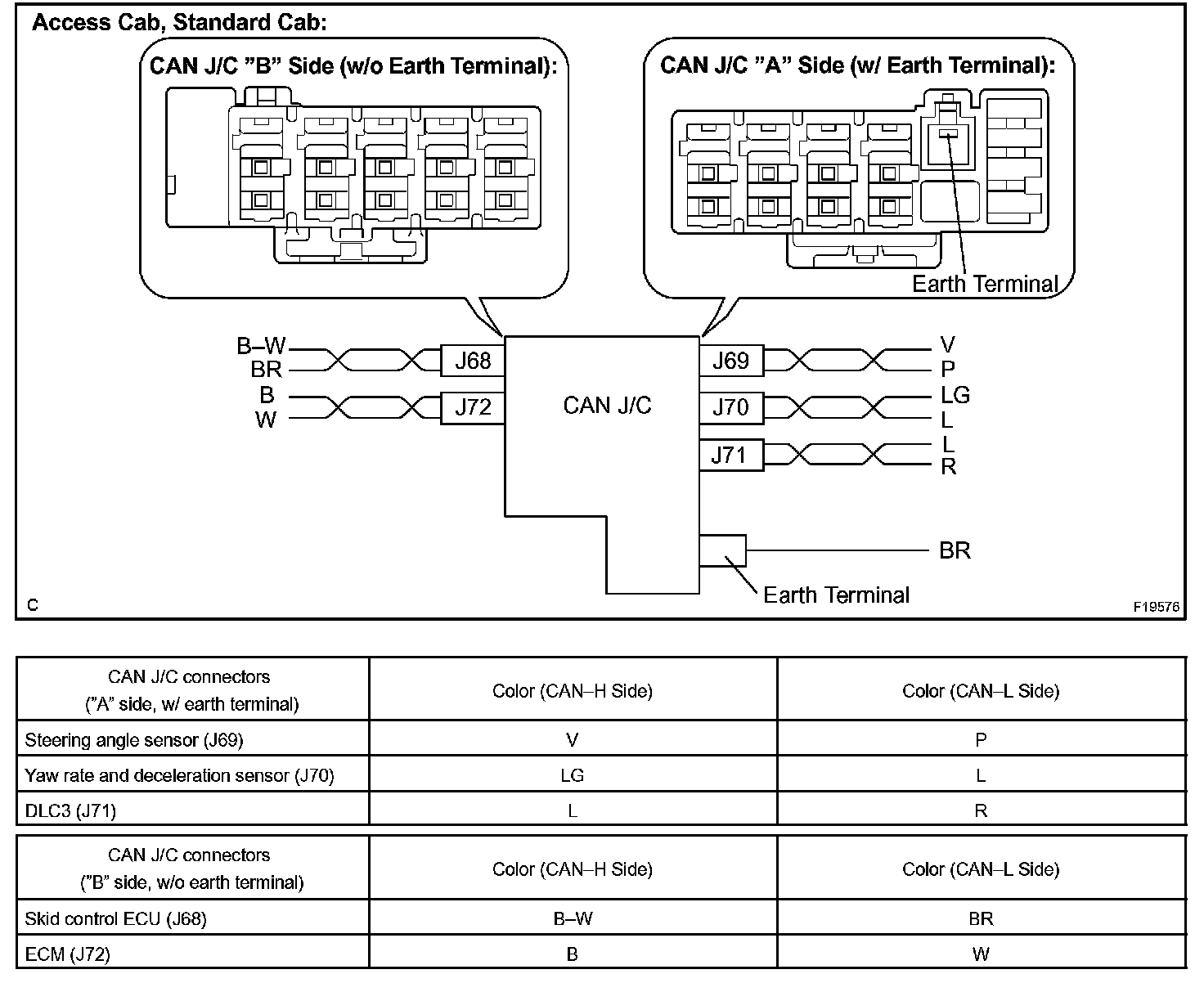

a. Access cab, standard cab.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- J69, J70, and J71 are interchangeable.
- J68 and J72 are interchangeable.

Terminals Of Control Module / Pinouts:

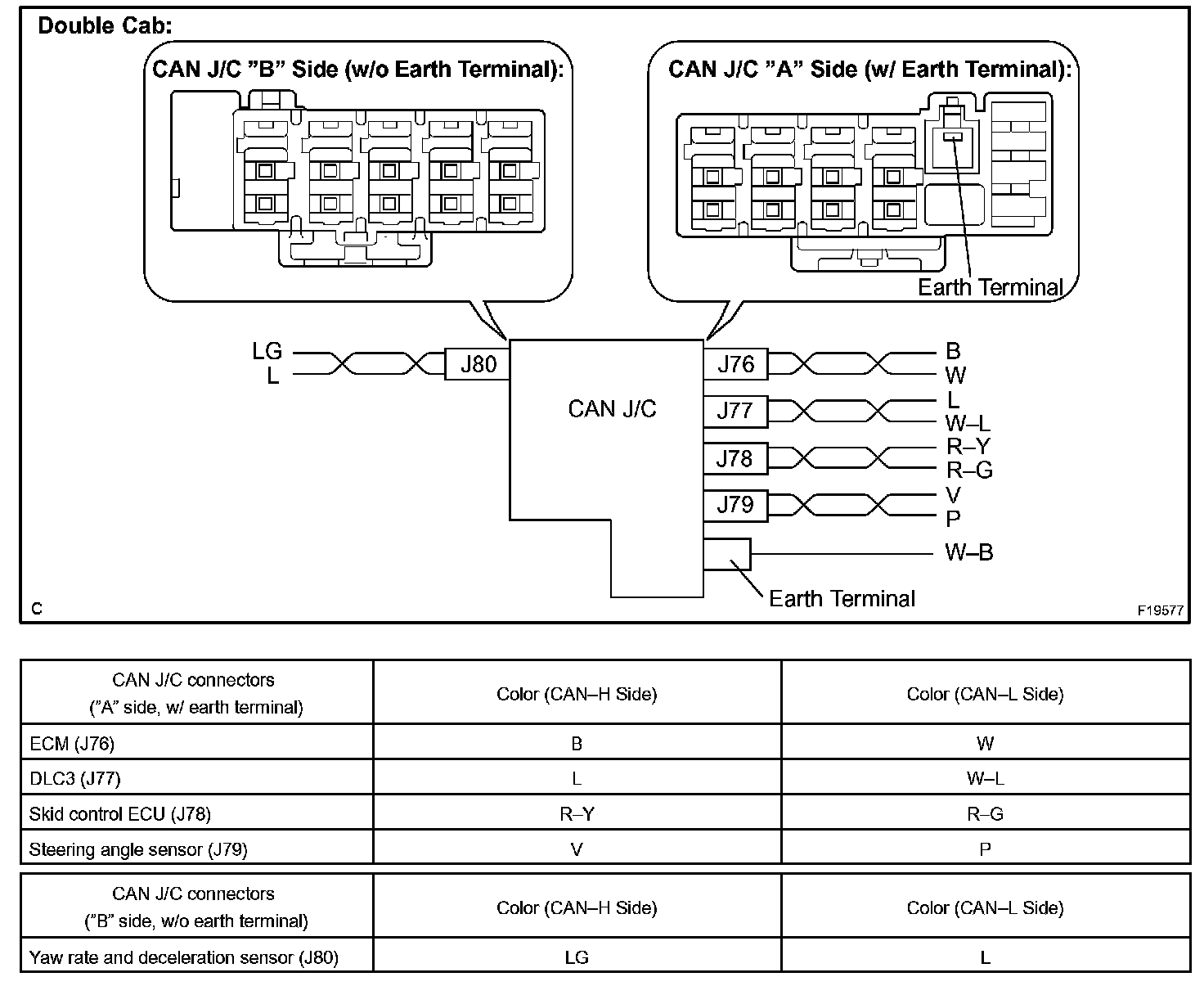

b. Double cab.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- J76, J77, J78 and J79 are interchangeable.




c. The terminals of the CAN J/C connector.




1. Access cab, standard cab




2. Double cab







d. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab

2. DLC3







a. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab

3. Skid Control ECU







a. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab

4. Steering Angle Sensor







a. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab

5. Yaw Rate and Deceleration Sensor







a. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab

6. ECM




a. Measure the resistance according to the value(s) in the table.







b. Measure the resistance according to the value(s) in the table.

HINT:
- *1: Access cab, standard cab
- *2: Double cab
