Manual Up/Down Function Does Not Operate on Passenger Side
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON PASSENGER SIDECIRCUIT DESCRIPTIONIf the manual UP/DOWN function does not operate, the
power window motor, the
power window switch or the wire harness is abnormal.

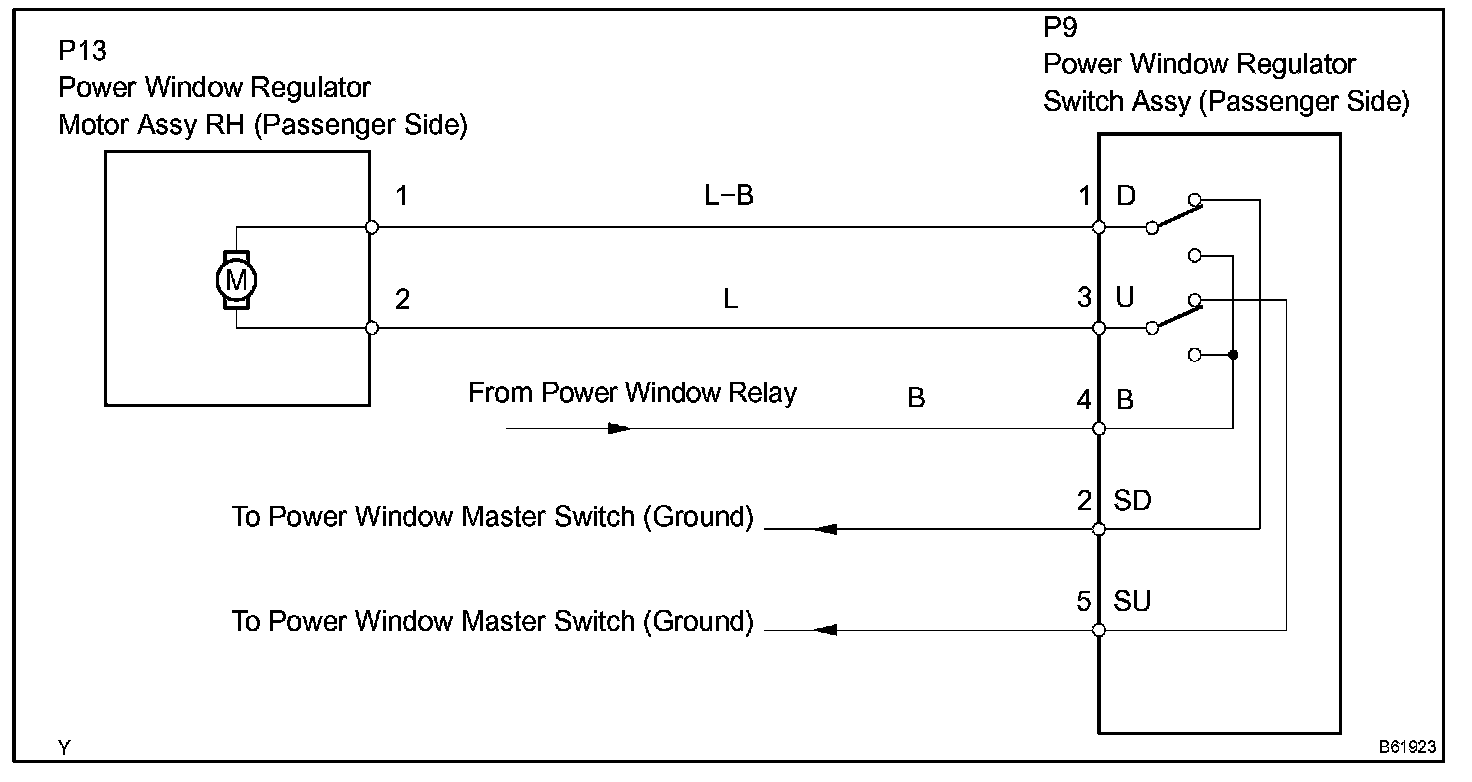

Wiring Diagram:

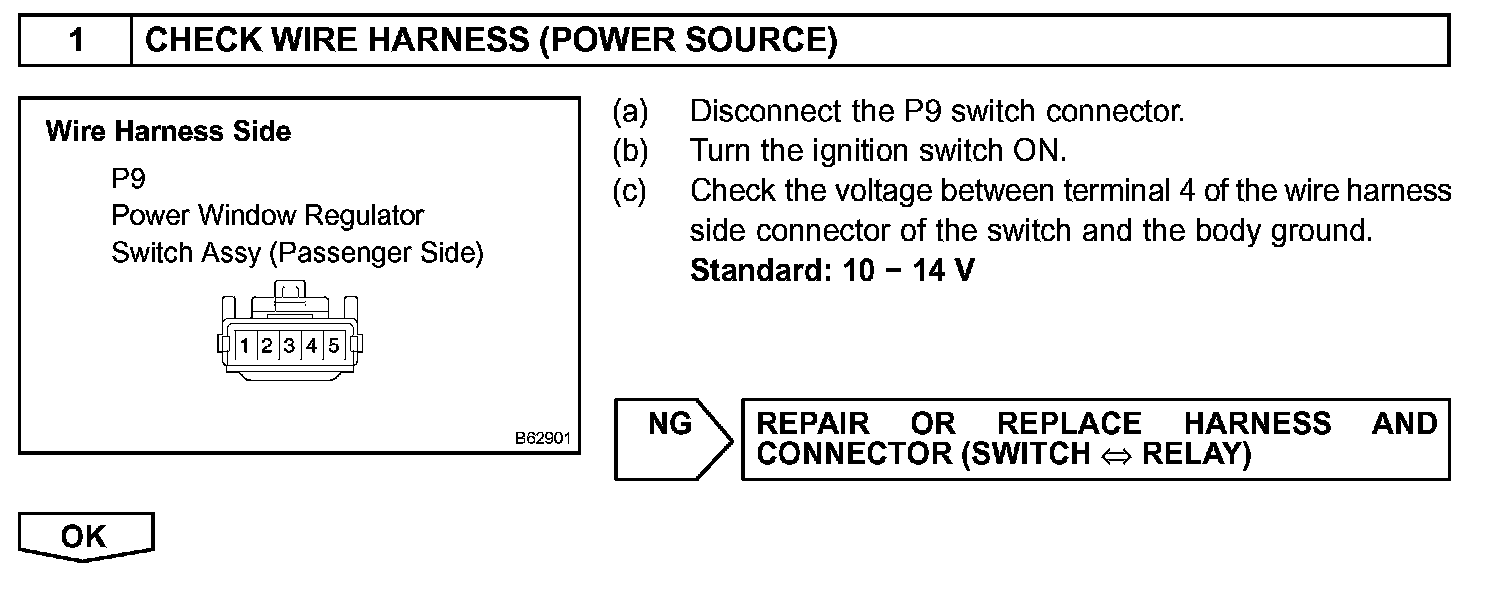

Step 1:

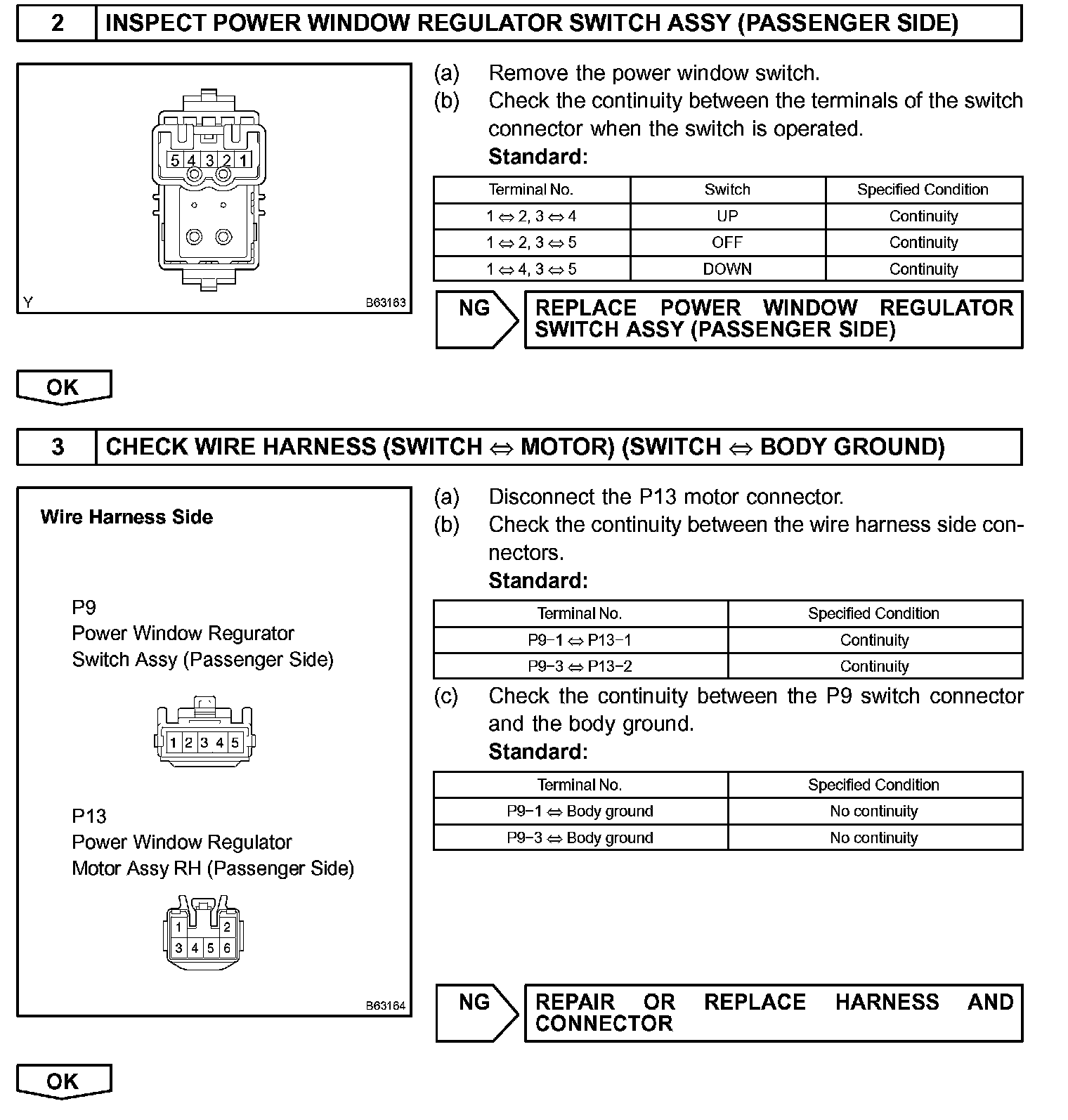

Step 2-3:

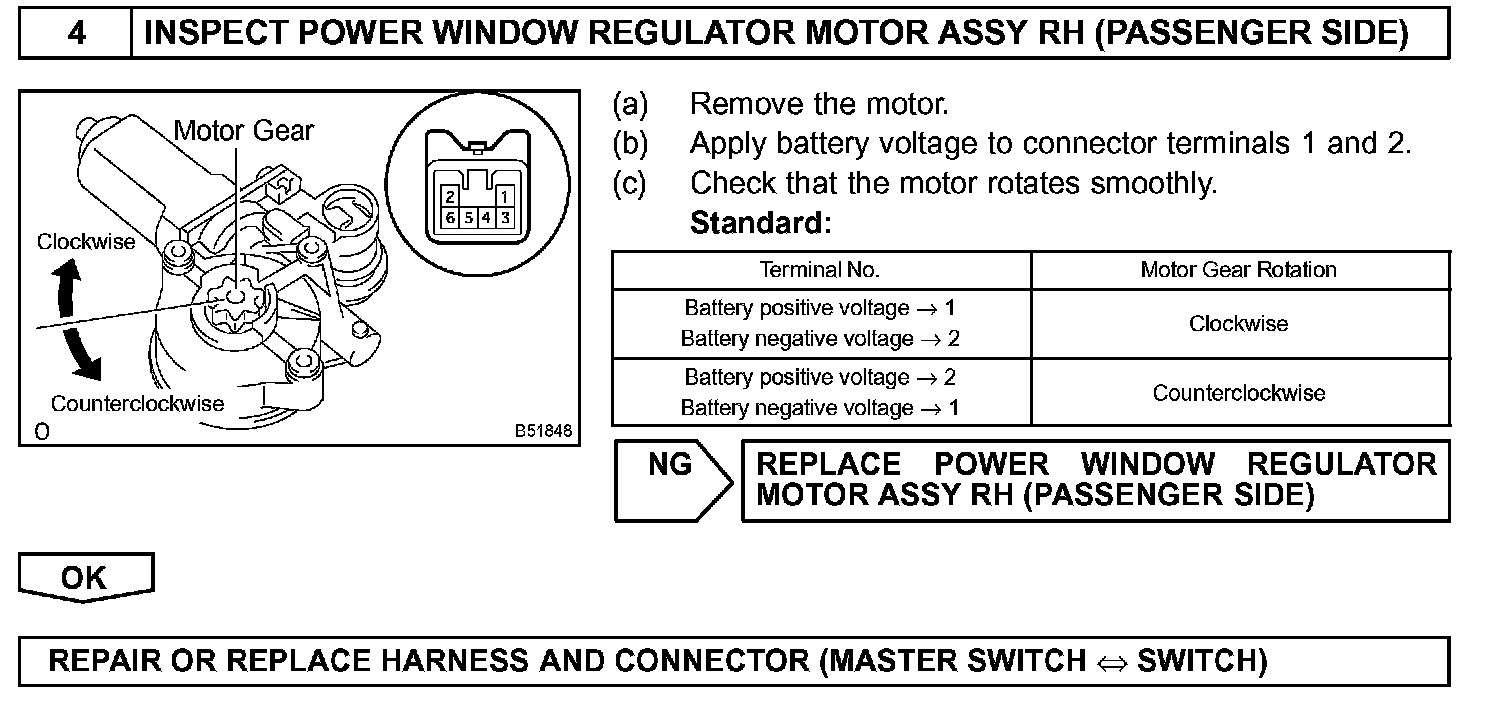

Step 4:
INSPECTION PROCEDURE
