Customize Parameters

CUSTOMIZE PARAMETERS

HINT: The following items are possible to customize.

NOTE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that a function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

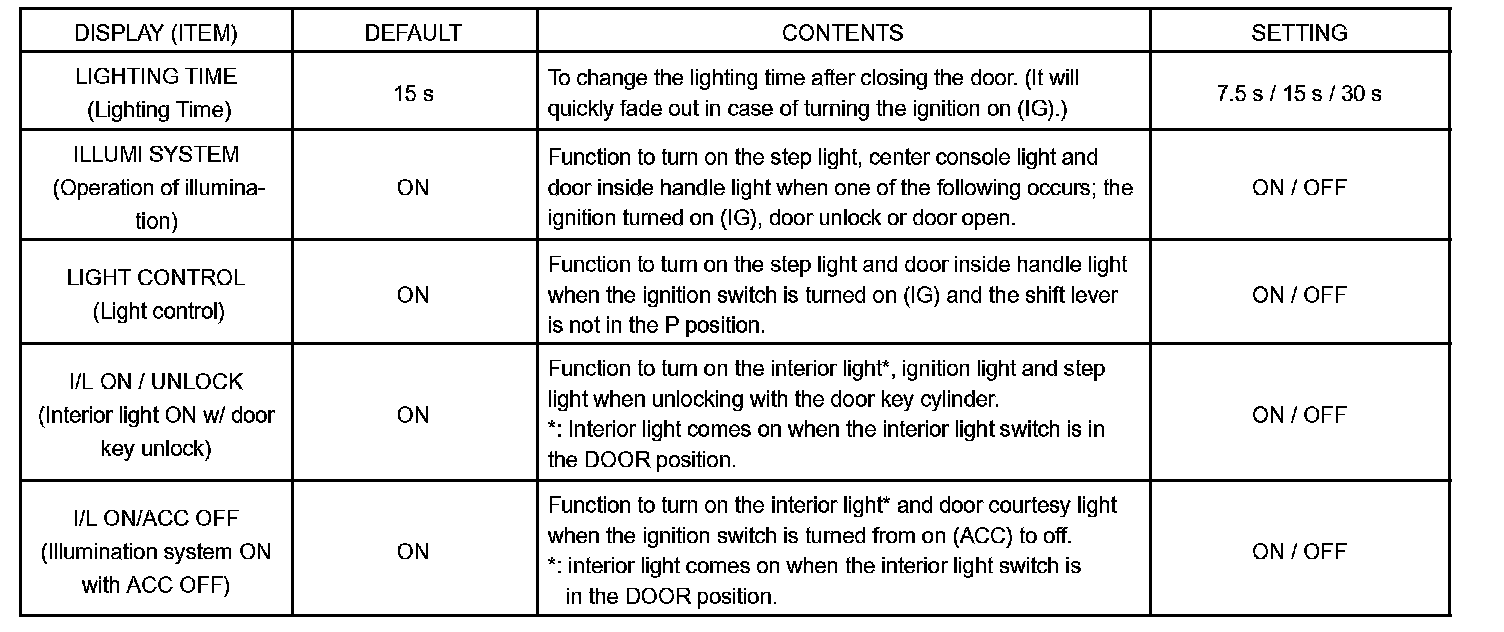

ILLUMINATED ENTRY

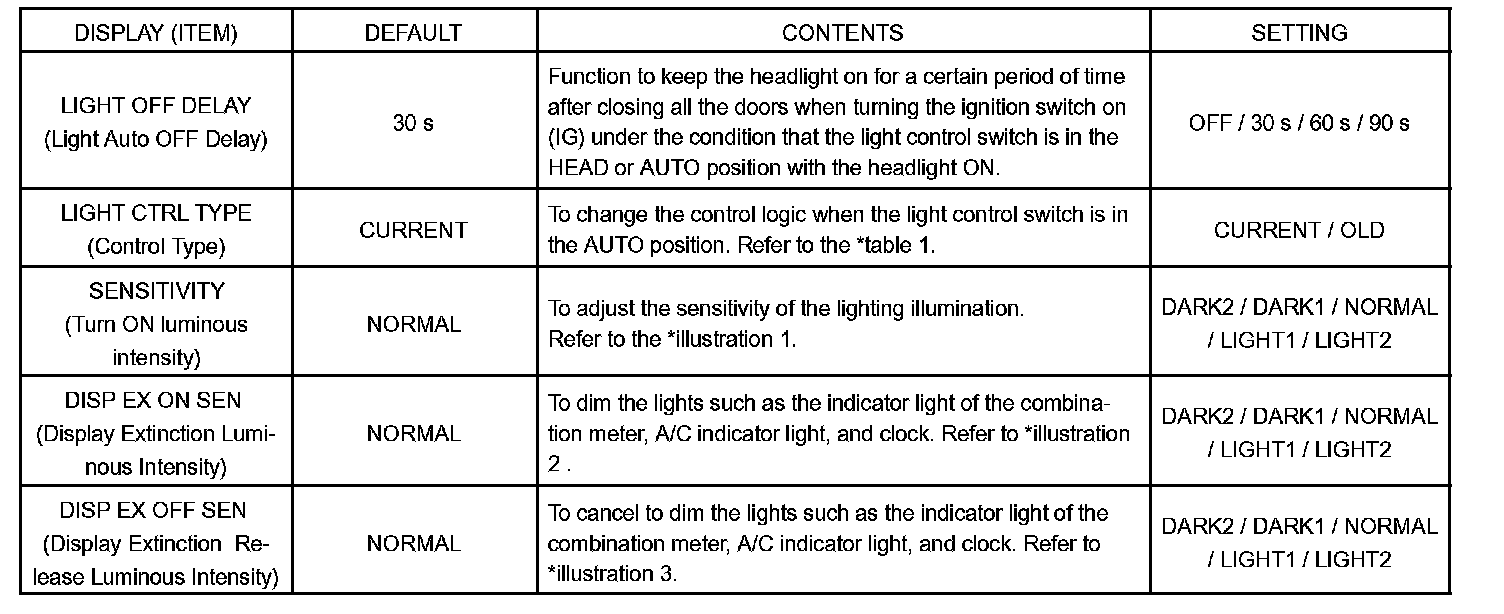

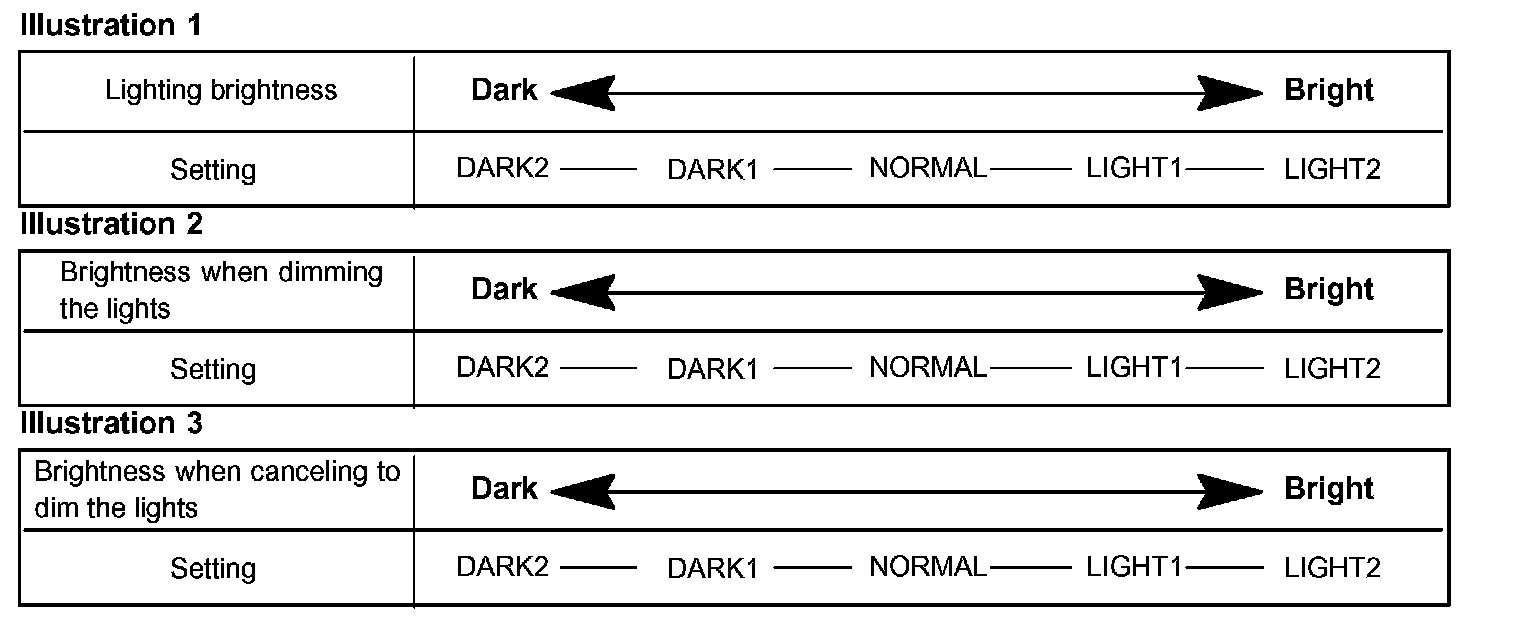

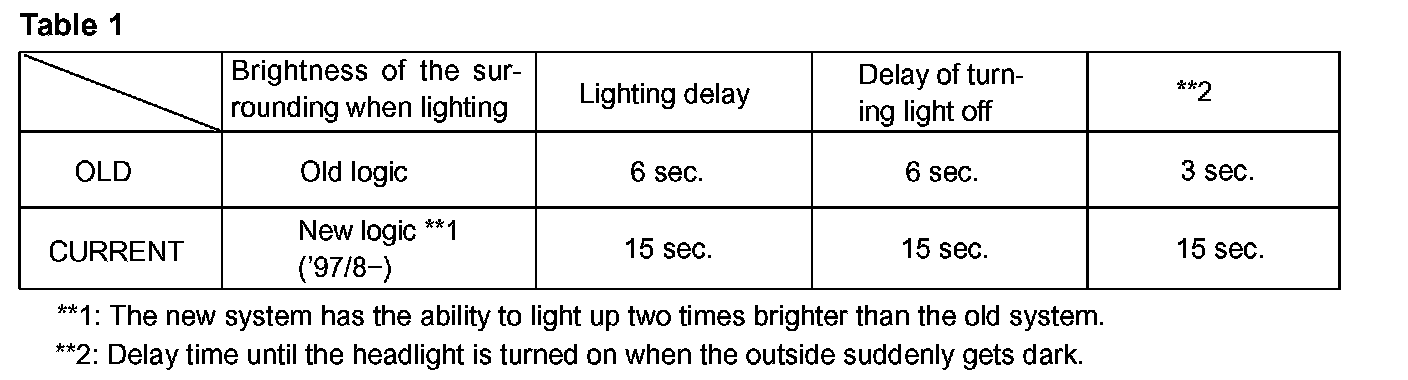

LIGHT CONTROL

HINT: Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.
