Clutch Switch: Service and Repair
CLUTCH SWITCH ASSEMBLY REPLACEMENT HINT: Installation is in the reverse order of removal.
1.
REMOVE FRONT DOOR SCUFF PLATE LH
2.
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
3.
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER
4.
REMOVE INSTRUMENT PNL INSERT SUB-ASSEMBLY LWR LH
5.

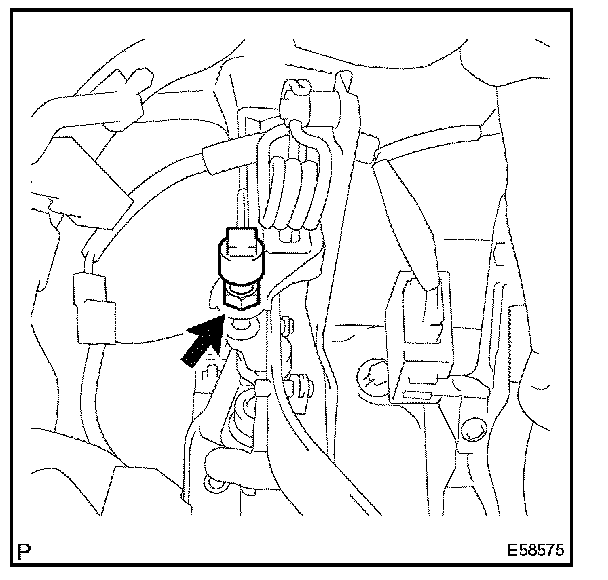

REMOVE
CLUTCH SWITCH ASSEMBLY
a.
Disconnect the connector.
b.
Loosen the nut and remove the
clutch switch assembly.
