Control Assembly: Testing and Inspection

INSPECTION


COMBINATION SWITCH ASSEMBLY




Standard Resistance:

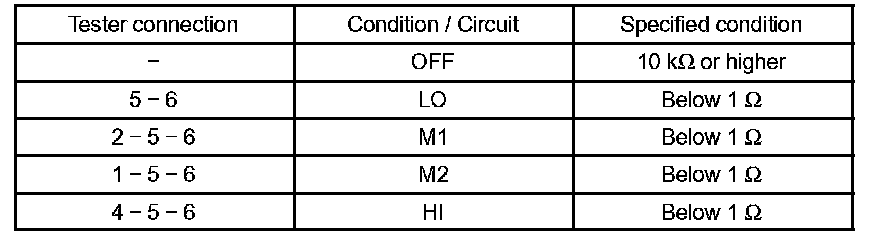

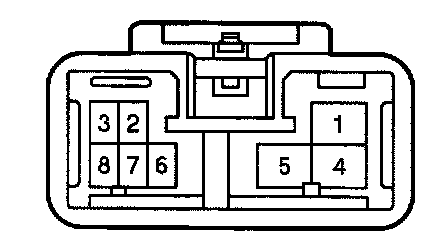

a. Inspect blower switch.
1 Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the combination switch assembly.

b. Inspect illumination operation.
1 Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 3, then check that the illuminations light up.
If the bulb does not light up, replace the bulb.

c. Inspect A/C switch.




Standard Resistance:




1 Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the combination switch assembly.

d. Inspect indicator operation.
1 Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 4 while the A/C switch is pressed, then check that the indicator lights up.
If operation is not as specified, replace the combination switch assembly.

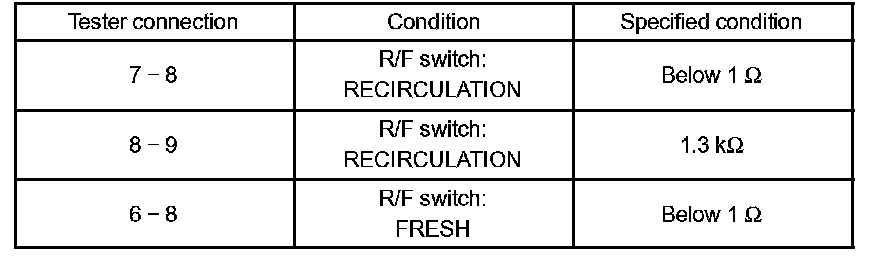

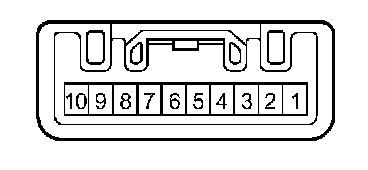

e. Inspect R/F switch.




Standard Resistance:




1 Measure the resistance according to the value(s) in the table below.
If the resistance is not as specified, replace the combination switch assembly.

f. Inspect indicator operation.
1 Connect the positive (+) lead from the battery to terminal 9 and the negative (-) lead to terminal 8 while the RIF switch is pressed, then check that the indicator lights up.
If operation is not as specified, replace the combination switch assembly.

g. Inspect illumination operation.
1 Connect the positive (+) lead from the battery to terminal 10 and the negative (-) lead to terminal 5, then check that the illuminations light up.
If the bulb does not light up, replace the bulb.

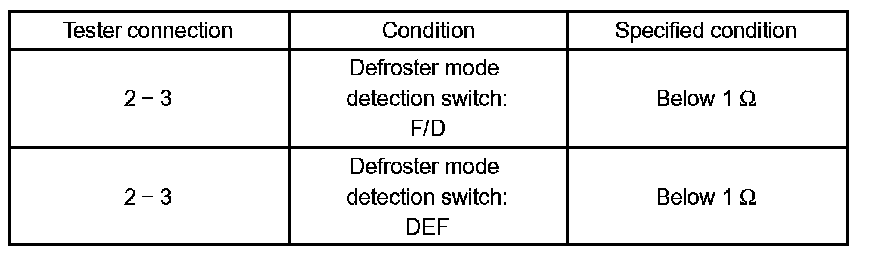

h. Inspect defroster mode detection switch.




Standard Resistance:




1 Measure the resistance according to the value(s) in the table below.
If the resistance is not as specified, replace the combination switch assembly.
