Intake Manifold

INTAKE MANIFOLD

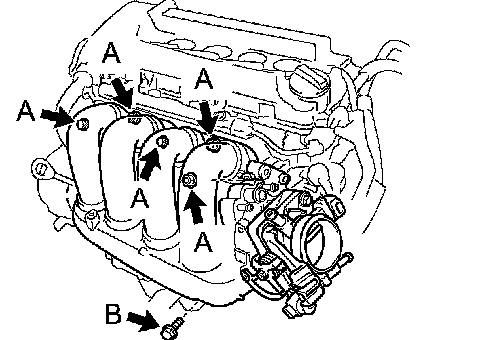

Install a new gasket and the intake manifold with the 4 bolts and 2 nuts.
Torque:
Bolt A and nut A 34 Nm (347 kgf-cm, 25 ft. lbs.)
Bolt B 46 Nm (469 kgf-cm, 34 ft. lbs.)
