System Specifications

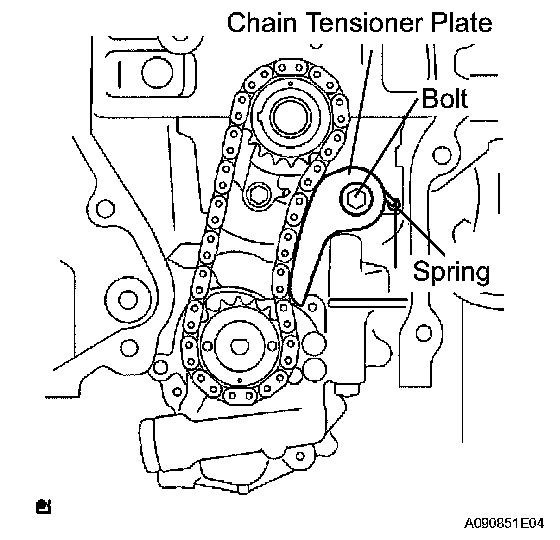

Chain Tensioner Plate
12 Nm (122 kgf-cm, 9.0 ft.lbs.)
Timing Cover Fasteners
Bolt A
9.0 Nm (92 kgf-cm, 80 inch lbs.)
Bolt B
21 Nm (214 kgf-cm, 15 ft. lbs.)
Bolt C
43 Nm (438 kgf-cm, 32 ft. lbs.)
Nuts
9.0 Nm (92 kgf-cm, 80 inch lbs.)

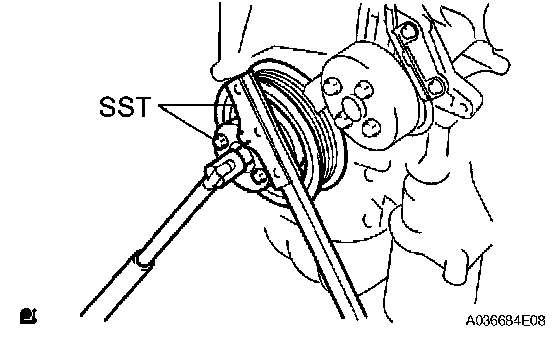

Crankshaft Pulley
180 Nm (1,835 kgf-cm, 133 ft. lbs.)
