Fuse Block: Locations

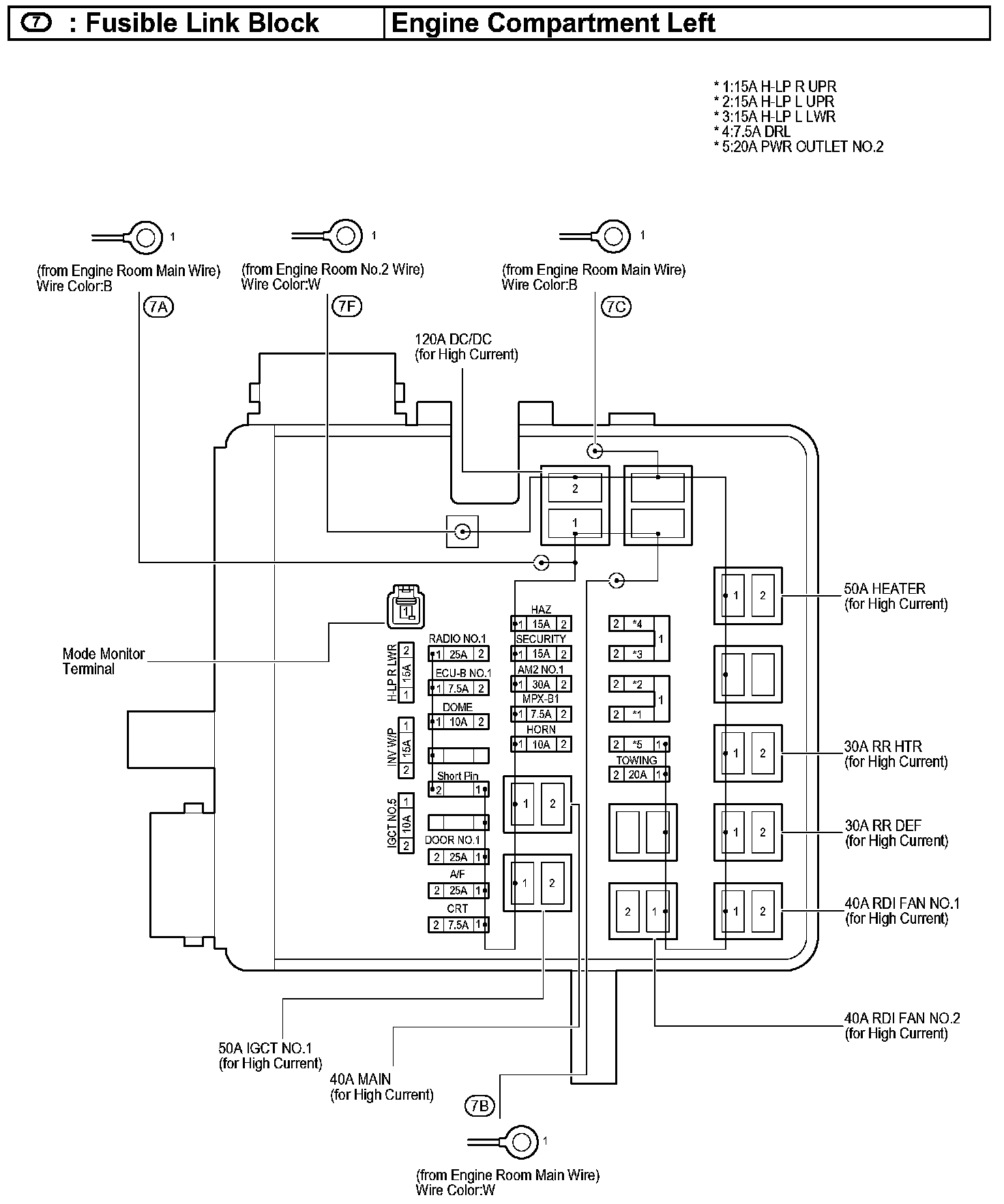

Fusible Link Block:




Engine Room R/B 2:

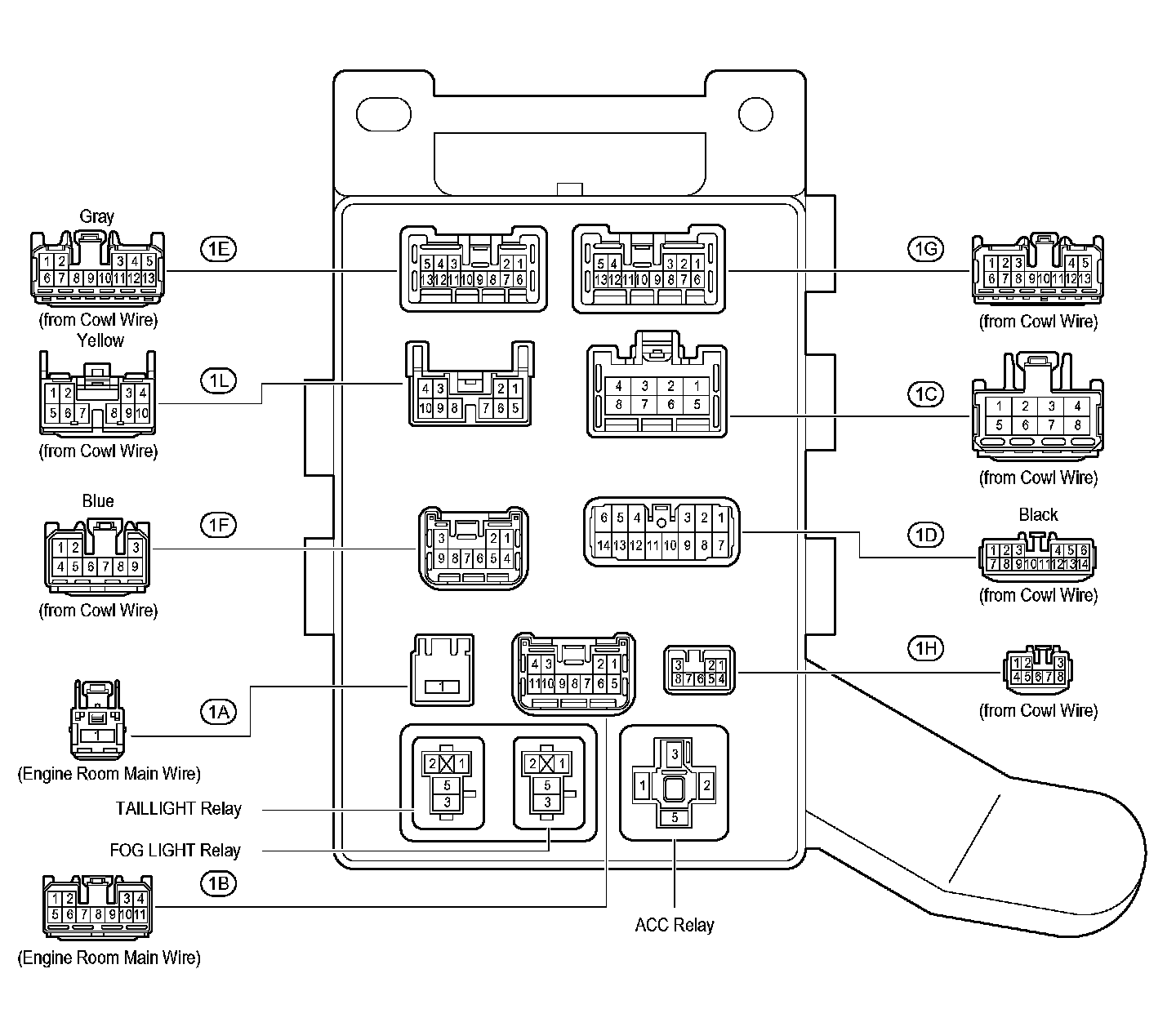

Lower Finish Panel R/B 1:




Engine Room R/B 3:

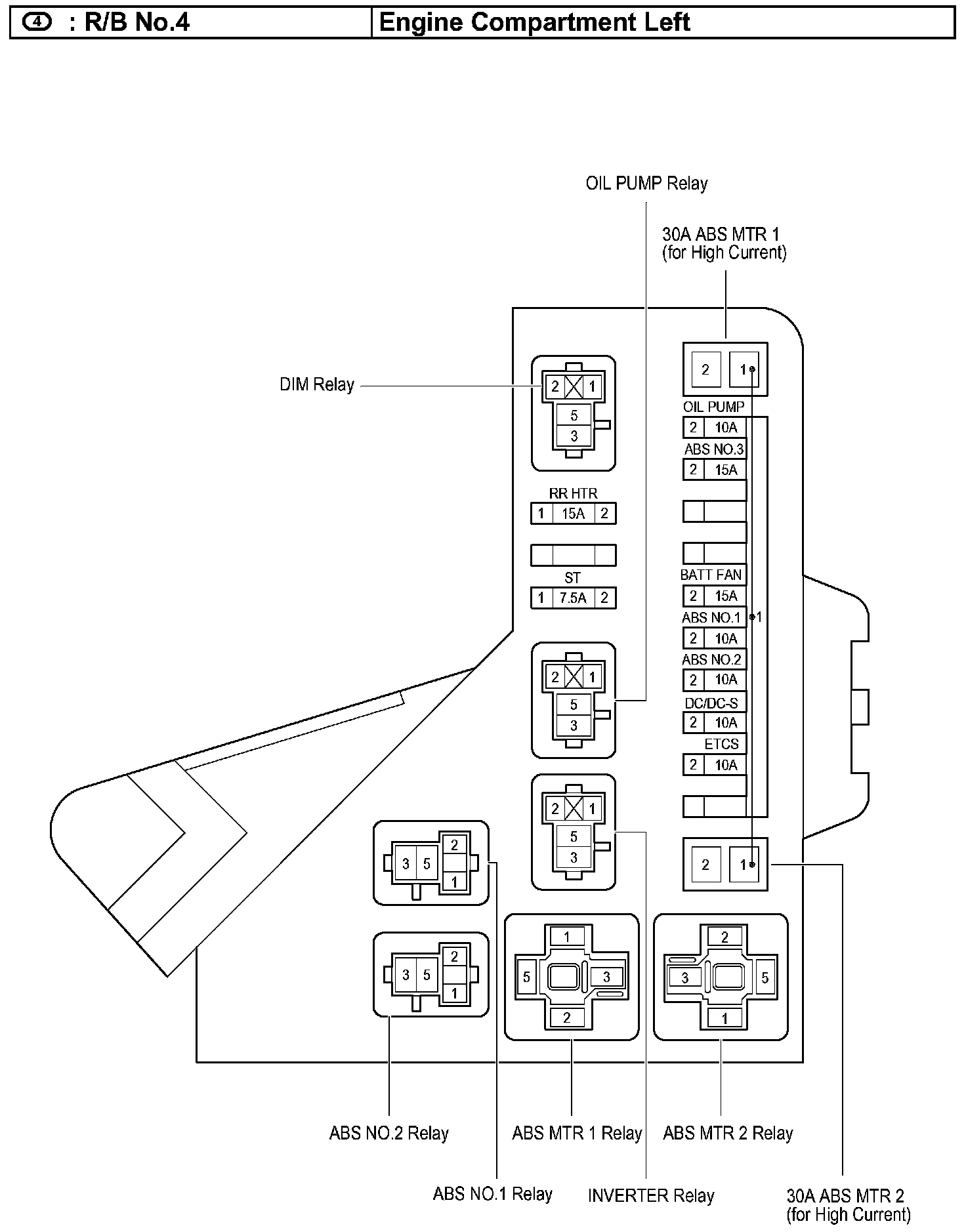

Engine Room R/B 4:

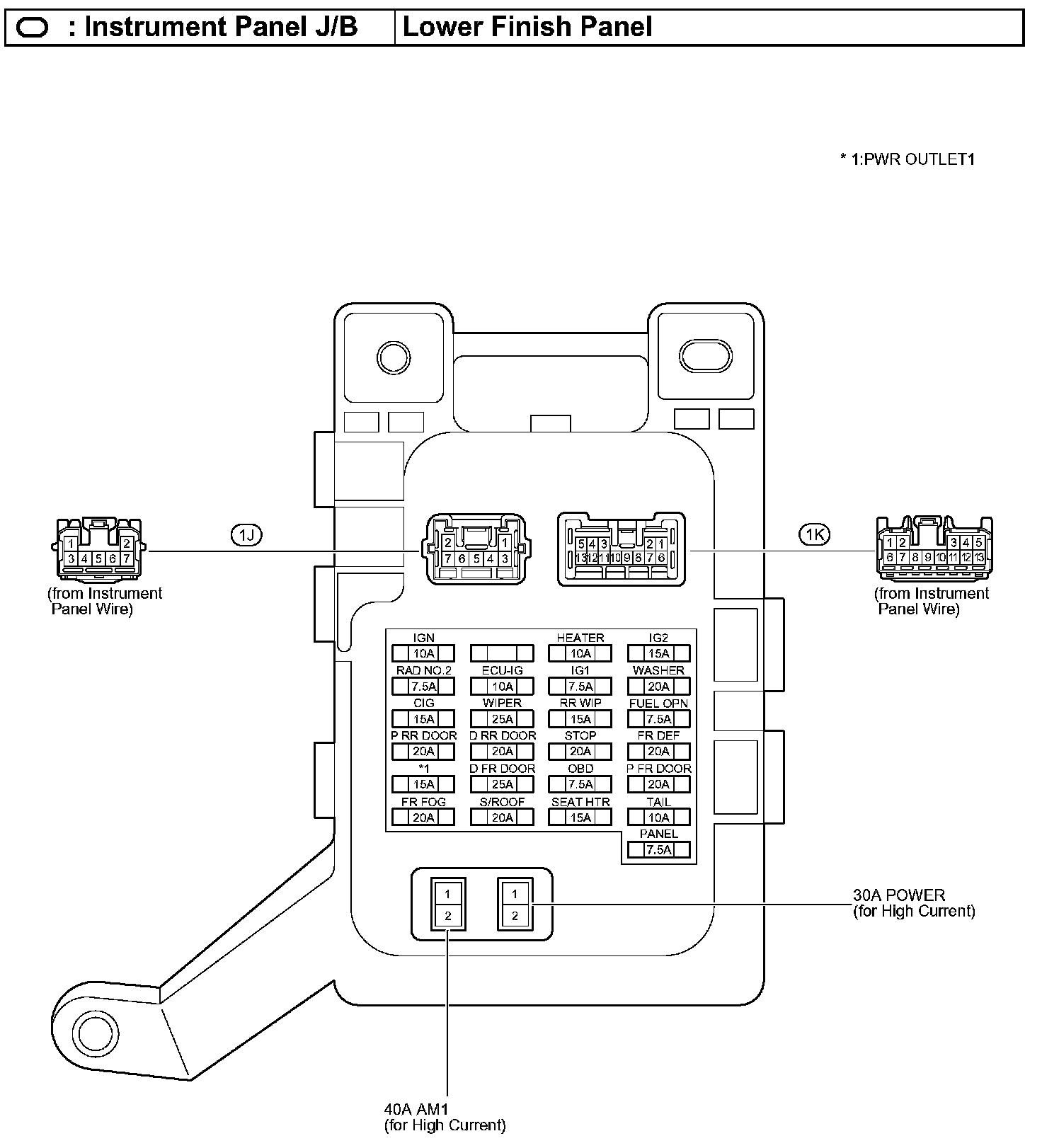

Instrument Panel J/B - Lower Finish Panel:




Instrument Panel J/B - Lower Finish Panel:




Details

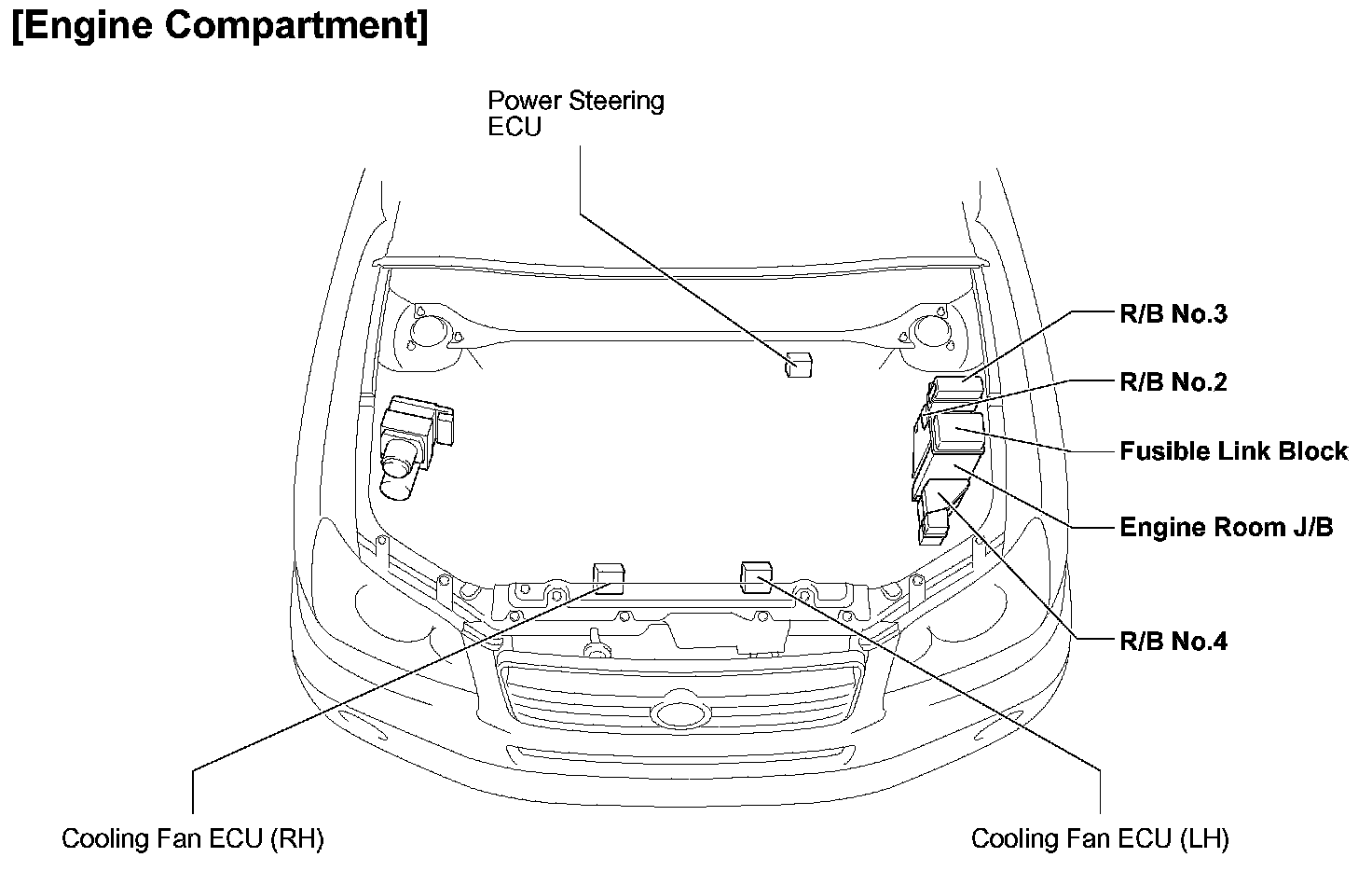

Engine Compartment:

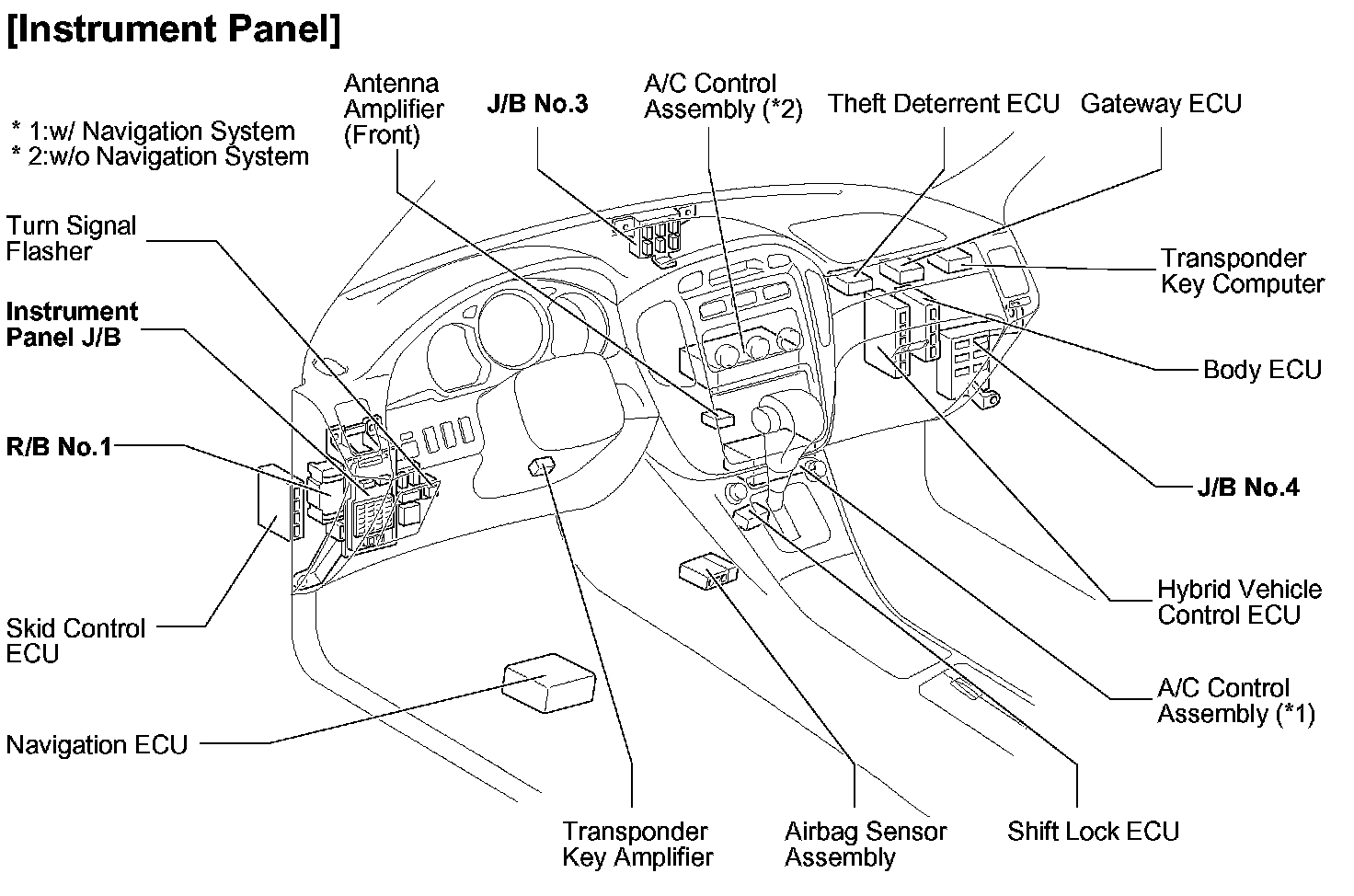

Instrument Panel:

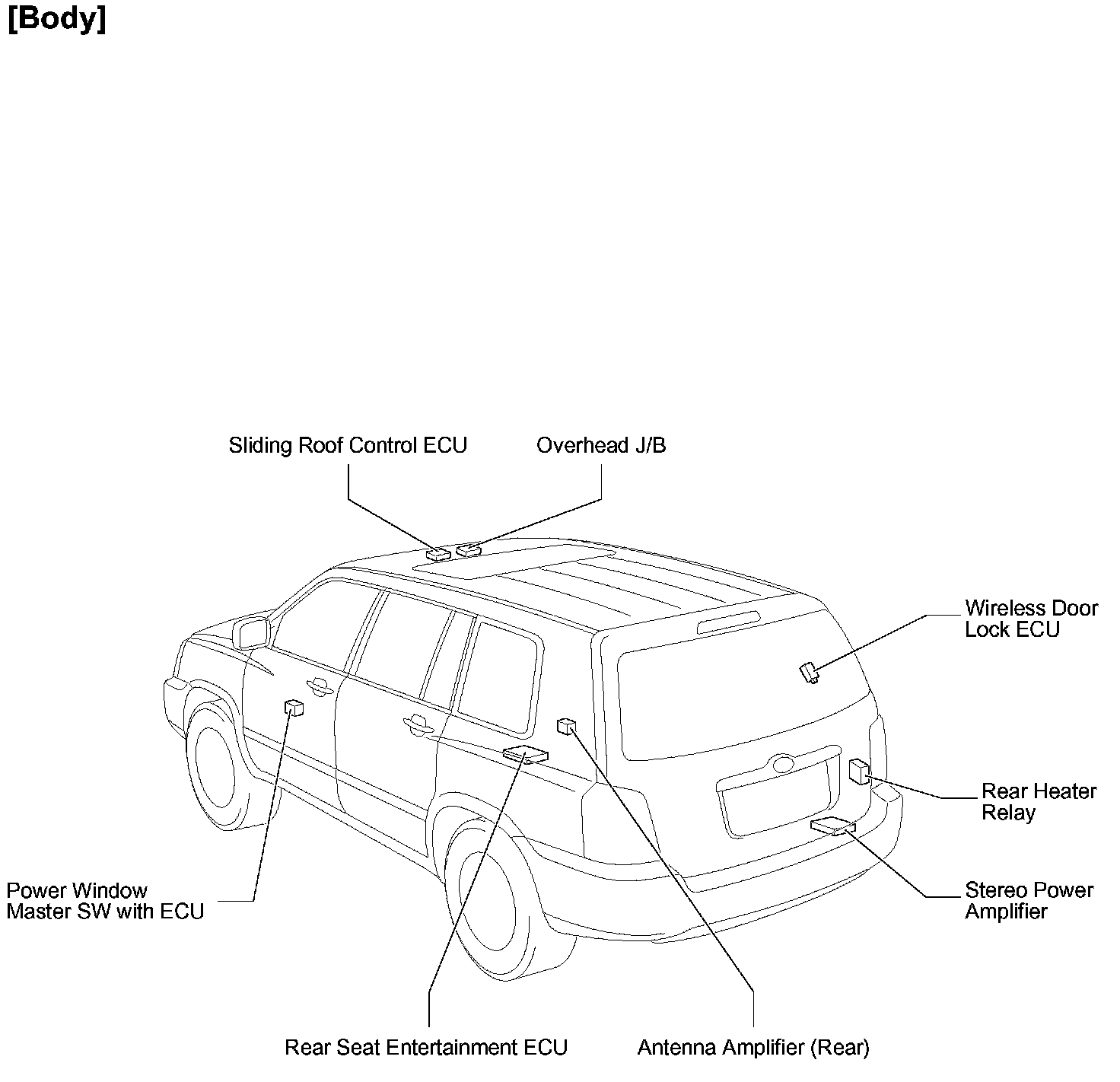

Body:




Rear Seat:




Locations
