Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

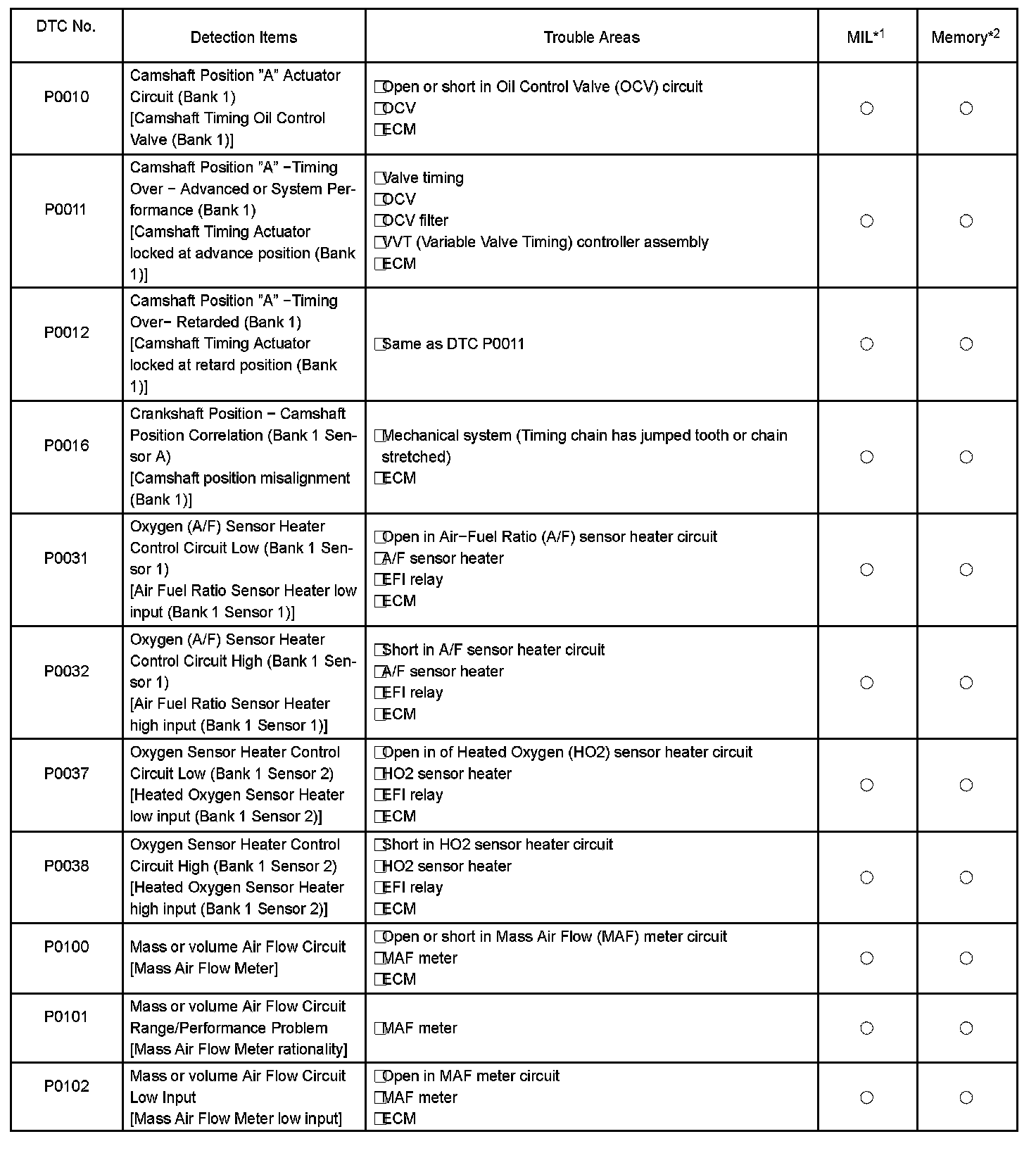

P0010-P0102:

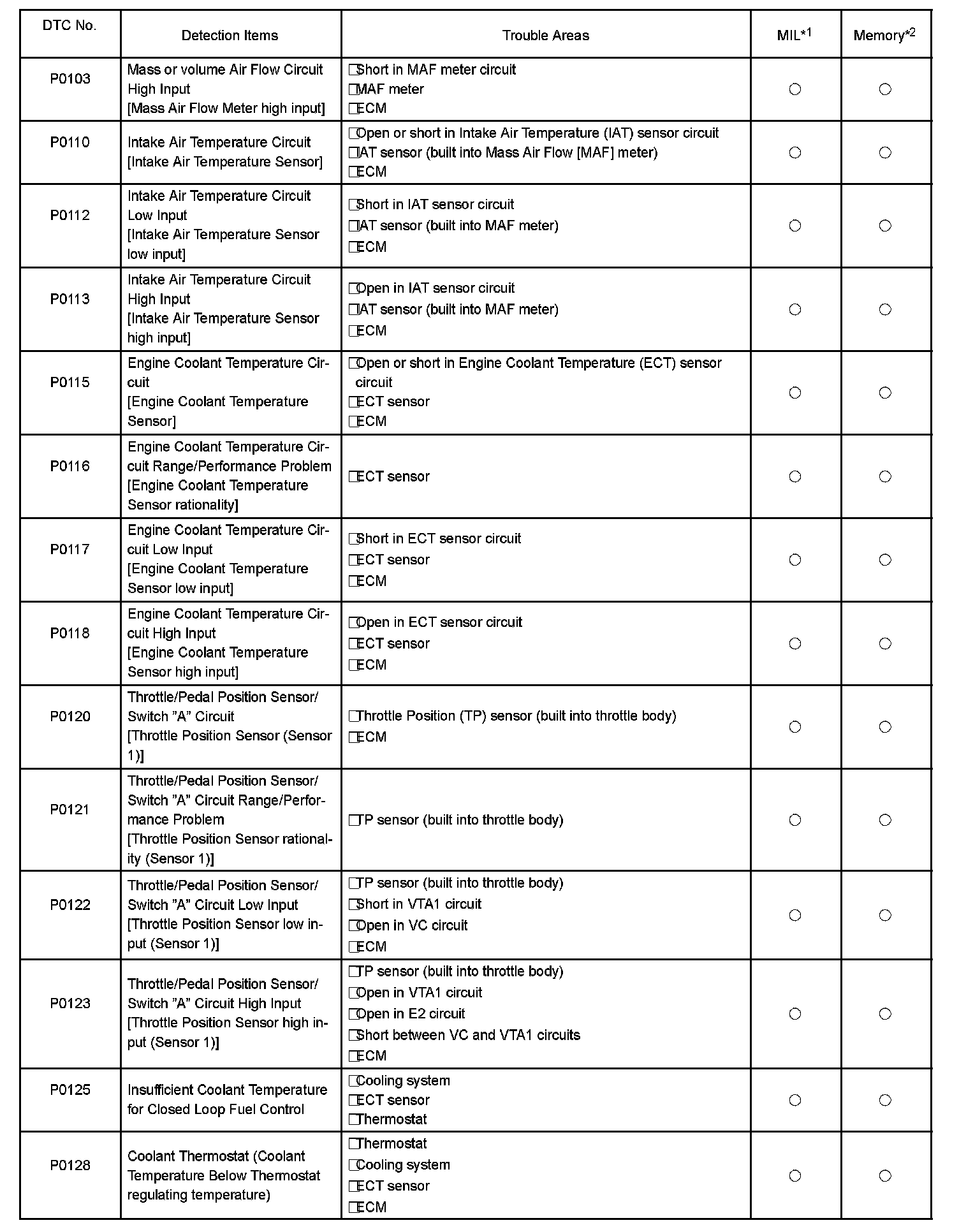

P0103-P0128:

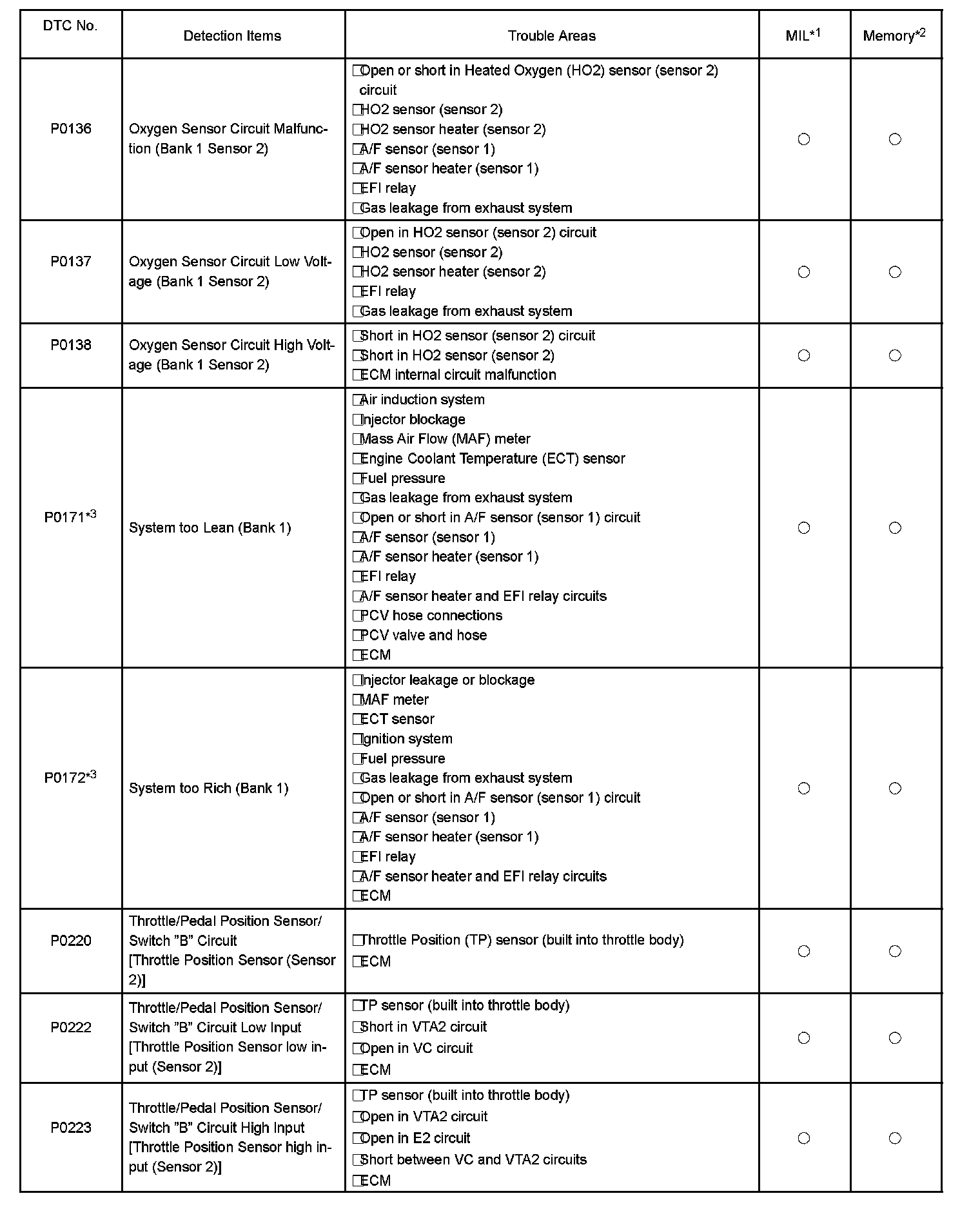

P0136-P0223:

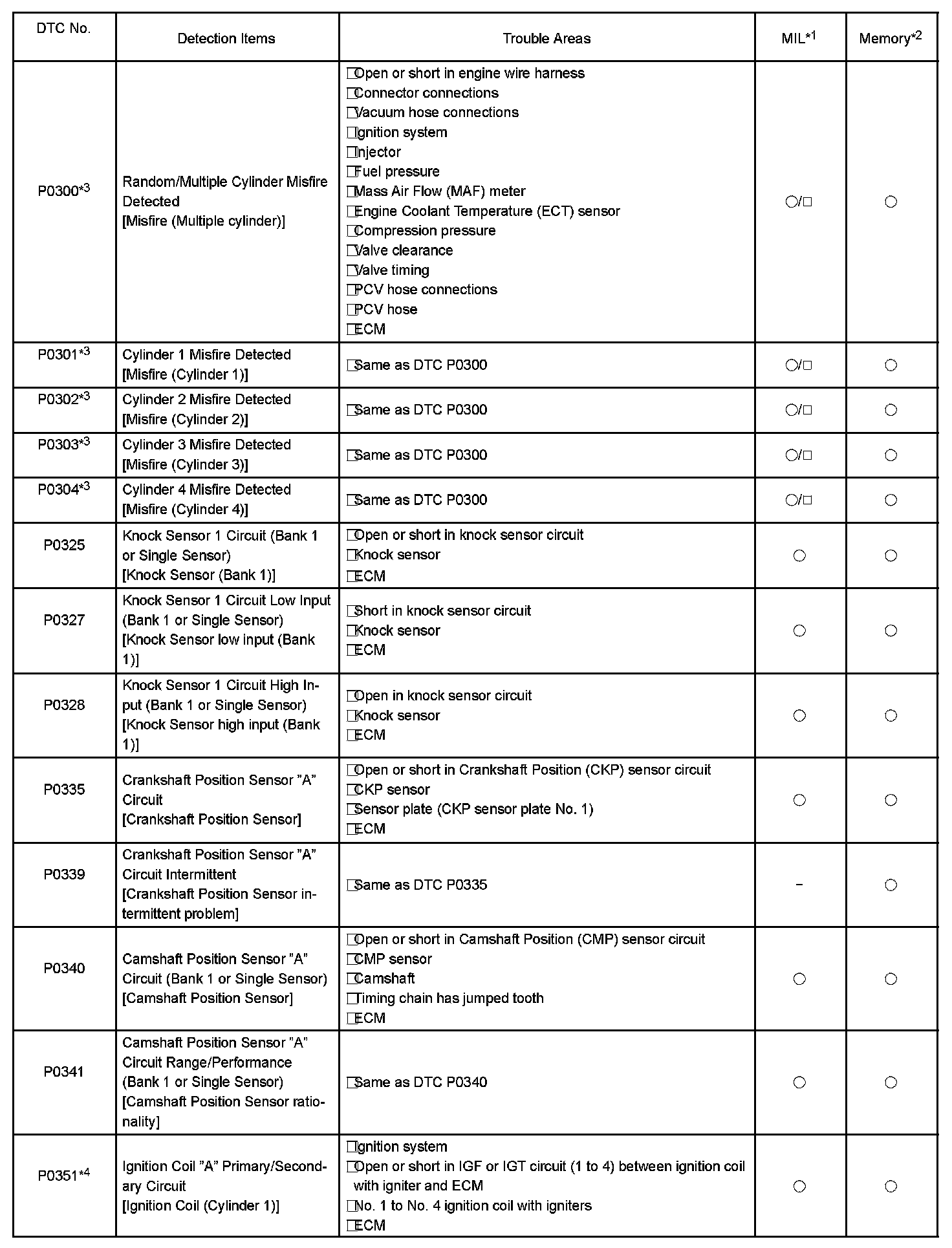

P0300*3-P0351*4:

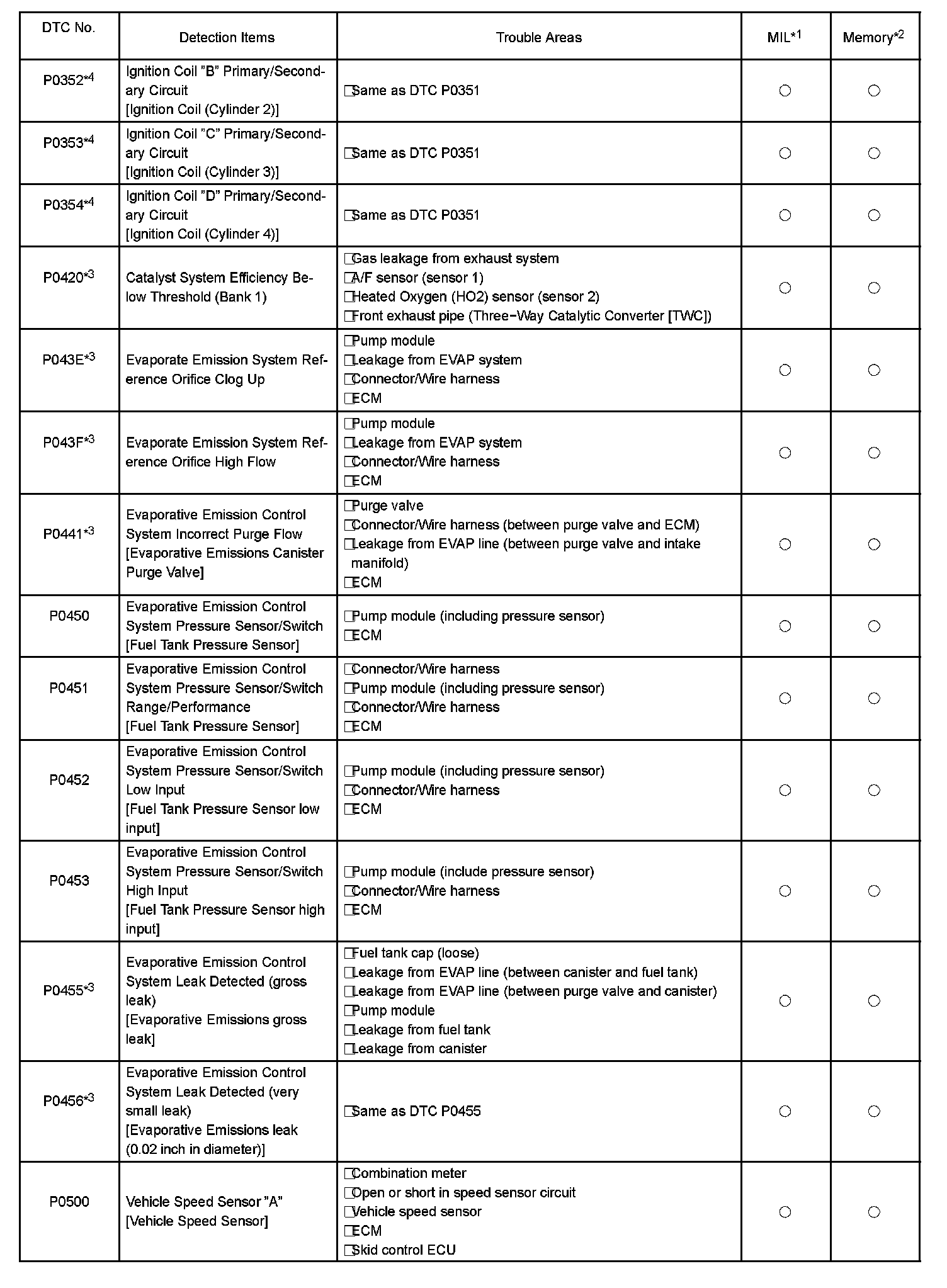

P0352*4-P0500:

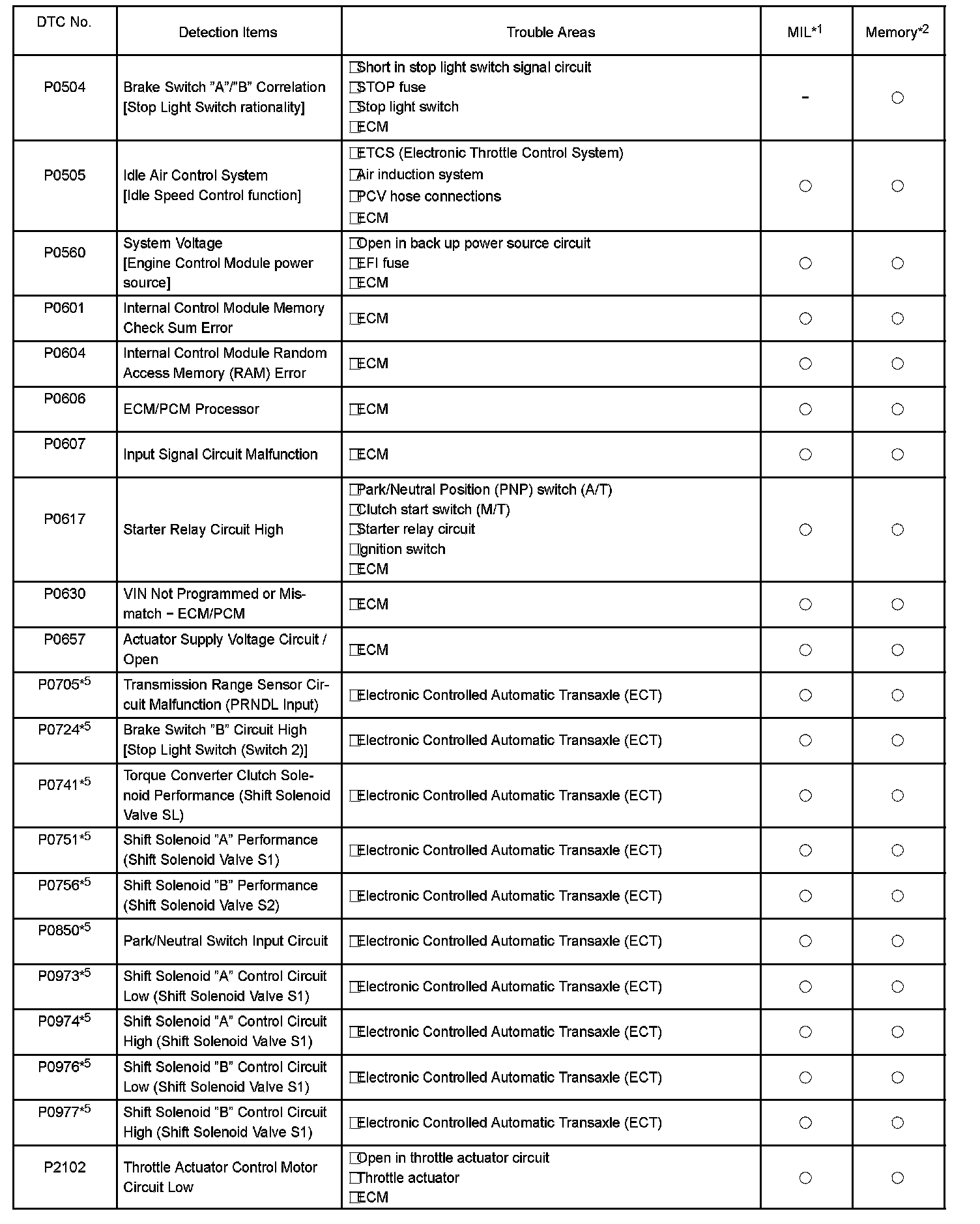

P0504-P2102:

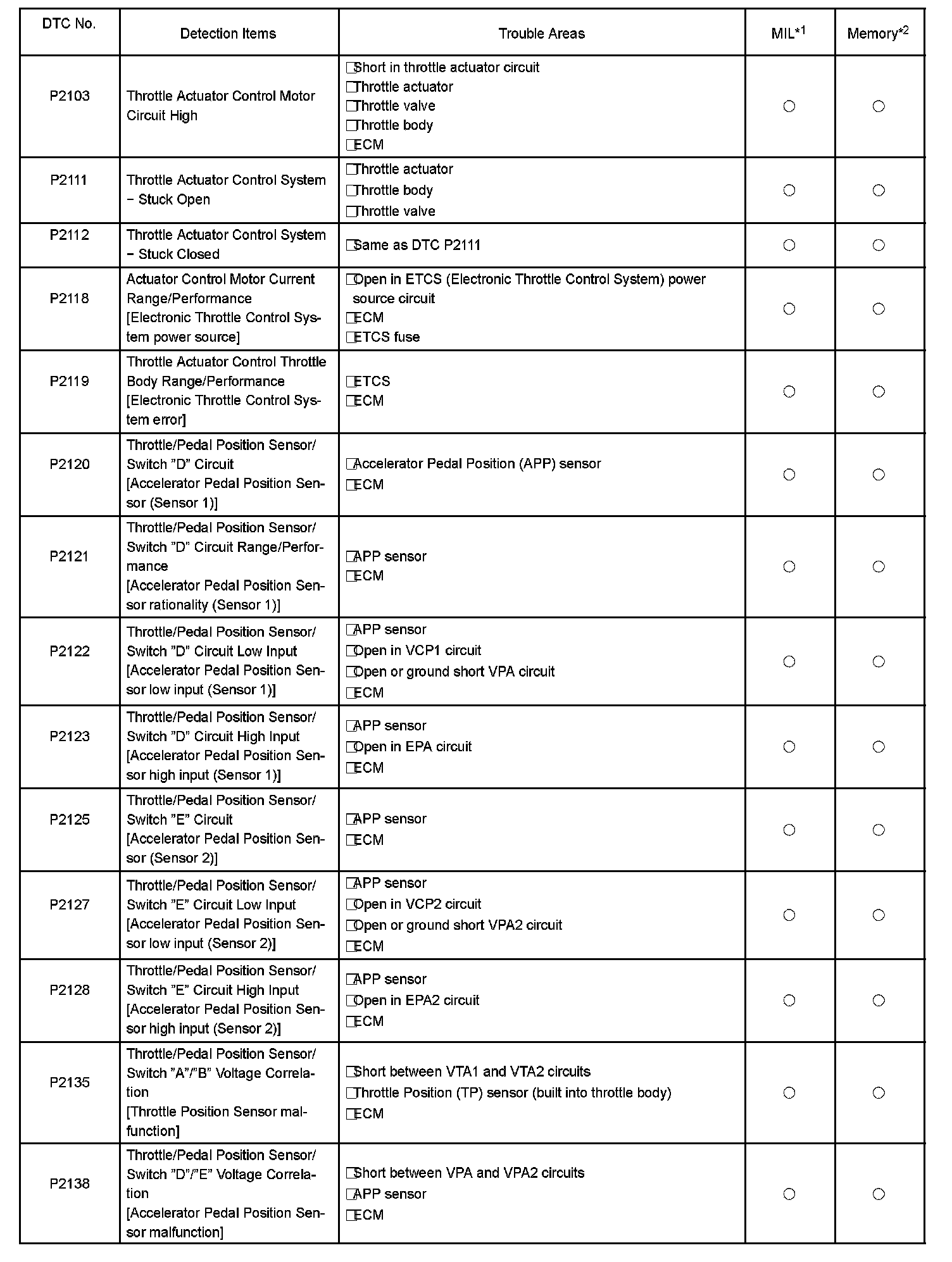

P2103-P2138:

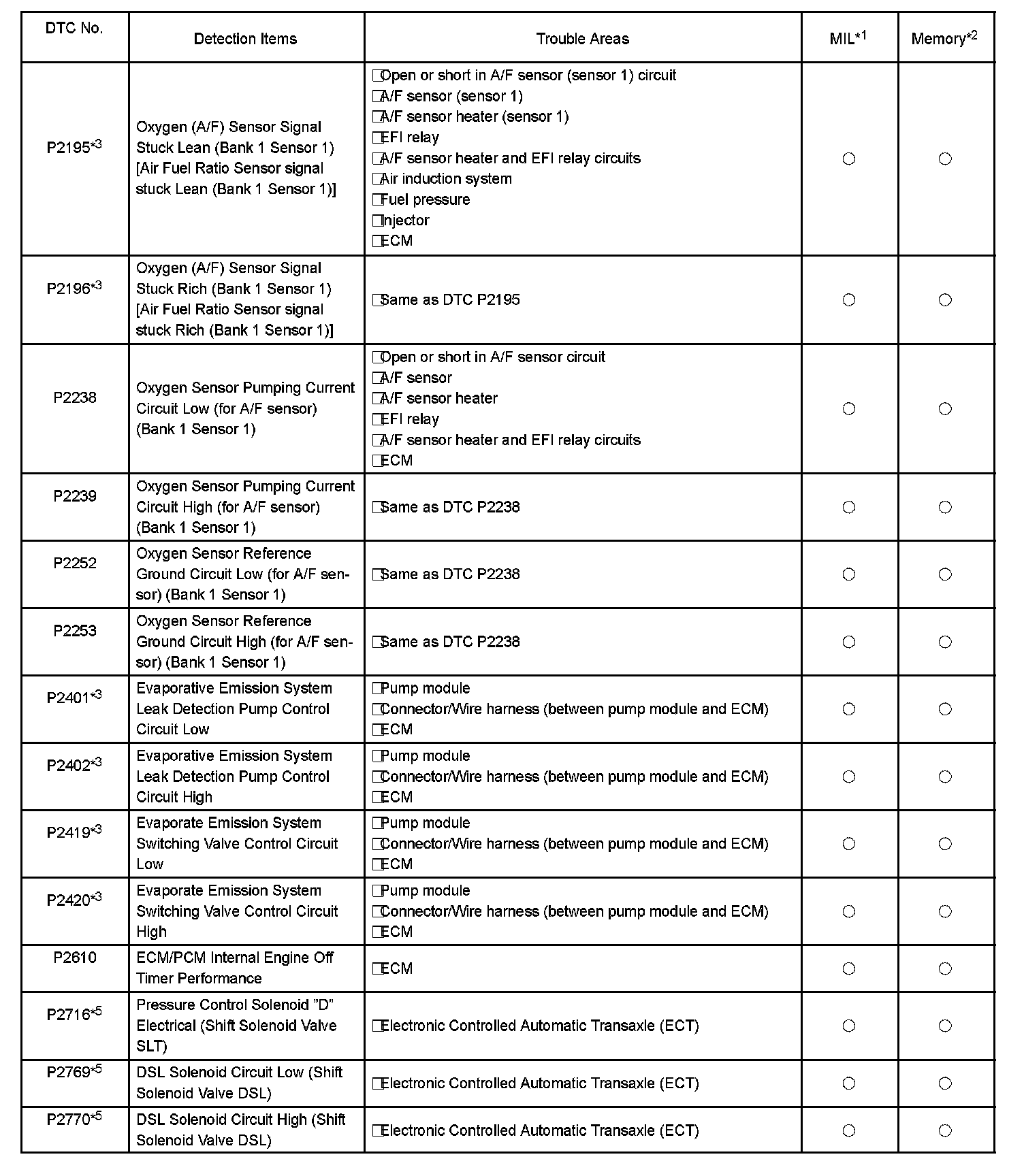

P2195*3-P2770*5:




P2A00*3 - B2799:






HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table given. For details of each DTC, refer to the respective "DTC No." in the DTC chart.
