Security Indicator Circuit
SECURITY INDICATOR CIRCUITCIRCUIT DESCRIPTIONWhen the TVIP system is preparing to be set, this circuit lights up the security indicator. When the system has been set, it continually turns the security indicator on for
0.2 seconds and turns it off for
1.8 seconds.

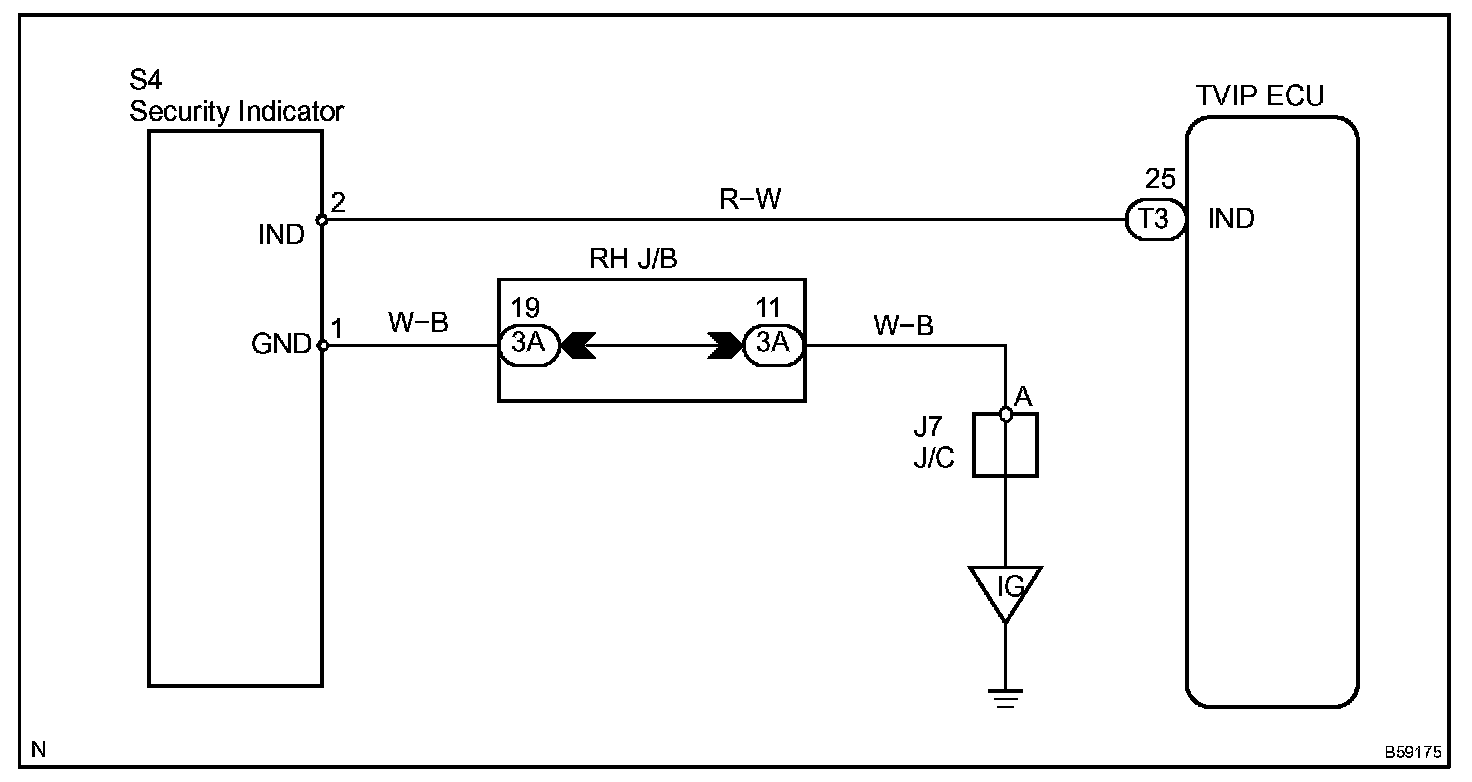

Wiring Diagram:

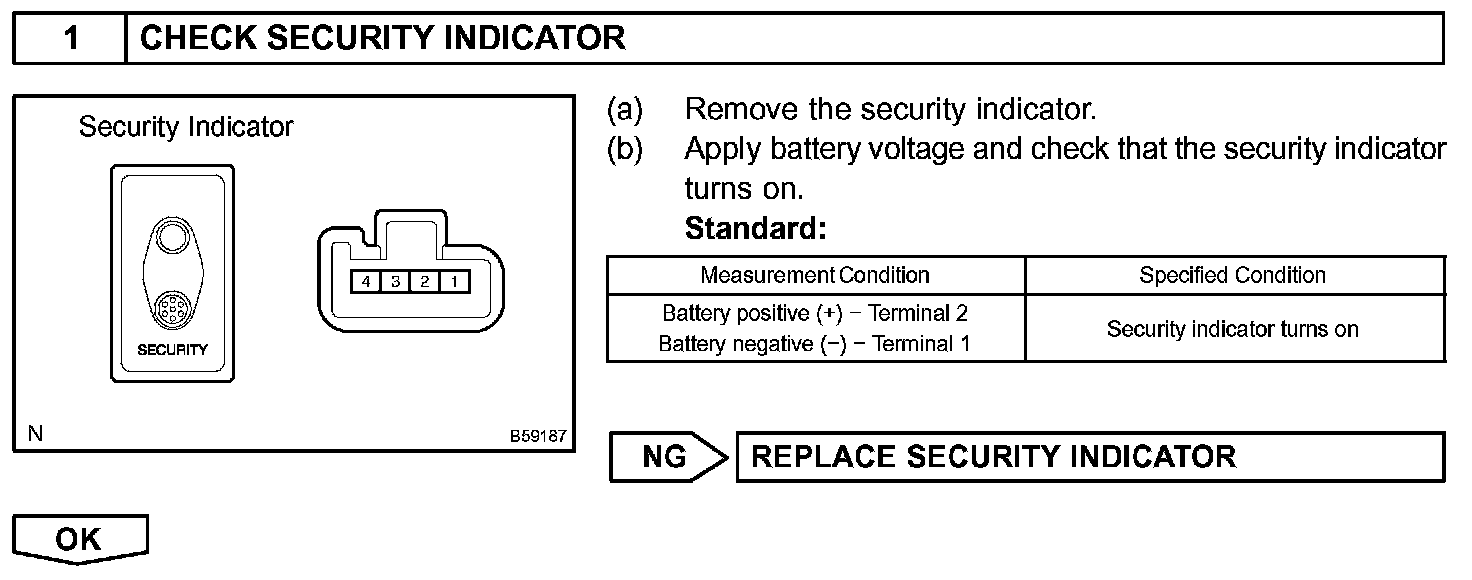

Step 1:

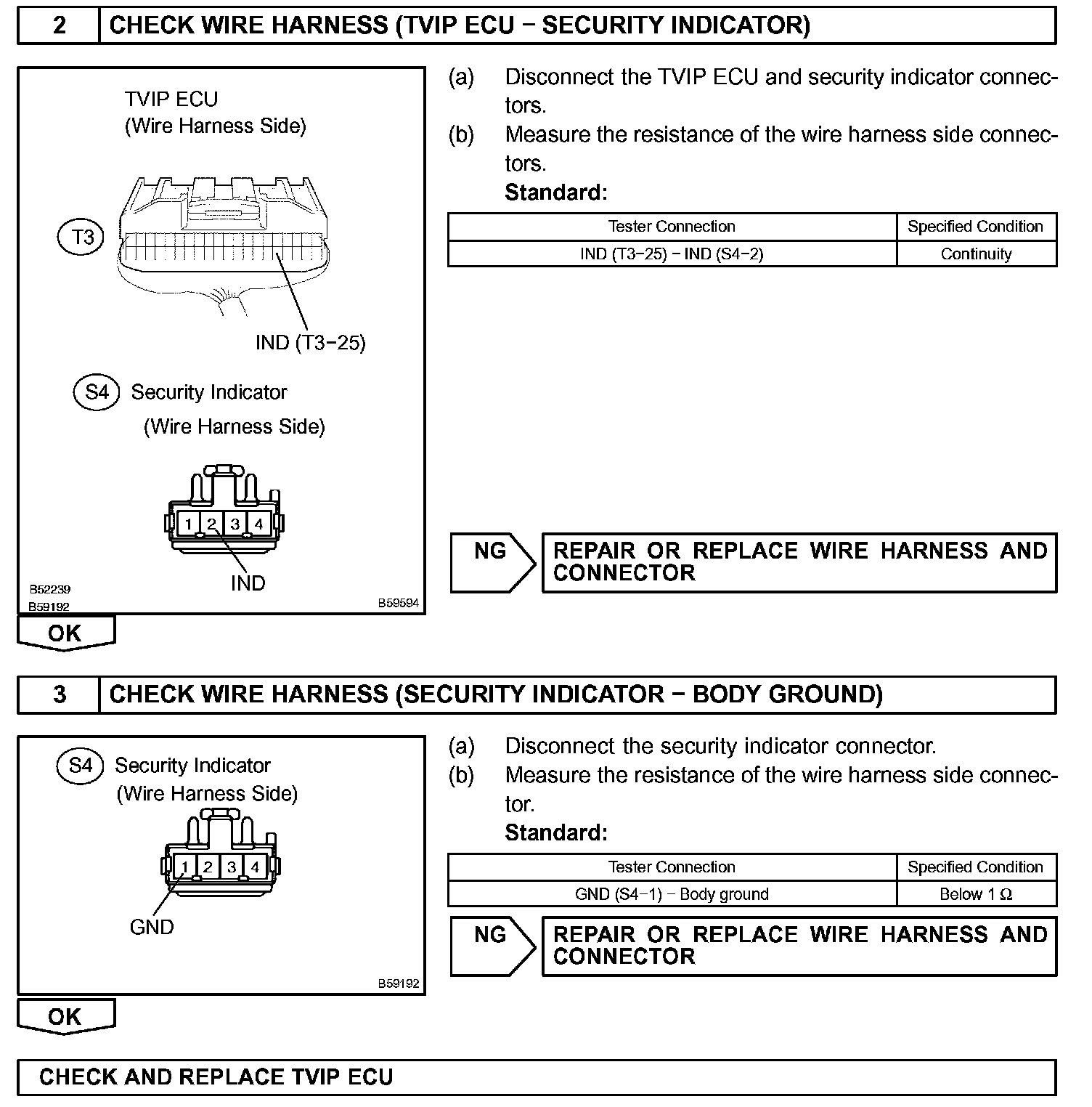

Step 2-3:
INSPECTION PROCEDURE
