Screen Cannot be Dimmed When Light Control Switch Is Turned to "Tail" Position

Operation CHARM: Car repair manuals for everyone.

>> >> >> >> >> >> >> >> >>

Manuals through 2025 now available!

Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.

LEMON is the spiritual successor to CHARM, I recommend you try it!

Link: lemon-manuals.la or lemon-manuals.org.ua

(Some people have issue connecting. LEMON is investigating. For now, use Firefox or change your DNS server)

Or, hide this message: temporarily or permanently

pro multis · About Operation CHARM

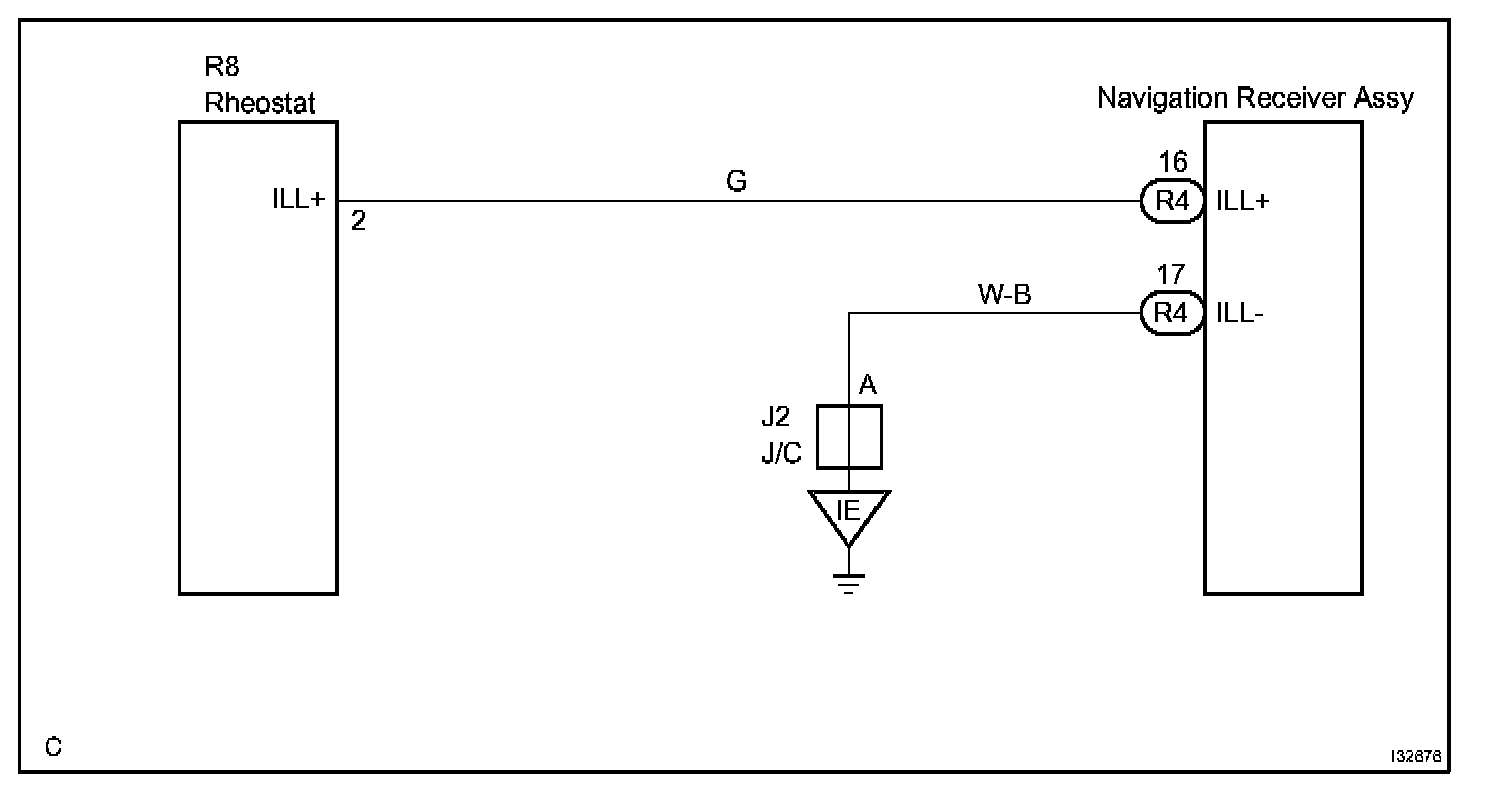

Wiring Diagram:

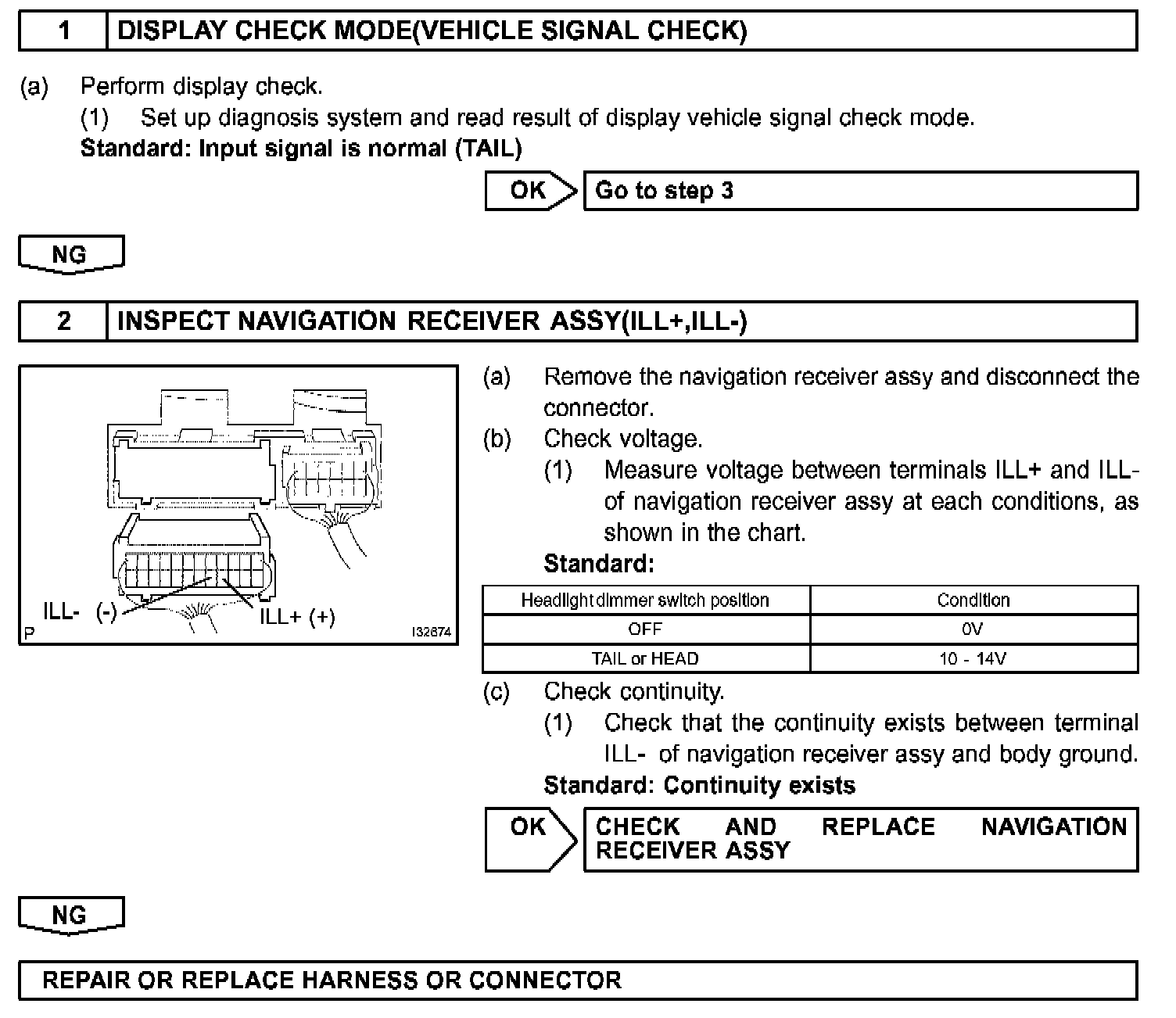

Step 1-2:

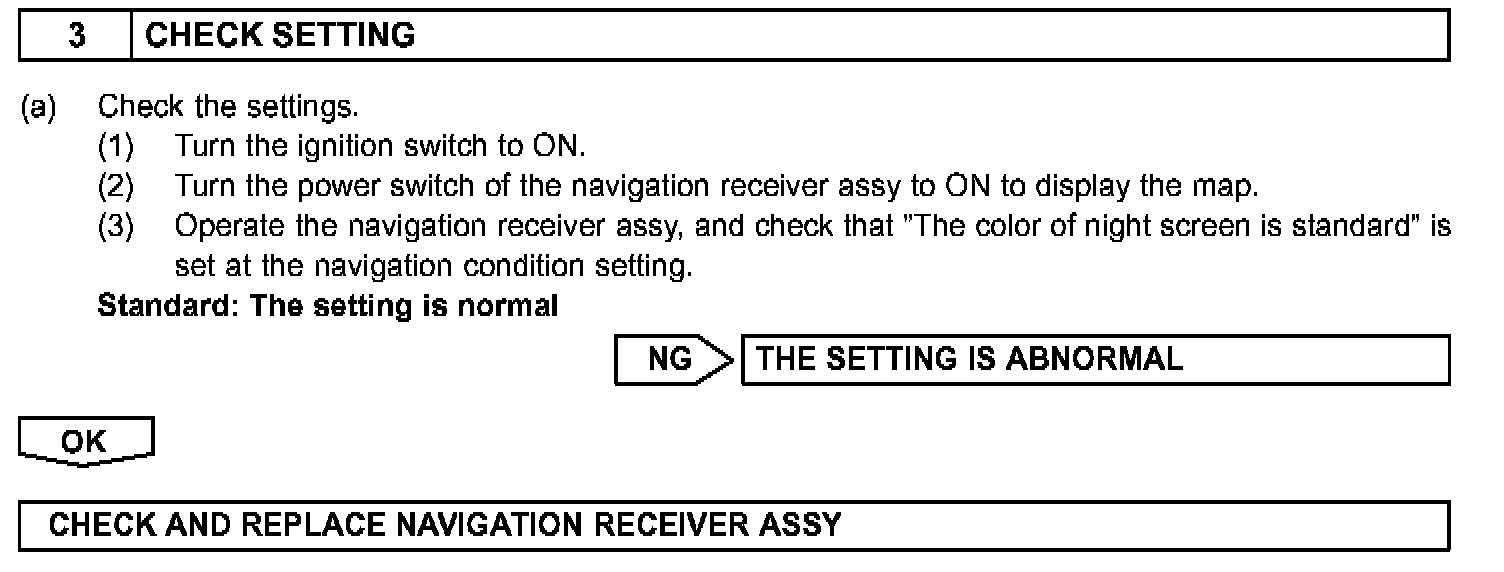

Step 3:
