Power Mirror Switch: Testing and Inspection

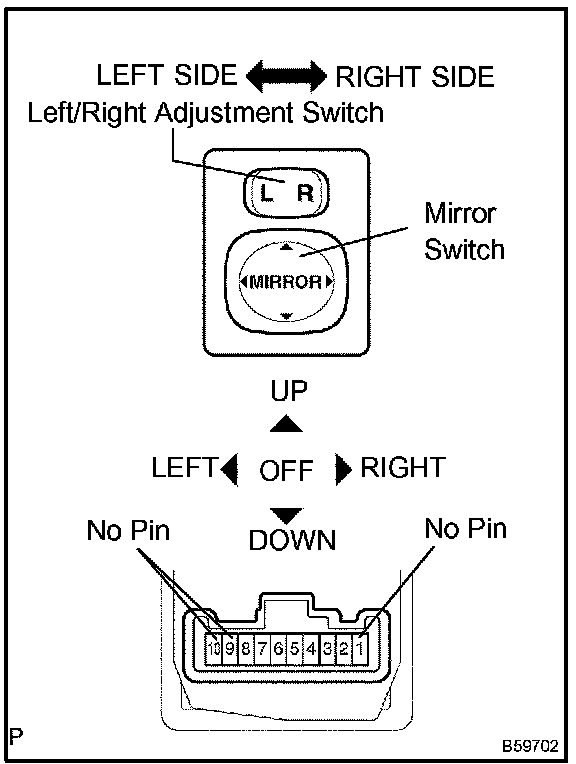

INSPECT OUTER MIRROR SWITCH ASSEMBLY
a.

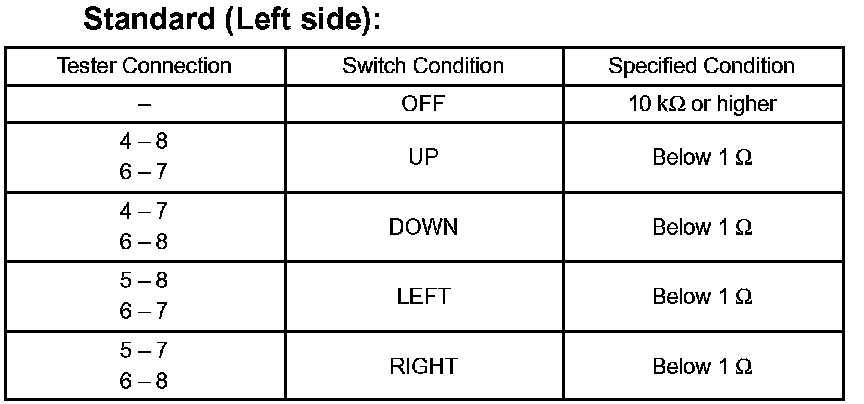

Left side for left/right adjustment switch:
Measure the resistance of the mirror switch.
If the result is not as specified, replace the switch assembly.
b.

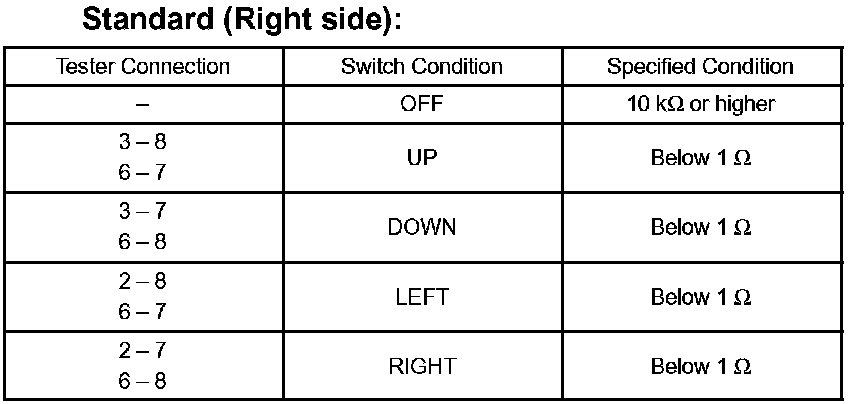

Right side for left/right adjustment switch:
Measure the resistance of the mirror switch.
If the result is not as specified, replace the switch assembly.
