SLIP Indicator Light Circuit

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

- The SLIP indicator blinks during TRAC & VSC operation.
- The SLIP indicator comes on when the traction control is terminated by pressing the TRAC OFF switch.

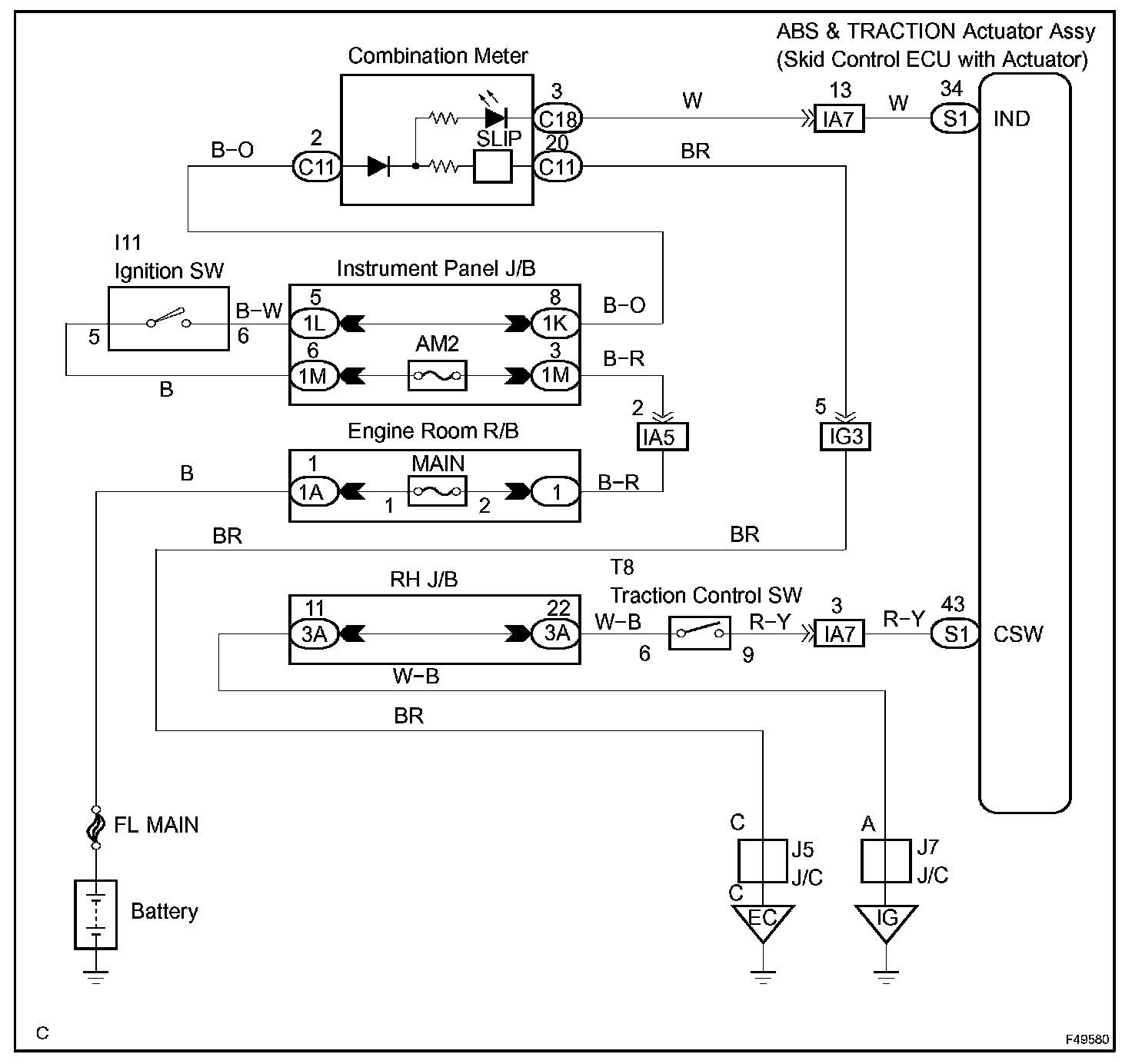

Wiring Diagram:

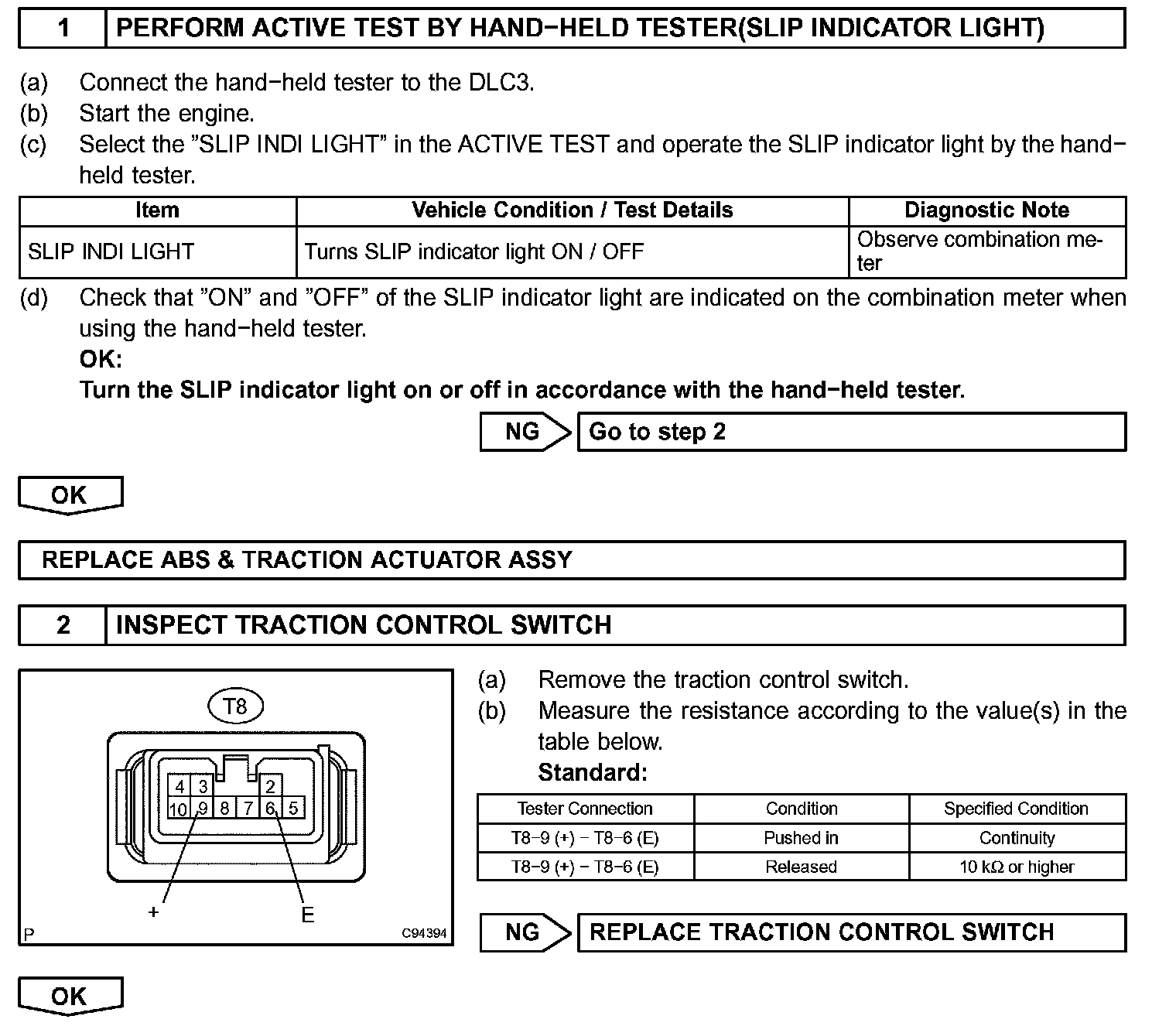

Step 1-2:

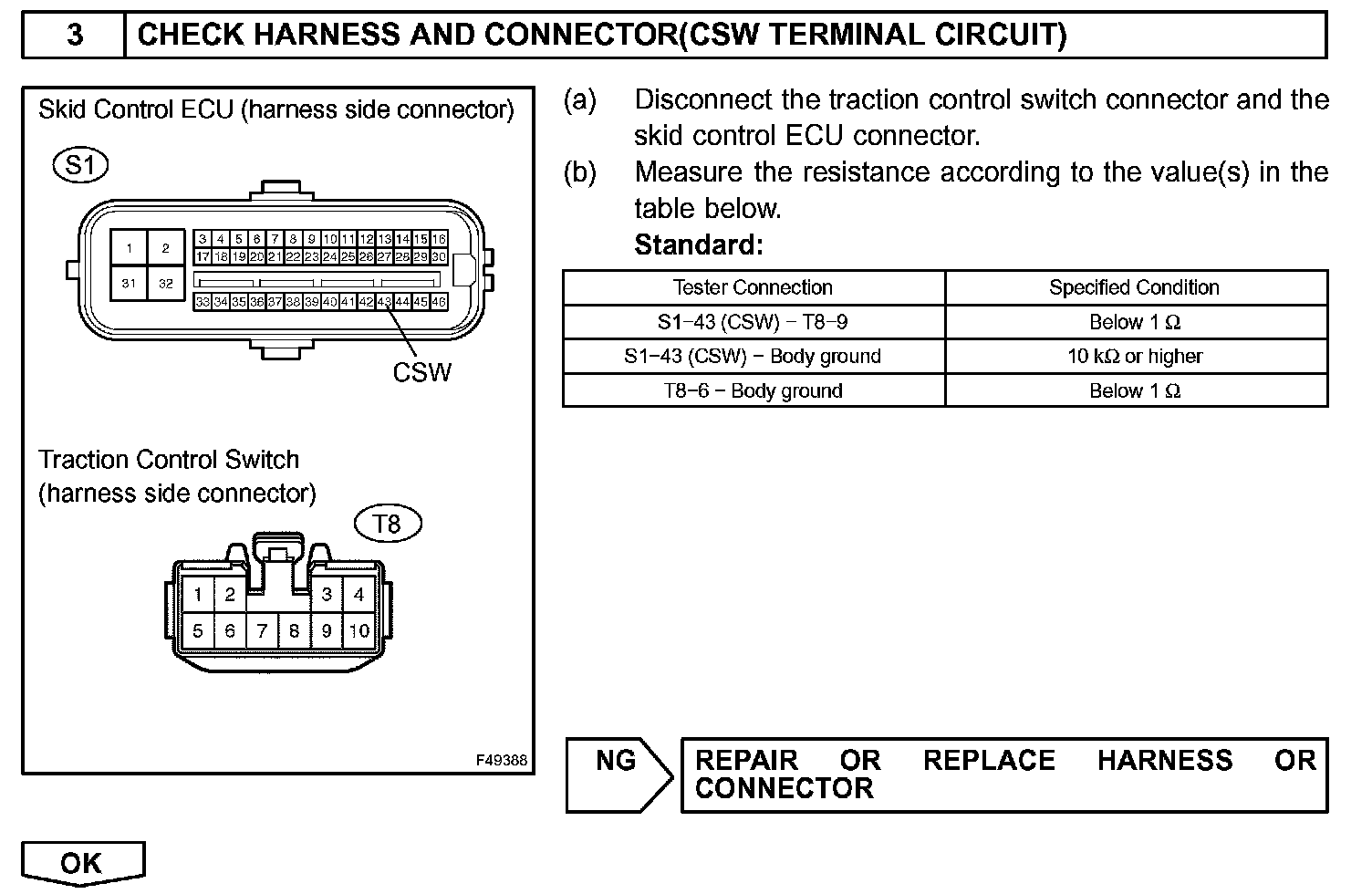

Step 3:

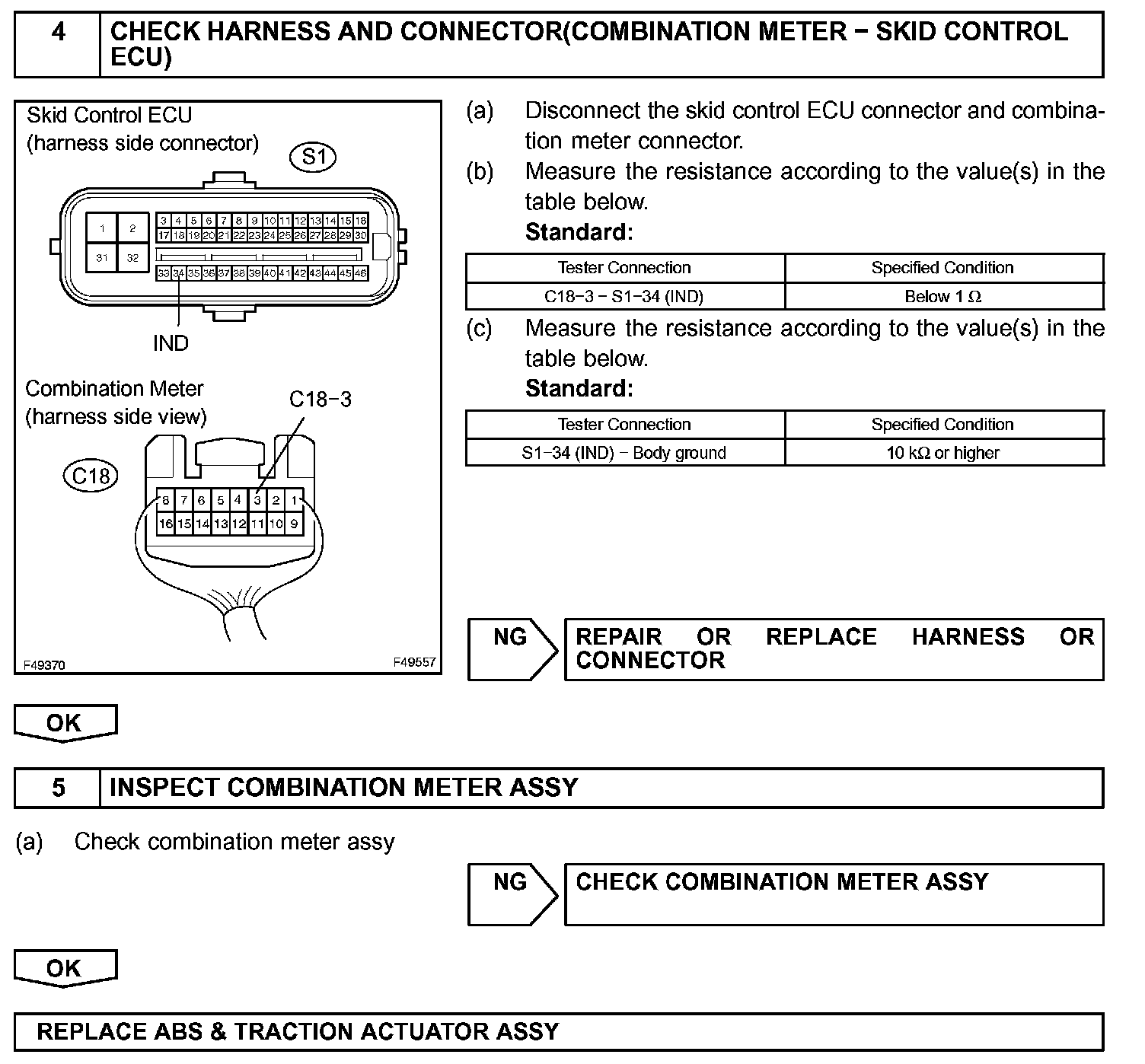

Step 4-5:




INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
