Power Point Socket #2
Audio & Visual System:
POWER POINT SOCKET ASSEMBLY NO.2REPLACEMENTHINT: Installation is in the reverse order of removal.
1.
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (M/T TRANSAXLE)
2.
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR
3.
REMOVE POWER POINT SOCKET ASSEMBLY NO.2
a.

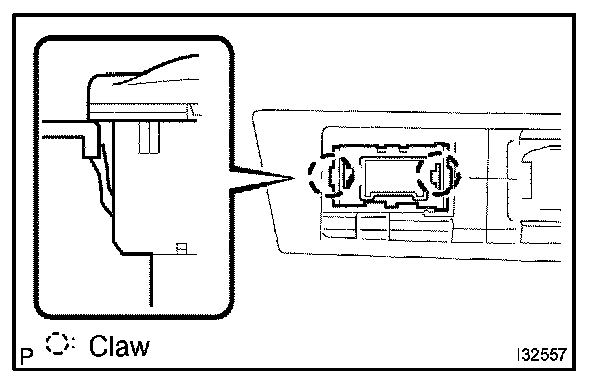

Release the 2 fitting claws, remove the power point socket assembly No.2.
