Fuse Block: Locations




Engine Room R/B:

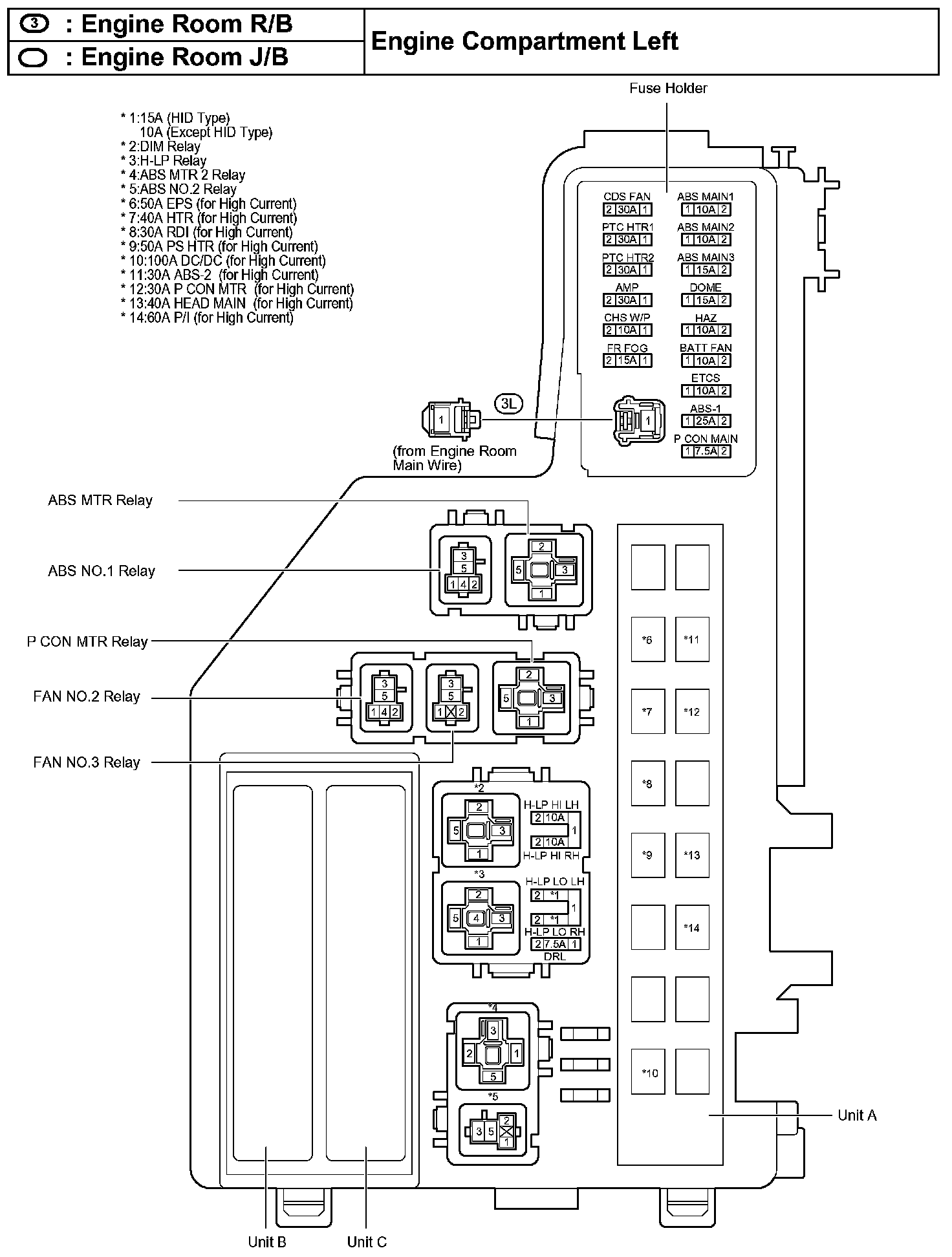

Engine Room R/B, Engine Room J/B - Engine Compartment Left:




Engine Room R/B 2:




Fusible Link Block:

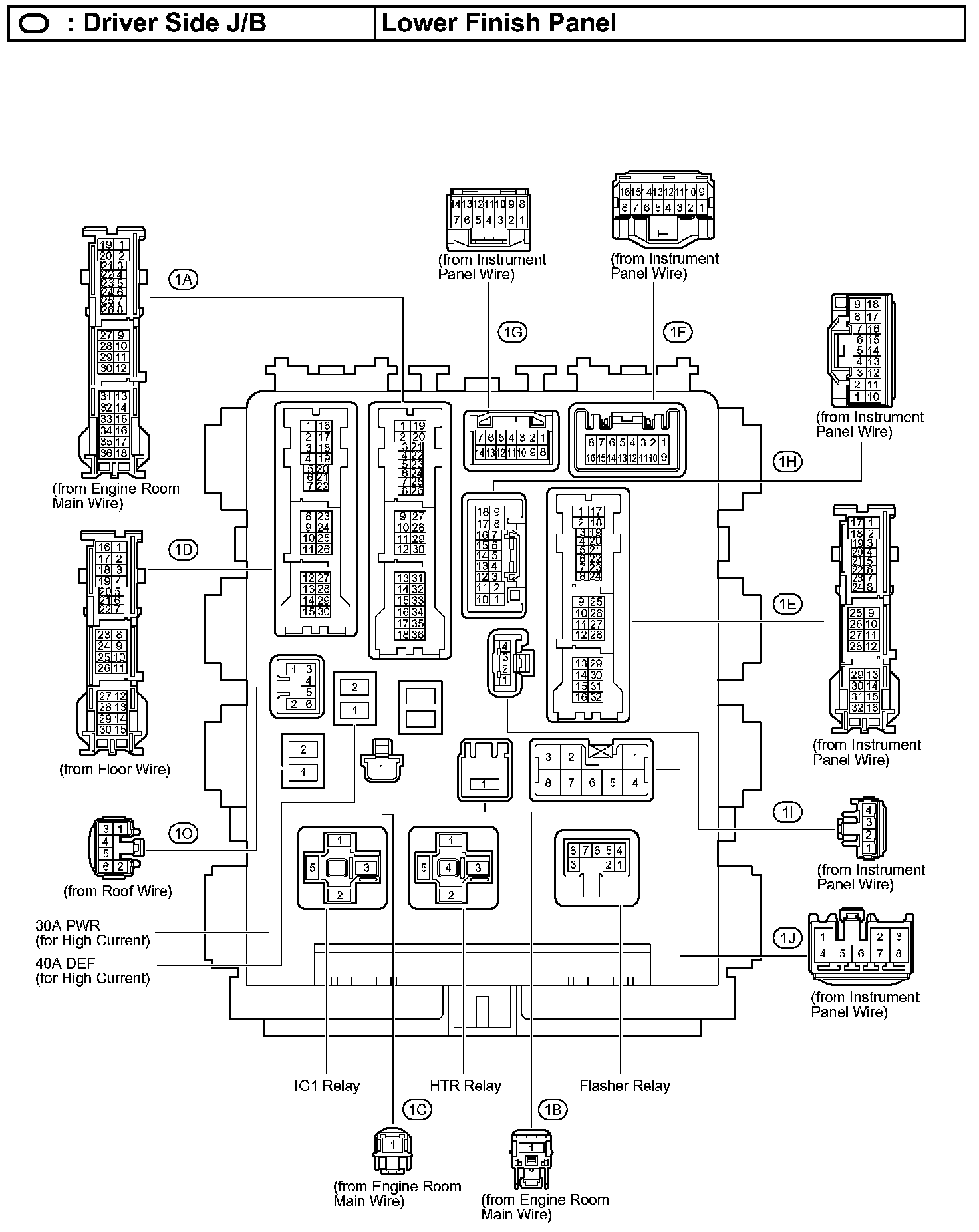

Driver Side J/B - Lower Finish Panel:




Driver Side J/B - Lower Finish Panel:

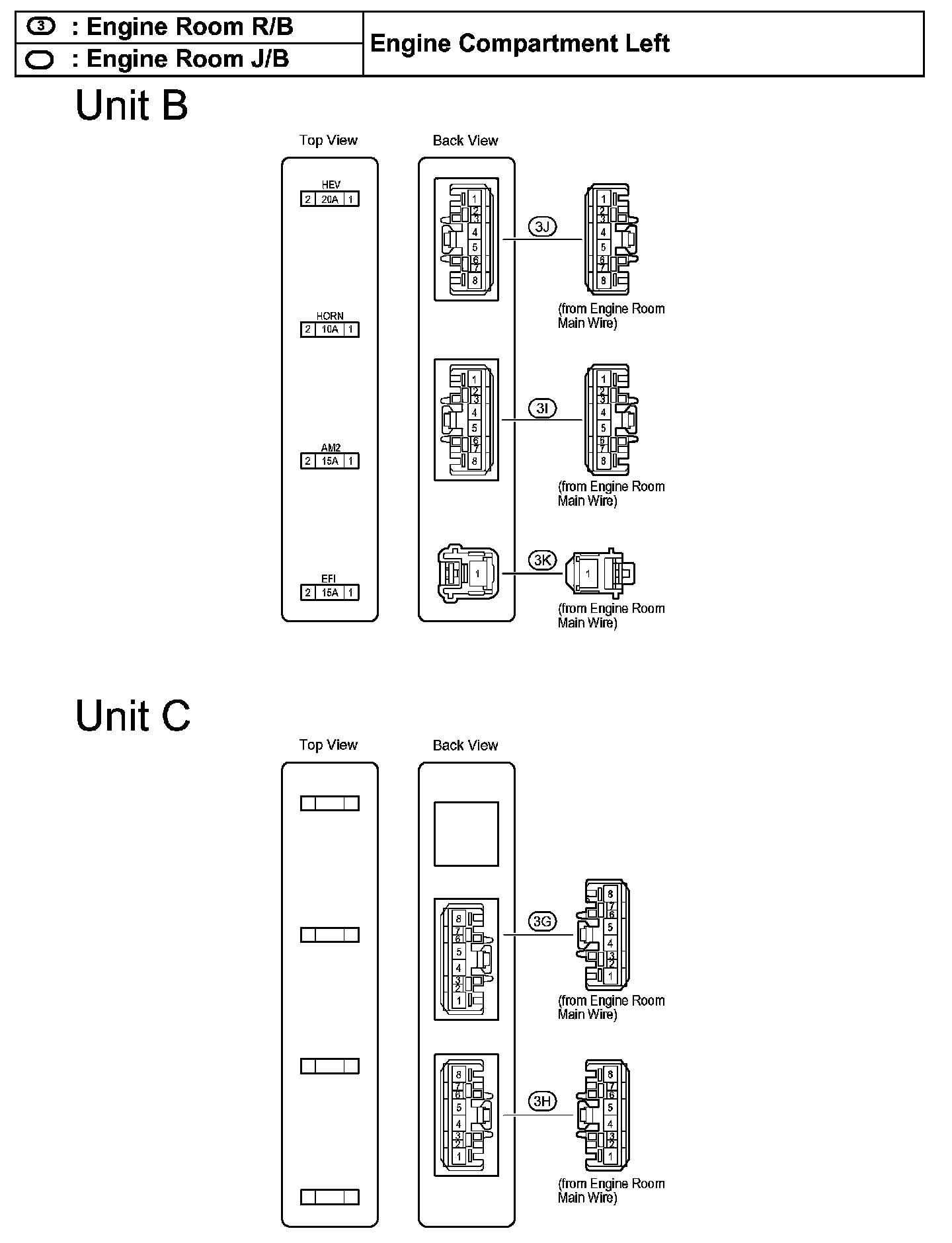

Details

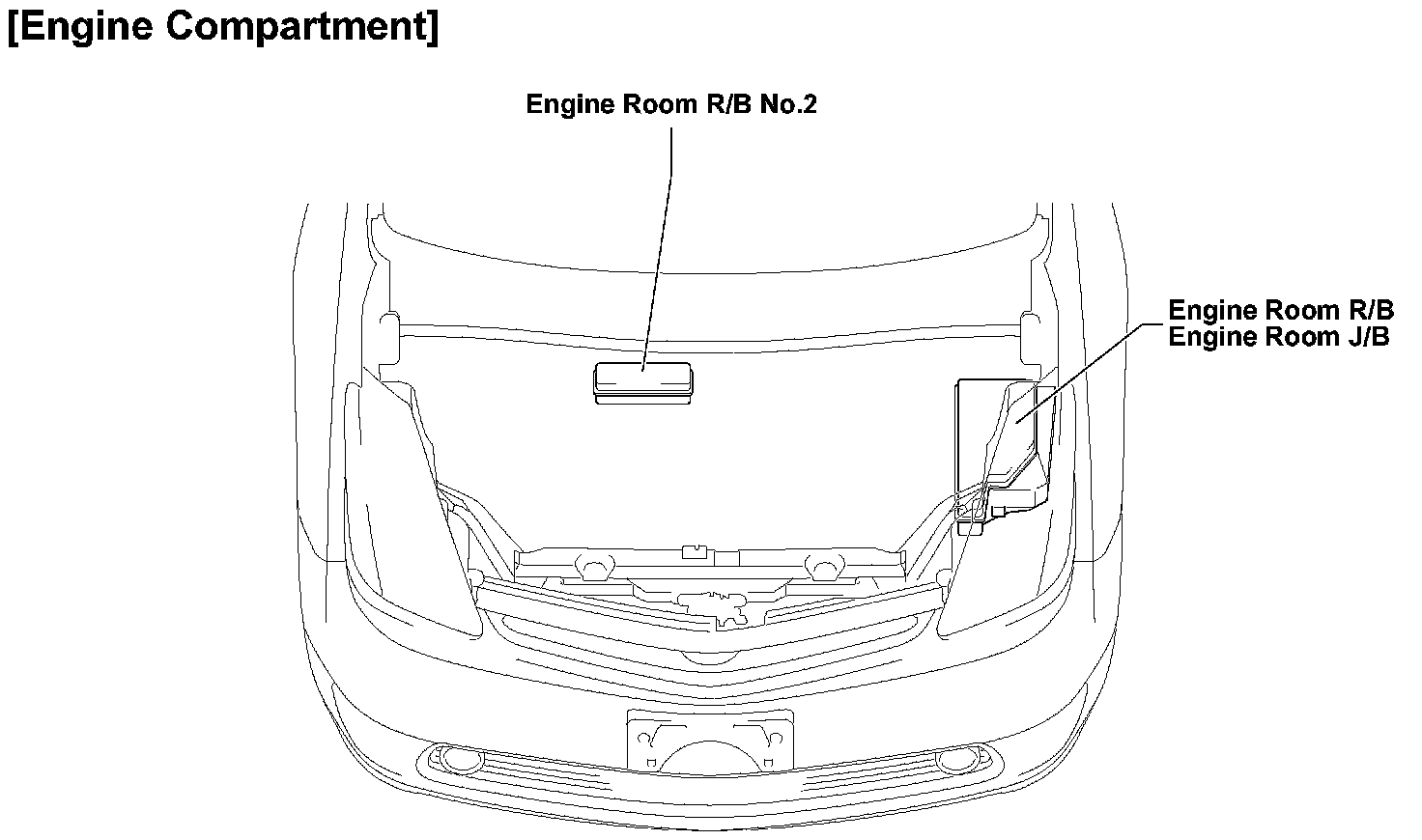

Engine Compartment:

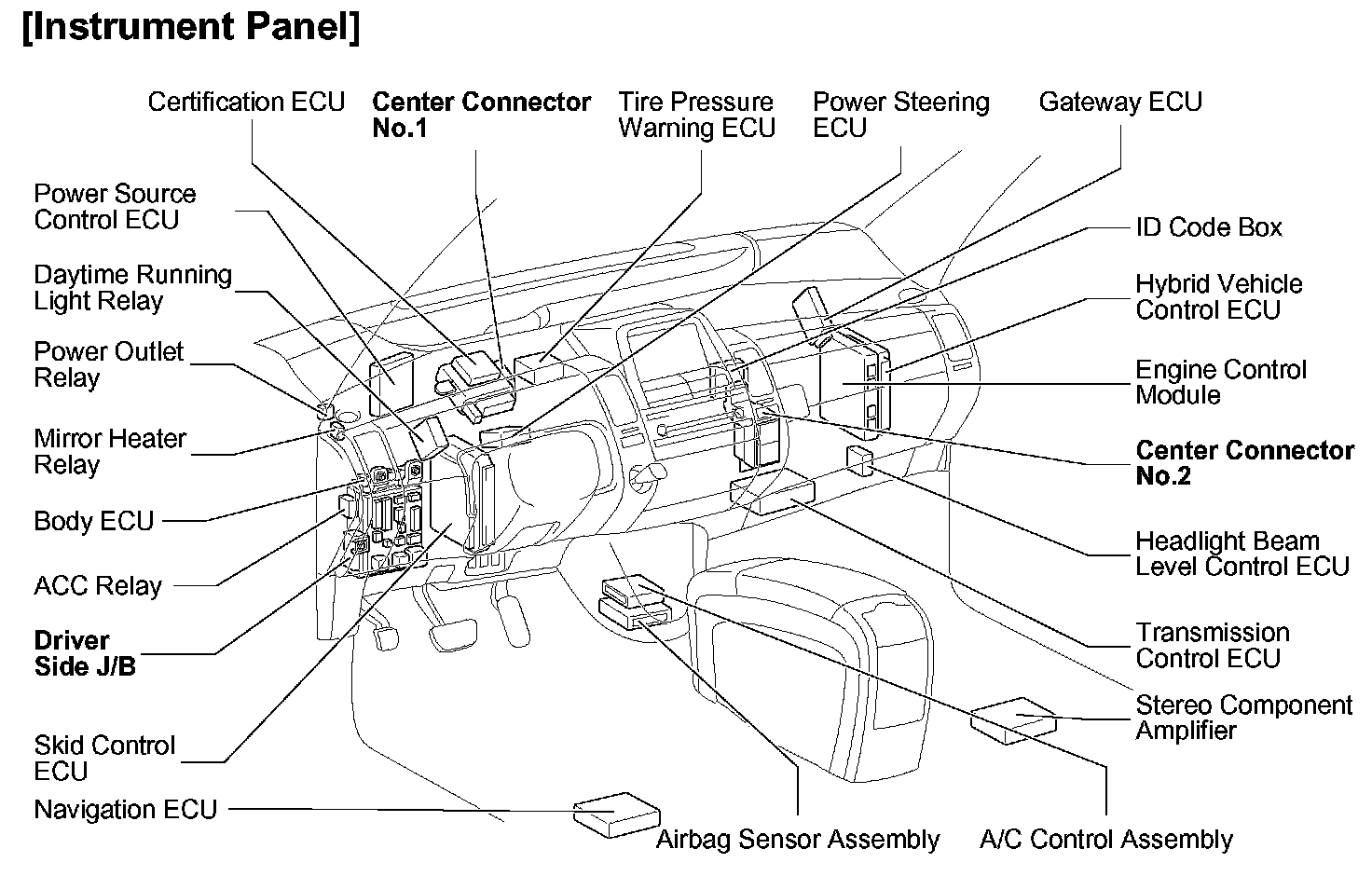

Instrument Panel:

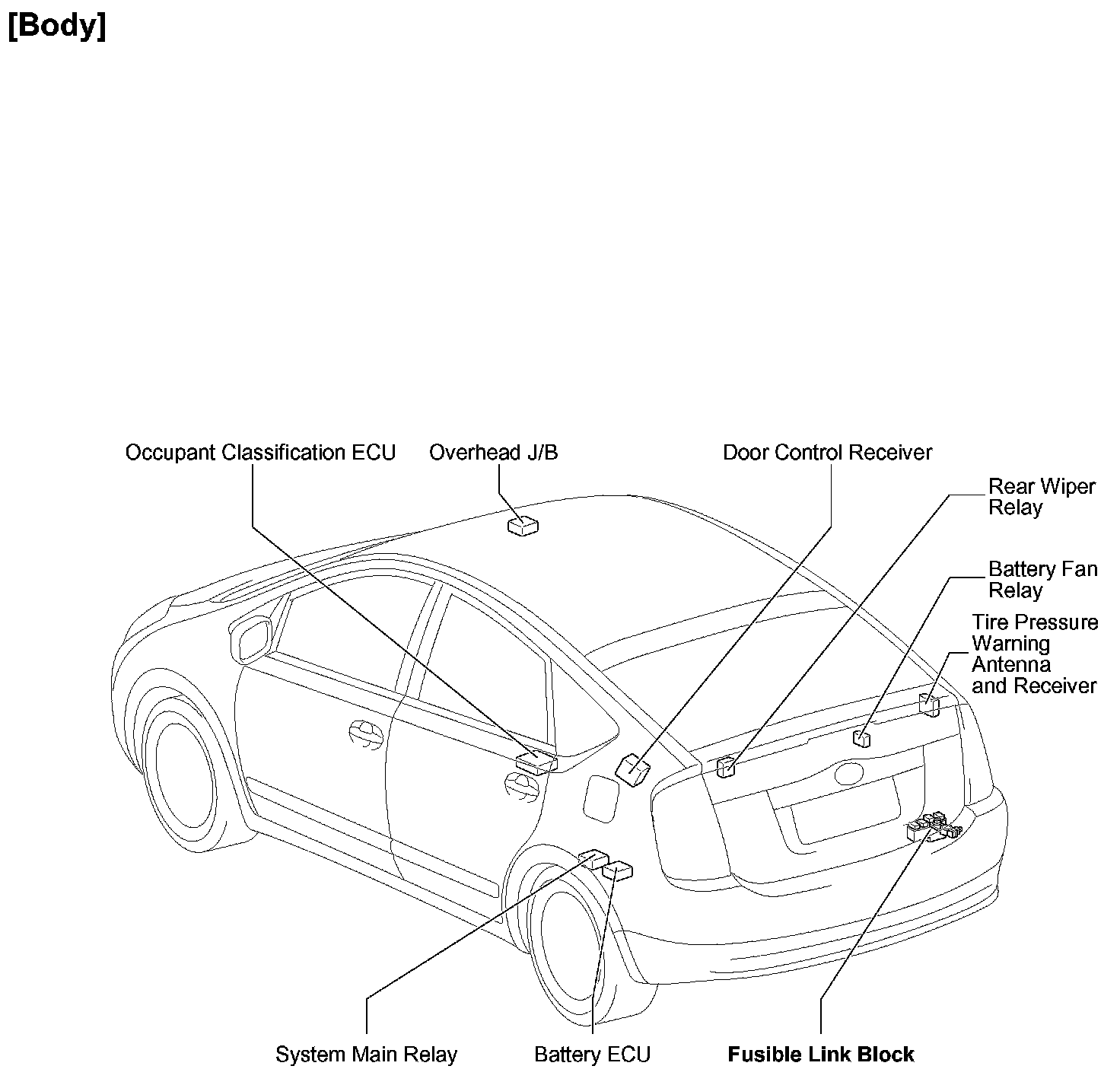

Body:
