Computers and Control Systems: Description and Operation

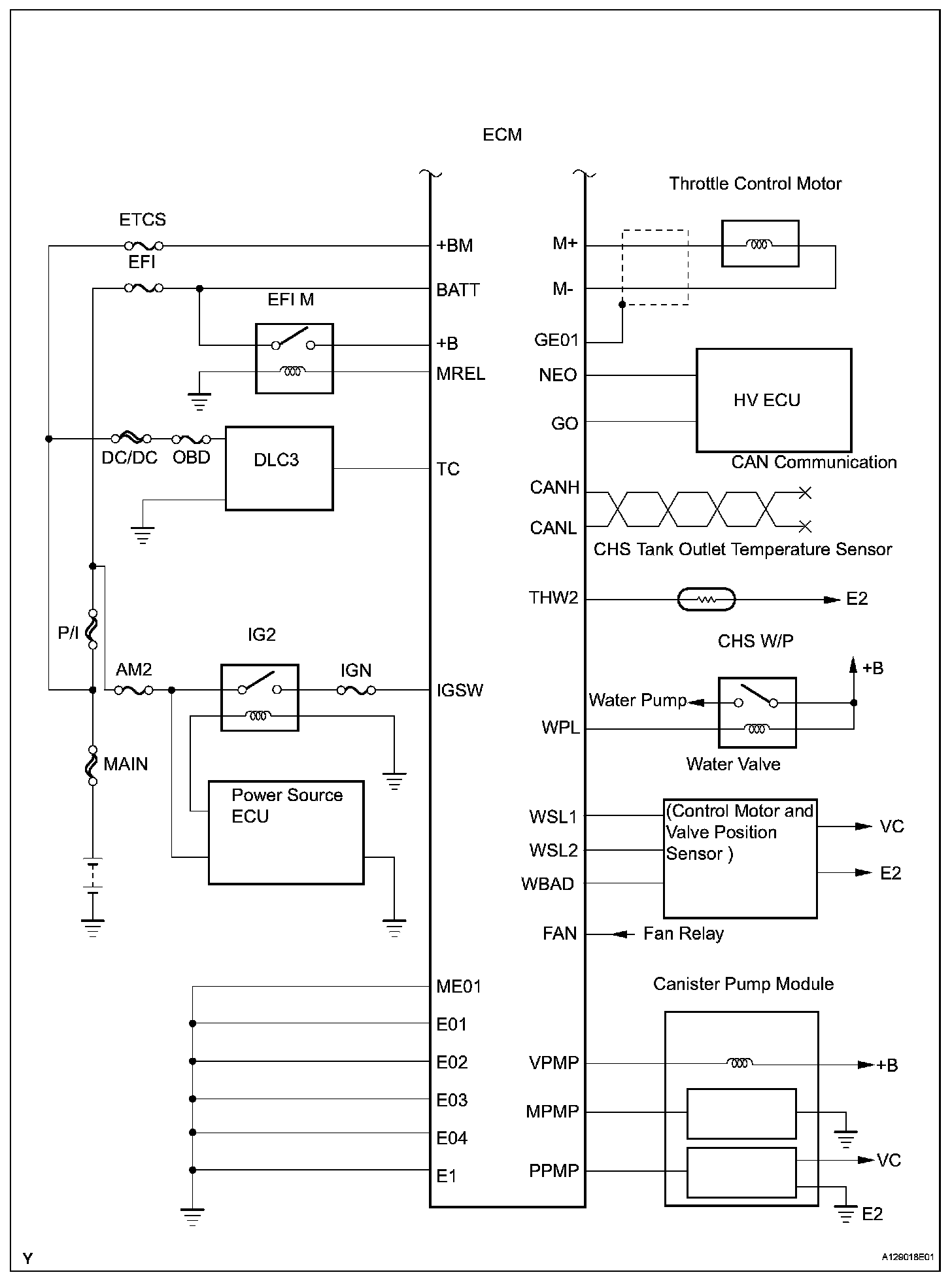

System Diagram (Part 1):

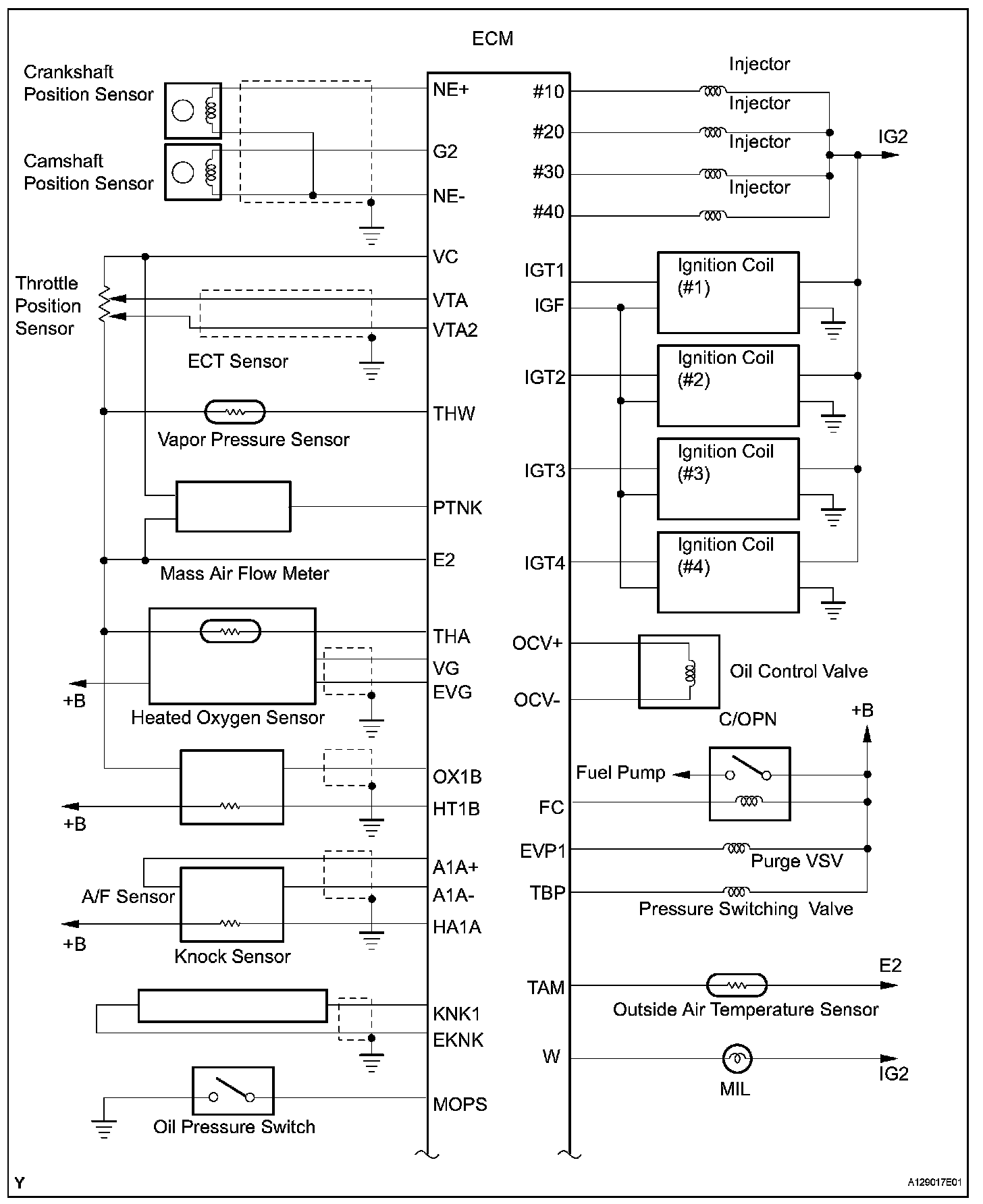

System Diagram (Part 2):
System Diagram (Part 3):
COMMUNICATIONSThe ECM communicates with the given ECM and ECUs using the signals listed. The table explains receiving and sending signals by ECM or ECU.
