Multiplex Communication System

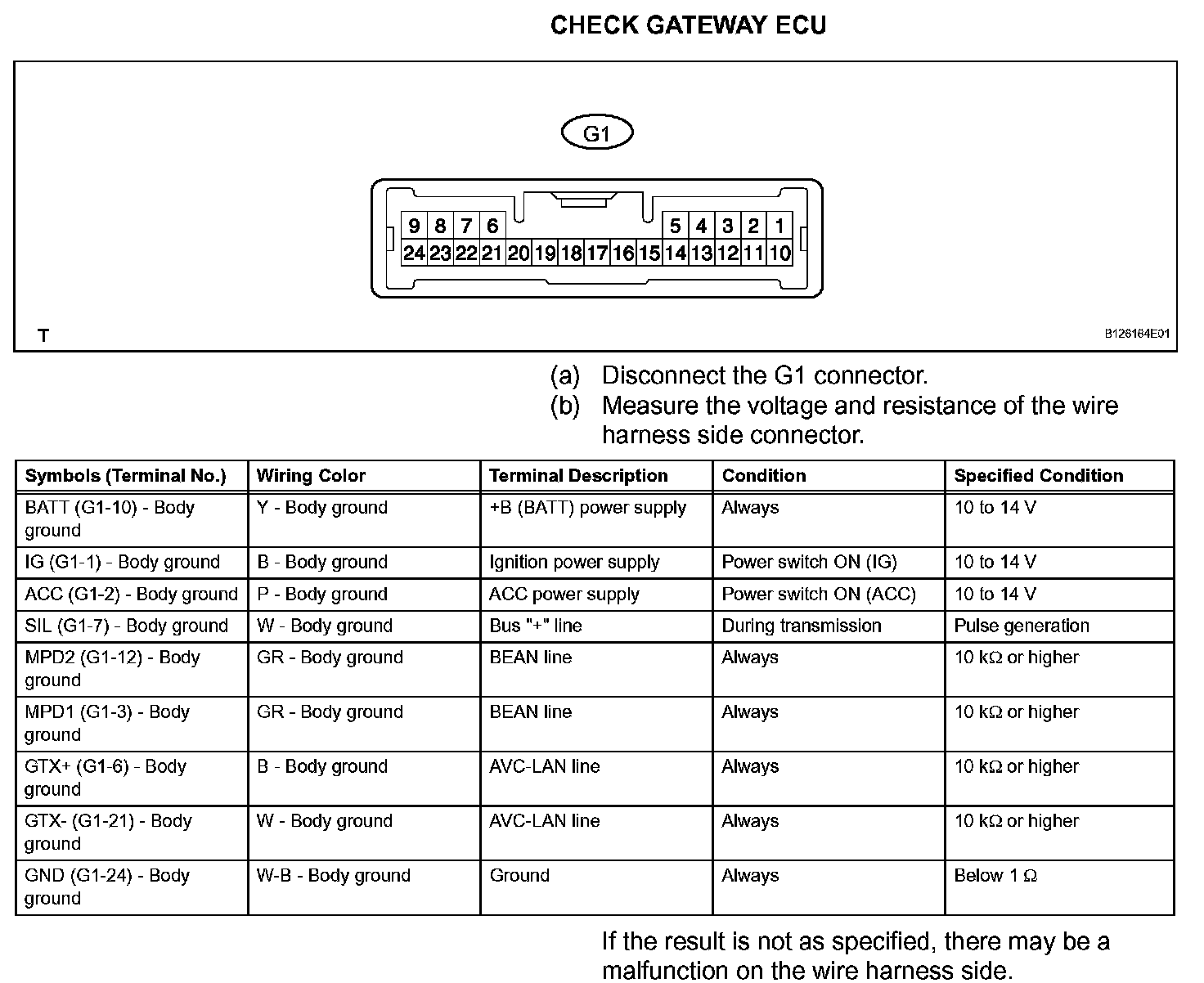

Terminals Of Control Module/Pinouts - Check Gateway ECU:

Terminals Of Control Module/Pinouts - Check A/C ECU (Part 1):

Terminals Of Control Module/Pinouts - Check A/C ECU (Part 2):

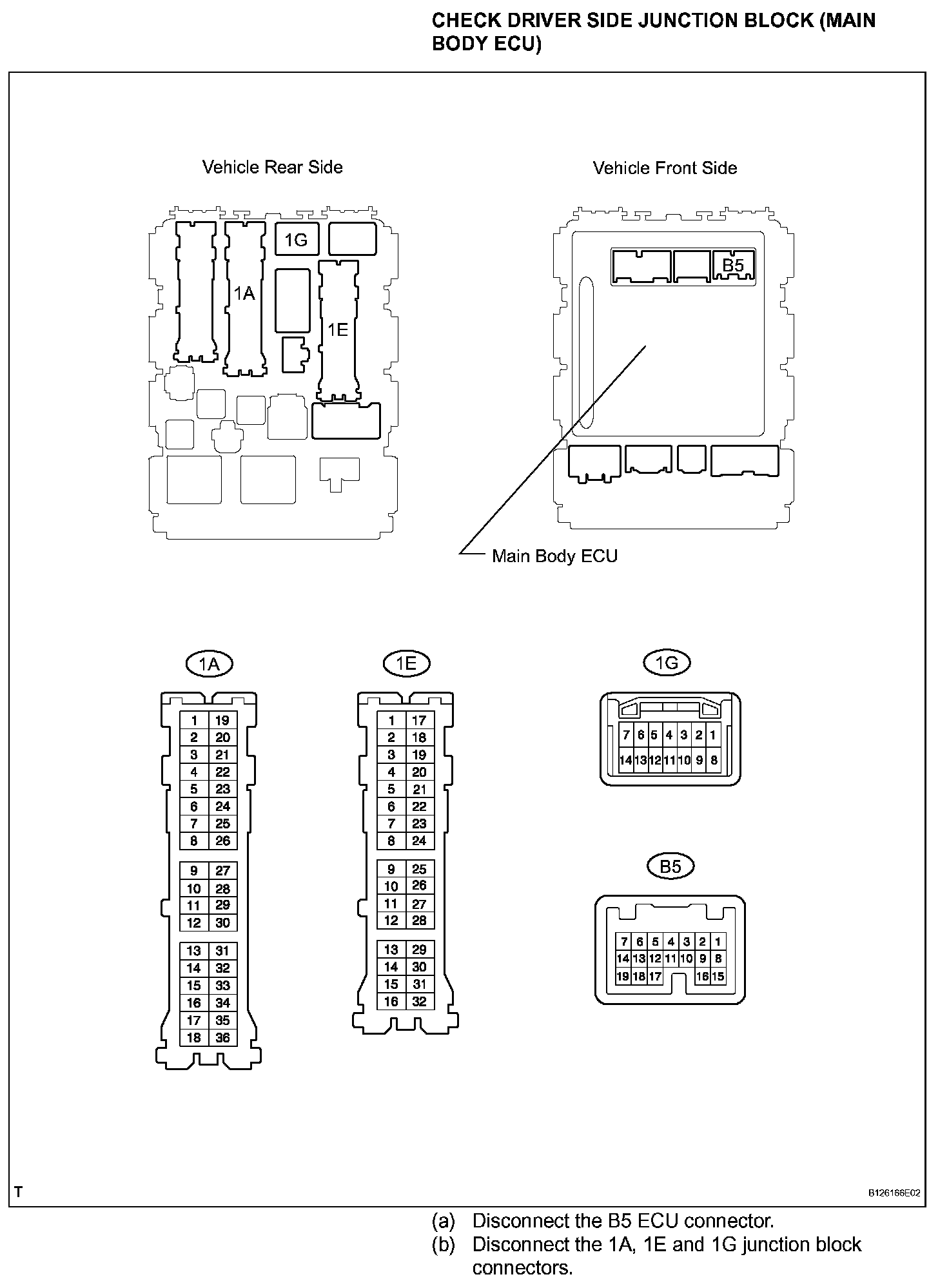

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Main Body ECU (Part 2):

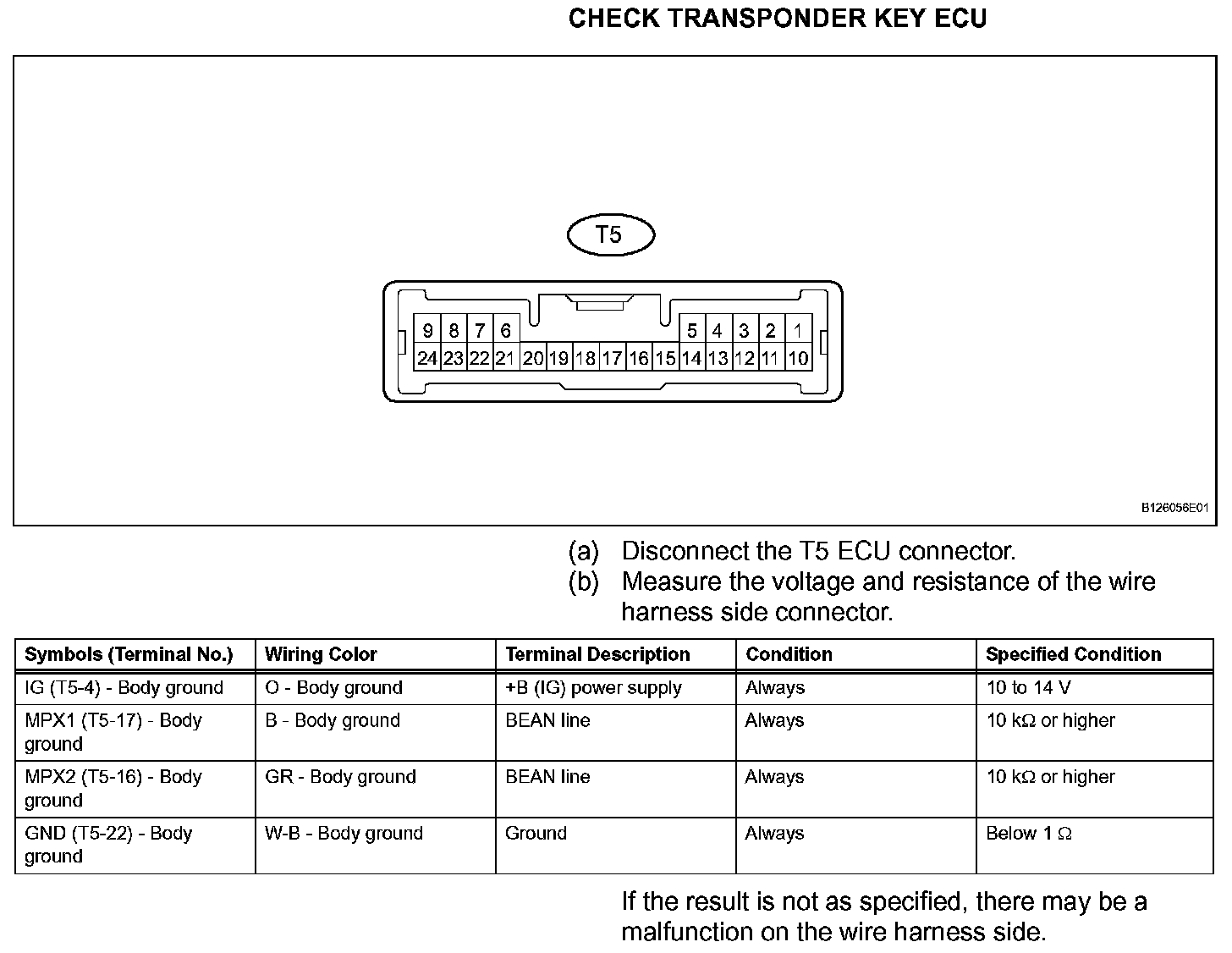

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:

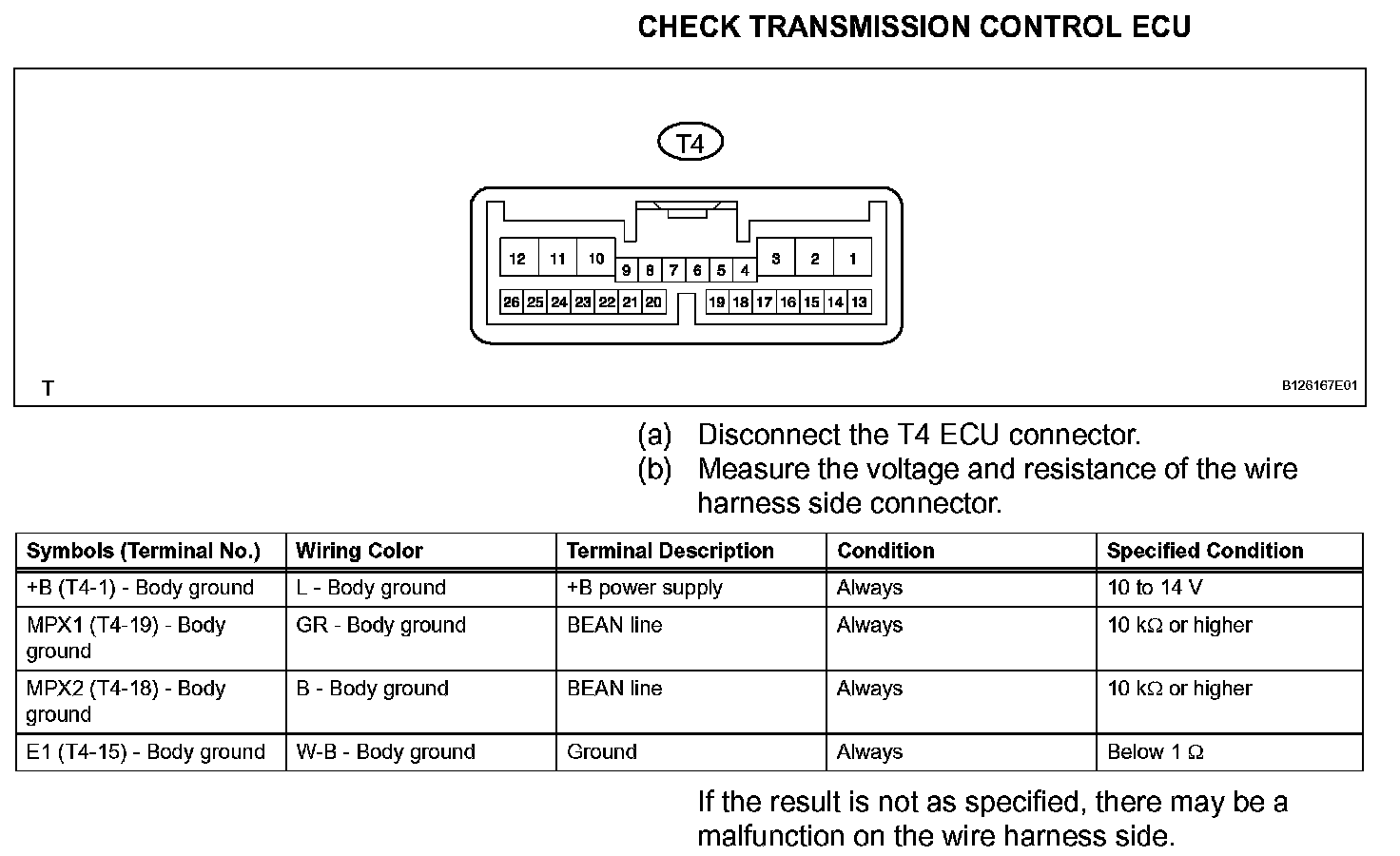

Terminals Of Control Module/Pinouts - Check Transmission Control ECU:

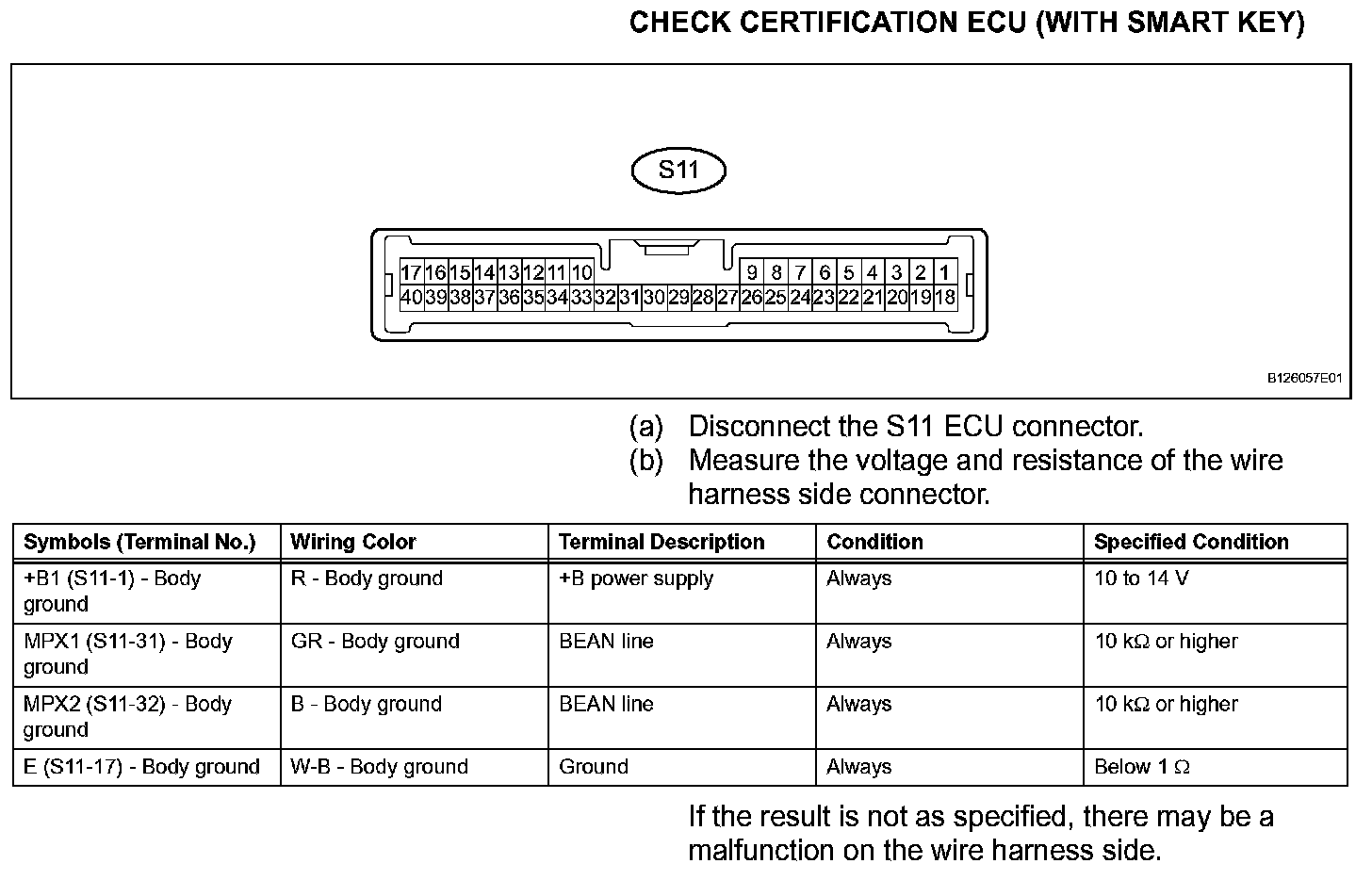

Terminals Of Control Module/Pinouts - Check Certification ECU (With Smart Key):

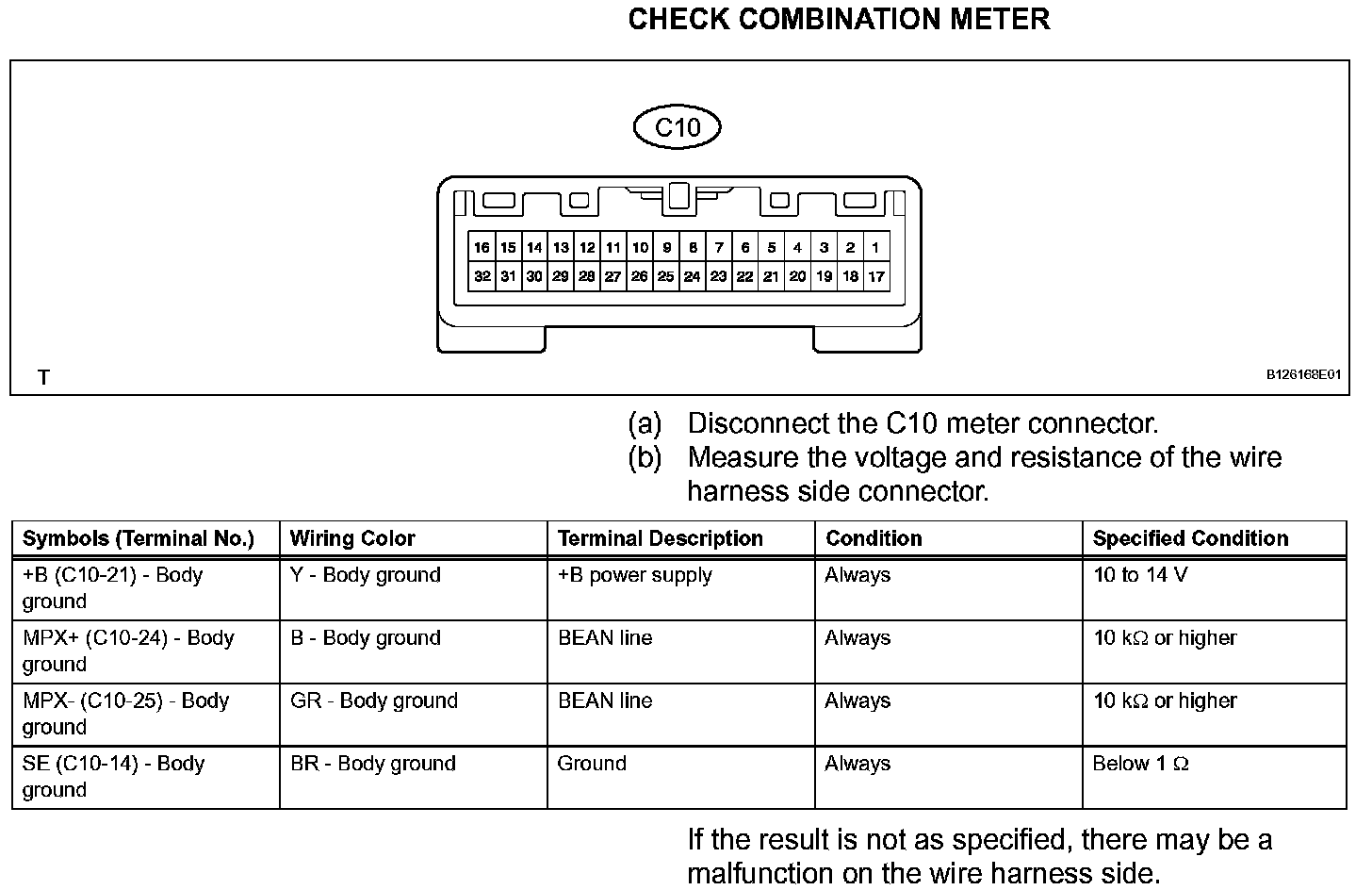

Terminals Of Control Module/Pinouts - Check Combination Meter:

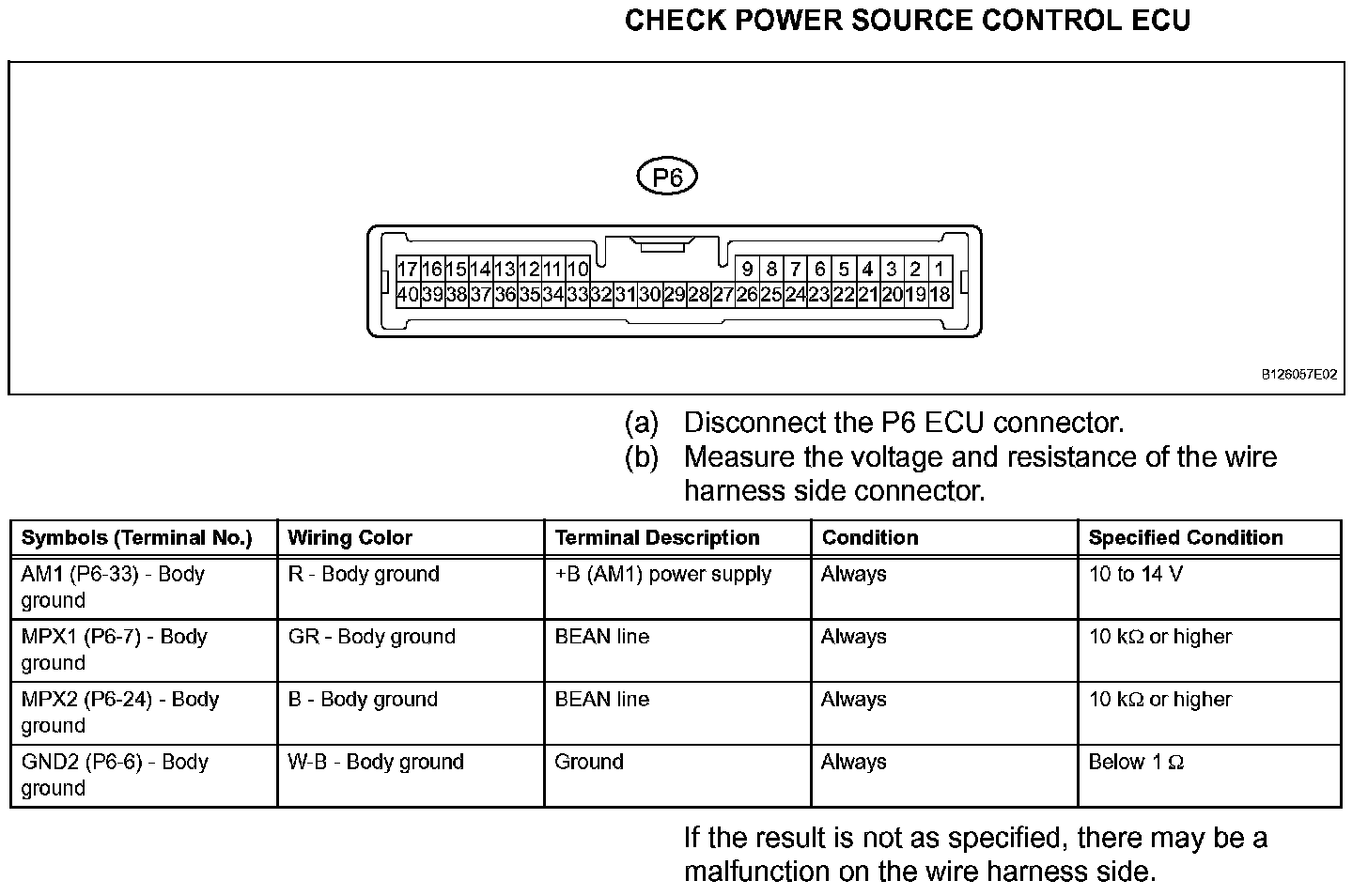

Terminals Of Control Module/Pinouts - Check Power Source Control ECU:

Terminals Of Control Module/Pinouts - Check Tire Pressure Monitor ECU:
