Component Torque & Sequence
Drive Plate Torque
98 Nm (999 kgf-cm, 72 ft. lbs.)

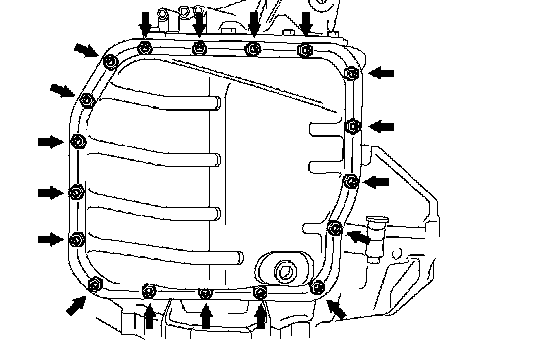

Oil Pan
Install the oil pan and a new oil pan gasket to the transaxle case with the 18 bolts.
Torque
7.6 Nm (77 kgf-cm, 67 inch lbs.)
For Overhaul Specifications refer to Transmission Overhaul Procedures.
Unit Overhaul
