Tire Pressure Module: Service and Repair

TIRE PRESSURE WARNING ECU

Components:





REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INTEGRATION CONTROL PANEL
3. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

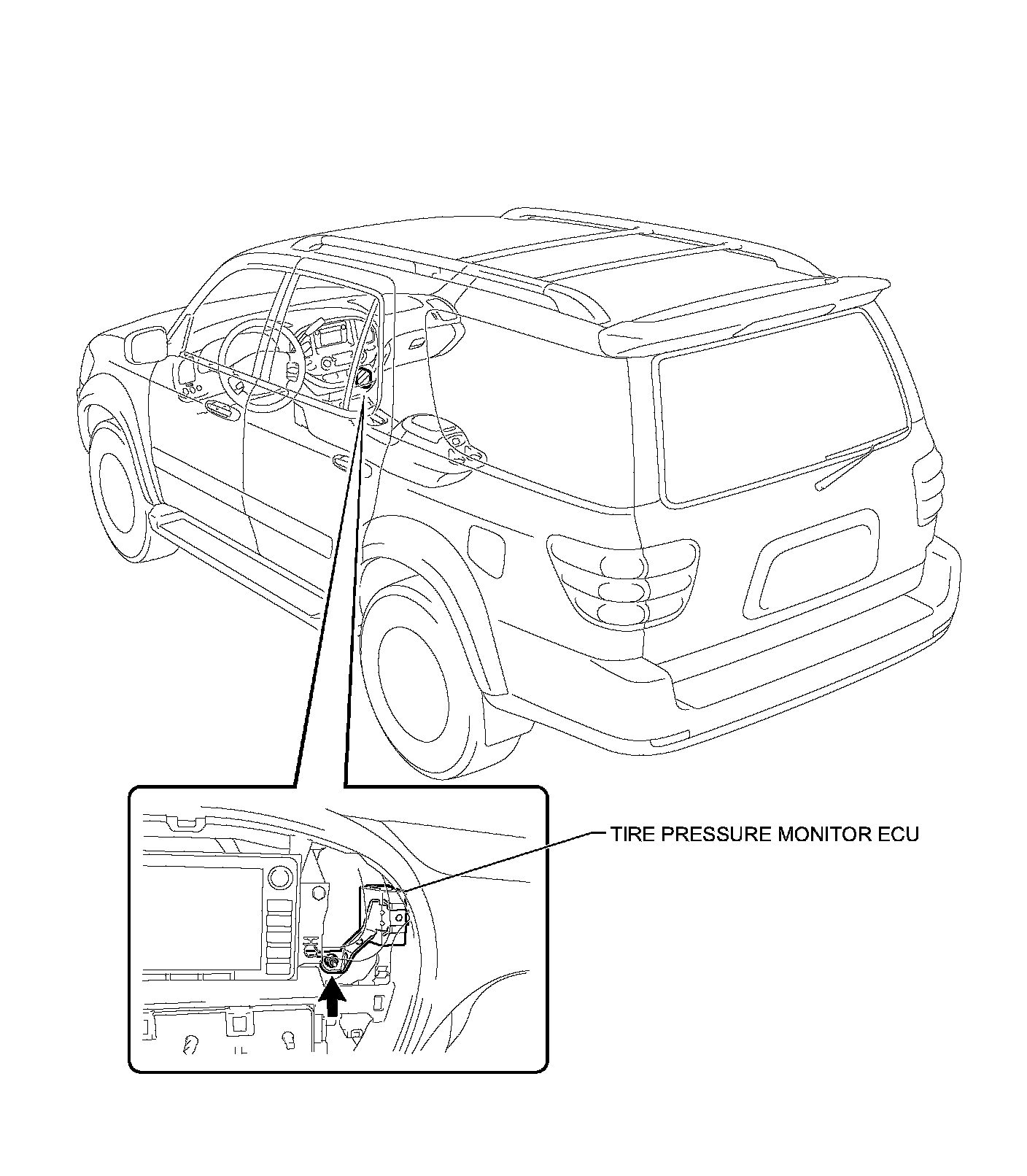

4. REMOVE TIRE PRESSURE MONITOR ECU
a. Disconnect the connector.





b. Remove the nut and tire pressure monitor ECU.

INSTALLATION





1. INSTALL TIRE PRESSURE MONITOR ECU
a. Install the tire pressure monitor ECU with the nut.
b. Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL INTEGRATION CONTROL PANEL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. REGISTRATION OF TRANSMITTED ID
6. INSPECT TIRE PRESSURE WARNING SYSTEM
SST 09843-18040
7. PERFORM INITIALIZATION

HINT: Some systems need initialization when disconnecting the cable from the negative battery terminal.
