Check CAN Bus Lines For Short Circuit

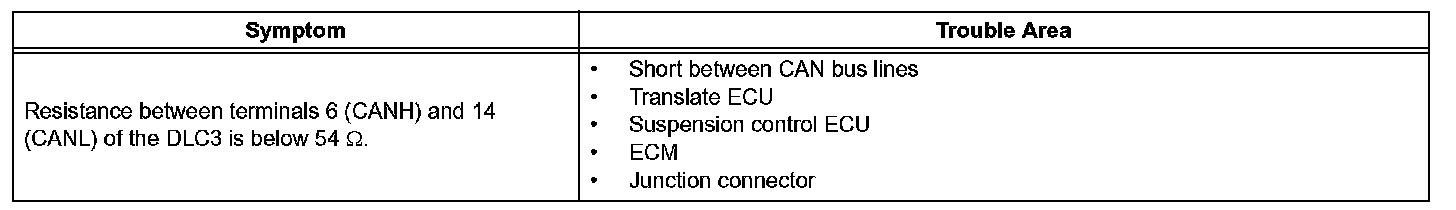

Check CAN Bus Lines for Short CircuitDESCRIPTIONThere may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is below
54 Ohms.

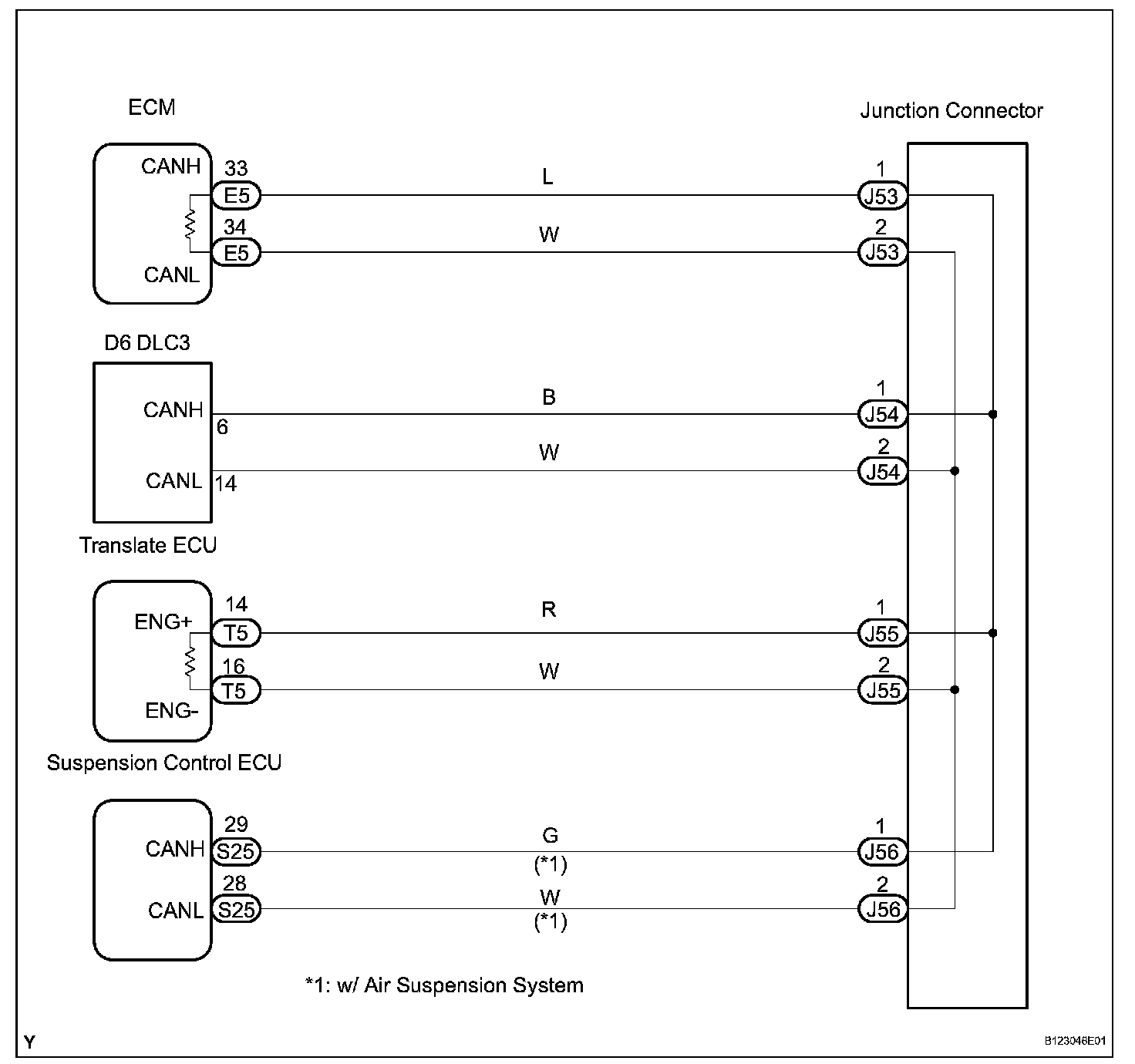

Wiring Diagram:

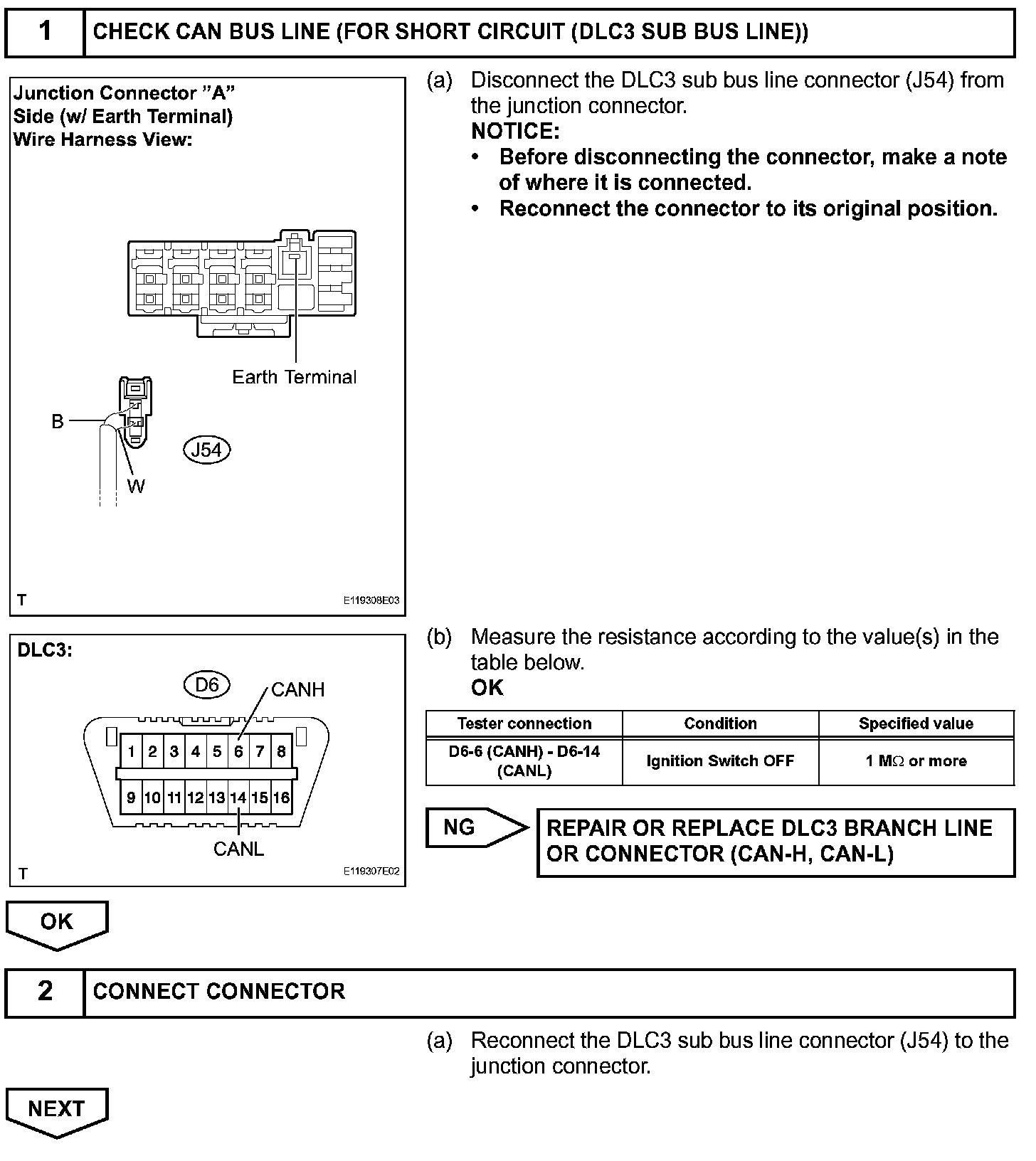

Step 1-2:

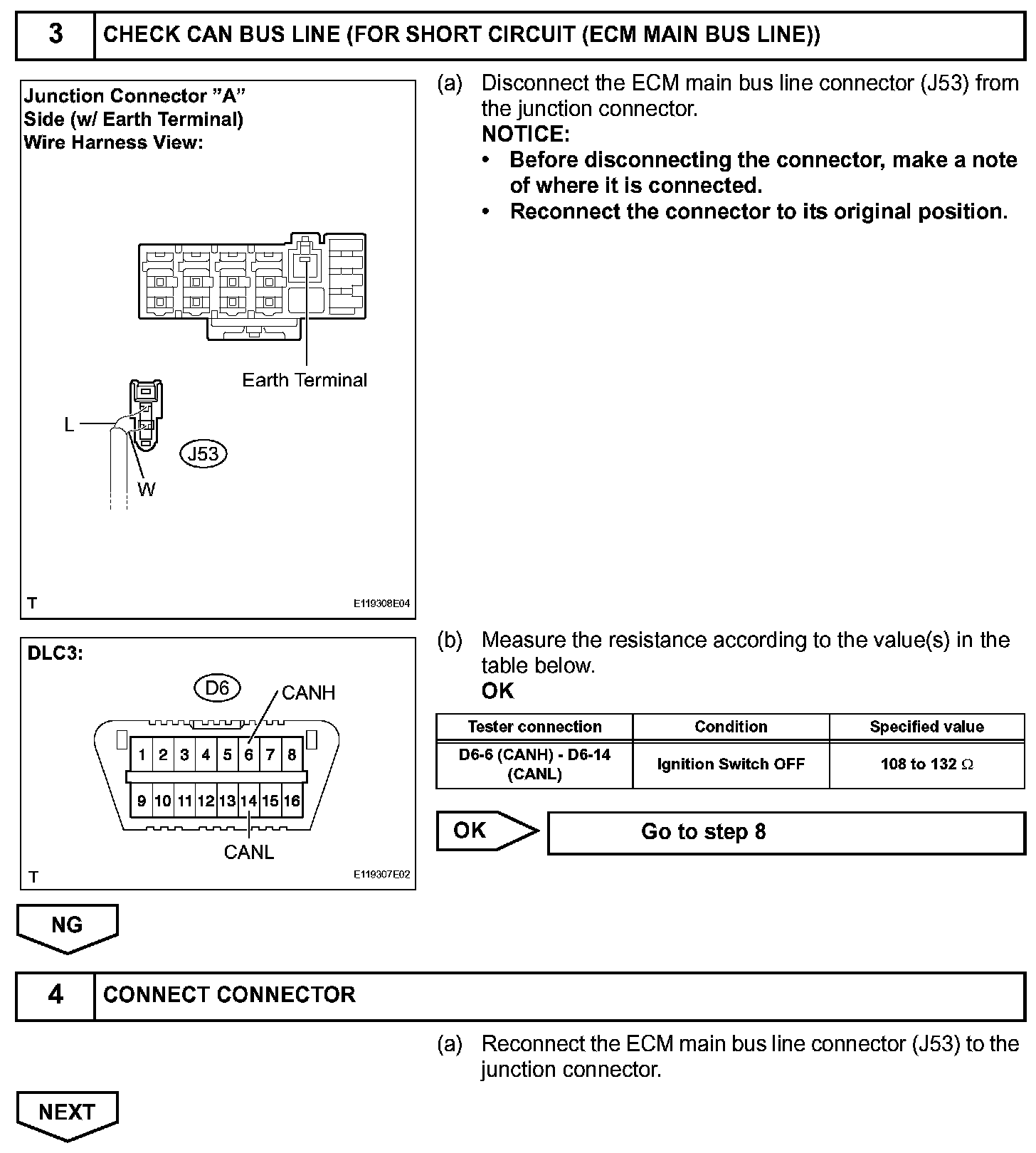

Step 3-4:

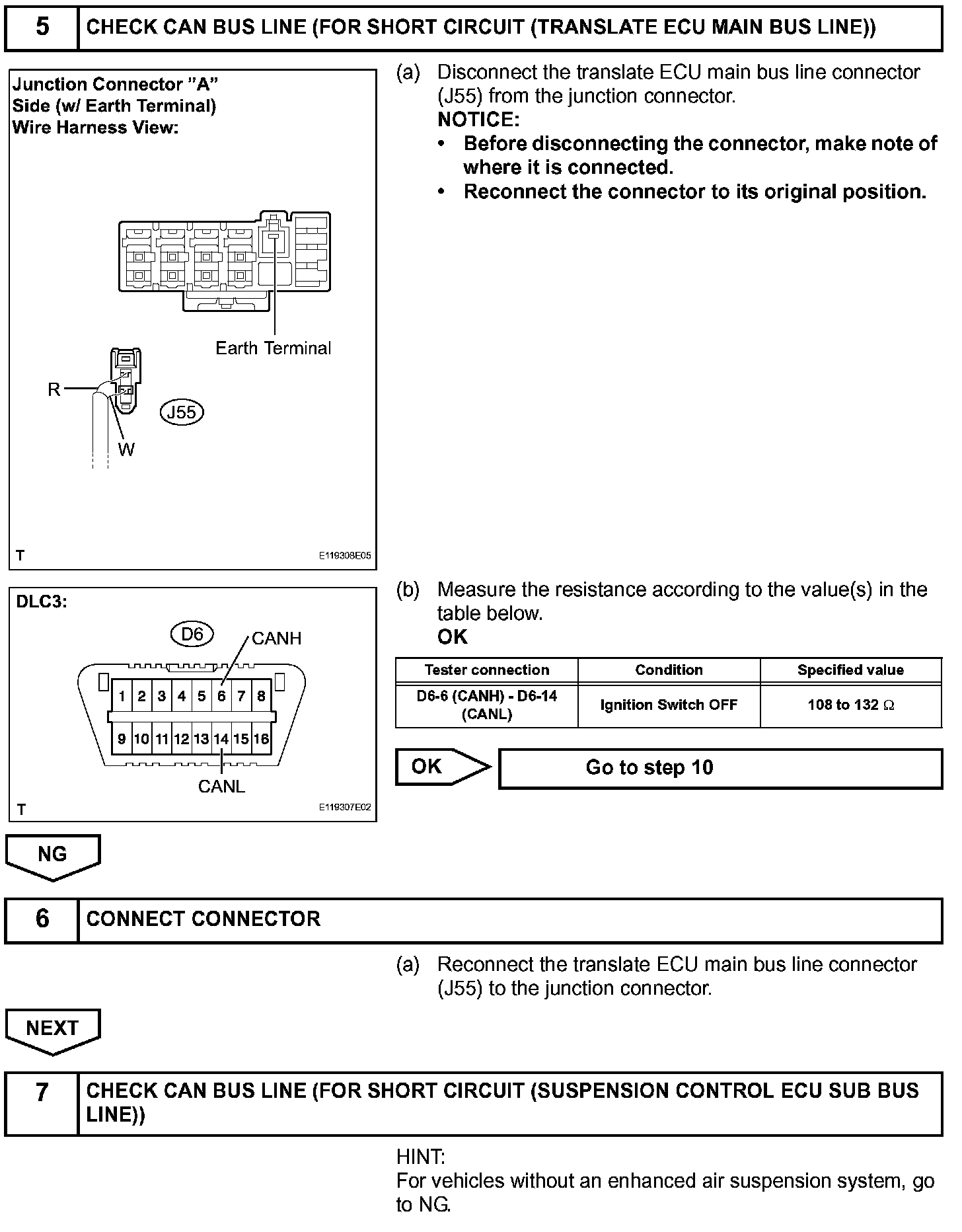

Step 5-7:

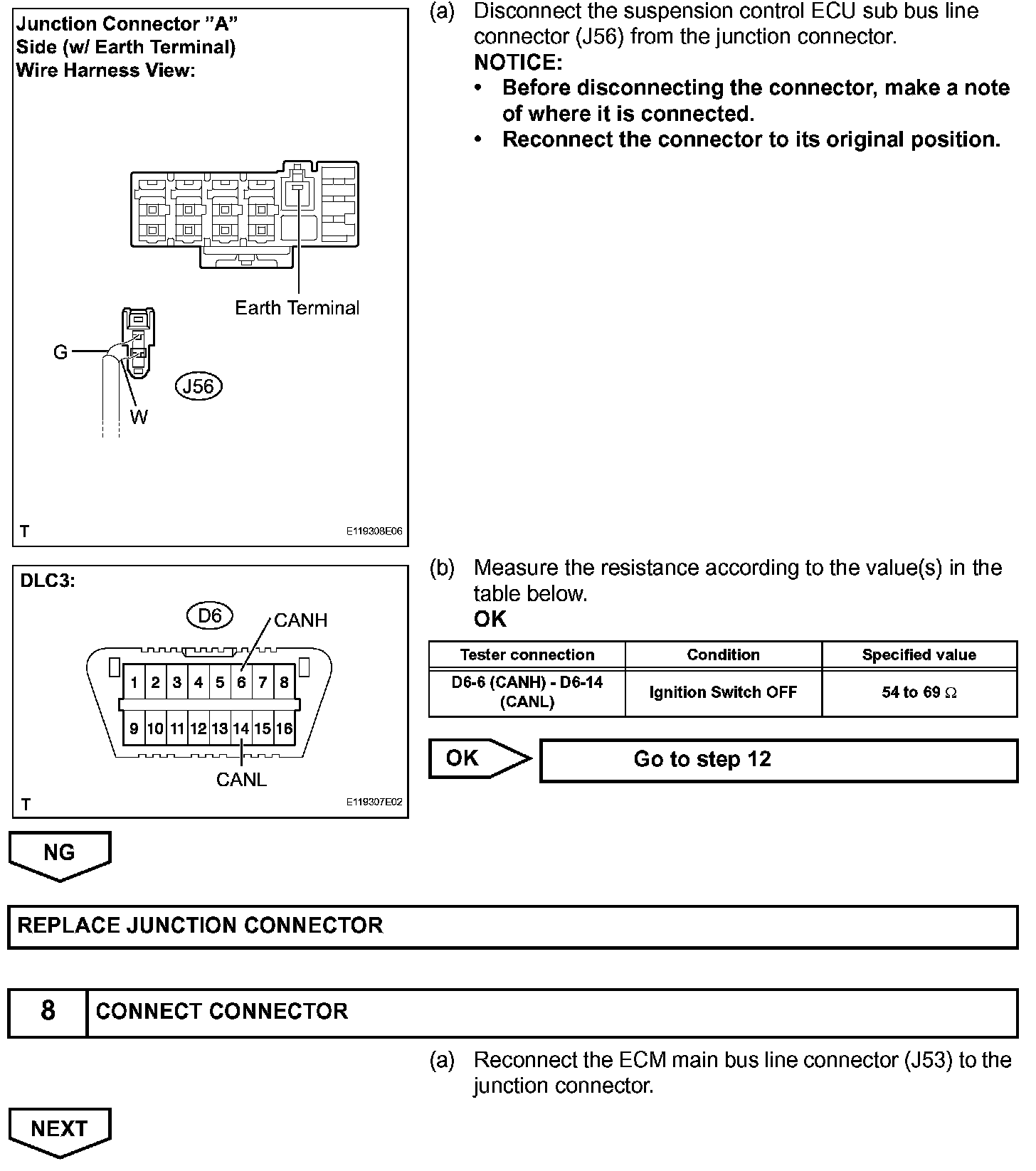

Step 7(Continued)-8:

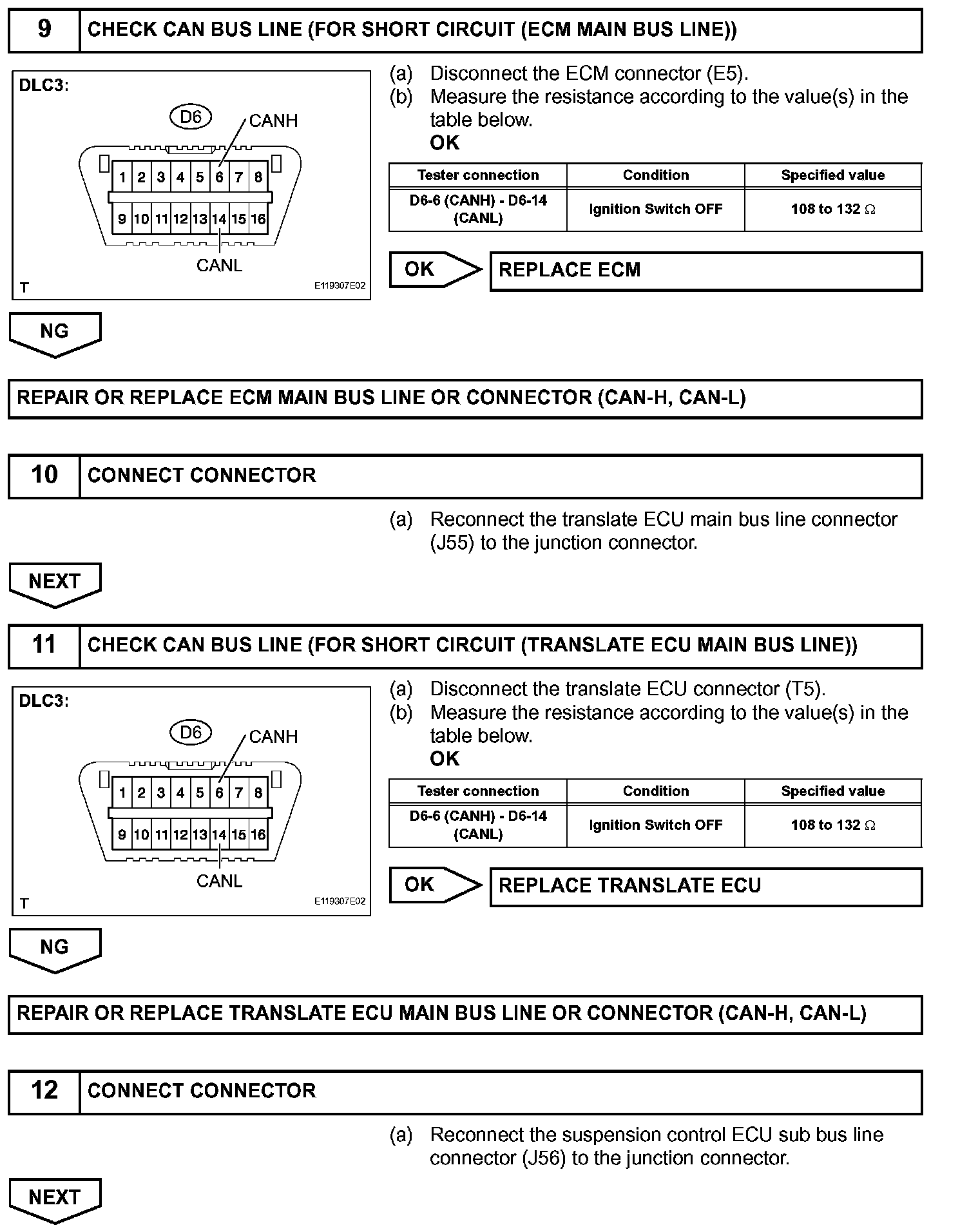

Step 9-12:

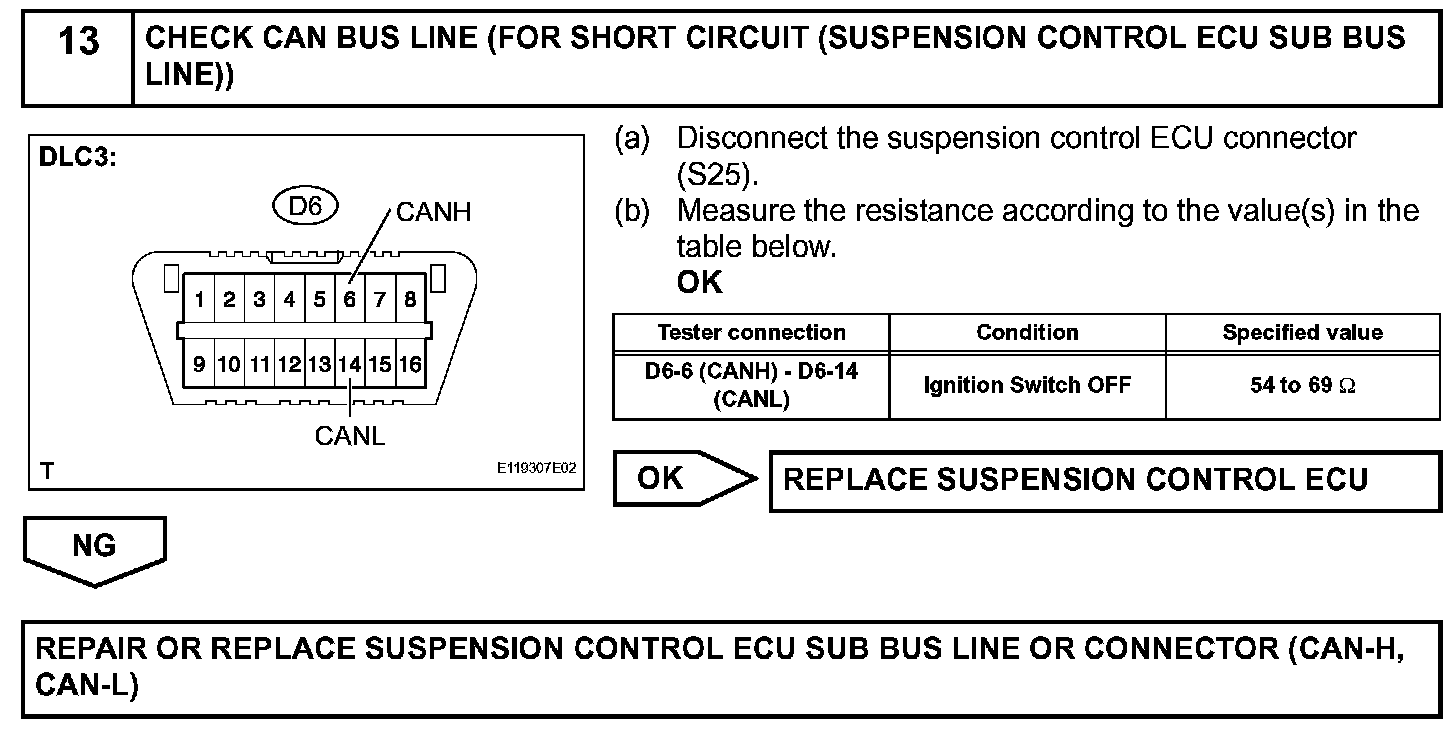

Step 13:
INSPECTION PROCEDURE
