DIAGNOSIS SYSTEM




1. BUS CHECK

HINT: The ECUs that are properly connected to the CAN communication system can be displayed using the intelligent tester via CAN VIM.

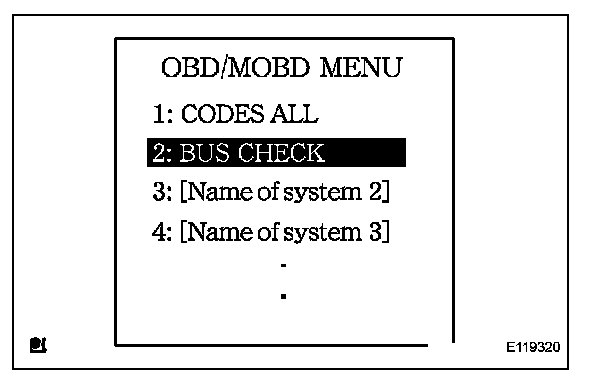

a. Select "BUS CHECK" from the "OBD/MOBD MENU" screen.

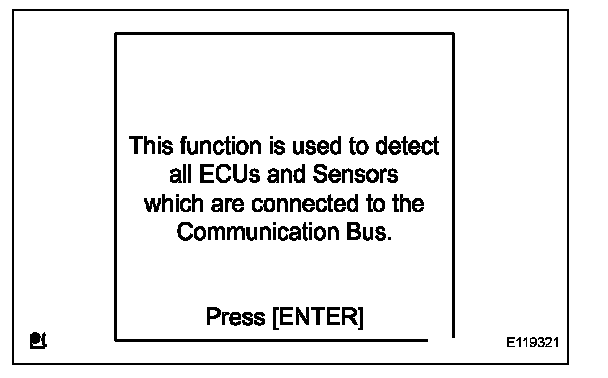

b. Press "ENTER" on the intelligent tester via CAN VIM.

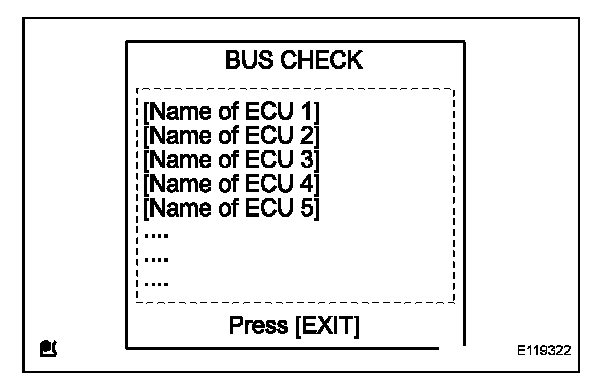

c. The screen displays the ECUs and sensors that are properly connected to the CAN communication system.

HINT: There is a communication stop in the system of any properly connected ECUs or sensors that are not displayed.
