CAN Communication System

TERMINALS OF ECU

HINT: This describes the standard CAN values for all CAN related components.

Terminals Of Control Module/Pinouts:

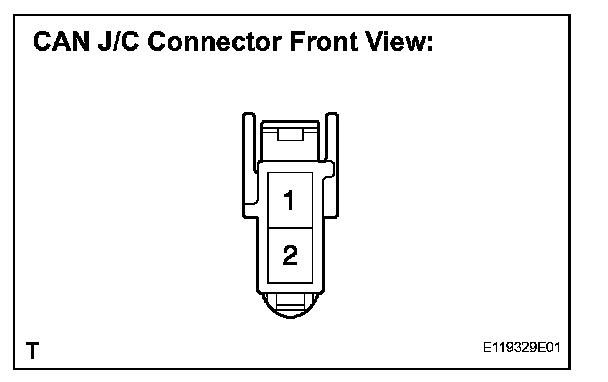

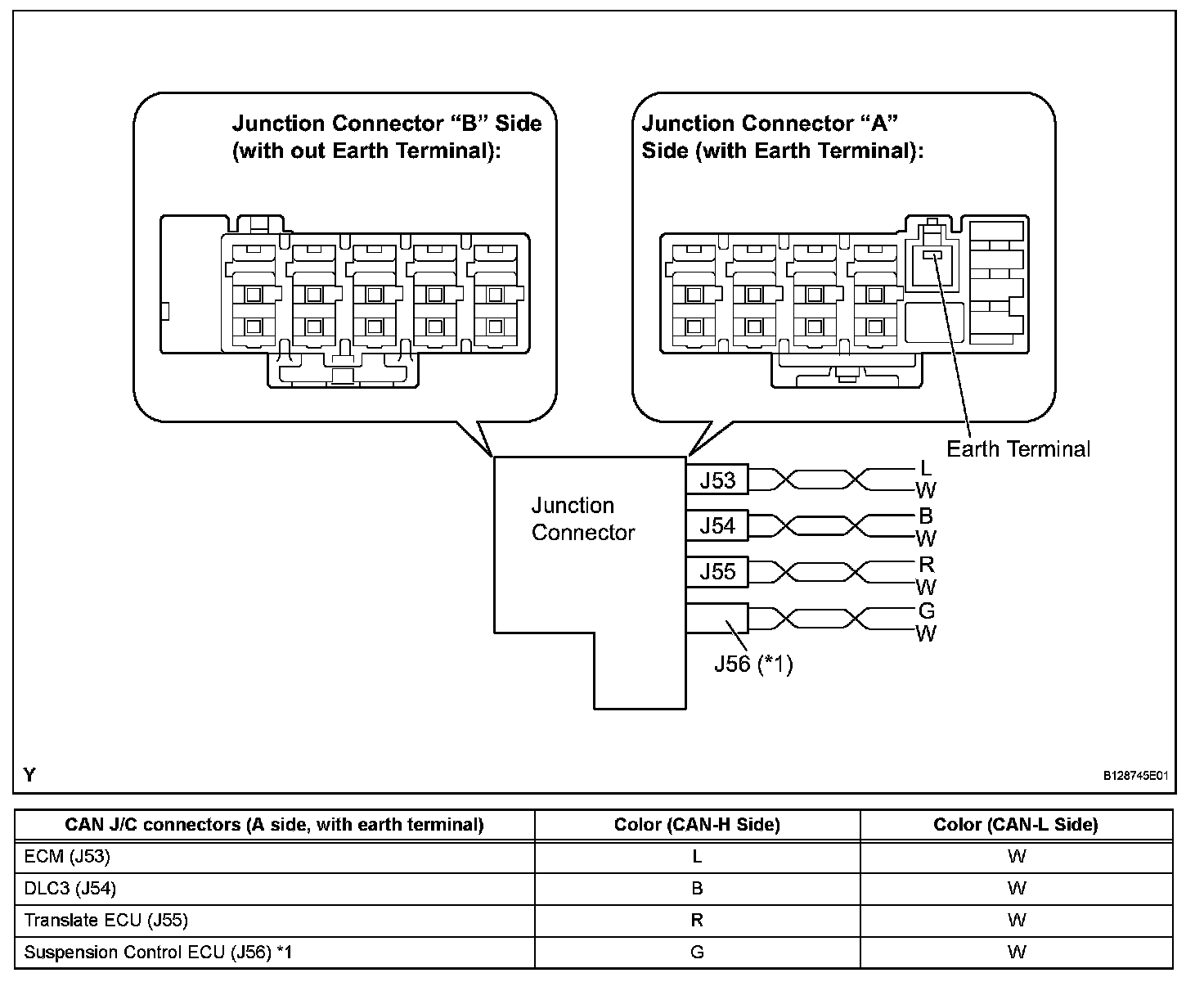

1. JUNCTION CONNECTOR

HINT:
- The connectors connected to the junction connector can be distinguished by the colors of the bus lines and the connecting side of the connector.
- J53, J54, J55 and J56 are interchangeable.
- *1 w/ Air Suspension system

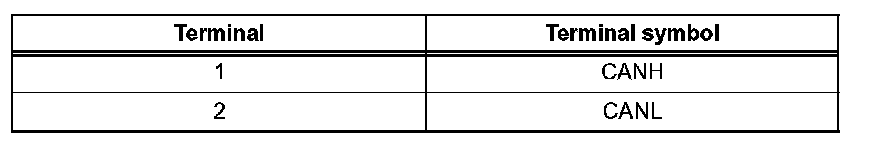

2. THE TERMINALS OF CONNECTORS JUNCTION CONNECTOR

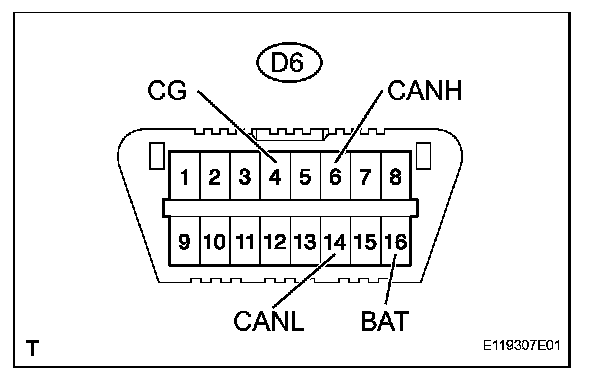

3. DLC3
a. Measure the resistance according to the value(s) in the table.

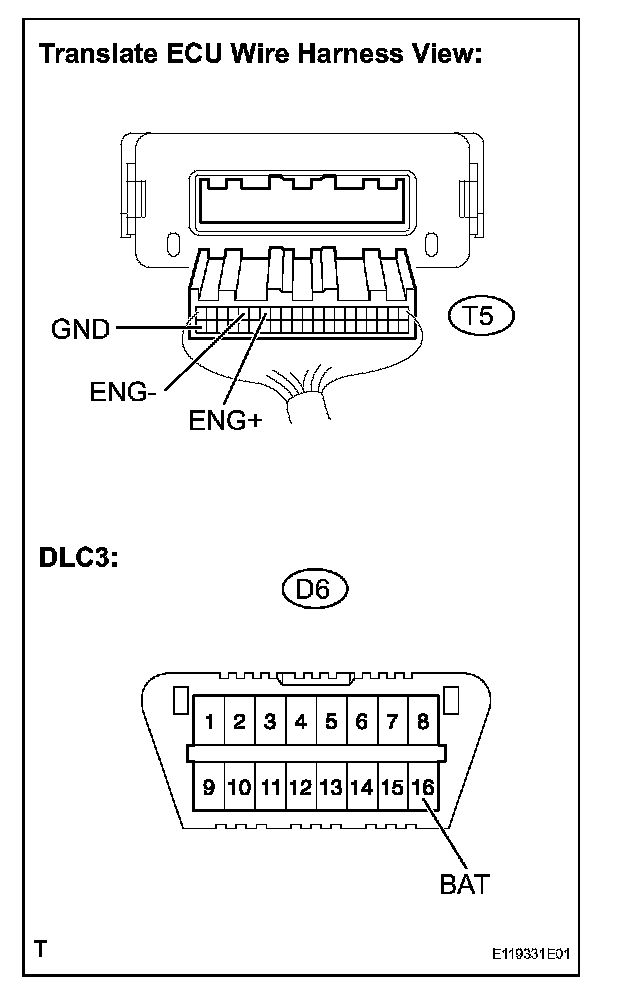

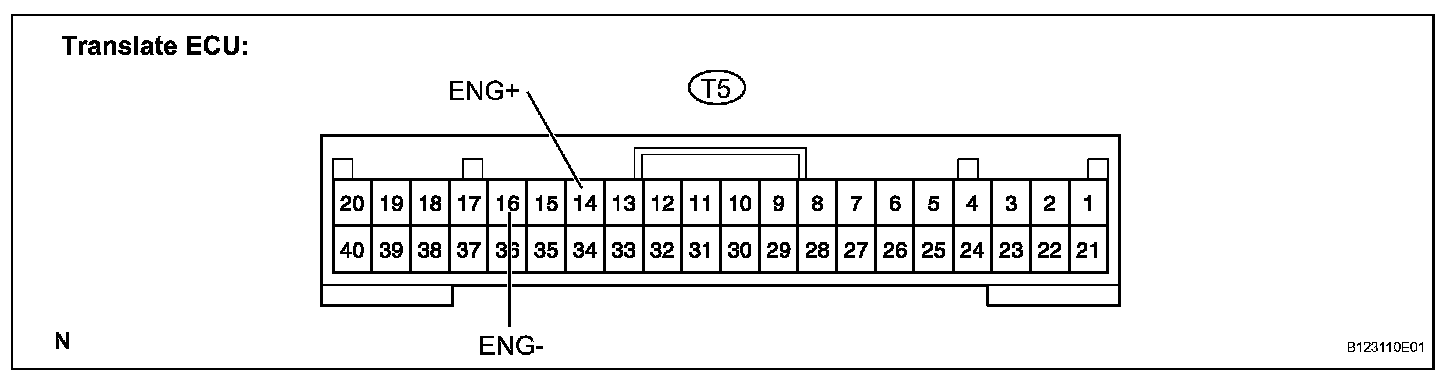

4. TRANSLATE ECU

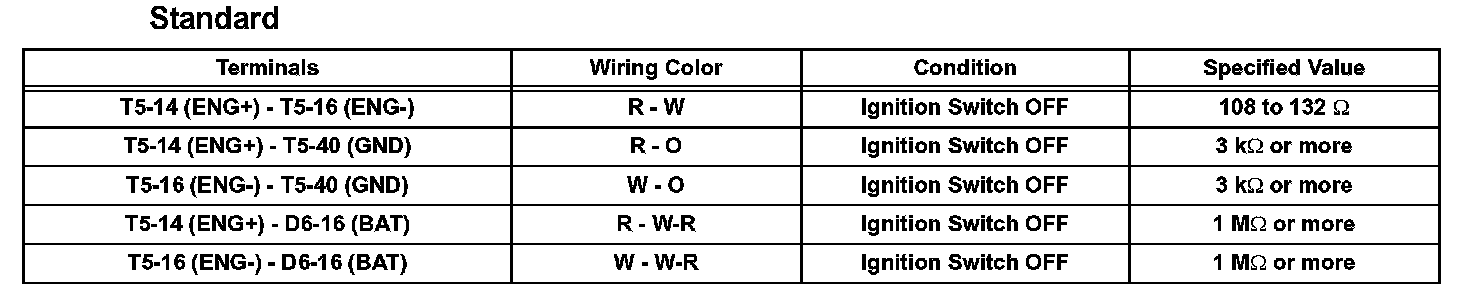

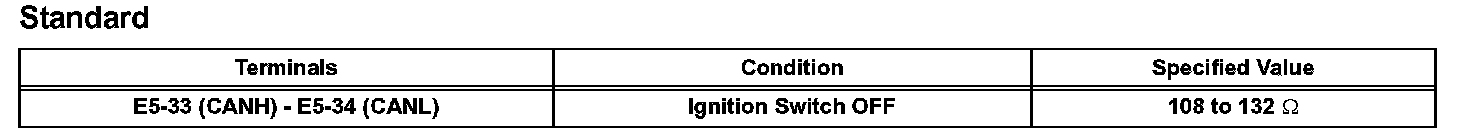

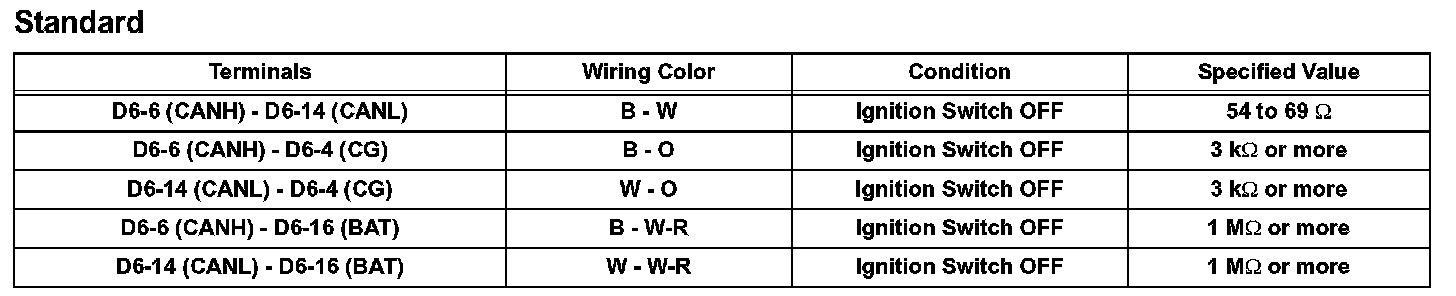

a. Measure the resistance according to the value(s) in the table.

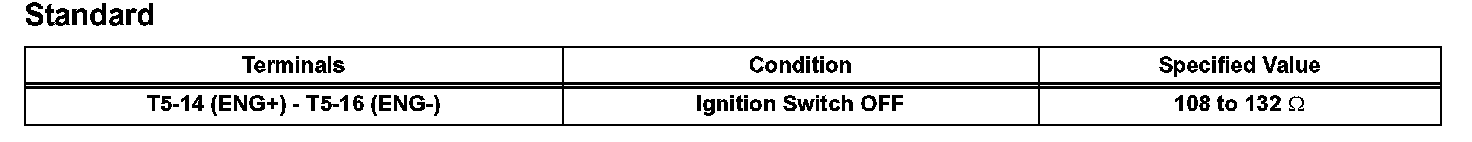

b. Measure the resistance according to the value(s) in the table.

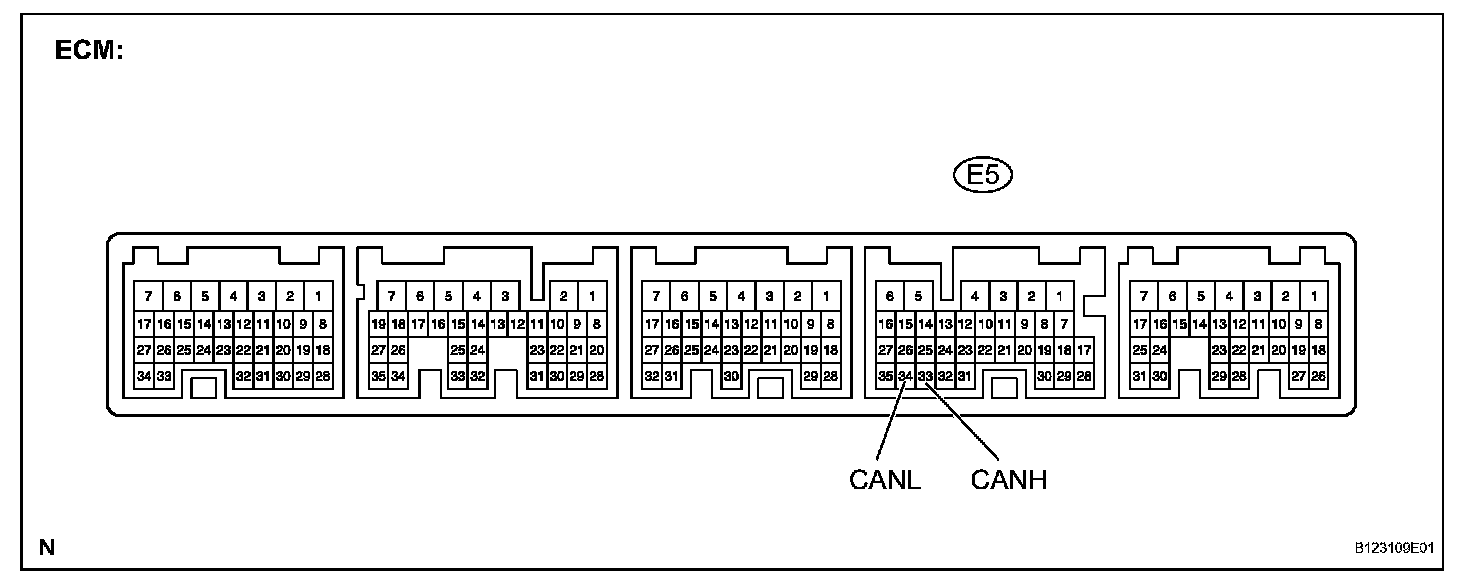

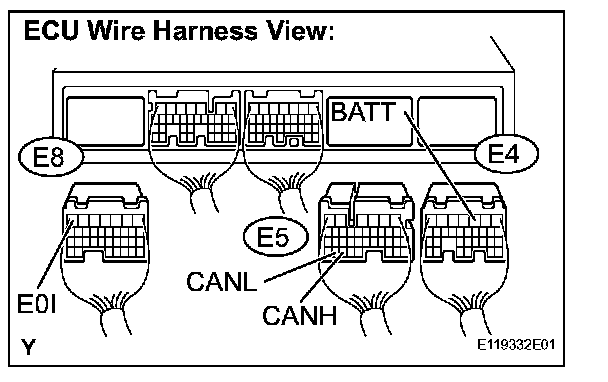

5. ECM
a. Measure the resistance according to the value(s) in the table.

b. Measure the resistance according to the value(s) in the table.

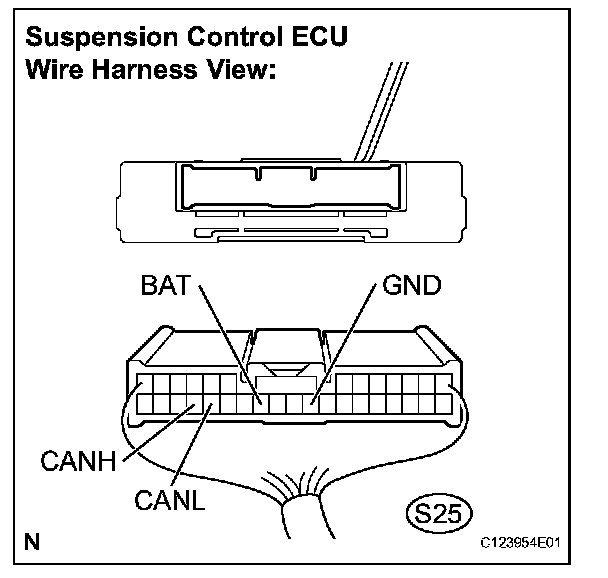

6. SUSPENSION CONTROL ECU

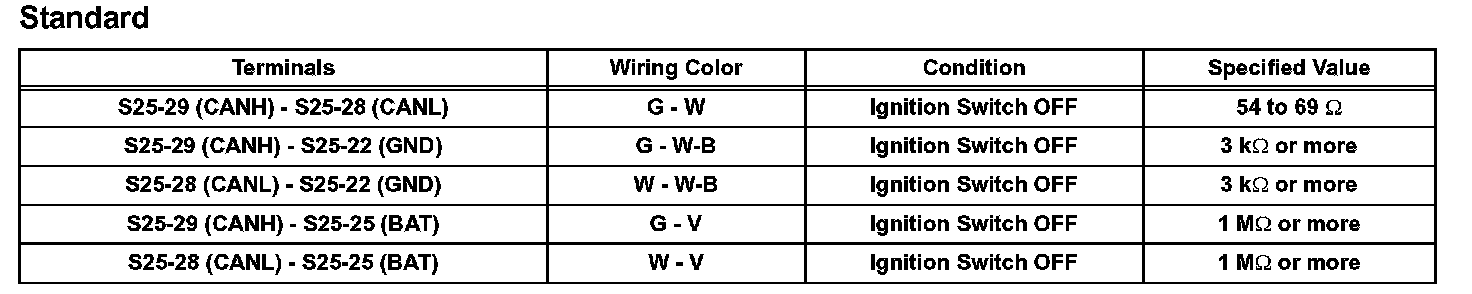

a. Measure the resistance according to the value(s) in the table.
