Display Signal Circuit Between Radio And Navigation Assembly And Television Camera Assembly

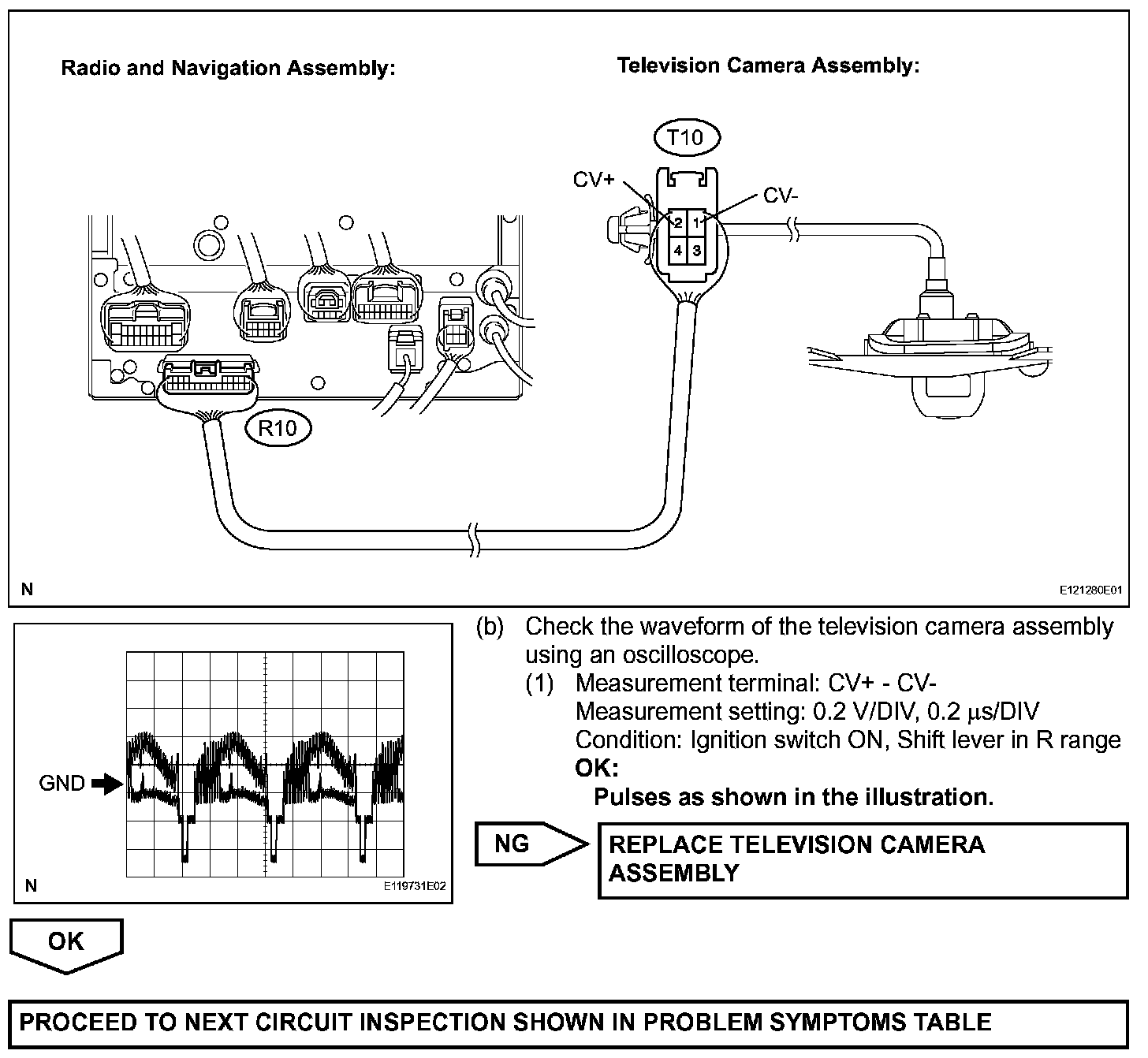

Display Signal Circuit between Radio and Navigation Assembly and Television Camera Assembly DESCRIPTION This is the display signal circuit of the television
camera assembly.

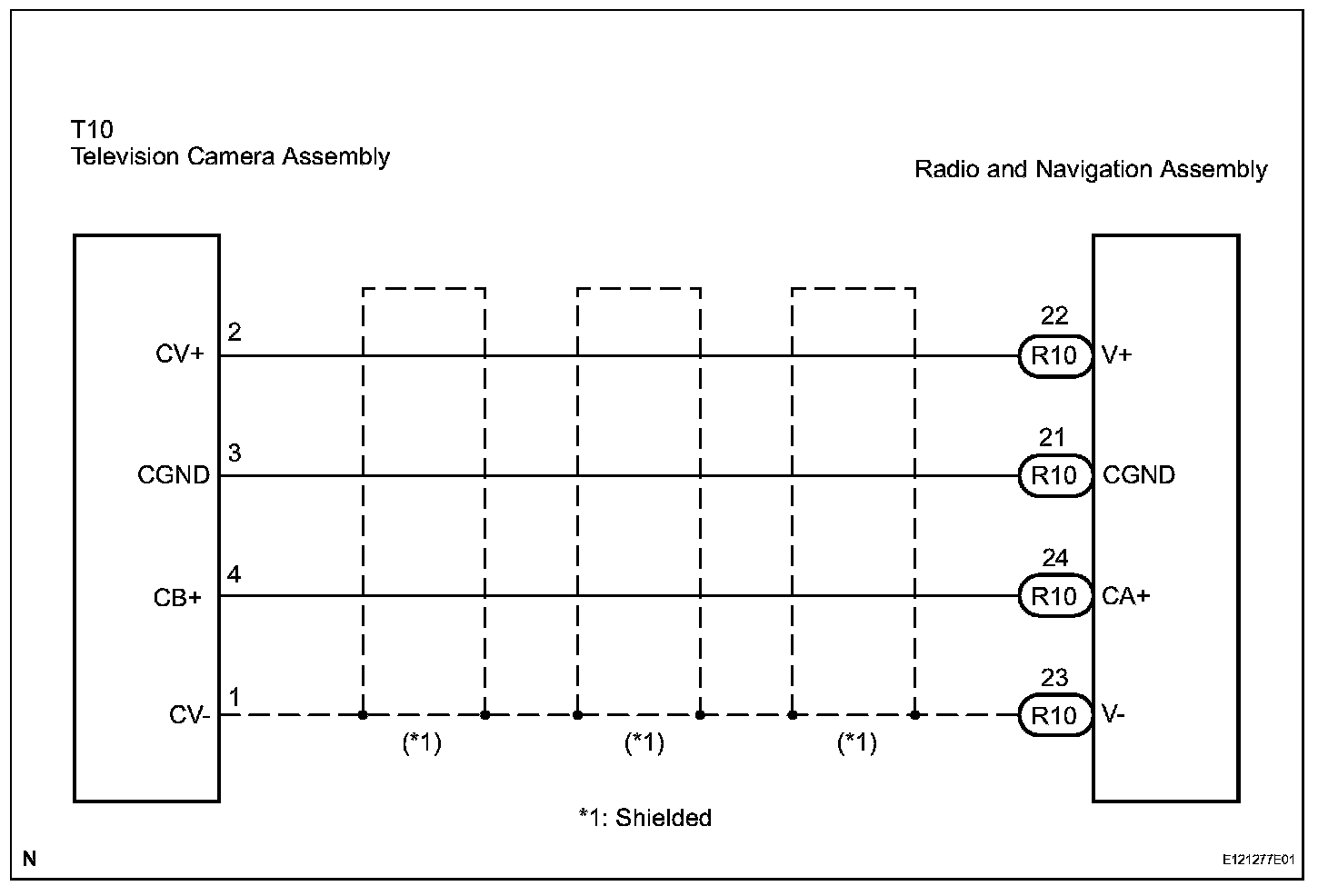

Wiring Diagram:
Step 1:

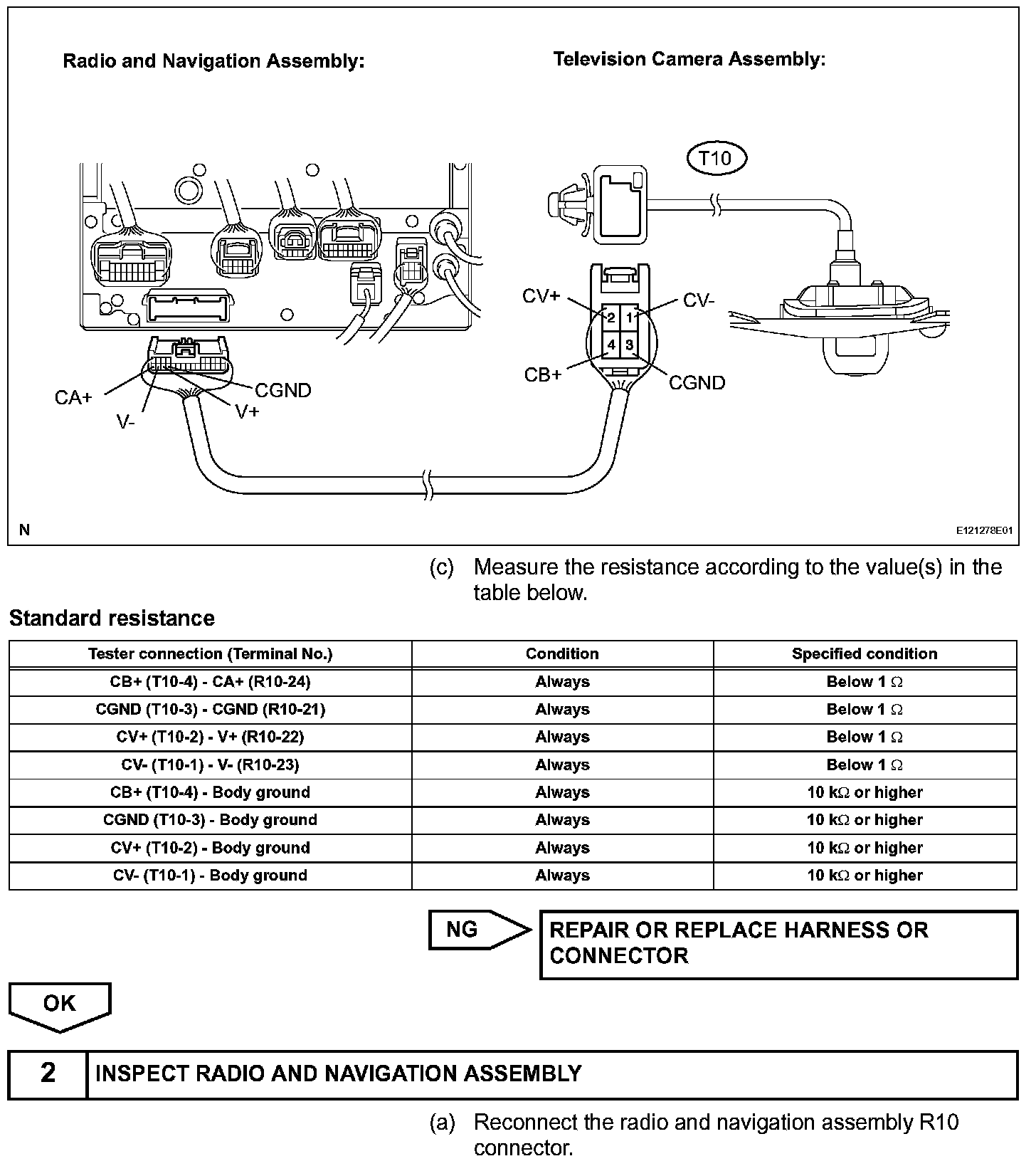

Step 1(Continued)-2:
Step 2(Continued)-3:
Step 3(Continued):
INSPECTION PROCEDURE
