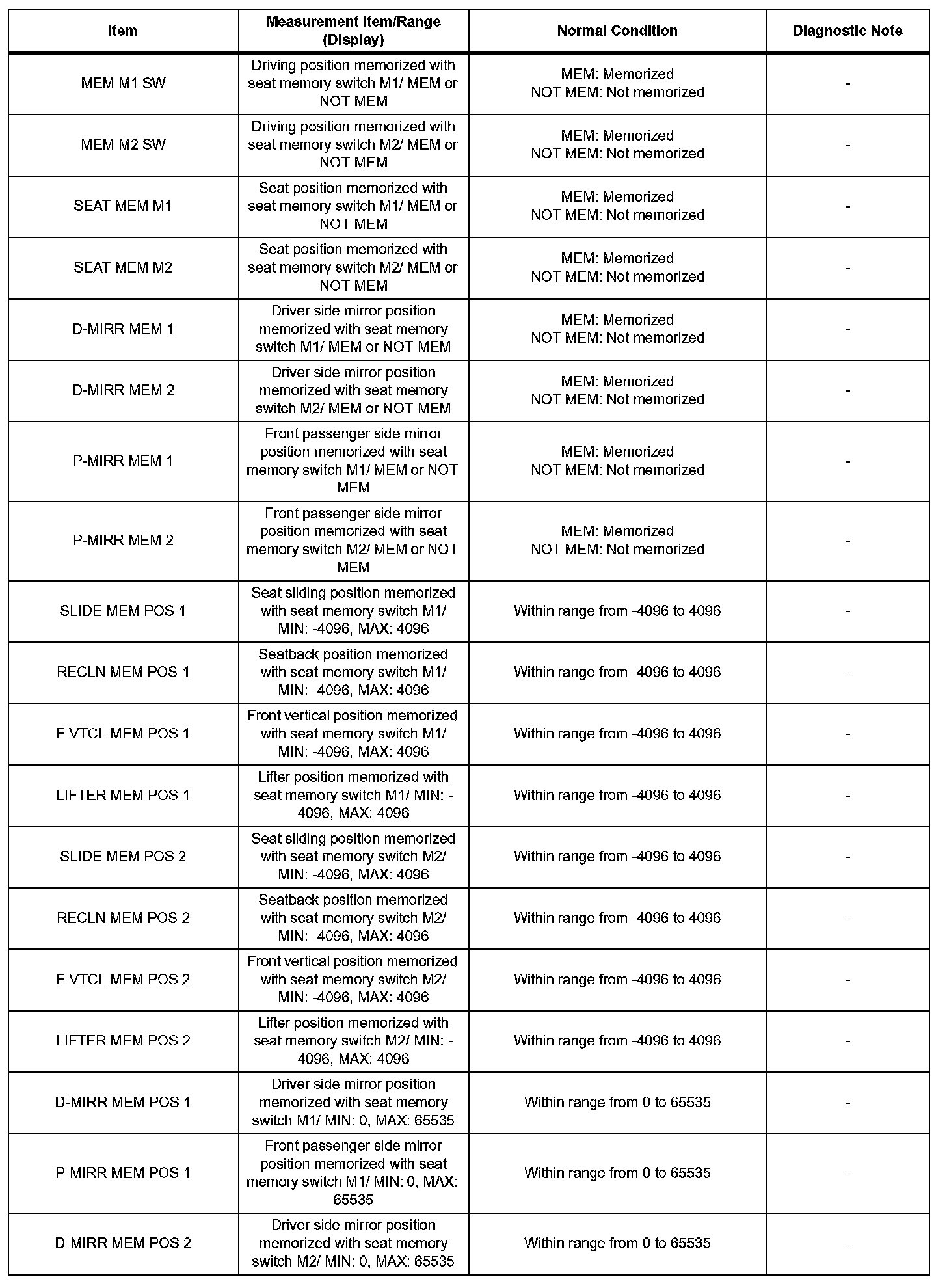

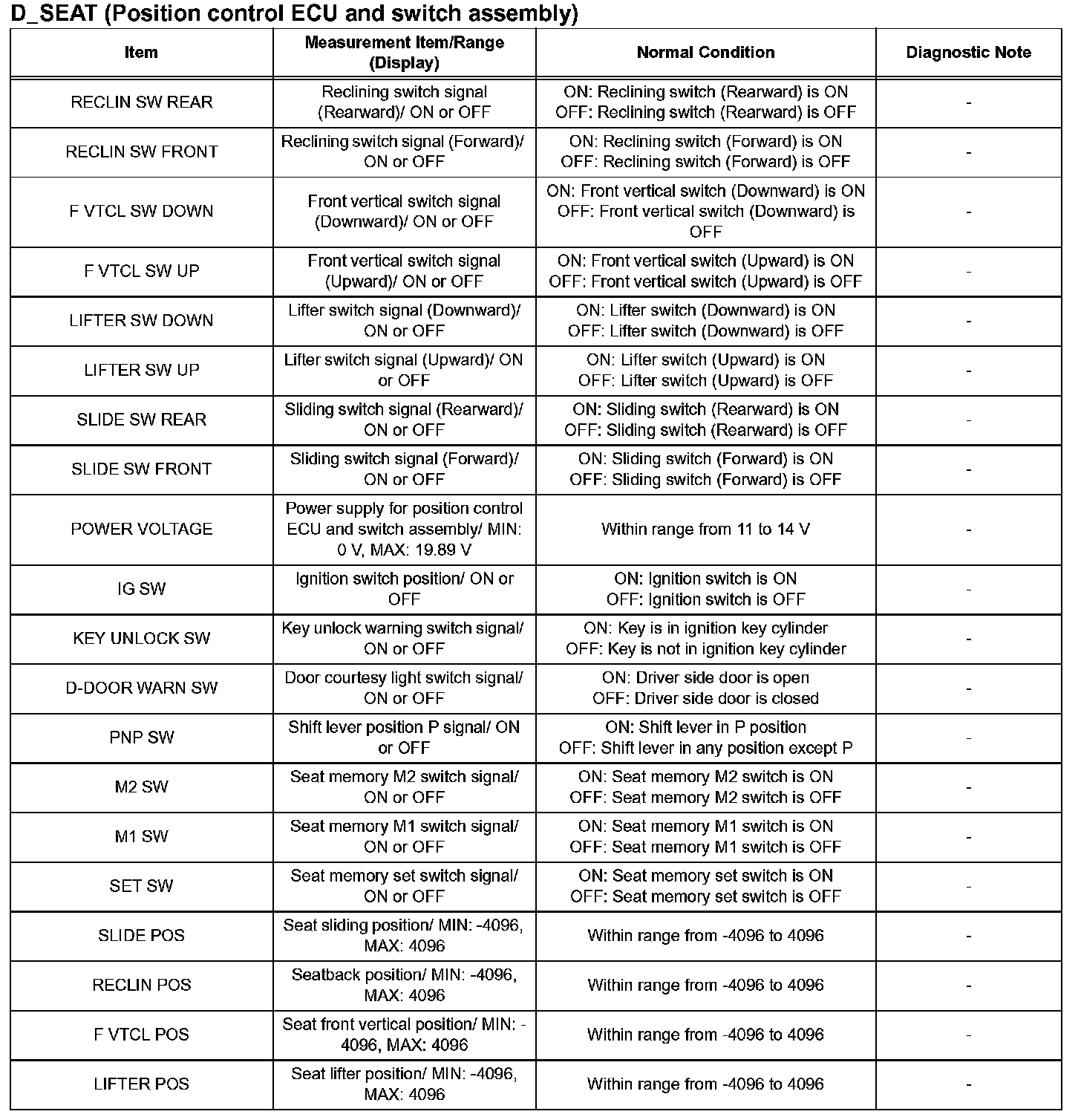

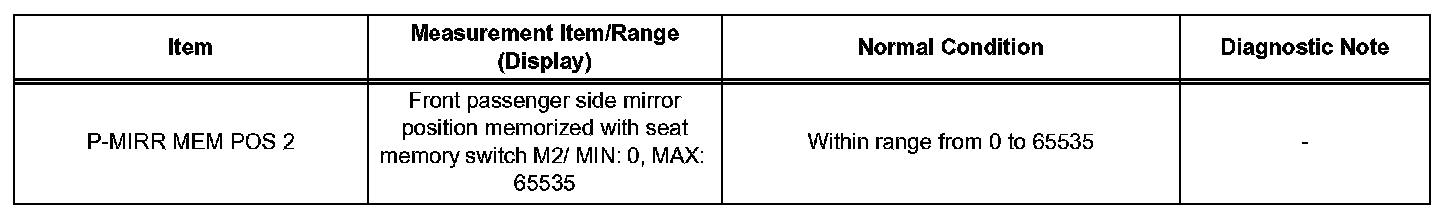

Data List
DATA LIST HINT: Using the intelligent tester's DATA LIST allows the status of a switch, sensor, actuator and other items to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.
Part 1:
Part 2:
Part 3:
a.
Connect the intelligent tester (with CAN VIM) to the DLC3.
b.
Turn the ignition switch on.
c.
Read the DATA LIST.
