Data List
DATA LIST HINT: From the DATA LIST displayed by the intelligent tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one of the way to shorten labor time.

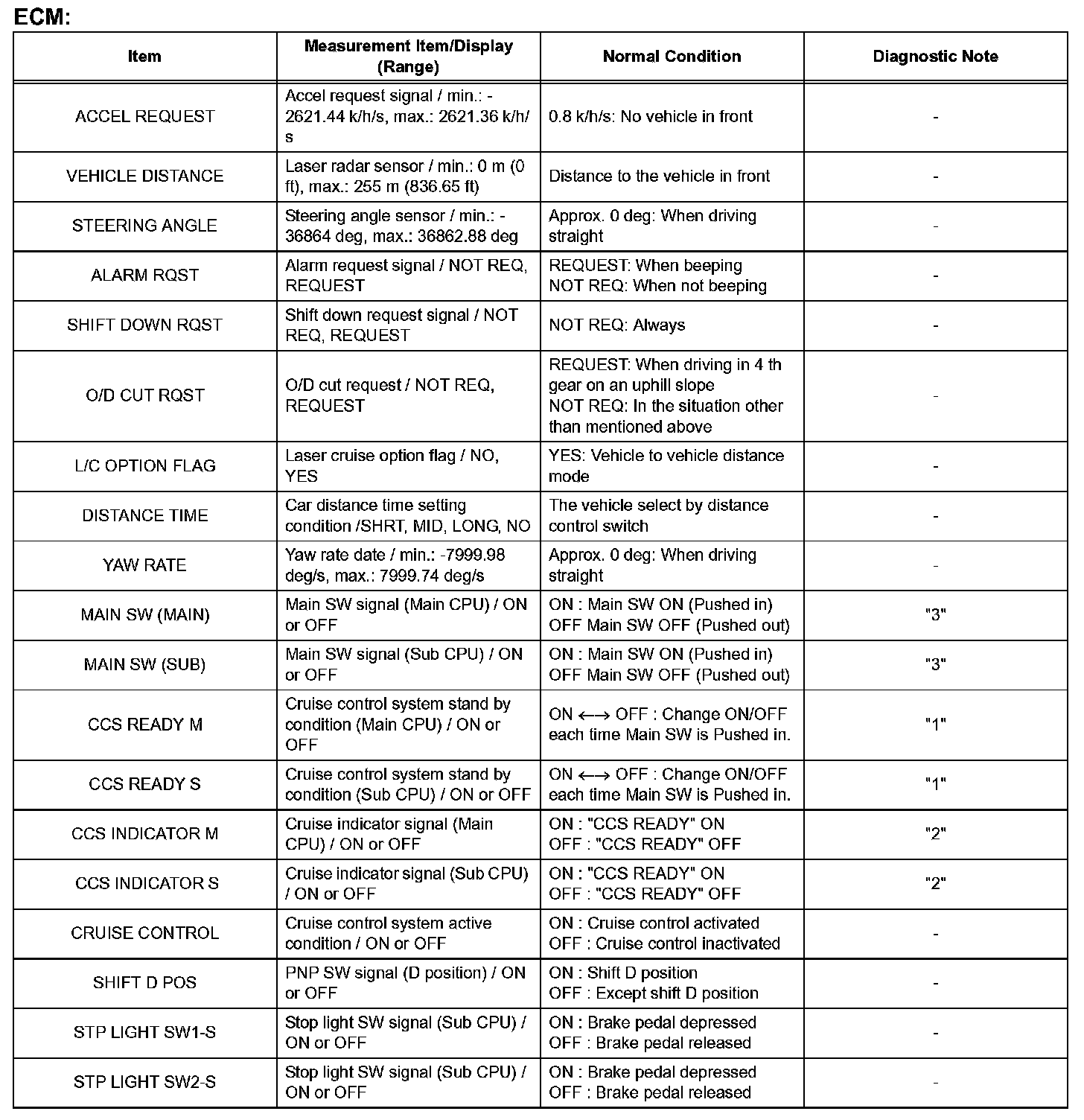

Part 1:

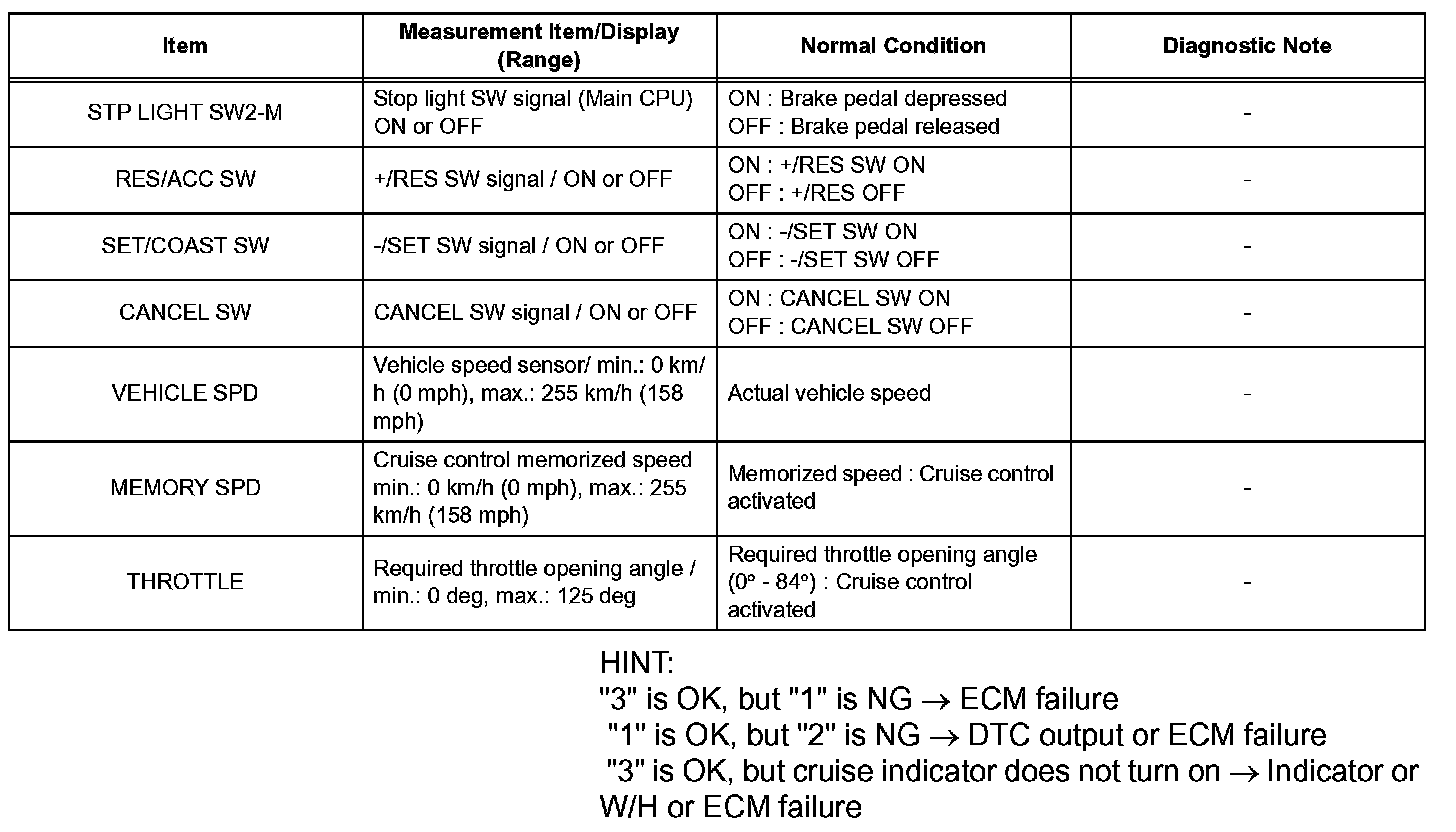

Part 2:
a.
Connect the Intelligent tester to the DLC3.
b.
Turn the ignition switch ON.
c.
According to the display on the tester, read the "DATA LIST".
