Programming and Relearning

INITIALIZATION





1. INITIAL SETTING OF TIRE PRESSURE WARNING SYSTEM
a. Check and adjust the tire air pressure to the specified value.
b. With the vehicle stopped, turn the ignition switch ON.

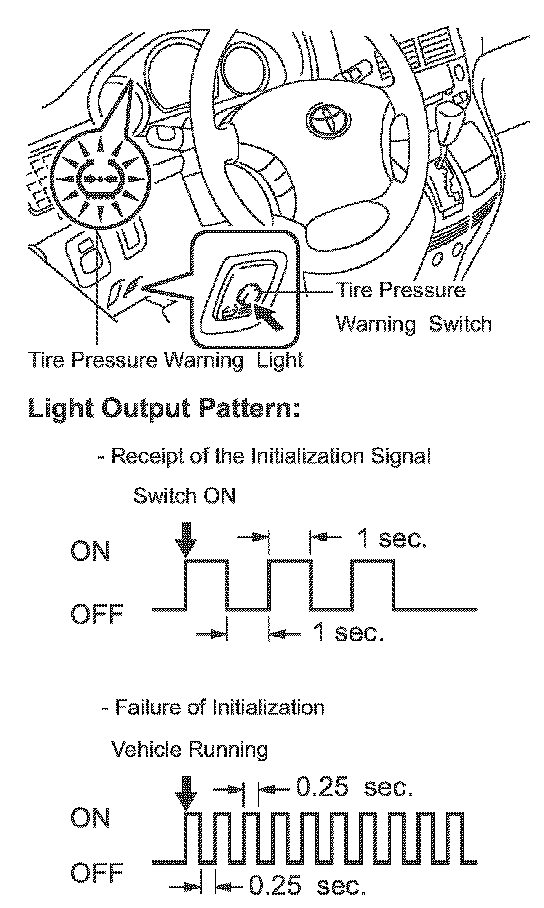

c. Press the tire pressure warning switch until the tire pressure warning light blinks 3 times at a 1 second interval. (Continue pressing the tire pressure warning switch for approximately 3 to 4 seconds.) (Receipt of the initialization signal.)

HINT: When the tire pressure warning light does not blink, perform initialization again. (with the ignition switch off, perform the procedure above starting at procedure B.)

d. Drive the vehicle and speed it up at 30 km/h (19 mph) or more, and then initialize when the skid control ECU to its initial condition. (It takes about 0.5 to 1.0 hour to complete the initialization depends on.)

HINT: If the tire pressure warning light blinks at 0.25 second intervals while the vehicle is being driven, the initialization may be failed, so perform the initialization again. (Turn the ignition switch OFF and retry from procedure B.)

e. After initialization, the skid control ECU monitors the decrease of the tire air pressure.
