Canada - Body - Power Liftgate Initialization Procedure

Bulletin
TSB2342

Issue Date
2005-09-14

Market
Canada

Title
INITIALIZATION OF POWER BACK DOOR DURING PDS

Component
GENERAL INFORMATION

Models
'06 Sienna

As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the power back door will be inoperative due to loss of the power back door position memory stored in the microcomputer.

Initialize the power back door after installing the Short Pin in its original location during Pre--Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, initialize the power back door after reconnecting the battery terminal.

APPLICABLE VEHICLES:






- 2006 model year Sienna vehicles.





WARRANTY INFORMATION:

INITIALIZATION PROCEDURE:





1. Fully close the power back door.
2. Check that the power back door will fully open and fully close.

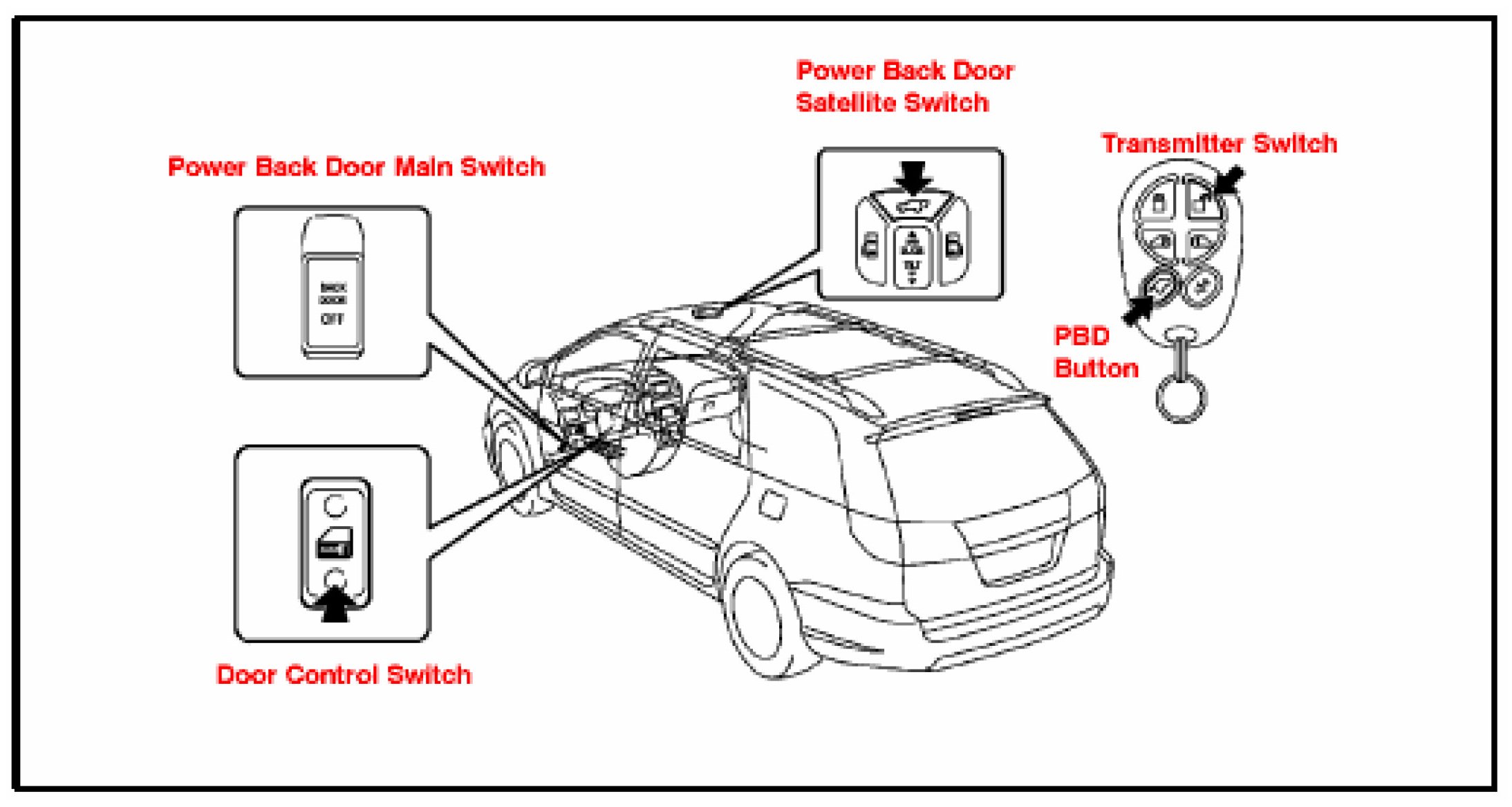

A. Unlock the power back door using the transmitter switch or the door control switch.
B. Turn the ignition switch to the "OFF" position.
C. Check that the power back door main switch is in the "ON" position.

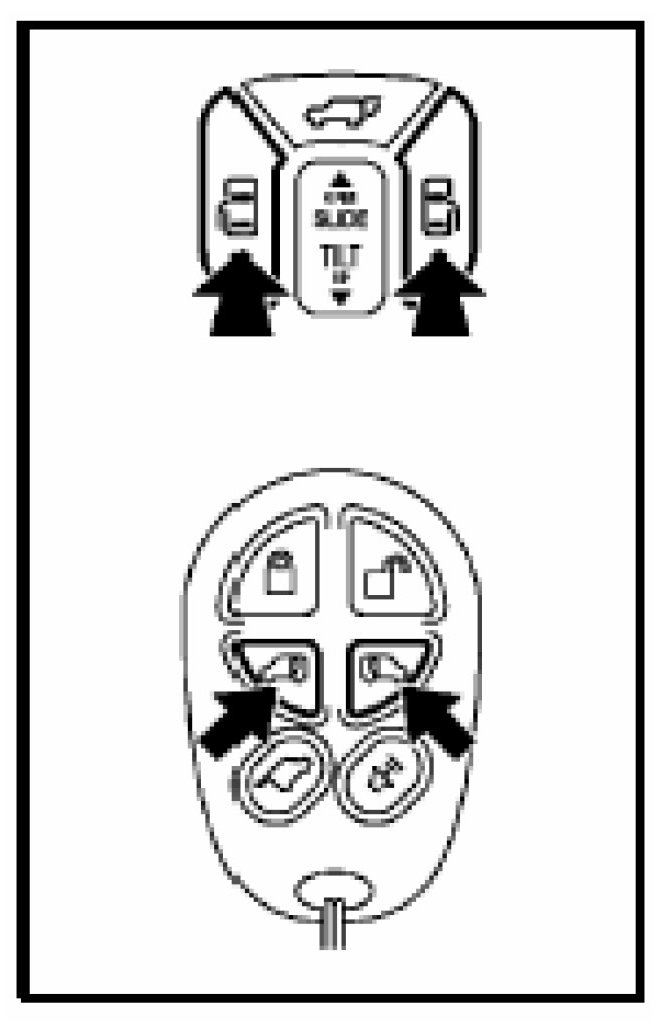

D. Check that the back door will fully open and fully close by pushing the power back door satellite switch or PBD button briefly.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
