Oil Pan, Engine

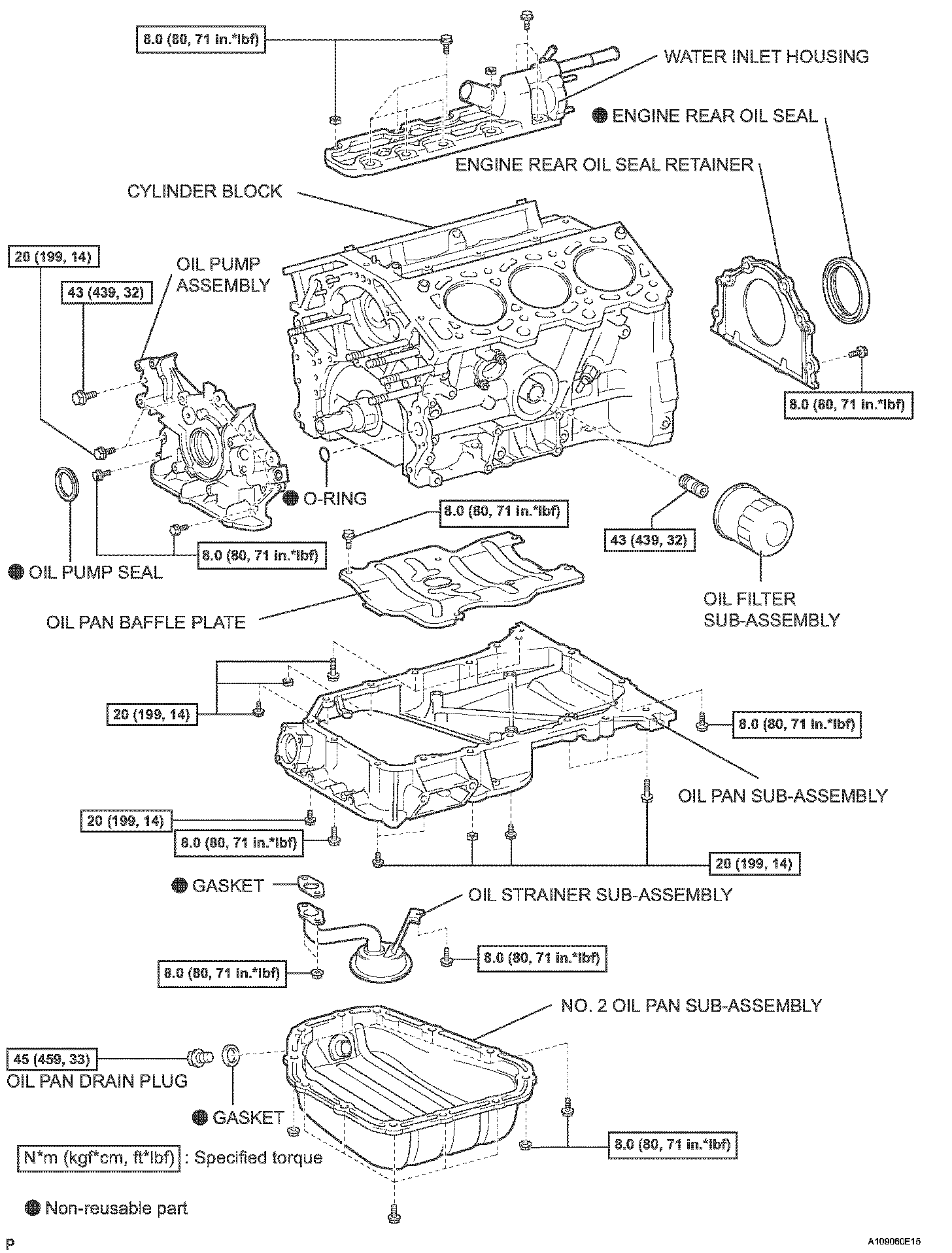

Components:

Oil Pan
INSTALL OIL PAN SUB-ASSEMBLY
Install the No. 1 oil pan with the 17 bolts and the 2 nuts. Tighten the bolts uniformly in several steps.
Torque:
8.0 Nm (82 kgf-cm, 71 inch lbs.) for 10 mm head
20 Nm (199 kgf-cm, 14 ft. lbs.) for 12 mm head
37 Nm (379 kgf-cm, 27 ft. lbs.) for 14 mm head
INSTALL NO. 2 OIL PAN SUB-ASSEMBLY
Install the No. 2 oil pan with the 10 bolts and the 2 nuts.
Torque 8.0 Nm (82 kgf-cm, 71 inch lbs.)
