Manual Up / Down And Auto Down Function Does Not Operate On Passenger Side Only
Manual Up / Down and Auto Down Function does not Operate on Passenger Side Only DESCRIPTION If the manual UP/DOWN function does not operate, the
power window motor, the regulator switch or the wire harness may be malfunctioning.

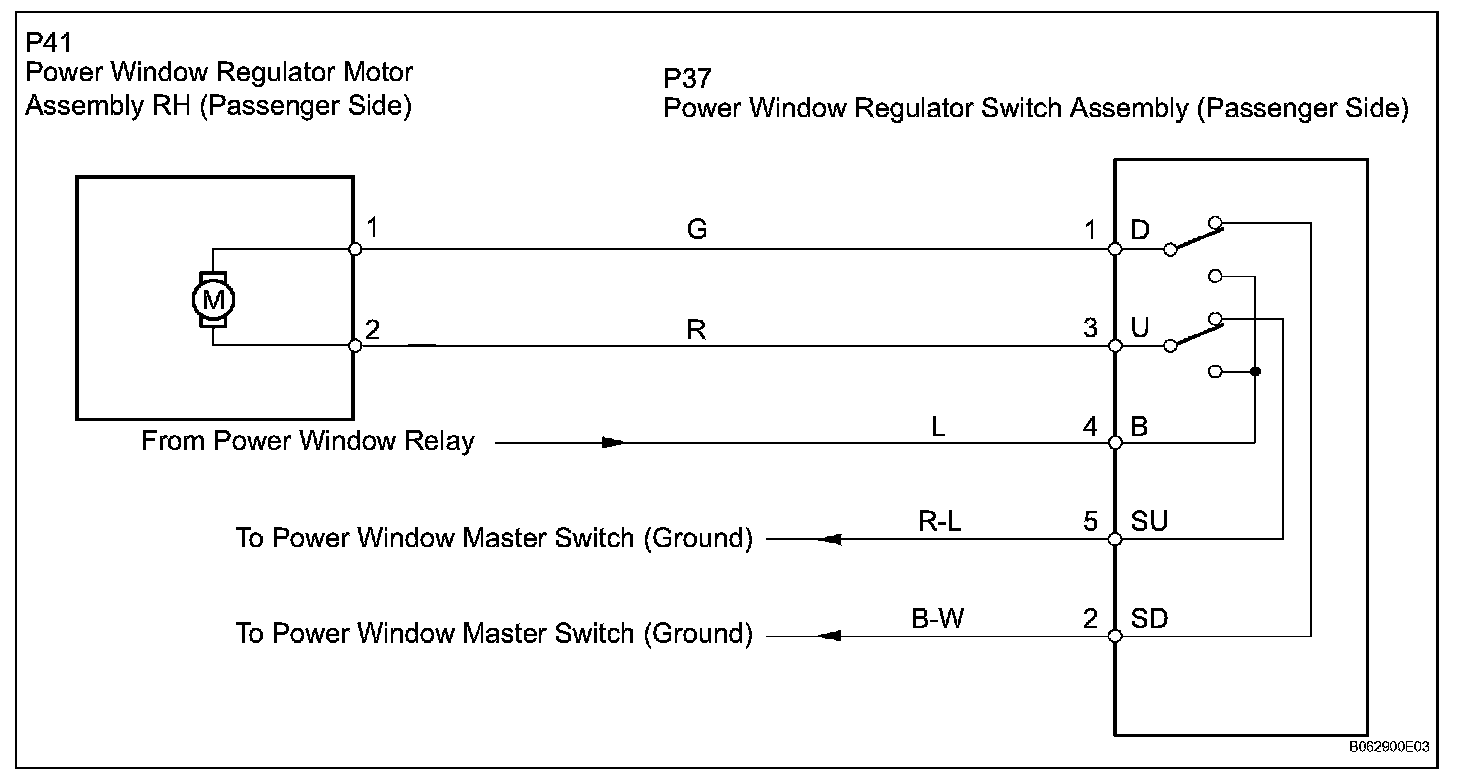

Wiring Diagram:

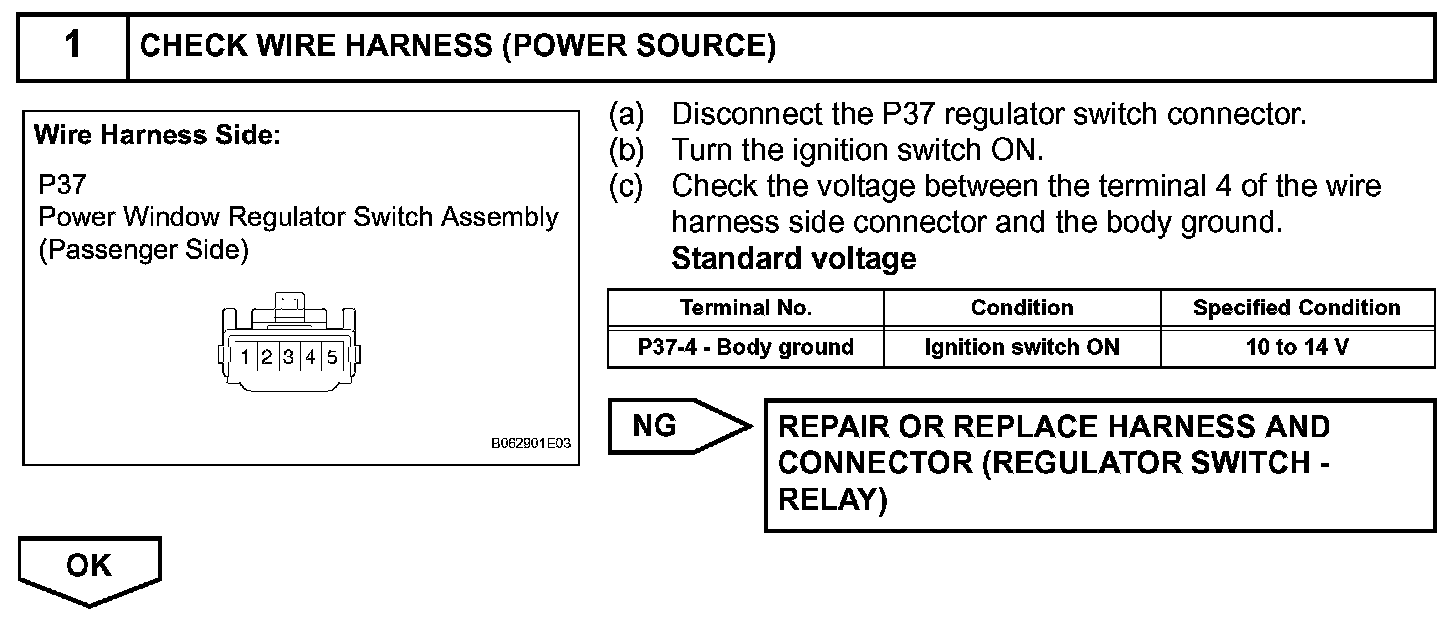

Step 1:

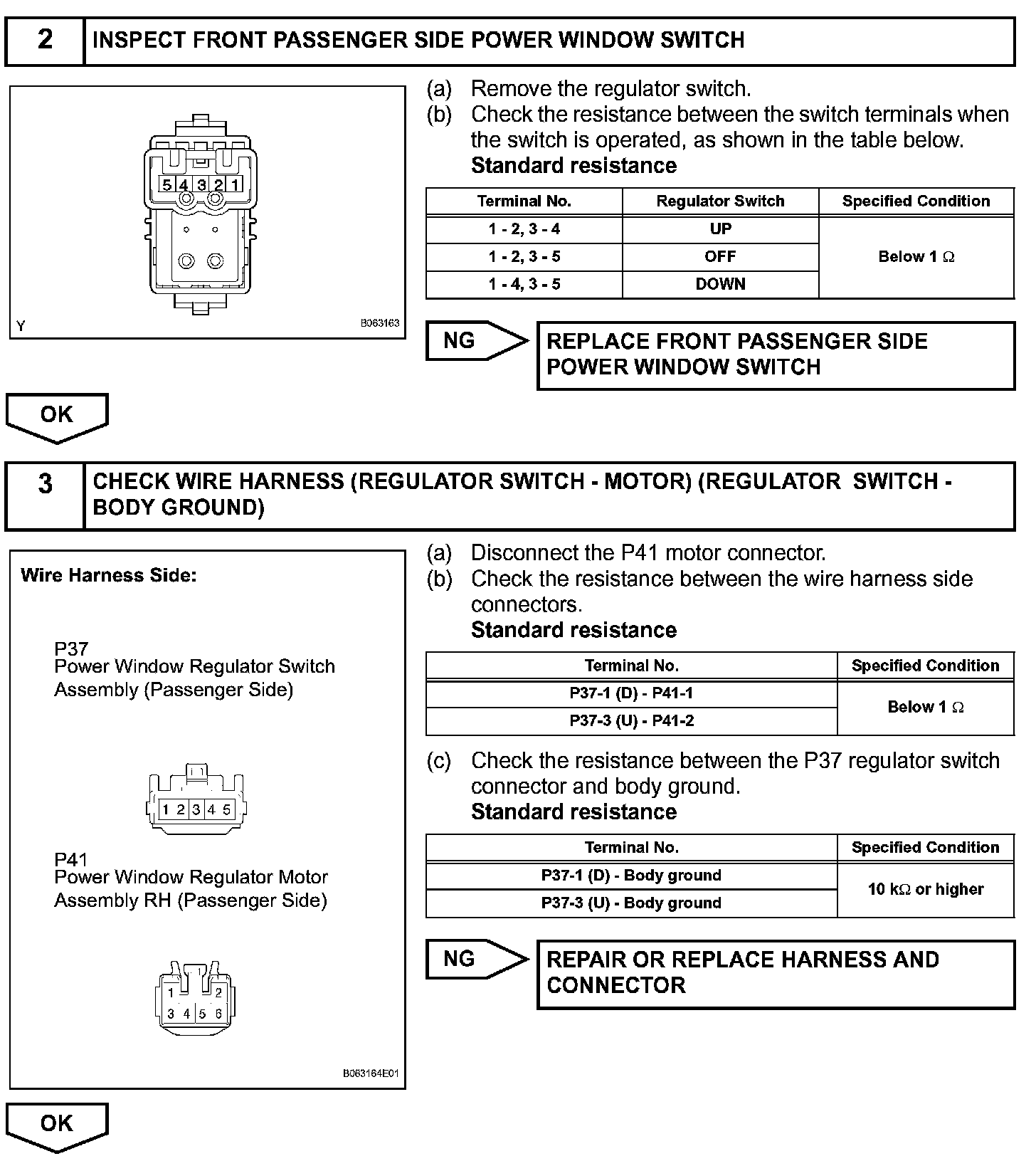

Step 2-3:

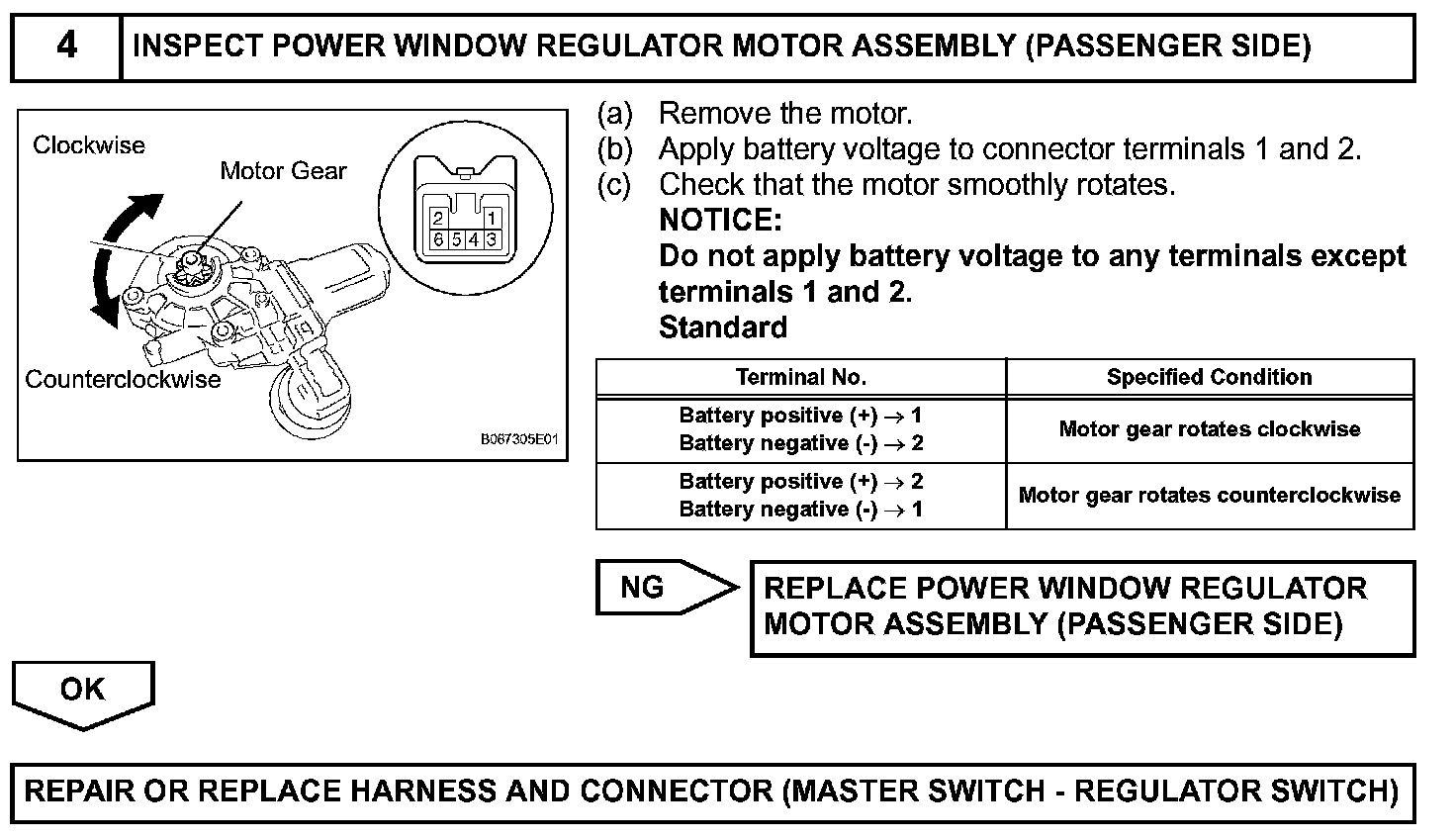

Step 4:
INSPECTION PROCEDURE
