Air Conditioning Panel Assembly

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
6. REMOVE COMBINATION METER ASSEMBLY
7. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
10. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY




11. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY

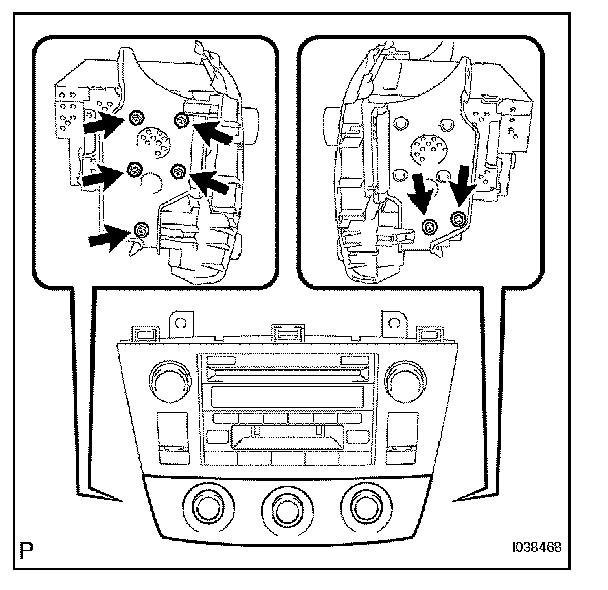

a. Remove the 4 bolts, 3 screws and air conditioning panel sub-assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY
2. INSTALL CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (w/o Navigation System)
3. INSTALL CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (w/ Navigation System)
4. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
6. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
7. INSTALL COMBINATION METER ASSEMBLY
8. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
9. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY NO.1
10. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
11. INSTALL INSTRUMENT PANEL FINISH PLATE
12. INSTALL INSTRUMENT CLUSTER FINISH PANEL
