Check CAN Bus Line (CAN-L) For Short to +B
Check CAN Bus Line (CAN-L) for Short to +B DESCRIPTION A short to the +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 14 (CANL) of the
DLC3.

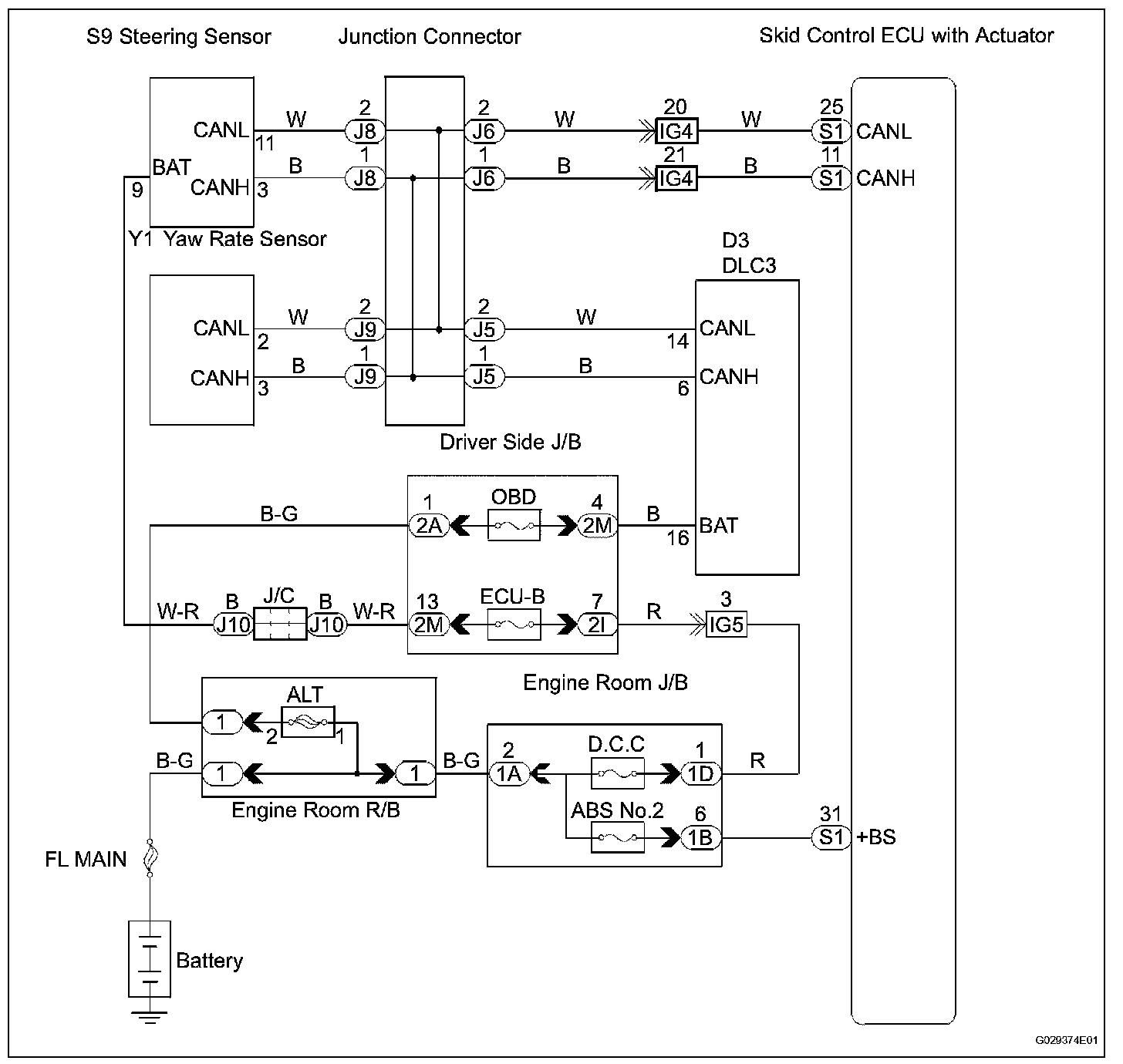

Wiring Diagram:

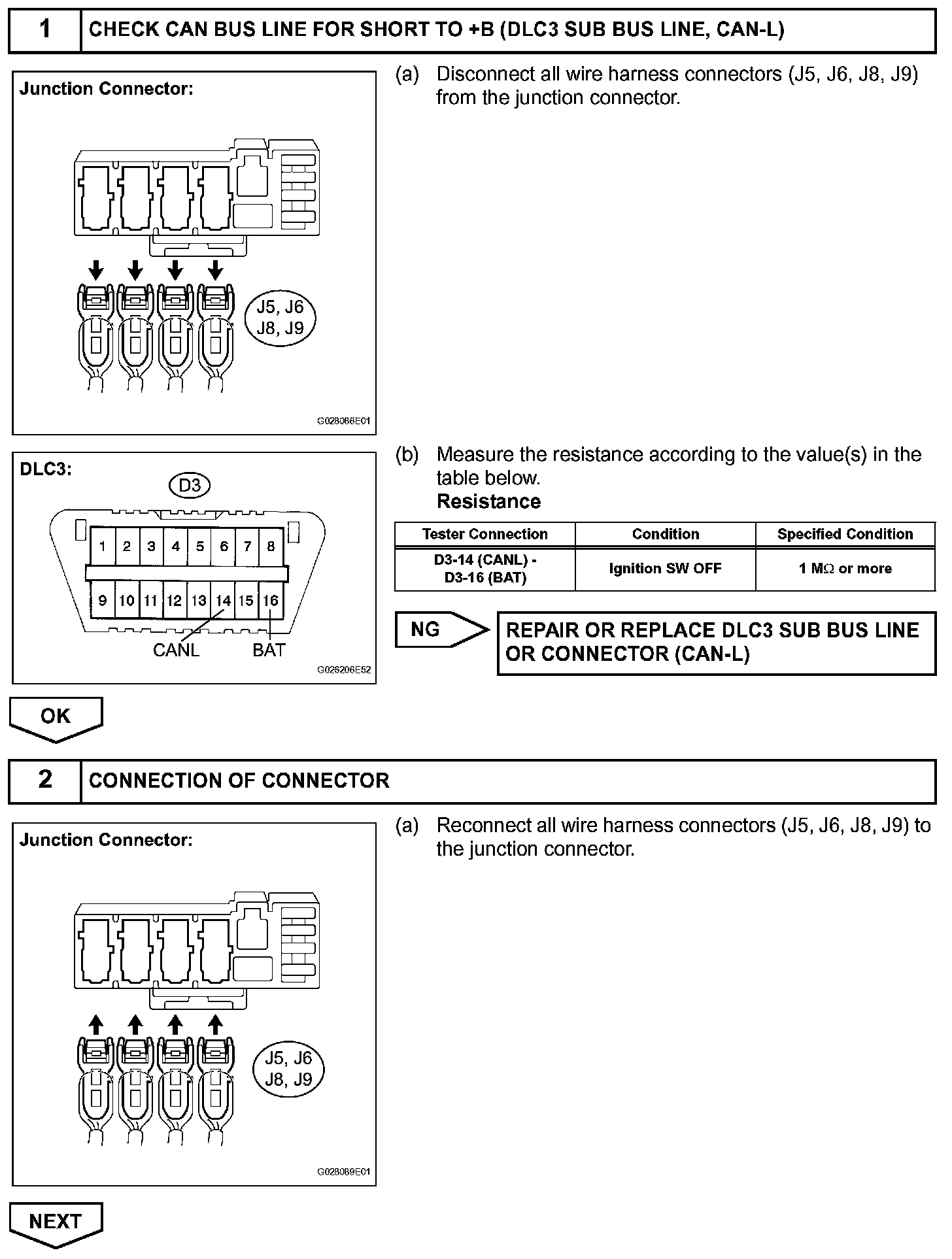

INSPECTION PROCEDUREStep 1-2:

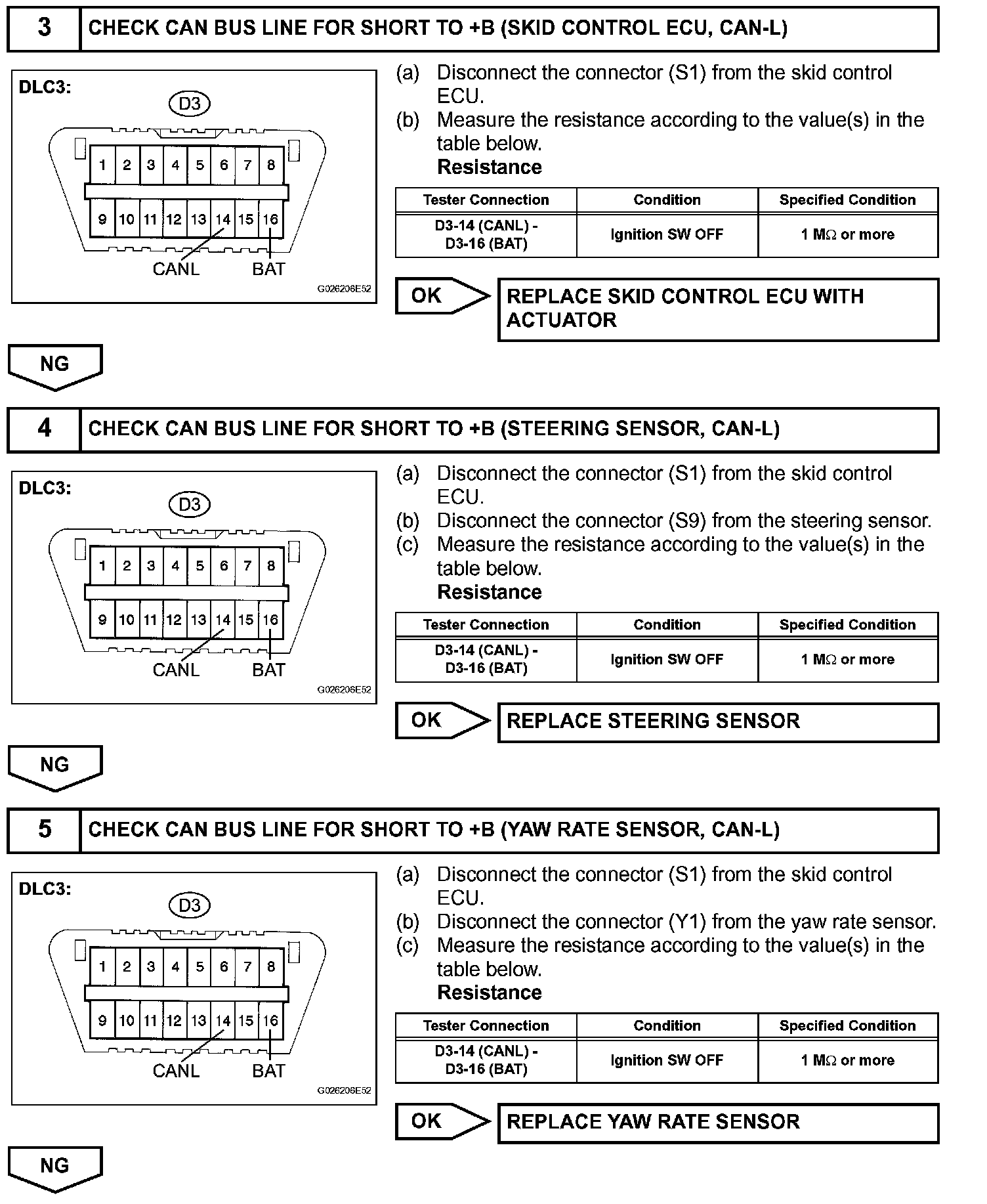

Step 3-5:

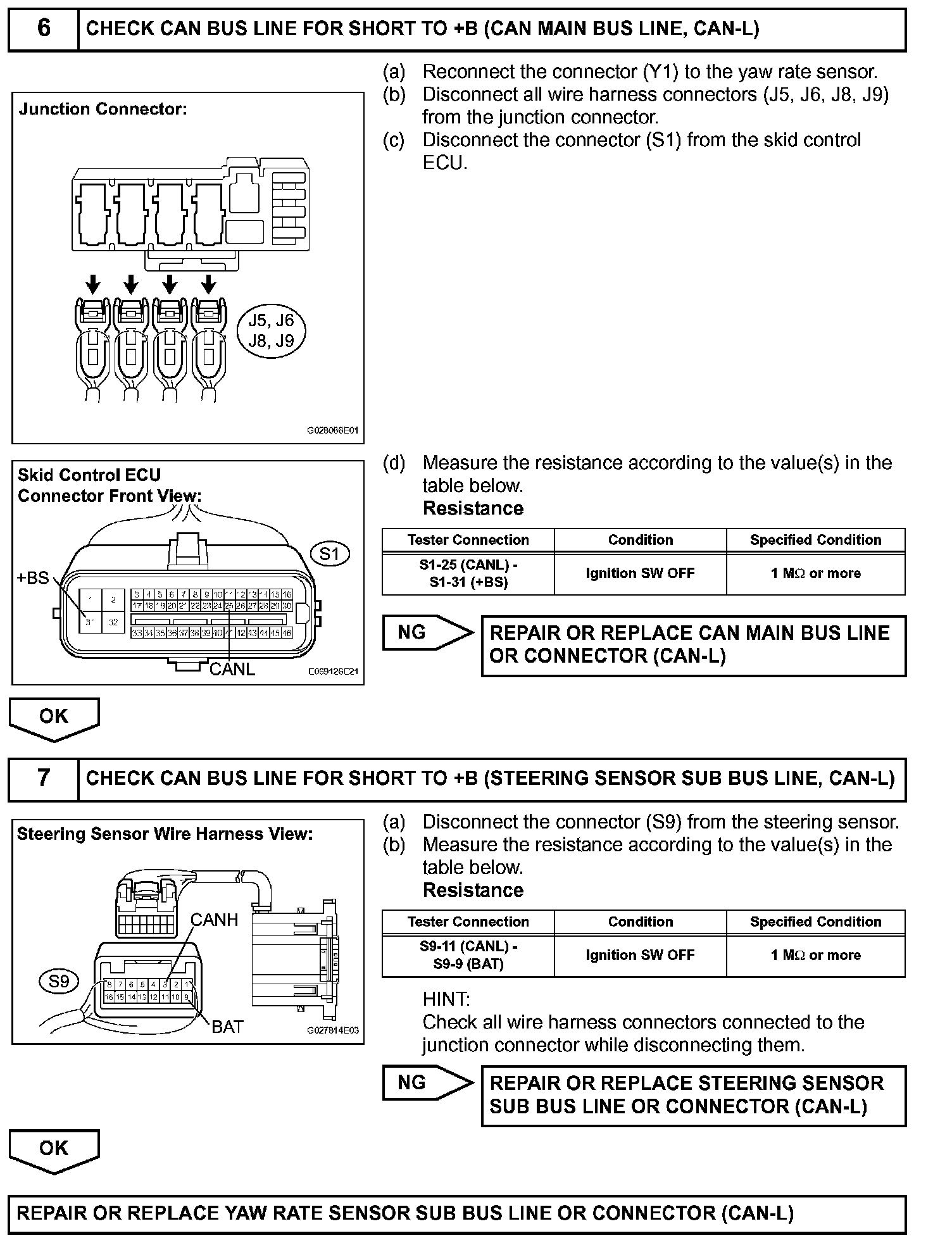

Step 6-7:
