Transmission Control Switch Circuit
Transmission Control Switch CircuitDESCRIPTION When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between 1 (first range) and 5 (fifth range).
Shifting up + once raises one shift range position, and shifting down - lowers one shift range position.

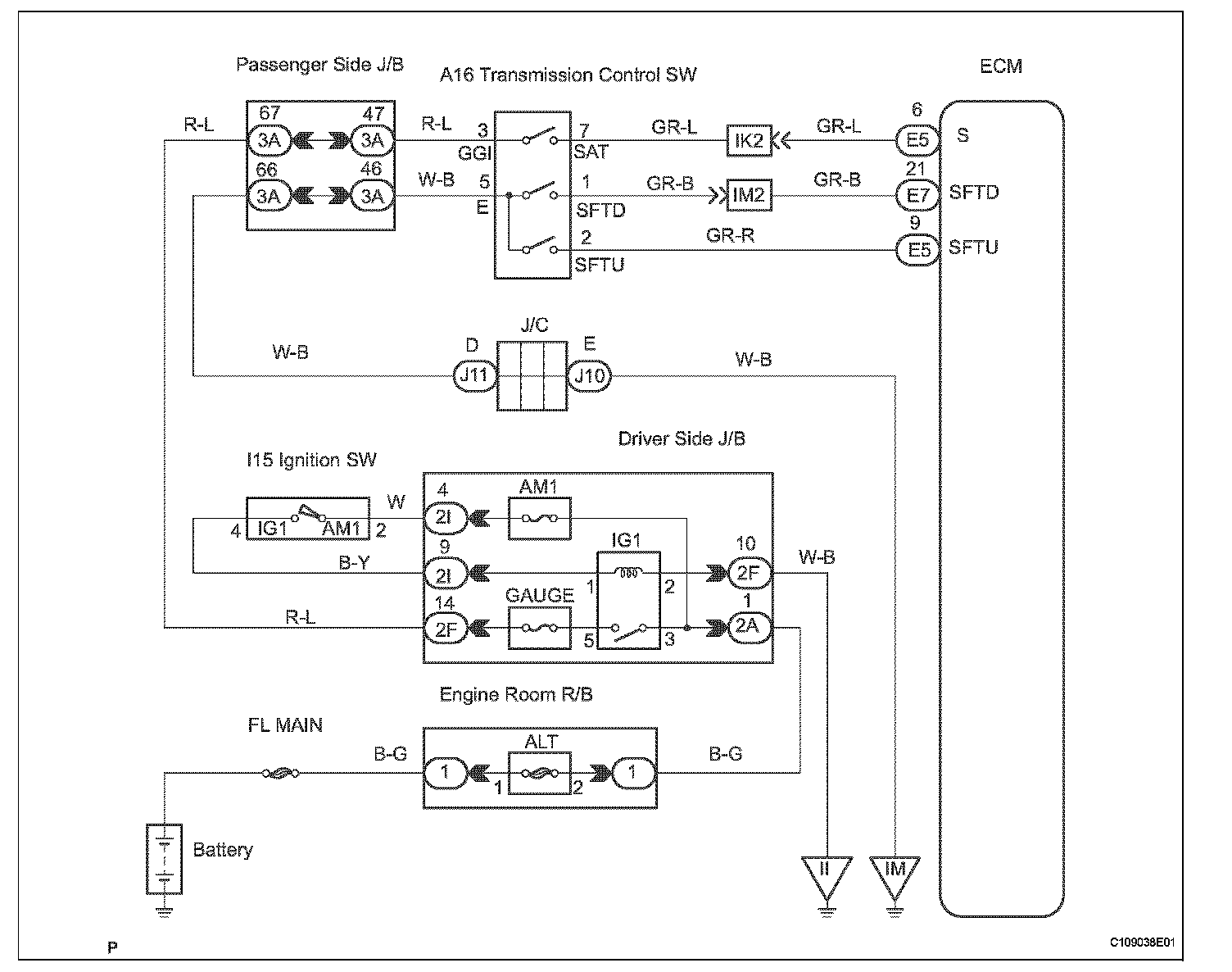

WIRING DIAGRAMWIRING DIAGRAM:
