Transmission Position Sensor/Switch: Service and Repair

PARK / NEUTRAL POSITION SWITCH

REMOVAL
1. REMOVE BATTERY
2. REMOVE ENGINE COVER NO.1 SUB-ASSEMBLY
3. REMOVE AIR CLEANER ASSEMBLY
4. REMOVE AIR CLEANER HOSE NO.1
5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY
6. REMOVE ENGINE UNDER COVER LH





7. DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT

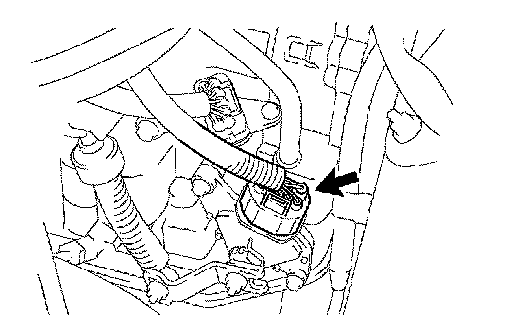

a. Disconnect the park/neutral position switch connector.

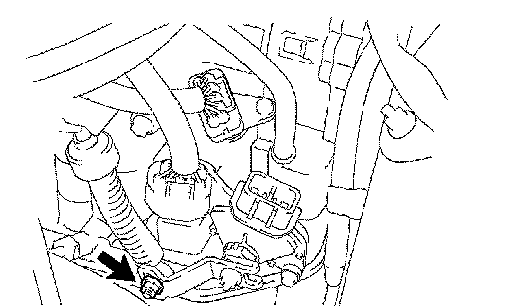

b. Remove the nut from the control shaft lever.
c. Disconnect the control cable from the control shaft lever.





d. Remove the clip and disconnect the control cable from the control cable bracket.

8. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY





a. Remove the nut, washer and control shaft lever.





b. Pry up the lock plate.





c. Remove the lock nut and lock plate.

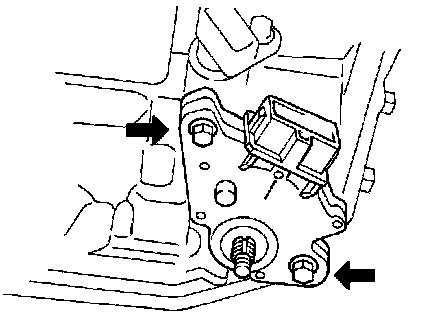

d. Remove the 2 bolts and pull out the park/neutral position switch.
