Transmission Position Sensor/Switch: Adjustments
ADJUSTMENT ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a.
Loosen the bolt of the park/neutral position switch and set the shift lever to the N position.
b.

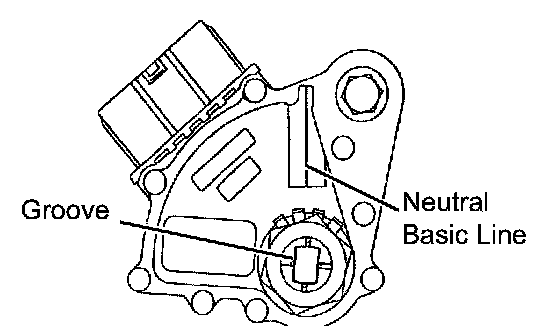

Align the groove and the neutral basic line.
c.
Hold the switch in position and tighten the bolt.
Torque:
13 Nm (130 kgf-cm, 9 ft. lbs.) d.
After making an adjustment, perform the inspection described in step 1.
