Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION
If the manual UP/DOWN function does not operate, the power window regulator master switch assembly, the power window regulator motor assembly or the wire harness may be malfunctioning.

Wiring Diagram:

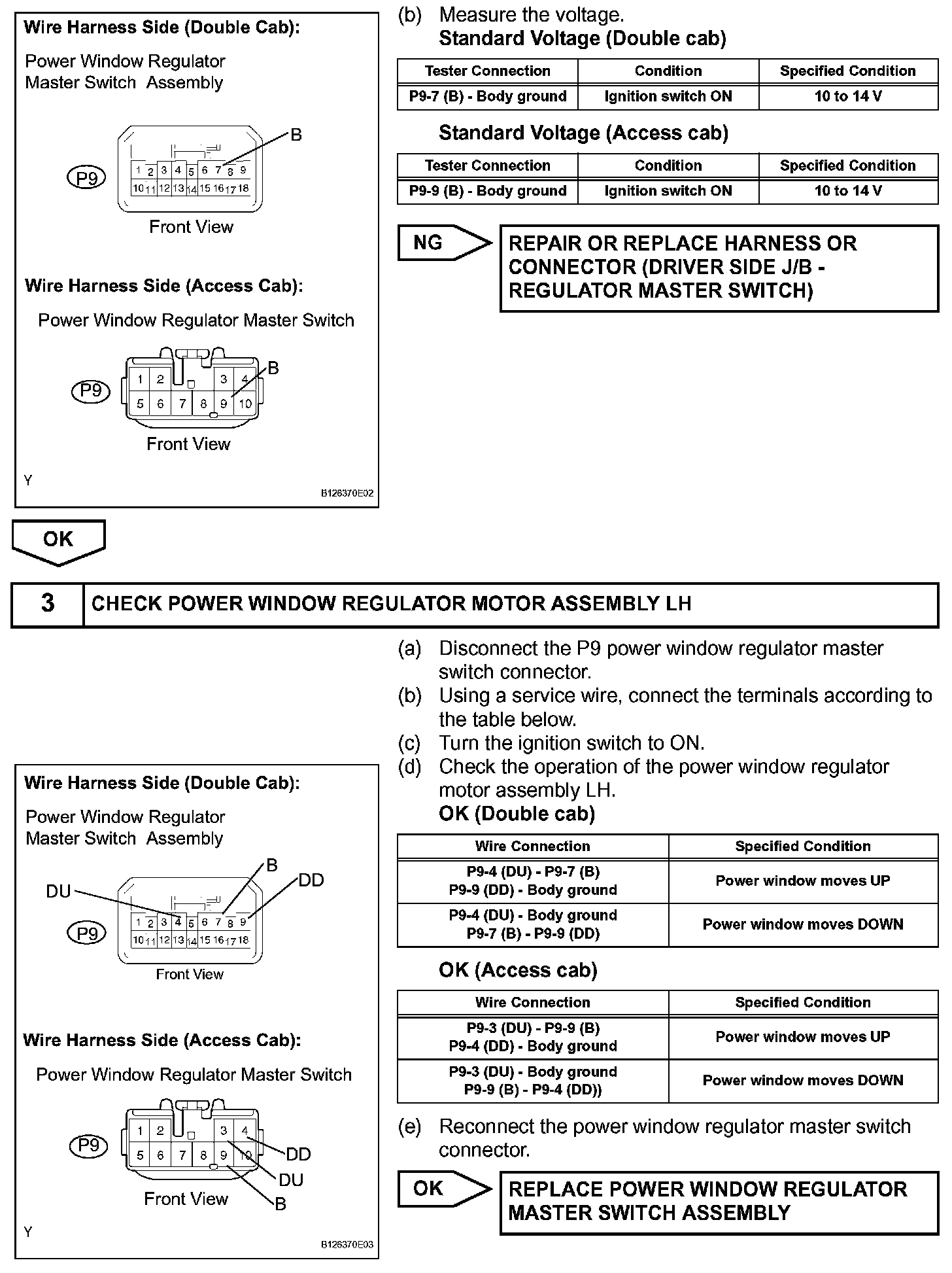

Step 1-2:

Step 2(Continued)-3:

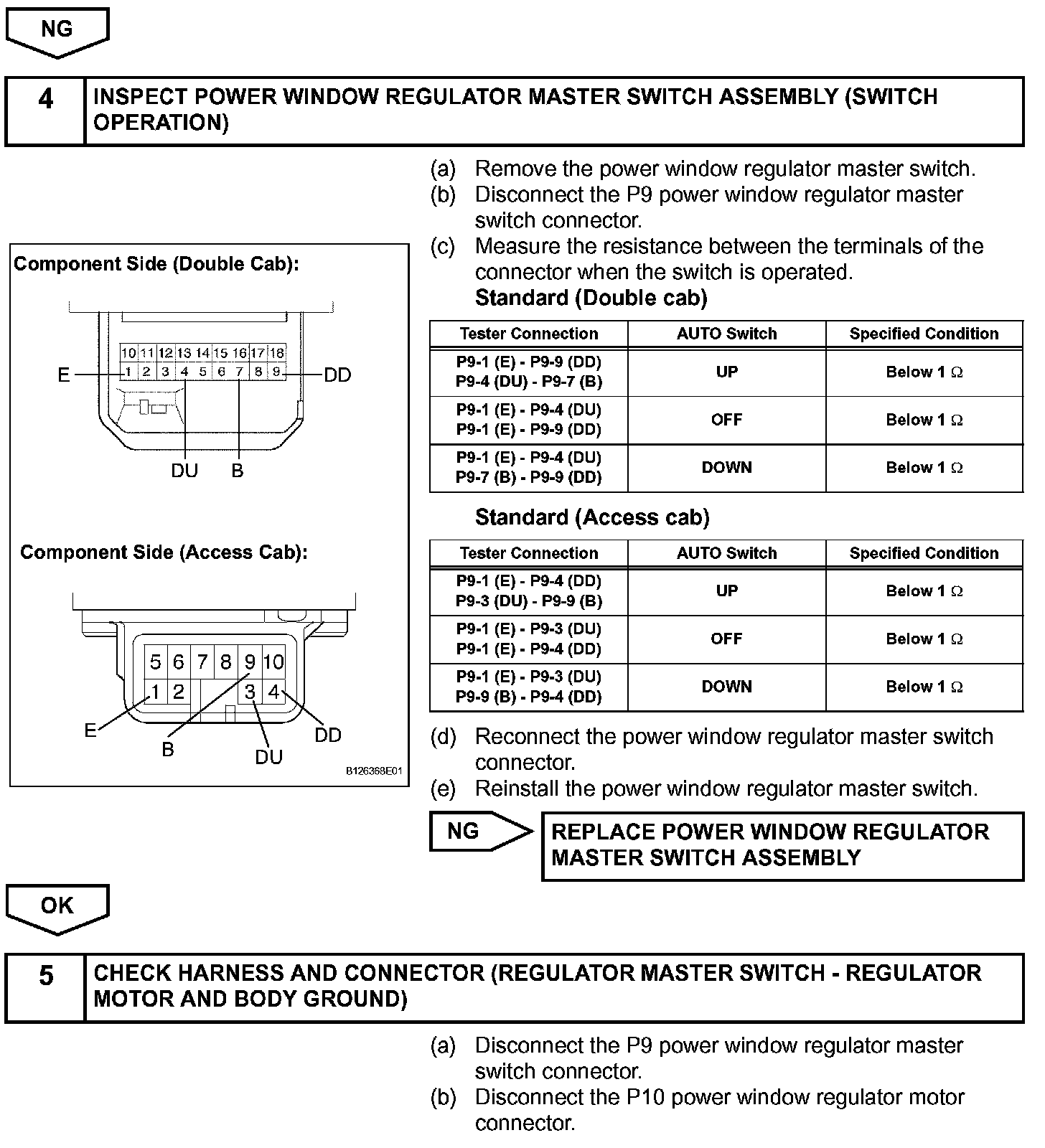

Step 3(Continued)-5:

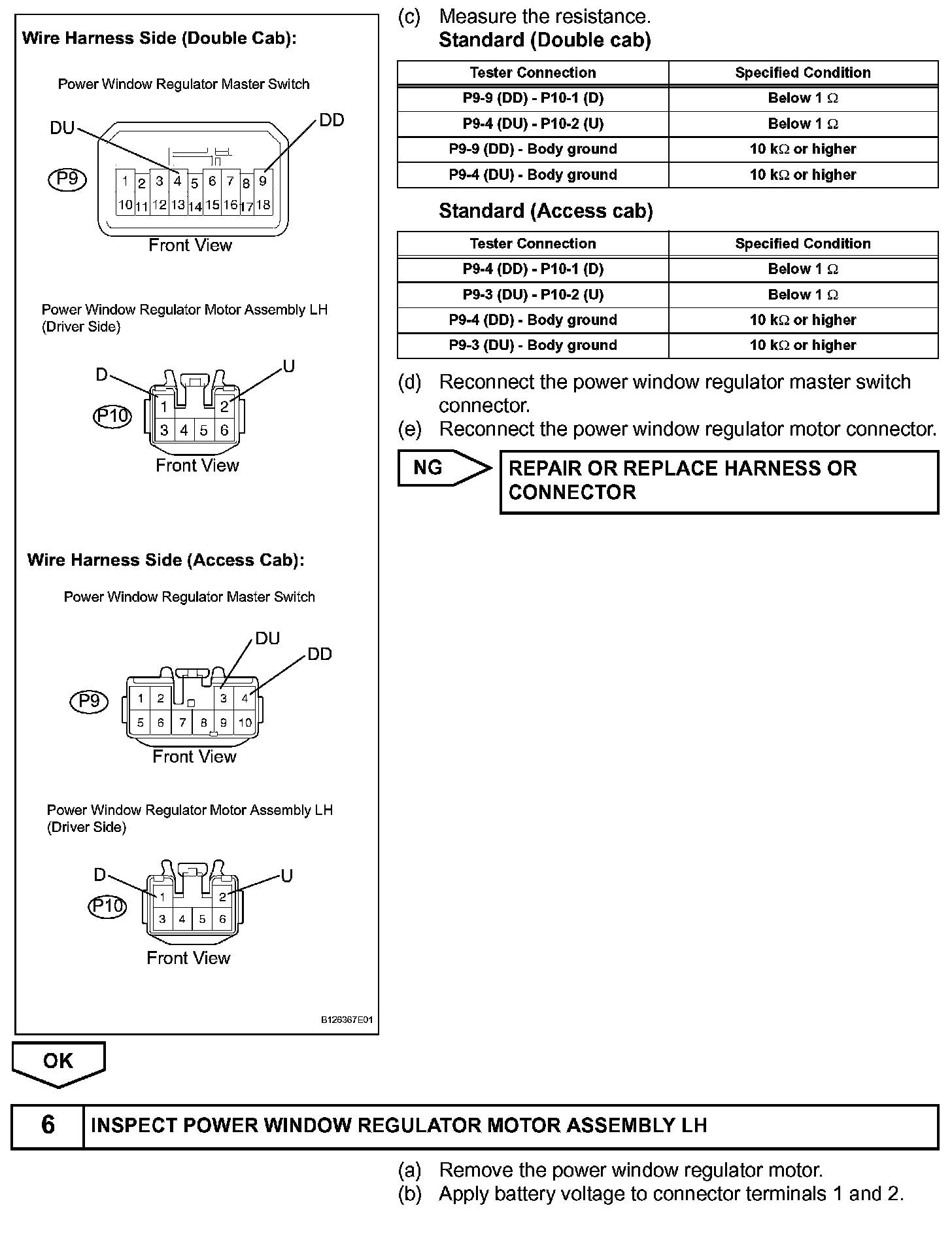

Step 5(Continued)-6:

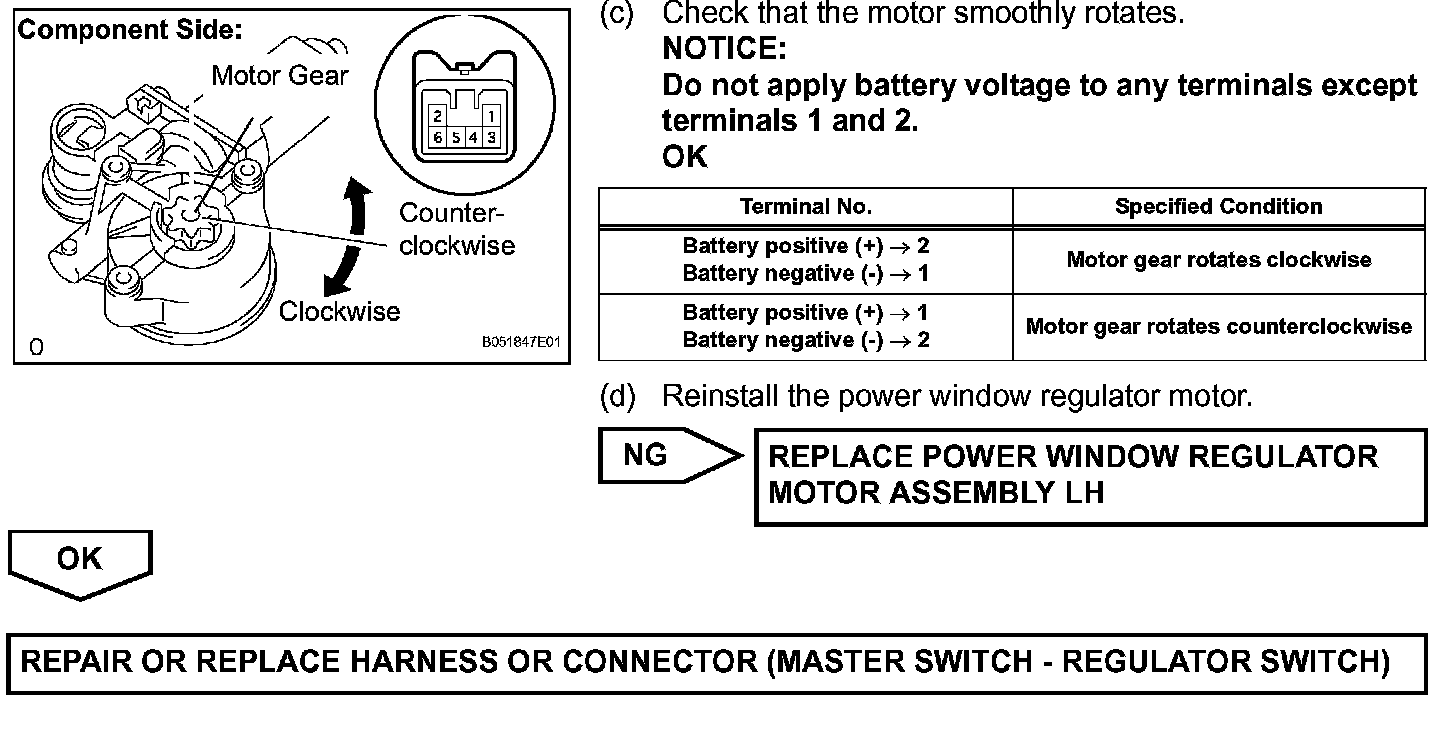

Step 6(Continued):

INSPECTION PROCEDURE
