Air-Fuel Ratio Sensor
AIR FUEL RATIO SENSORREMOVAL
1. DISCONNECT CABLE FROM BATTERY NEGATIVE TERMINAL

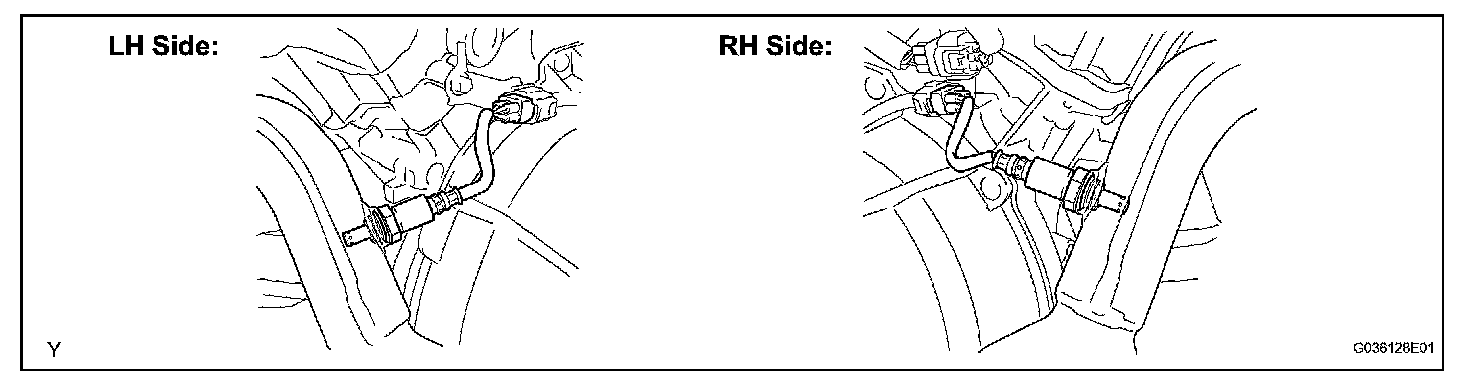

2. REMOVE AIR FUEL RATIO SENSOR
a. Disconnect the 2 air fuel ratio sensor connectors.
b. Remove the 2 air fuel ratio sensors from the exhaust manifold.
INSTALLATION
1. INSTALL AIR FUEL RATIO SENSOR

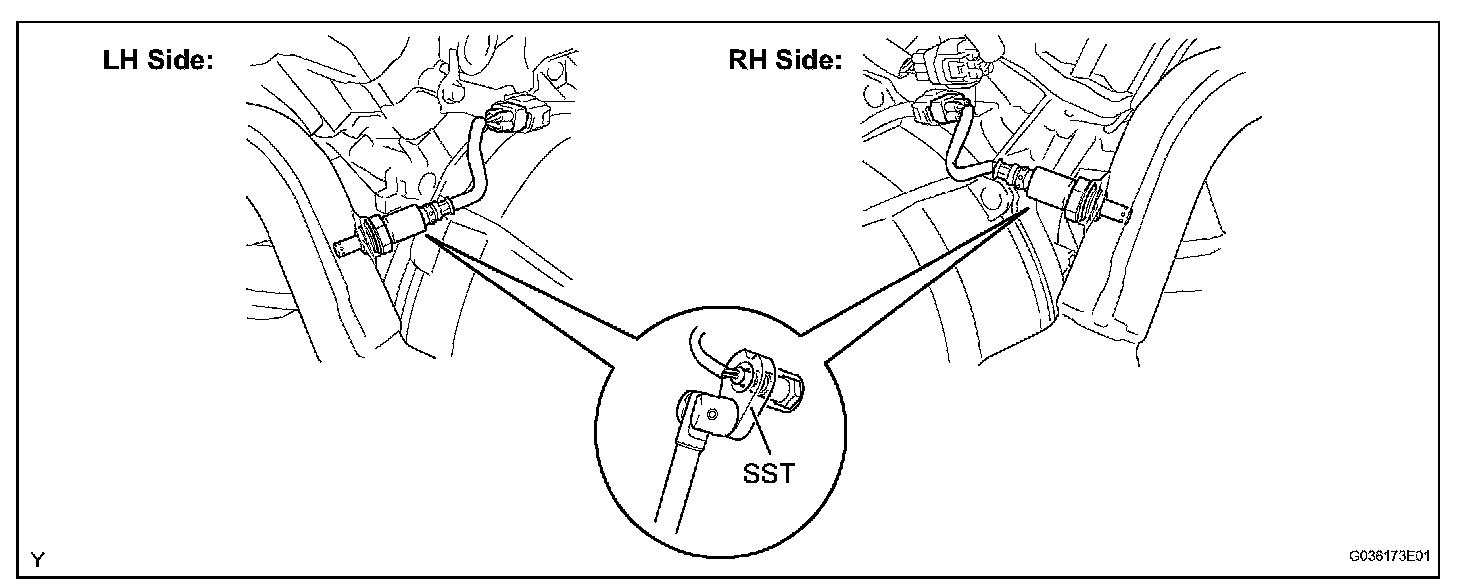

a. Using SST, install the 2 air fuel ratio sensors onto the exhaust manifold.
SST 09224-00010
Torque: 44 N.m (449 kgf.cm, 33 ft.lbf)
b. Connect the 2 air fuel ratio sensor connectors.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
3. CHECK FOR EXHAUST GAS LEAKAGE
